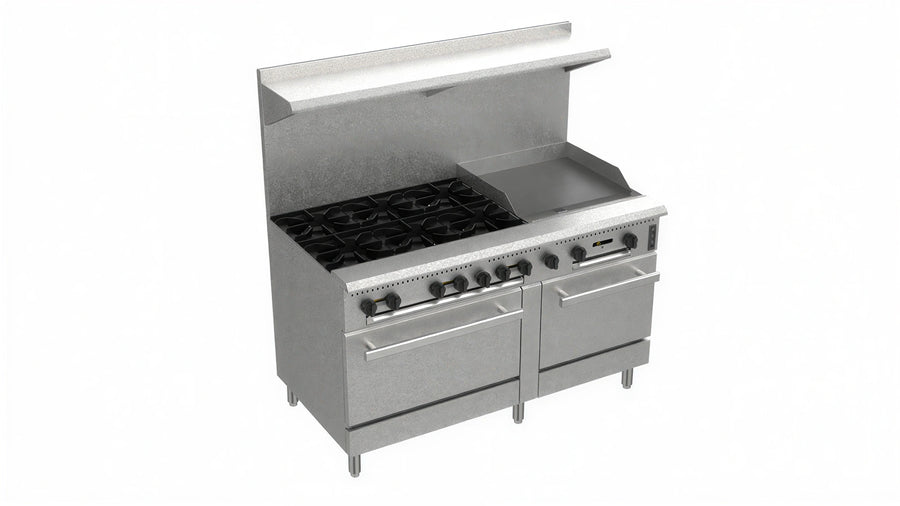

Venancio USA Prime PRM60G-ST 60" Gas Range with 6 Open Burners, 24" Griddle, 2 Standard Ovens, Manual Controls

SKU: PRM60G-ST
$5,197.05
/each Configurable
Enter ZIP for a shipping estimate

Want to speak to an expert?

The PRM60G-ST is a 60-inch commercial gas range with six open burners, a 24-inch fully welded griddle, and two standard ovens.

  • Six open burners with cast iron top grates and independent manual control valves.
  • Three-quarter-inch polished griddle plate with a splash guard and grease trough.
  • Two standard ovens with one rack and three rack positions per oven.
  • Stainless steel front and sides, accessible front-panel pilots, and a removable crumb tray.
  • Six-inch adjustable legs and a backriser with hi-shelf.

Overall Dimensions:

60.0"W x 35.0"D x 62.5"H

Product Weight:

871.0 lb

Open burners

Six open burners use cast iron top grates and independent manual control valves.

Manual controls

The range uses manual controls with accessible pilots through the front panel.

Griddle

The 24-inch griddle has a fully welded 3/4-inch polished plate, splash guard, and grease trough.

Standard ovens

Two standard ovens are provided, with one rack and three rack positions per oven.

Oven construction

The ovens have double-sided enamel cavities and counterweight-balanced doors.

Stainless steel exterior

The range has stainless steel front and sides, plus a removable crumb tray.

Vent assembly

The unit includes a backriser with hi-shelf.

Adjustable legs

Six-inch adjustable legs are included.

Configuration 60 in gas range with 6 open burners, 24 in griddle, and 2 standard ovens
Control Type Manual controls
Top Grates Cast iron
Burner Controls Independent manual control valves
Griddle Width 24 in
Griddle Plate Thickness 3/4 in (0.750 in)
Griddle Construction Fully welded
Oven Rack Configuration 1 rack and 3 rack positions per oven
Oven Cavity Double-sided enamel
Oven Door Counterweight balanced
Oven Thermostat 210°F to 550°F snap-action thermostat
Oven Safety 100% safety shutoff
Oven Depth 26 1/2 in standard bakery depth
Exterior Finish Stainless steel front and sides
Pilot Access Accessible through front panel
Grease and Crumb Management Grease trough and removable crumb tray
Vent Backriser with hi-shelf
Legs 6 in adjustable
Total Input 275,000 BTU
Gas Type Natural gas or propane gas
Gas Connection 3/4 in NPT rear connection
Gas Regulator Included
Manifold Pressure 4 in W.C. natural gas; 10 in W.C. propane gas

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor warranty for the Prime Range Line.

Frequently Asked Questions

It has six open burners with cast iron top grates and independent manual control valves.
The unit includes a 24-inch fully welded griddle with a 3/4-inch polished plate, splash guard, and grease trough.
The range has two standard ovens. Each oven includes one rack and has three rack positions.
It has a 3/4-inch NPT rear gas connection and is specified for natural gas or propane gas.
The listed dimensions are 60 inches wide, 35 inches deep, and 62.5 inches high.
The Prime Range Line warranty is one year for parts and labor, effective from the original purchase date.
