Key specifications

Amps
13.0-14.0 Amps
Phase
3-Phase
Dimensions
22.2"W × 39.5"D × 48.7"H
Type
Meat Grinder
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Univex SKU: MG32

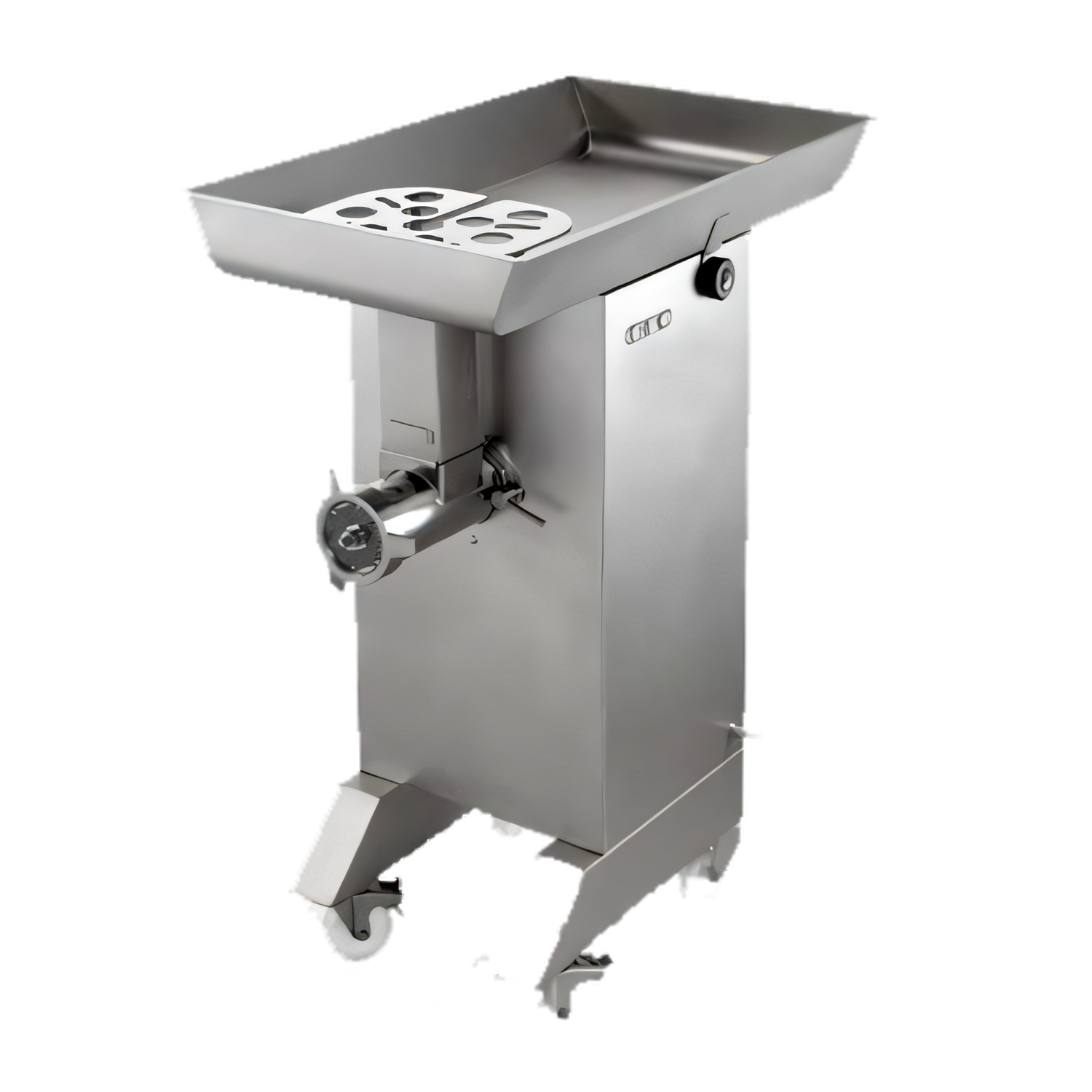

Univex MG32 Floor Model Meat Grinder, 2,425 lb/hr

$11,214.00
/each
Estimated to ship in 11–14 business days Free Shipping
Included: Univex warranty One year of on-site parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,037/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Meat Grinder
Installation Type Floor Model
Material Stainless Steel
Capacity 2,425 lb/hr
Drive Type Gear Driven
Motor Power 4 HP
Plate Size 3/16 in (4.5 mm)
Knife Type Self-Sharpening
Voltage 208/240 Volts
Amps 13.0-14.0 Amps
Hertz 60 Hz
Phase 3-Phase
Plug Type NEMA L15-20P
Net Weight 198 lb
Weight 223 lb

Description

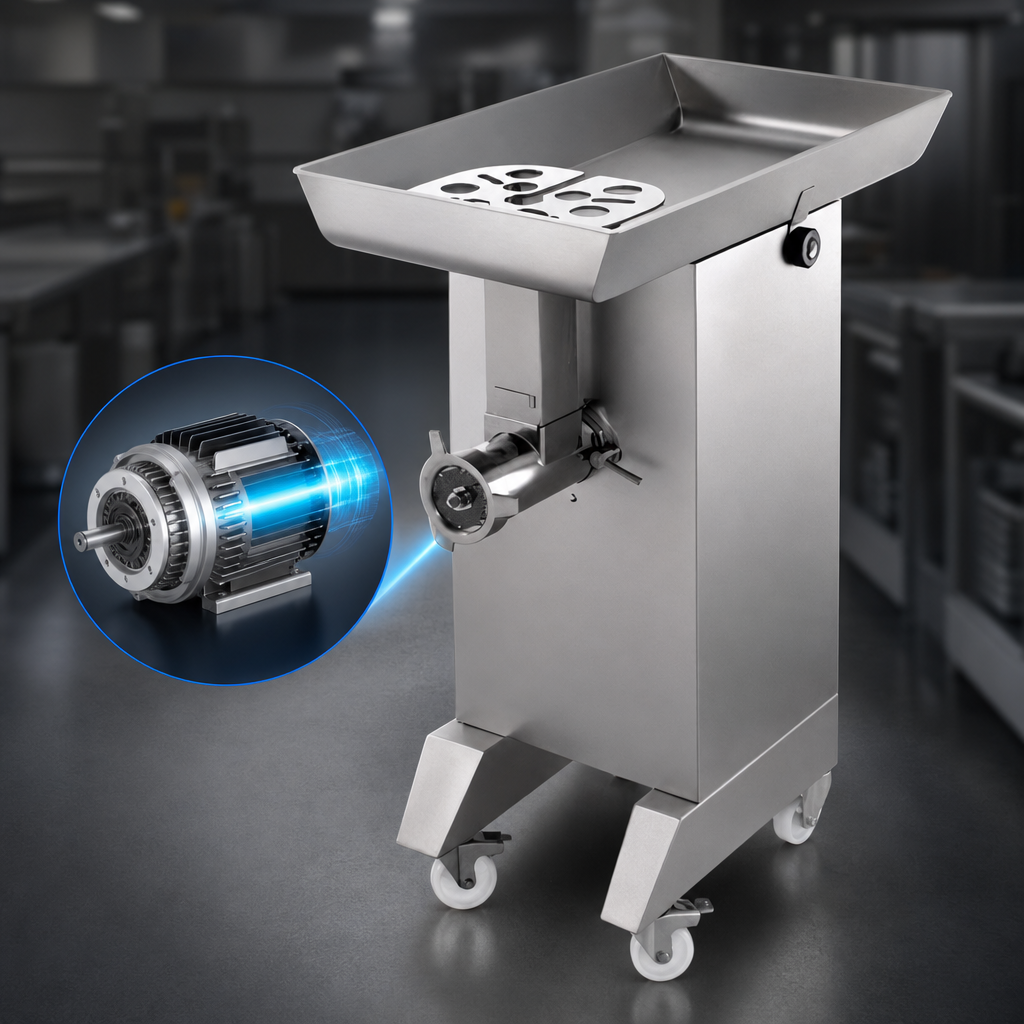

The Univex MG32 is a floor-model meat grinder with stainless steel construction, a gear-driven 4 HP three-phase motor, and production capacity up to 2,425 lb/hr.

  • Features an oil-bath, water-protected gearbox and a large feeding hopper with a safety microswitch.
  • The grinding set is quickly disassembled for cleaning and sanitation.
  • Standard accessories include a 3/16 in (4.5 mm) plate, self-sharpening knife, product pusher, and worm and plate removal tool.

Overall Dimensions:

22.2"W x 39.5"D x 48.7"H

Product Weight:

223.0 lb

Gear-Driven Operation

Oil-bath, water-protected gearbox supports the grinder's gear-driven operation.

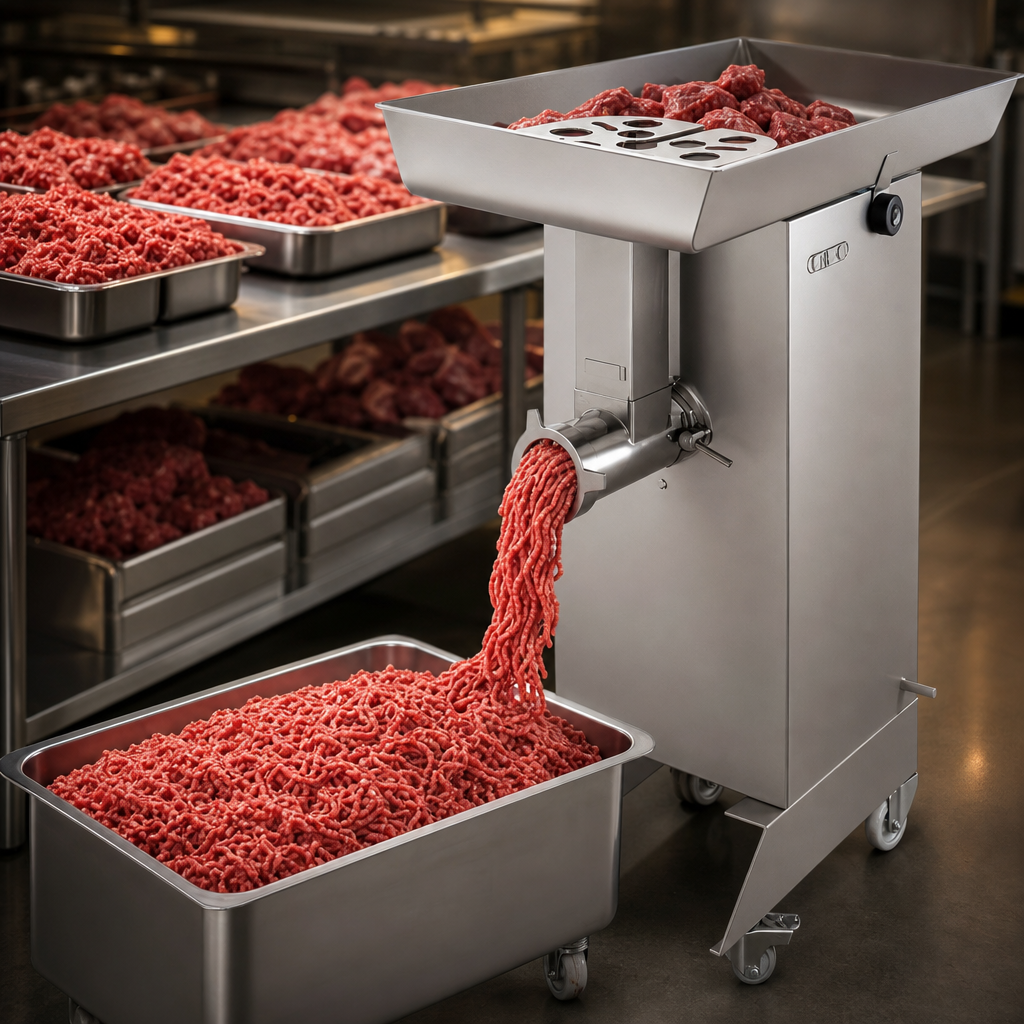

High-Output Grinding

Rated for production capacity up to 2,425 lb/hr.

Stainless Steel Construction

The grinder is constructed of stainless steel.

Quick-Disassembly Grinding Set

The grinding set quickly disassembles for cleaning and sanitation.

Safety Microswitch

The large feeding hopper includes a safety microswitch.

Standard Grinding Accessories

Includes a 3/16 in (4.5 mm) standard plate, self-sharpening knife, product pusher, and worm and plate removal tool.

Frequently Asked Questions

The MG32 has capacity up to 2,425 lb/hr.
It requires 208/240 Volts, 60 Hz, 3-phase service, draws 13.0-14.0 Amps, and uses an NEMA L15-20P plug.
Standard accessories include a 3/16 in (4.5 mm) plate, self-sharpening knife, product pusher, and worm and plate removal tool.
The product measures 22.2 in wide, 39.5 in deep, and 48.7 in high.
The MG32 has a one-year warranty covering on-site parts and labor.
