Key specifications

Amps
10.0-8.4 Amps
Phase
1-Phase
Dimensions
22.0"W × 35.0"D × 21.0"H
Type
Meat Grinder
Style
Bench Style
Installation Type
Countertop
Spec sheet
Univex SKU: MG22

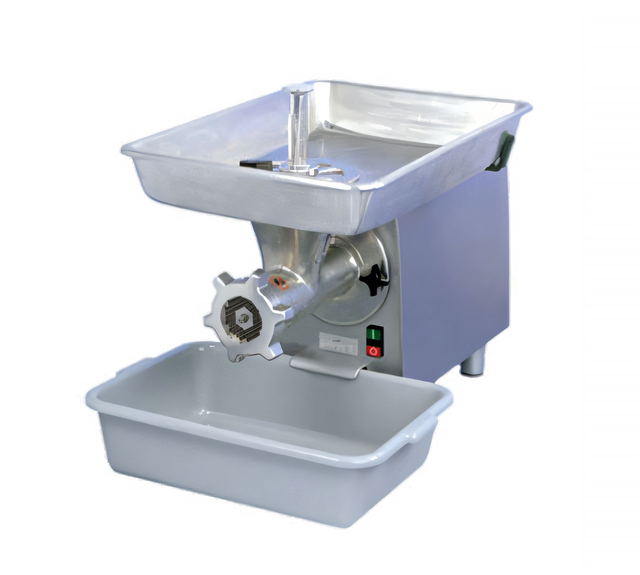

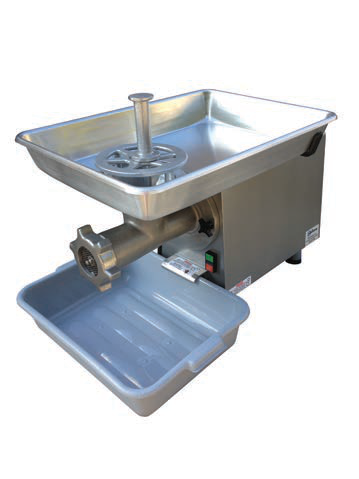

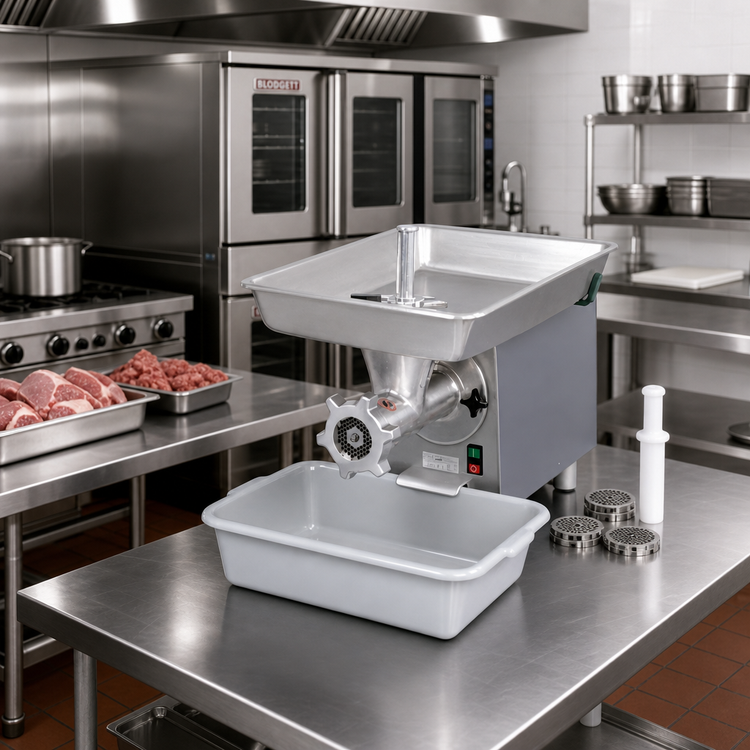

Univex MG22 Bench Meat Grinder with #22 Hub

$4,419.60
/each
Estimated to ship in 6–9 business days
Electrical115 V
Included: Univex warranty One year, on-site parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $409/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Meat Grinder
Style Bench Style
Installation Type Countertop
Material Aluminum
Country of Origin USA
Attachment Hub #22
Pan Capacity 23.5 Quarts
Feed Pan Size 17 x 25 Inches
Production Rate Approximately 25 lb per minute
Grinding Plate Size 3/16 Inch
Knife Size #22
Motor Power 1 HP
Drive Type Gear Driven
Controls Momentary Contact Start/Stop Push Button
Voltage 115 Volts
Amps 10.0-8.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P

Description

The Univex MG22 is a bench-style, gear-driven meat grinder with a #22 attachment hub and 1 HP motor.

  • Grinds approximately 25 lb per minute on the first grind with the supplied 3/16-inch plate.
  • Features an aluminum feed pan and housing with a 23.5-quart feed pan capacity.
  • Includes a #22 knife, plastic meat container, feed stomper, and cleaning brush.
  • Standard electrical specification is 115 V, 1 phase, 60 Hz, with a NEMA 5-15P plug.

Overall Dimensions:

22.0"W x 35.0"D x 21.0"H

Product Weight:

158.0 lb

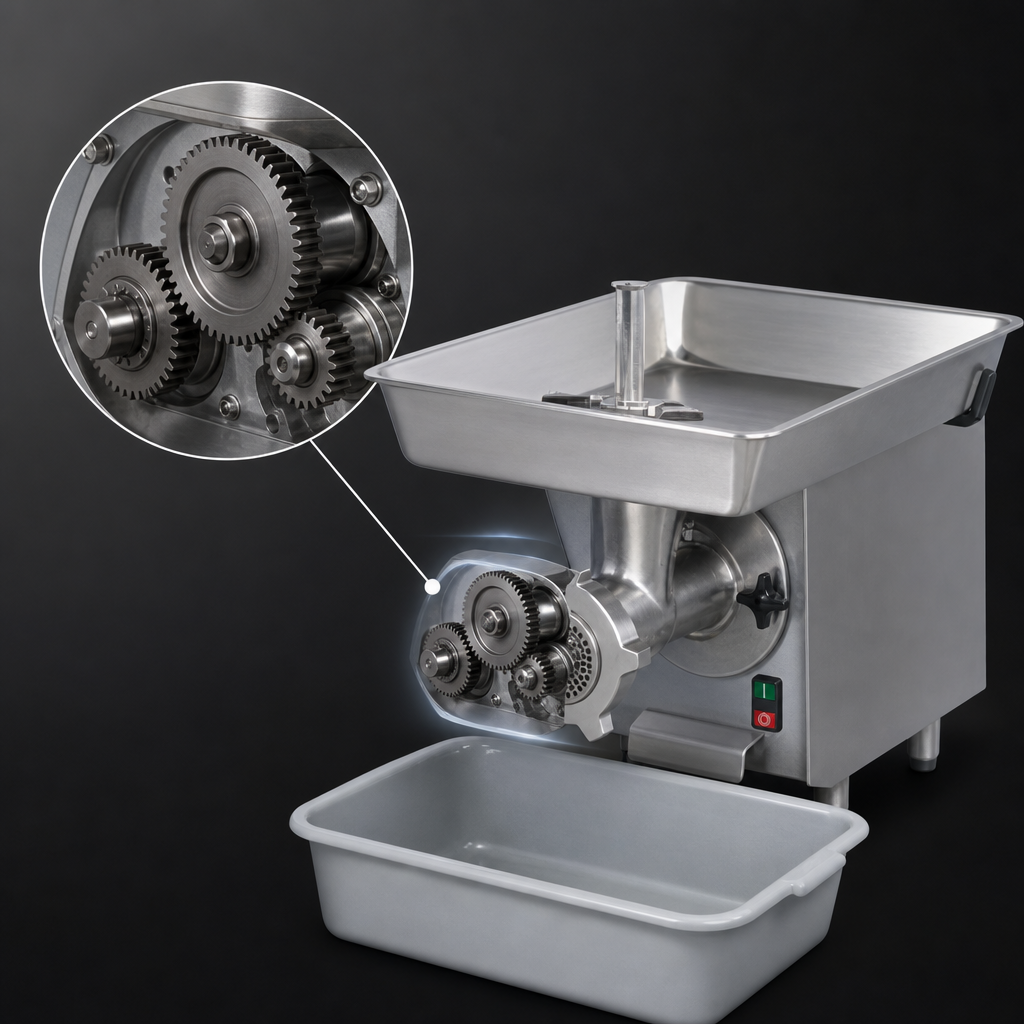

Gear-Driven Transmission

The grinding worm is directly coupled to the gear motor output shaft.

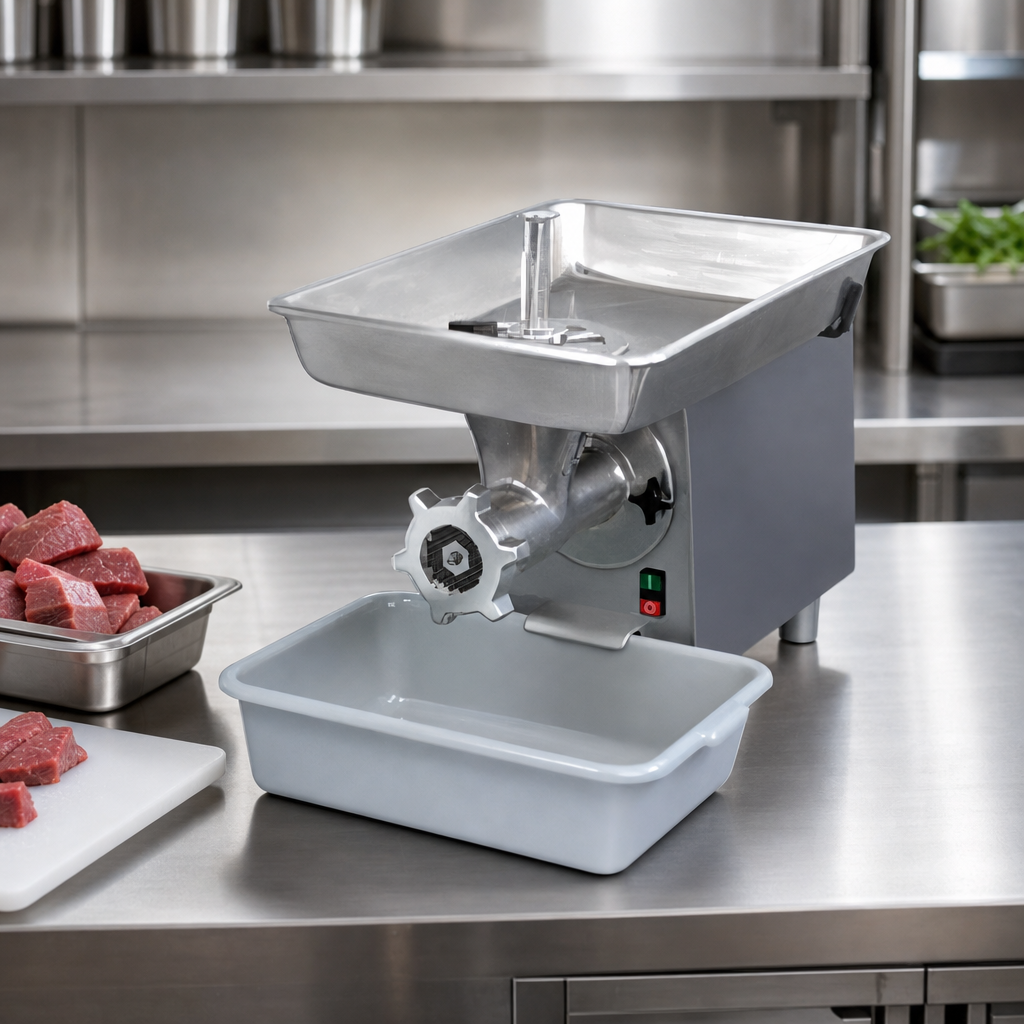

Bench-Style Design

The MG22 is identified as a bench-style meat grinder.

#22 Grinding System

Accepts industry-standard #22 plates and knives.

Grinding Rate

Grinds approximately 25 lb per minute on the first grind with a 3/16-inch plate.

Feed Pan

The aluminum feed pan has a 23.5-quart capacity and measures 17 x 25 inches.

Included Items

Includes a 3/16-inch grinding plate, #22 knife, plastic meat container, feed stomper, and cleaning brush.

Start/Stop Controls

Uses a momentary-contact start/stop push button; a microswitch interlock prevents operation when the chopper is not properly mounted.

Frequently Asked Questions

The MG22 includes a 3/16-inch grinding plate and a #22 knife.
The feed pan capacity is 23.5 quarts.
The MG22 grinds approximately 25 lb per minute on the first grind with a 3/16-inch plate.
The standard electrical specification is 115 Volts, 1-Phase, 60 Hz, with a NEMA 5-15P plug and 10.0-8.4 Amps.
The MG22 includes a 3/16-inch grinding plate, #22 knife, plastic meat container, feed stomper, and cleaning brush.
The MG22 has a one-year, on-site parts and labor warranty.
