TurboChef (Middleby)

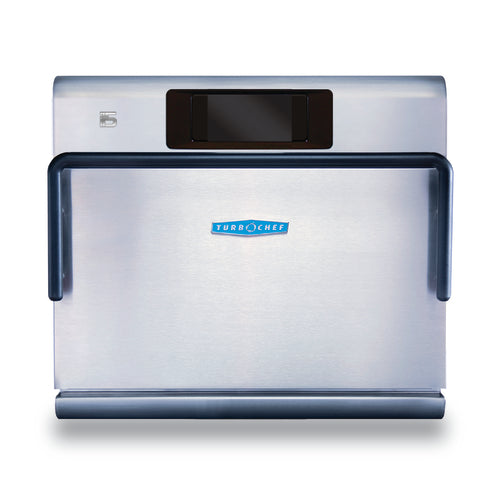

TurboChef i5 Touch Control DL 3-Phase Rapid Cook Ventless Countertop Microwave/Impingement Oven

SKU: I5-9500-814-DL
$23,768.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

TurboChef i5 Touch Control DL 3-Phase Rapid Cook Ventless Countertop Microwave/Impingement Oven

208/240V, 28.1-Inch Wide, Wi-Fi Touch Controls

This ventless rapid-cook oven pairs microwave and impingement heat with touchscreen control to deliver fast, repeatable results in a compact countertop footprint.

  • Ventless design with an internal catalytic converter supports installations without a traditional hood.
  • Wi-Fi-enabled touch controls and a digital display make operation and menu management simple.
  • Stores up to 200 recipes for consistent, repeatable cooking results.
  • Fully insulated cook chamber, top and bottom jet plates, and a multi-speed impingement blower help cook quickly and evenly.
  • Includes removable rack, grease collection pan, PTFE baskets, paddle, cleaner, guard, and sprayers.
  • 3-phase 208/240V electrical service with a 6-foot cord and NEMA 15-30P plug.

Overall Dimensions:

28.1"W x 28.25"D x 24.3"H

Product Weight:

330.0 lb

Ventless Catalytic Converter

Integral recirculating catalytic conversion system supports ventless operation and helps reduce smoke, grease, and odor emissions.

Wi-Fi Touch Controls

7-inch capacitive touch screen with digital display and Wi-Fi-enabled controls for simple operation, programmable menu management, and firmware updates via USB.

Recipe Memory

Stores up to 200 recipes to help kitchens standardize cooking and speed up service.

Rapid-Cook Heating System

Microwave, impingement, and convection cooking work together with top and bottom jet plates and a multi-speed blower for fast, even results.

Fully Insulated Cook Chamber

The insulated cavity helps retain heat and support efficient cooking performance.

Easy-Clean Components

Removable rack, removable grease collection pan, and accessible air filter simplify daily maintenance.

Smart Voltage Sensor Technology

U.S. models include smart voltage sensing to help monitor incoming power conditions.

Stackable Design

The oven can be stacked when used with the required stacking stand.

Type Microwave, Impinged & Convection
Style Rapid Cook
Installation Type Countertop
Controls Capacitive Touch
Capacity 2.2 Cubic Feet
Material Stainless Steel
Interior Finish 304 Stainless Steel
Voltage 208/240 Volts
Amps 30 Amps
Watts 9.5/11.5 kW
Hertz 60 Hz
Phase 3-Phase
Plug Type NEMA 15-30P
Cord Length 6 Feet
Selling Unit Each
Units Per Case 1
Shipping Width 29 Inches
Shipping Depth 29 Inches
Shipping Height 25 Inches
Shipping Weight 330 lb.

Frequently Asked Questions

Yes. It uses an internal catalytic converter and is listed for ventless operation.
The oven requires 208/240 VAC, 60 Hz, 3-phase power with a 30 amp max circuit and a NEMA 15-30P plug.
It can store up to 200 recipes.
Standard accessories include two PTFE baskets, an aluminum paddle, oven cleaner, oven guard, two trigger sprayers, and a standard rack.
Yes. It is stackable, but a stacking stand is required.
The cook chamber is 10 inches high, 24 inches wide, and 16 inches deep with the door open or 14 inches deep with the door closed, for a volume of 2.2 cubic feet.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
