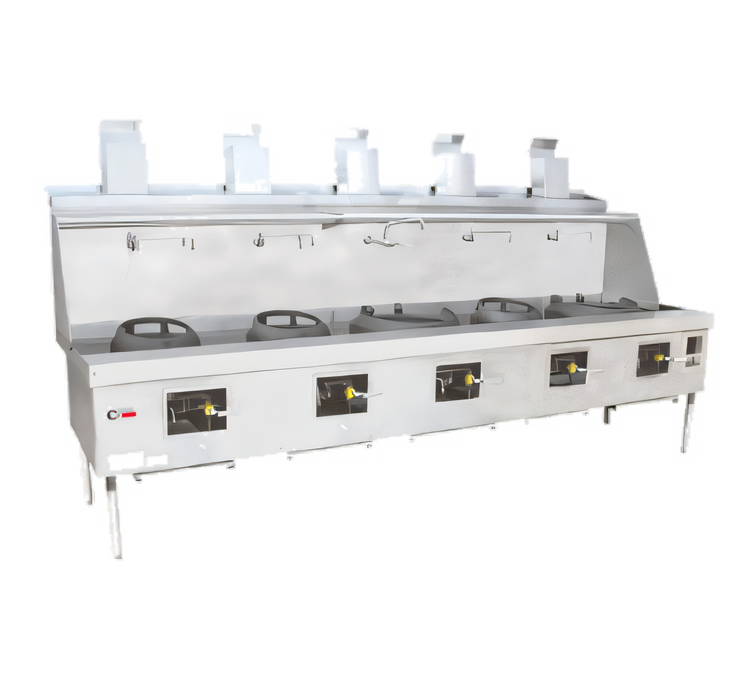

MasterRange Five-Chamber Gas Wok Range with Flue Risers and Stainless Steel Front and Sides

SKU: MF-5-SS
$31,618.62
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ranges Cooking Equipment Equipment New Arrivals Ranges Restaurant Equipment Town Equipment Wok Ranges Wok Ranges

MasterRange Five-Chamber Gas Wok Range with Flue Risers and Stainless Steel Front and Sides

Brick-Lined Chambers, Knee Lever Control, 5 Swing Faucets

Purpose-built for high-heat wok cooking, this five-chamber gas range pairs brick-lined chambers with flue risers and stainless steel construction for reliable, chef-friendly performance.

  • Five cast iron, brick-lined chambers are designed for intense wok cooking and fast heat recovery.
  • Flue risers help vent heat away from the cookline for improved chef comfort.
  • Five swing faucets provide convenient water access across the backsplash.
  • Knee "L" lever gas control supports quick, ergonomic operation.
  • Stainless steel deck and sides improve durability and make cleanup easier.
  • Includes a strainer basket for added drainage convenience.

Overall Dimensions:

138.0"W x 47.0"D x 71.0"H

Product Weight:

1800.0 lb

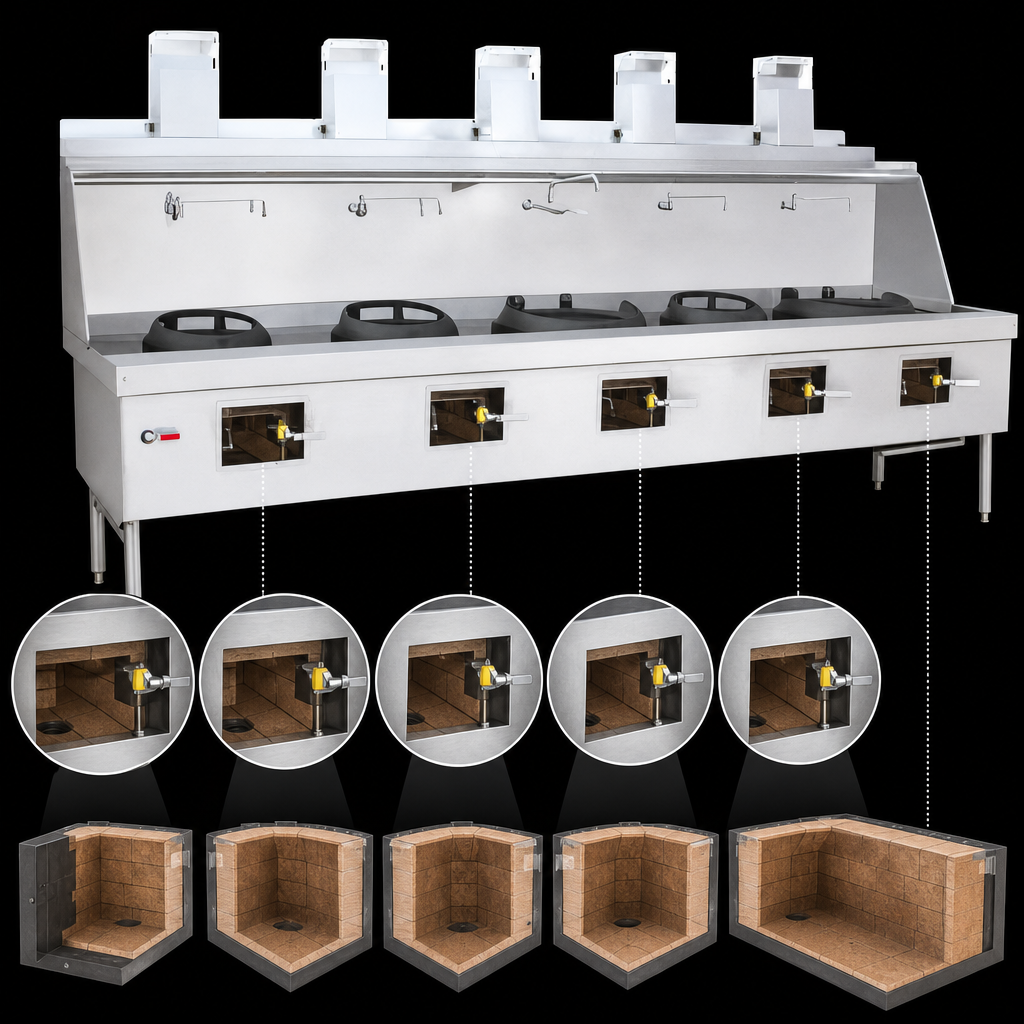

Five Brick-Lined Chambers

Five cast iron chambers with refractory brick lining are built for high-heat wok cooking and long service life.

Five Brick-Lined Chambers

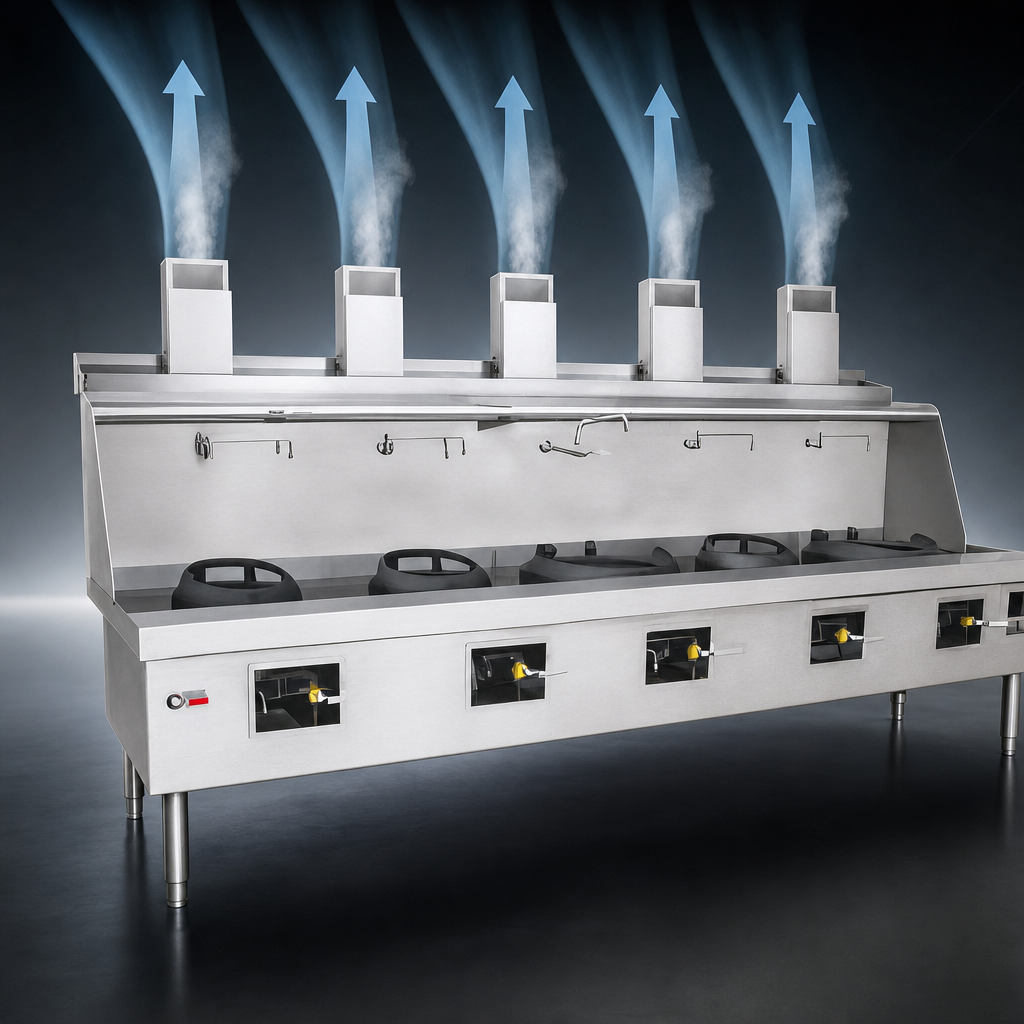

Flue Risers

Flue risers vent the chambers to help direct heat away from the cookline and improve working comfort.

Flue Risers

Five Swing Faucets

Swing faucets are mounted on the backsplash for convenient water access at each cooking section.

Knee "L" Lever Gas Handle

Knee-operated gas control provides hands-free operation and an ergonomic way to manage heat.

Stainless Steel Deck and Sides

Durable stainless steel exterior surfaces help resist heavy-use wear and simplify cleanup.

Strainer Basket Included

A strainer basket is included to help catch solids and support easier drainage.

Custom Layout Options

Chamber and front access sink placement can be configured to match customer requirements.

Type Wok Range
Style With Flue
Installation Type Floor Model
Compartments 5
Controls Knee "L" Lever
Material Stainless Steel
Interior Finish Refractory Brick
Backsplash Height 12 Inches
Gas Connection Size 1 1/4 Inch NPT
Water Connection Required
Water Inlet Size 1/2 Inch NPT
Drain Connection Required
Drain Connection Size 1 1/2 Inch NPT
Shipping Width 138 Inches
Shipping Depth 47 Inches
Shipping Height 71 Inches
Shipping Weight 1800 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

This MasterRange model has five cast iron, brick-lined chambers.
Yes. The MF-5-SS is the flued version of the five-chamber wok range.
The series can be ordered for natural gas or propane; specify the fuel type when ordering.
Water and drain connections are required. The drawing shows a 1/2-inch water inlet and a 1 1/2-inch drain connection.
The unit measures 138 inches wide by 47 inches deep by 71 inches high, with a shipping weight of 1,800 lb.
The documented standard items include five swing faucets, a strainer basket, and knee lever gas control.
