Key specifications

Amps
43.3/50 Amps (1-Phase); 25/28.9 Amps per phase (3-Phase)
Phase
1-Phase or 3-Phase
Dimensions
36.0"W × 27.81"D × 15.53"H
Type
Griddle
Installation Type
Countertop
Material
Stainless Steel
Spec sheet
Toastmaster SKU: TMGE36

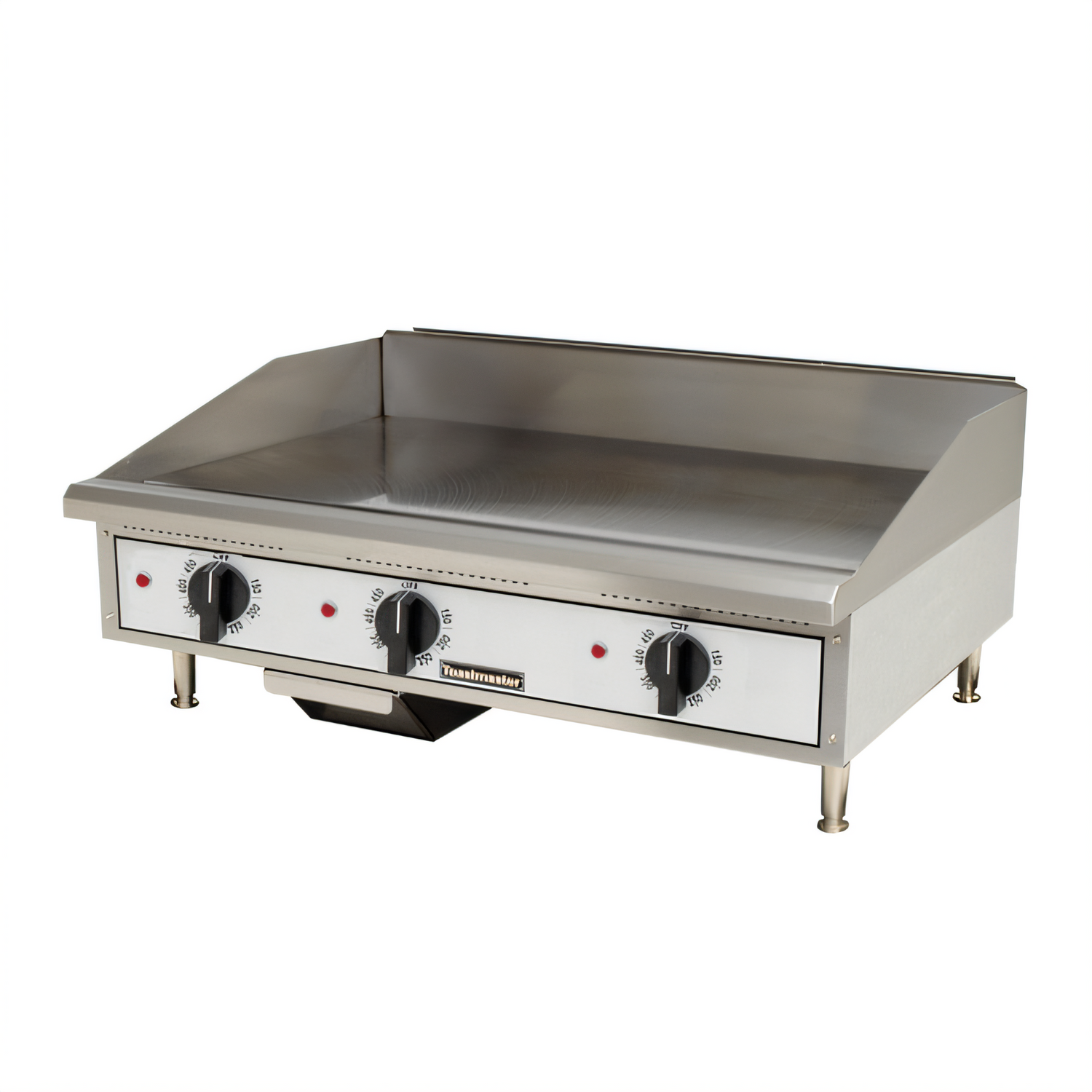

Toastmaster TMGE36 36-Inch Electric Countertop Griddle

$2,201.00
/each
Estimated to ship in 22–25 business days
Width
ElectricalRequired
Included: Toastmaster warranty One-year limited warranty on parts and labor in the United States and Canada

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $204/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Griddle
Installation Type Countertop
Material Stainless Steel
Country of Origin USA
Finish Polished Steel
Width 36 in
Depth 27.81 in
Height 15.53 in
Weight 236 lb
Cooking Surface Width 36 in
Cooking Surface Depth 21 in
Plate Thickness 3/4 in
Control Sections 3
Controls Thermostatic
Temperature Range 150°F to 450°F
Radiant Count 3
Voltage 208/240 Volts
Amps 43.3/50 Amps (1-Phase); 25/28.9 Amps per phase (3-Phase)
Watts 9/12 kW
Phase 1-Phase or 3-Phase
Leg Height 4 in
Leg Material Nickel-Plated Steel
Grease Trough Width 3-1/4 in

Description

The Toastmaster TMGE36 is an electric countertop griddle with a 36-inch-wide polished steel cooking surface and three independently controlled 12-inch sections.

The 3/4-inch polished steel plate operates from 150°F to 450°F. The unit includes a front grease trough and chute, removable grease tray, side and rear splash guards, and a stainless steel front panel and bullnose.

  • 208/240-volt service
  • Three steel radiants
  • Four-inch nickel-plated steel legs
  • Made in USA

Overall Dimensions:

36.0"W x 27.81"D x 15.53"H

Product Weight:

236.0 lb

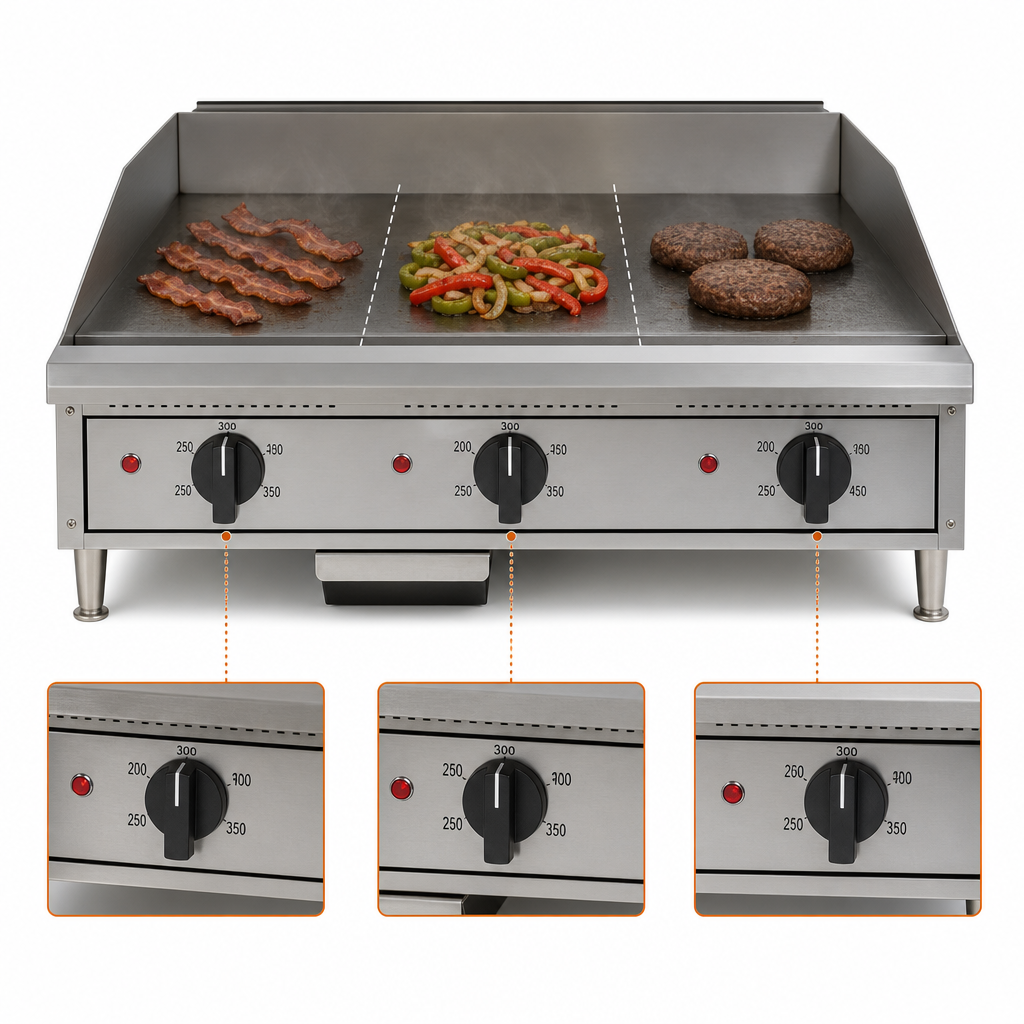

Three Independent Thermostatic Sections

Each 12-inch section has its own independent temperature control.

Polished Steel Plate

The cooking plate is 3/4 inch thick with a polished steel surface.

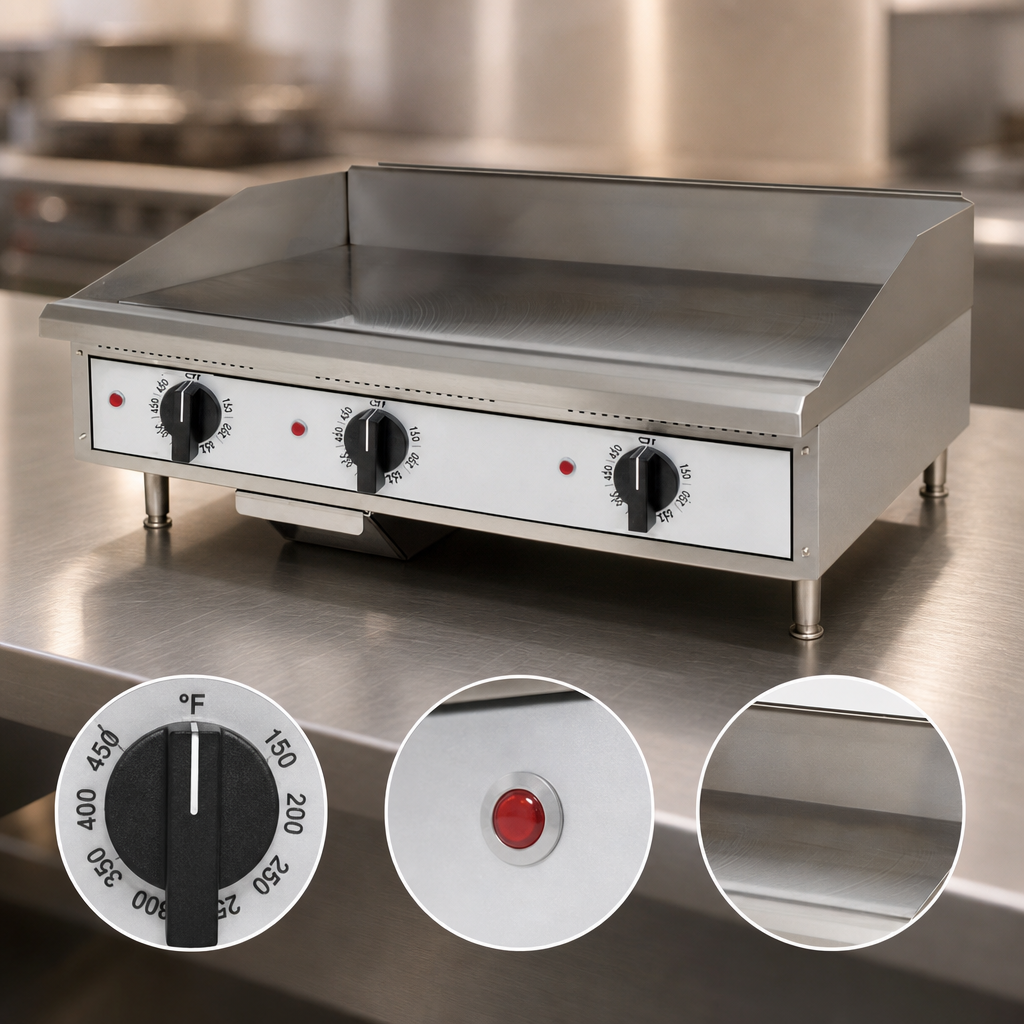

Temperature Range

Snap-action thermostats provide control from 150°F to 450°F.

Removable Grease Tray

A removable front grease tray collects grease from the cooking surface.

Front Grease Trough and Chute

The front grease trough is 3-1/4 inches wide and includes a chute.

Splash Guards

Side and rear splash guards are included.

Steel Radiants

The TMGE36 has three steel radiants.

Nickel-Plated Steel Legs

The unit includes four-inch nickel-plated steel legs.

Frequently Asked Questions

The authoritative specification lists a 36-inch-wide by 21-inch-deep cooking surface.
It has three independent thermostatic control sections, with one control for each 12-inch section.
The thermostatic controls operate from 150°F to 450°F.
The TMGE36 operates on 208/240-volt service and can be wired for 1-phase or 3-phase power.
The catalog dimensions are 36 inches wide, 27.81 inches deep, and 15.53 inches high.
