T&S Brass

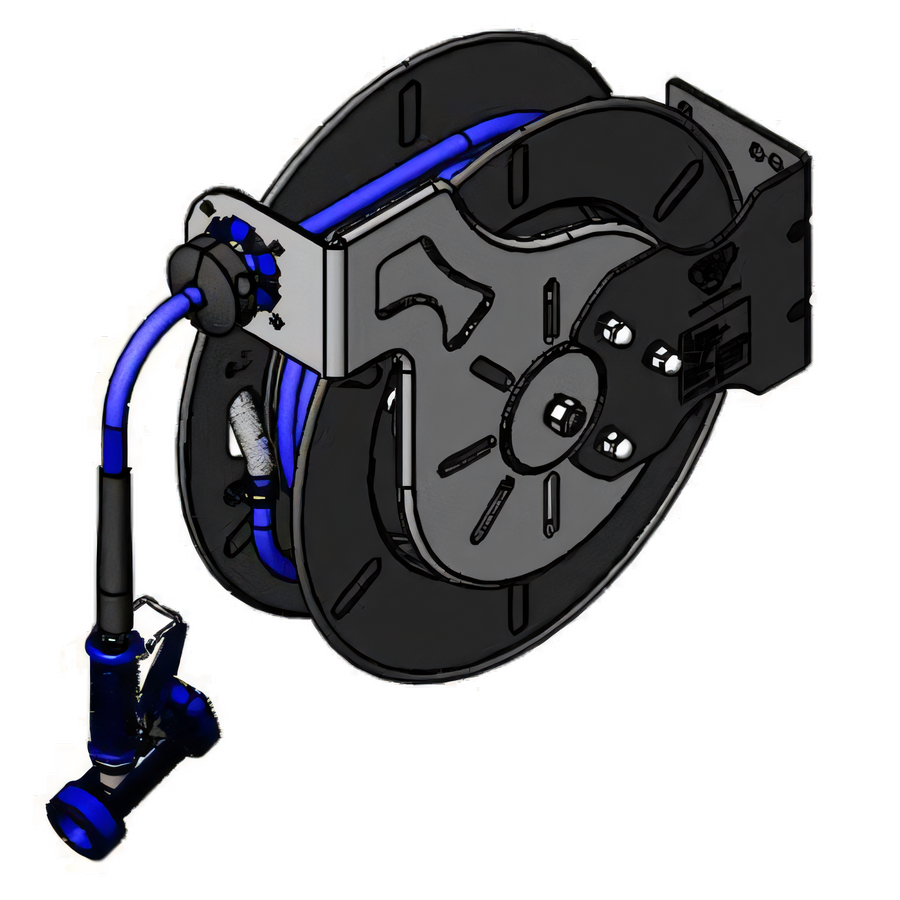

Open Epoxy-Coated Retractable Hose Reel System with 3/8-Inch x 50-Foot Hose and Rear Trigger Spray Valve

SKU: B-7242-02
GTIN: 671262592130
$1,398.39
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Floor Maintenance New Arrivals Retractable Hose Reel T&S Brass

Open Epoxy-Coated Retractable Hose Reel System with 3/8-Inch x 50-Foot Hose and Rear Trigger Spray Valve

Ratcheting rewind, adjustable hose bumper, and multi-fit mounting bracket.

This open hose reel system delivers a 50-foot retractable hose, secure ratcheting rewind, and a stainless steel rear-trigger spray valve for fast, controlled wash-down work.

  • Open epoxy-coated steel design keeps the reel durable and easy to service.
  • Includes a 3/8-inch x 50-foot heavy-duty non-marking hose rated to 300 PSI.
  • Stainless steel rear-trigger spray valve features a 5/16-inch orifice and live swivel.
  • Ratcheting rewind system holds the hose at length until a slight tug releases it.
  • Adjustable hose bumper helps control the hose stop during retraction.
  • Multi-fit bracket supports wall, ceiling, or under-counter mounting.

Product Weight:

62.5 lb

Open Reel Design

Open, epoxy-coated steel construction keeps the hose accessible for easier inspection and maintenance.

50-Foot Hose Included

Supplied with a 3/8-inch x 50-foot heavy-duty non-marking hose for extended reach.

Rear-Trigger Spray Valve

Includes a stainless steel rear-trigger spray valve with a 5/16-inch orifice and hold-down clip.

Ratcheting Rewind System

Locks the hose at the desired length and releases with a slight tug for automatic retraction.

Adjustable Hose Bumper

Lets the user control hose stop position during rewind and help protect the hose end.

Multi-Fit Mounting Bracket

Designed for flexible wall, ceiling, or under-counter mounting.

3/8-Inch NPT Female Inlet

Left-side reel inlet provides a standard 3/8-inch NPT female connection.

Serviceable Assembly

Replacement hose, swivel, hose stop, spring, roller, ratchet, and O-ring kits are listed for maintenance.

Type Retractable Hose Reel System
Style Open
Installation Type Wall Mounted
Material Steel
Finish Epoxy Coated
Hose Length 50 Feet
Hose Diameter 3/8 Inch
Connection Size 3/8 Inch NPT Female
Maximum Pressure 300 PSI
Flow Rate 3.70 GPM @ 60 PSI
Temperature Range 40 Degrees F to 200 Degrees F
Shipping Weight 62.5 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Two-year limited warranty on the reel; hose covered for one year.

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Submittal PDF Download PDF Installation and maintenance instructions PDF Download

Frequently Asked Questions

It includes a 3/8-inch x 50-foot heavy-duty non-marking hose.
The reel includes a stainless steel rear-trigger spray valve with a 5/16-inch orifice and a hold-down clip.
The ratchet holds the hose at the selected length until you give the hose a slight tug to release it for automatic rewind.
The multi-fit bracket supports wall, ceiling, or under-counter mounting, and the docs note the main shaft must be horizontal.
Yes. The instructions state that a secondary support chain is required for all objects mounted overhead.
The reel carries a two-year limited warranty, and the hose has a one-year limited warranty.
