T&S Brass

T&S Brass B-1433-LR Wall-Mount Hose Reel Supply System with 8" Mixing Faucet, Vacuum Breaker, and 36" Hose Connector

SKU: B-1433-LR
GTIN: 671262779616
$1,083.56
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Floor Maintenance New Arrivals Retractable Hose Reel T&S Brass

T&S Brass B-1433-LR Wall-Mount Hose Reel Supply System with 8" Mixing Faucet, Vacuum Breaker, and 36" Hose Connector

Adjustable 7-3/4" to 8-1/4" centers; lever handles; polished chrome plated brass

Built for floor maintenance stations, this wall-mounted supply system integrates water mixing, backflow protection, and quick hose connection in one ready-to-install assembly.

  • Complete wall-mounted hose reel supply system for floor maintenance stations.
  • 8" mixing faucet with polished chrome plated brass body.
  • Quarter-turn Eterna cartridges with spring checks help prevent cross flow.
  • Continuous pressure vacuum breaker supports backflow protection.
  • EasyInstall 16" and rigid 40" risers with a control valve and wall brackets.
  • 36" flexible water hose connector with stainless steel quick disconnect; adjustable 7-3/4" to 8-1/4" centers.

Product Weight:

14.25 lb

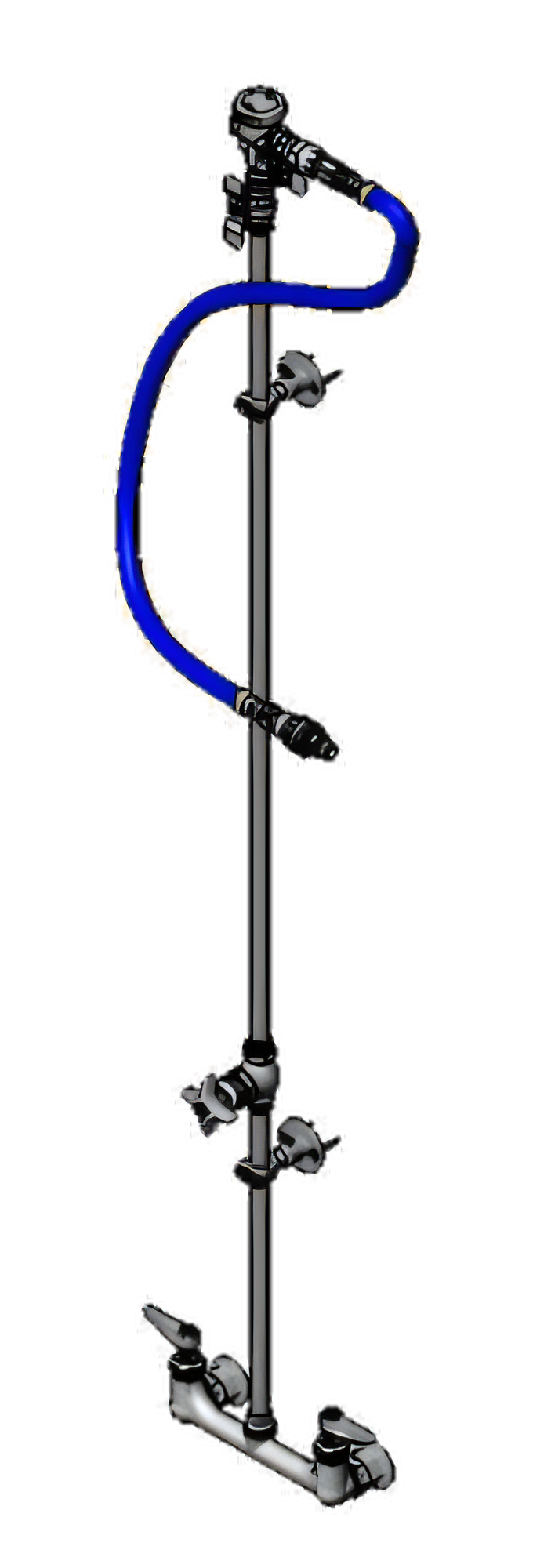

Exposed Hose Reel Supply System

Complete assembly with exposed piping and accessories for hose reel stations.

8-Inch Wall Mount Mixing Faucet

Polished chrome plated brass body with 1/2" NPT female inlets.

Quarter-Turn Eterna Cartridges

Spring checks help prevent cross flow of water during use.

Lever Handles with Color-Coded Indexes

Provides easy hot/cold identification and simple manual control.

Adjustable Centers

Centers adjust from 7 3/4" to 8 1/4" to help with installation fit.

EasyInstall Risers and Control Valve

Includes a 16" riser, rigid 40" riser, and control valve between risers.

Continuous Pressure Vacuum Breaker

Adds integral check valve protection for the water supply.

36-Inch Hose Connector with Quick Disconnect

Flexible hose connector includes a stainless steel quick disconnect for hose reel hookup.

Dual Wall Brackets

Two 2-3/8" wall brackets are included for secure mounting.

Type Hose Reel Supply System
Installation Type Wall Mounted
Material Brass
Finish Polished Chrome Plated
Water Inlet Size 1/2 Inch NPT Female
Temperature Range 40 °F to 140 °F
Pressure Range 20 to 125 psi
Shipping Weight 14.25 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

One year limited

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download PDF Installation and maintenance instructions PDF Download

Frequently Asked Questions

It includes an 8" wall mount mixing faucet, 16" and 40" risers, a control valve, continuous pressure vacuum breaker, 36" flexible water hose connector with stainless steel quick disconnect, and wall brackets.
Yes. The centers are adjustable from 7 3/4" to 8 1/4".
The standard configuration uses quarter-turn Eterna cartridges with spring checks and lever handles with color-coded indexes.
The faucet has 1/2" NPT female inlets, and the hose connection uses a 3/8" NPT x 36" flexible water hose connector with a stainless steel quick disconnect.
Yes. The product is listed with a one-year limited warranty.
