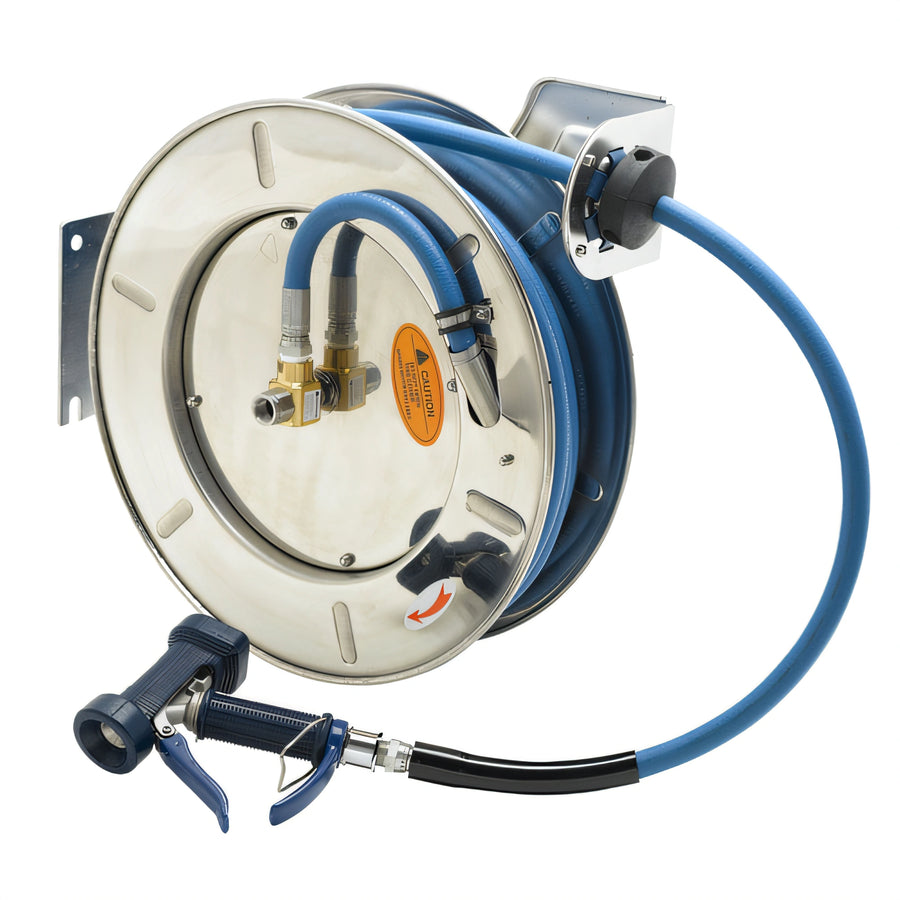

T&S Brass Open Stainless Steel Retractable Hose Reel System with 1/2-Inch x 50-Foot Hose and Front Trigger Spray Valve

Ratcheting Retraction, Adjustable Hose Bumper, Multi-Fit Mounting Bracket

A durable open stainless steel hose reel system with a 50-foot non-marking hose, positive ratcheting lock, and smooth automatic rewind for washdown tasks.

  • Open stainless steel reel construction for durability and easy visual inspection.
  • Includes a 1/2-inch x 50-foot heavy-duty non-marking hose rated to 300 PSI.
  • Stainless steel front trigger spray valve features a 9/16-inch orifice and 1/2-inch NPT female inlet.
  • Ratcheting system holds the hose at the desired length until a slight tug releases it for retraction.
  • Adjustable hose bumper helps control hose stop position.
  • Multi-fit bracket supports wall, ceiling, or under-counter mounting.
  • Performance data: 20-125 PSI operating pressure, 40°F-200°F, and 6.84 GPM at 60 PSI.

Overall Dimensions:

9.56"W x 21.06"D x 20.56"H

Product Weight:

64.28 lb

Open Stainless Steel Reel

Open-frame stainless steel construction provides corrosion resistance and makes the reel easier to inspect and service.

Heavy-Duty Non-Marking Hose

Supplied with a 1/2-inch x 50-foot hose designed for demanding washdown use and rated to 300 PSI.

Front Trigger Spray Valve

Includes a stainless steel front trigger spray valve with a 9/16-inch orifice and 1/2-inch NPT female inlet.

Ratcheting Retraction System

Locks the hose at the desired length and retracts automatically with a slight tug.

Adjustable Hose Bumper

Lets you set the hose stop location to help manage hose travel and improve usability.

Multi-Fit Mounting Bracket

Bracket supports wall, ceiling, and under-counter installation options.

Operating Performance

Rated for 20-125 PSI operating pressure, 40°F-200°F temperature range, and 6.84 GPM at 60 PSI.

Type Retractable Hose Reel System
Style Open
Installation Type Wall Mounted
Material Stainless Steel
Finish Stainless Steel
Hose Diameter 1/2 Inch
Hose Length 50 Feet
Nozzle Type Front Trigger Spray Valve
Water Inlet Size 1/2 Inch NPT Female
Flow Rate 6.84 GPM @ 60 PSI
Temperature Range 40 °F to 200 °F
Pressure Range 20 PSI to 125 PSI
Maximum Pressure 300 PSI
Selling Unit Each
Units Per Case 1
Shipping Width 10 Inches
Shipping Depth 22 Inches
Shipping Height 21 Inches
Shipping Weight 64.28 Pounds

Warranty & Protection

Two-year limited warranty; hose one-year limited.

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Submittal PDF Download

Frequently Asked Questions

The multi-fit bracket supports wall, ceiling, or under-counter mounting.
It includes a 1/2-inch x 50-foot heavy-duty non-marking hose rated to 300 PSI.
It includes a stainless steel front trigger spray valve with a 9/16-inch orifice and 1/2-inch NPT female inlet.
The reel is rated for 20-125 PSI operating pressure, 40°F-200°F, and 6.84 GPM at 60 PSI.
Yes. The ratcheting system holds the hose at the desired length until a slight tug releases it for retraction.
The reel has a two-year limited warranty, and the hose has a one-year limited warranty.
