T&S Brass

50-Foot Stainless Steel Open Hose Reel Cabinet System with Mixing Valve and Vacuum Breaker

SKU: B-7142-U01WS7BC
GTIN: 671262915038‌
$5,366.74
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Floor Maintenance New Arrivals Retractable Hose Reel T&S Brass

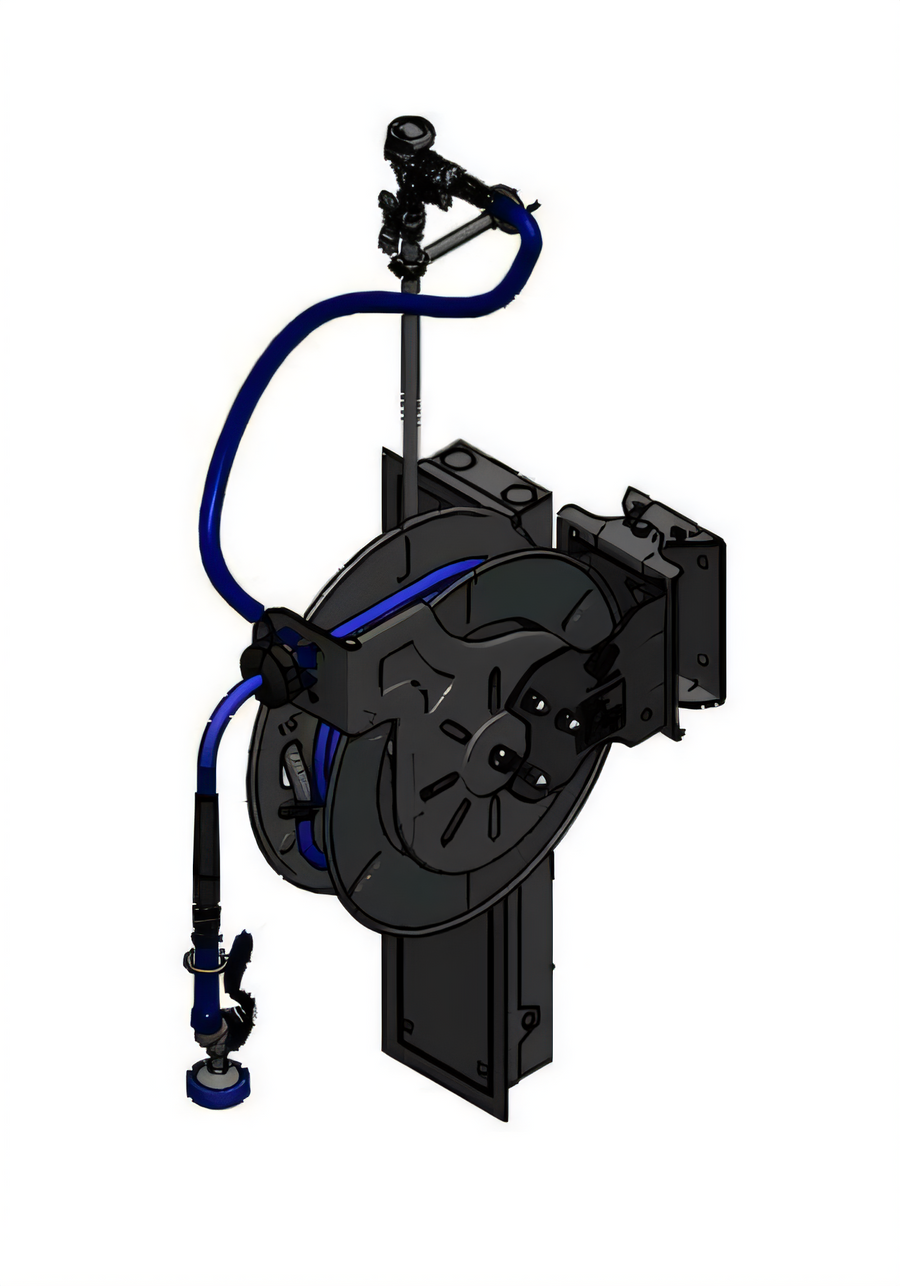

50-Foot Stainless Steel Open Hose Reel Cabinet System with Mixing Valve and Vacuum Breaker

Recess-mounted cabinet with bottom inlets, high-flow spray valve, and stainless steel swing bracket

A heavy-duty stainless steel hose reel system that organizes 50 feet of hose while providing mixed-water control, backflow protection, and a high-flow spray valve.

  • Recess-mounted stainless steel cabinet keeps the hose reel protected and organized.
  • Includes a 50-foot heavy-duty non-marking hose for extended reach.
  • Mixing valve and control valve use quarter-turn Cerama cartridges with 4-arm handles.
  • Built-in vacuum breaker and dual check valves help protect the water supply.
  • High-flow spray valve with swivel improves maneuverability during use.
  • Stainless steel swing bracket and hose reel connector kit are included for installation.

Recess-Mounted Stainless Steel Cabinet

Space-saving stainless steel cabinet with removable wall flange for a clean recessed installation.

50-Foot Open Hose Reel

Open stainless steel reel includes a 3/8" x 50' heavy-duty non-marking hose.

High-Flow Spray Valve with Swivel

Swivel spray valve helps reduce hose twist and improves reach at the point of use.

Mixing and Control Valves

Quarter-turn Cerama cartridges with check valves and 4-arm handles provide smooth manual control.

Backflow Protection

Continuous pressure vacuum breaker and dual check valves help protect the water system.

Bottom Supply Inlets

Cabinet is designed with bottom inlets and 1/2" union connections.

EasyInstall Swing Bracket

Stainless steel 100° wall-mount swing bracket with mounting hardware and hose reel connector kit.

Non-Potable Water Use

NSF 61 Exempt design intended for non-potable water applications.

Type Retractable Hose Reel System
Style Open
Installation Type Built-In
Material Stainless Steel
Finish Stainless Steel
Hose Length 50 Feet
Water Inlet Size 1/2 Inch NPT Female Union
Pressure Range 20 - 125 PSI
Temperature Range 40°F - 140°F
Flow Rate 4.0 GPM @ 60 PSI
Shipping Weight 55 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

One-year limited warranty; hose reel two years limited

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

It includes a 50-foot, 3/8-inch heavy-duty non-marking hose.
Yes. The system uses a recess-mounted stainless steel cabinet with bottom supply inlets.
It includes a continuous pressure vacuum breaker with integral check valve, plus dual check valves.
The listed performance range is 20-125 PSI, 40°F-140°F, with 4.0 GPM at 60 PSI.
The product carries a one-year limited warranty, and the hose reel is covered for two years limited.
The product is NSF 61 Exempt and intended for non-potable water applications.
