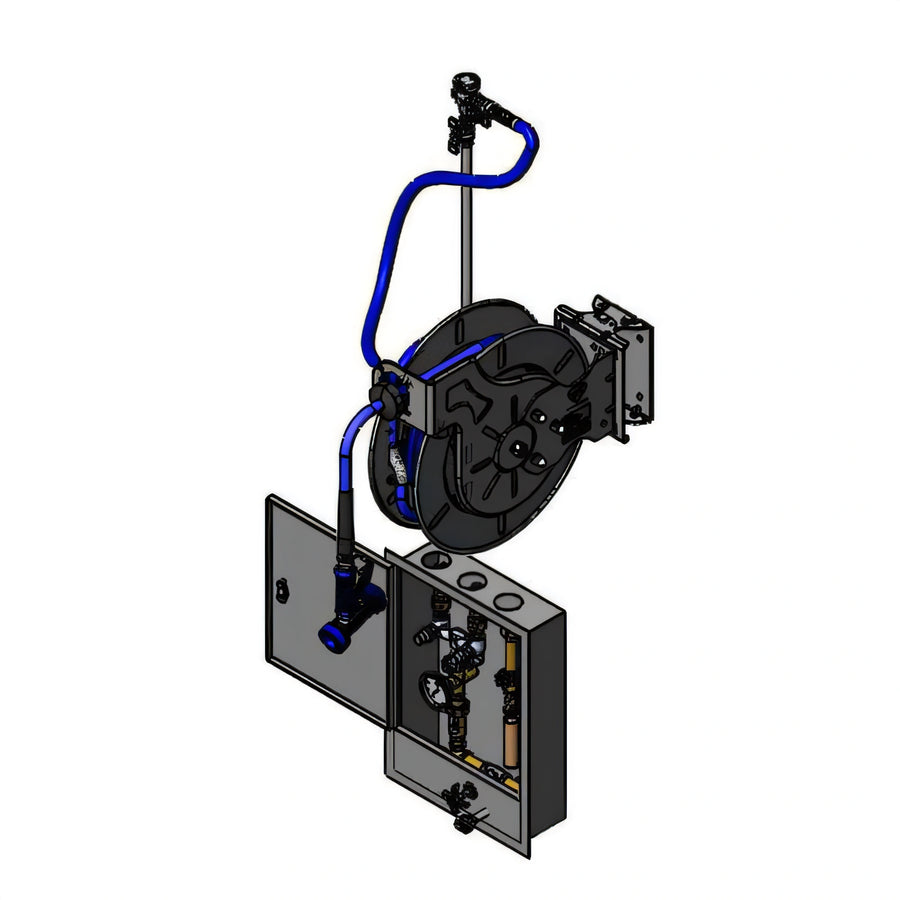

T&S Brass Wall-Mount Open Stainless Steel Retractable Hose Reel Control Unit with 1/2" x 35' Hose

Complete system with water control cabinet, mixing valve, backflow protection, and trigger gun.

Built for demanding washdown and janitorial tasks, this complete wall-mounted hose reel system combines a 35-foot non-marking hose, integrated water control cabinet, and built-in safety components in one stainless steel package.

  • Complete hose reel control unit designed for wall-mounted washdown applications.
  • Open stainless steel reel includes a 1/2" x 35' heavy-duty non-marking hose with ratcheting system.
  • Integrated water control cabinet includes union inlets/outlet, mixing valve, thermometer, shut-off valve, and water hammer arrestor.
  • Dual check valve backflow protection and vacuum breaker help safeguard the water supply.
  • High-flow stainless steel trigger water gun with swivel supports efficient cleaning.
  • Multi-fit bracket and wall-mount swing bracket provide flexible installation support.

Integrated Stainless Steel Control Cabinet

Flush-mount cabinet with locking latch houses the water control system and related components.

Water Control Components

Includes 1/2" union inlets and outlet, check valves, loose key mixing valve, shut-off valve, and water hammer arrestor.

Backflow Protection

Dual check valve backflow preventer and continuous pressure vacuum breaker help protect the water supply.

Bi-Metallic Thermometer

Built-in thermometer with a 3" dial face helps monitor water temperature.

Open Stainless Steel Hose Reel

Open reel design with ratcheting system and 1/2" NPT female inlet for dependable hose management.

Heavy-Duty Non-Marking Hose

1/2" x 35' hose is rated to 300 PSI for demanding cleaning and washdown use.

Trigger Water Gun With Swivel

High-flow stainless steel trigger gun with swivel improves reach and handling during use.

Flexible Mounting Hardware

Multi-fit bracket supports wall, ceiling, or under-counter mounting, and the stainless steel swing bracket plus adjustable hose bumper improve positioning.

Included Connection Kit

Hose reel connector kit includes a 1/2" NPT elbow, 18" riser, and vacuum breaker for installation support.

Type Hose Reel Control Unit
Style Open Reel
Installation Type Wall Mounted
Material Stainless Steel
Hose Length 35 Feet
Hose Diameter 1/2 Inch
Water Inlet Size 1/2 Inch
Operating Pressure 20 PSI - 125 PSI
Hose Pressure Rating 300 PSI
Temperature Range 40 °F - 200 °F
Flow Rate 8.09 GPM @ 60 PSI
Shipping Weight 55 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

1-year limited; hose reel 2-year limited.

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

It includes a 1/2" x 35' heavy-duty non-marking hose rated to 300 PSI.
The system includes a multi-fit bracket for wall, ceiling, or under-counter mounting, plus a stainless steel wall-mount swing bracket.
The cabinet includes 1/2" union inlets and outlet, check valves, a loose key mixing valve, a shut-off valve, a bi-metallic thermometer, a backflow preventer, and a water hammer arrestor.
The documented operating pressure range is 20 PSI to 125 PSI, and the temperature range is 40 °F to 200 °F.
The documentation states a one-year limited warranty, with a two-year limited warranty on the hose reel.
