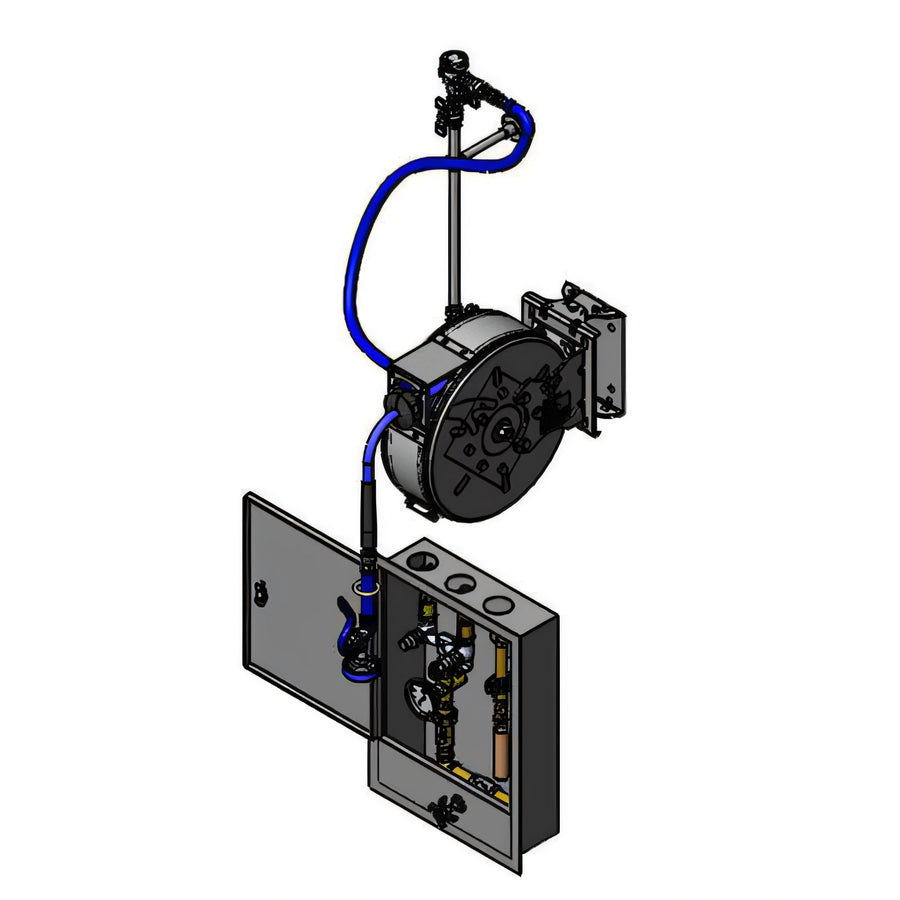

T&S Brass Wall-Mount Retractable Hose Reel Control Unit with 3/8 in. x 30 ft. Hose

Stainless Steel Cabinet, High-Flow Spray Valve, and Backflow Protection

A rugged wall-mounted hose reel control unit that keeps hoses organized and delivers reliable water control with built-in backflow protection.

  • Complete hose reel control unit for commercial washdown and floor care stations.
  • Includes a 30-foot, 3/8-inch heavy-duty non-marking hose with ratcheting reel control.
  • Stainless steel control cabinet houses the mixing valve, thermometer, shut-off valve, and water hammer arrestor.
  • Dual check valves and a continuous pressure vacuum breaker help protect the water supply.
  • High-flow spray valve with swivel and EasyInstall connector hardware simplify daily use and installation.

Wall-Mount Retractable Hose Reel System

All-in-one hose reel control unit designed to keep washdown hose neatly stored and ready for use.

Stainless Steel Control Cabinet

Flush-mount cabinet with locking latch houses the water control components in a durable stainless steel enclosure.

30' Heavy-Duty Non-Marking Hose

Includes a 3/8" hose rated to 300 PSI for dependable washdown performance.

High-Flow Spray Valve with Swivel

Blue spray valve features a swivel, hold-down ring, and heat-resistant handle for controlled rinsing.

Built-In Backflow Protection

Dual check valves, vacuum breaker, and water hammer arrestor help protect the plumbing system.

Bi-Metallic Thermometer and Mixing Valve

Loose key mixing valve with compression spindles and a bi-metallic thermometer support controlled water delivery.

EasyInstall Swing Bracket and Connector Kit

Includes a 100° swing bracket, 18" riser, 1/2" NPT elbow, flexible connector, and quick disconnect hardware.

Type Hose Reel Control Unit
Style Open
Installation Type Wall Mounted
Material Stainless Steel
Hose Length 30 Feet
Hose Diameter 3/8 Inch
Hose Type Heavy-Duty Non-Marking
Hose Pressure Rating 300 PSI
Water Inlet Size 1/2 Inch NPT Female
Pressure Range 20 to 125 PSI
Temperature Range 40°F to 140°F
Flow Rate 4.28 GPM at 60 PSI
Shipping Weight 55 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Two-year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

It includes a 3/8" x 30' heavy-duty non-marking hose.
The system includes a wall-mount stainless steel swing bracket with mounting hardware.
It includes dual check valves, a continuous pressure vacuum breaker, and a water hammer arrestor.
The documented pressure range is 20 to 125 psi and the temperature range is 40°F to 140°F.
Yes. The documentation lists optional hose reel spray valves and spray wands for this system.
