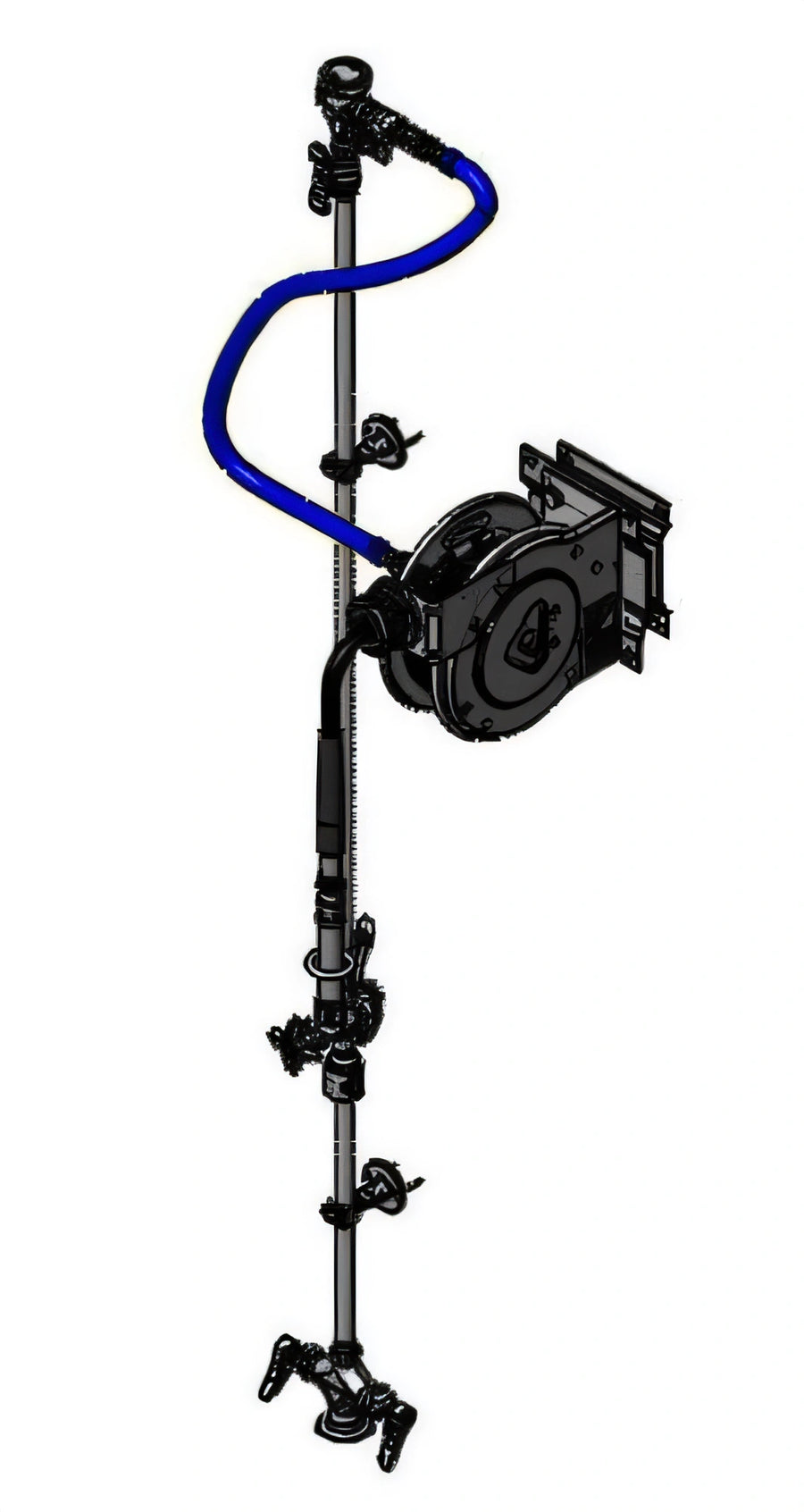

Open Stainless Steel Retractable Hose Reel Assembly with Exposed Piping, 12 ft Hose, and 1.07 GPM Spray Valve

SKU: B-7102-U1JPS9E
GTIN: 671262916370‌
$2,098.14
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Cleaning, Janitorial & Facility Supplies Floor Care & Drainage Floor Maintenance New Arrivals Retractable Hose Reel T&S Brass

Open Stainless Steel Retractable Hose Reel Assembly with Exposed Piping, 12 ft Hose, and 1.07 GPM Spray Valve

Single-Hole Dual-Temperature Deck Mount System with Vacuum Breaker

This all-in-one wash station combines an open stainless steel reel, exposed piping, and a low-flow spray valve for organized, high-efficiency cleaning.

  • Open stainless steel reel assembly with 12 ft of 3/8 in hose and ratcheting retract action.
  • Single-hole dual-temperature deck mount faucet with lever handles and quarter-turn Eterna cartridges.
  • 1.07 GPM low-flow spray valve with swivel and hold-down ring for controlled wash-down use.
  • Continuous pressure vacuum breaker and quick-disconnect hose connection included.
  • Multi-fit bracket supports wall, ceiling, or under-counter mounting; 345° pivot deck bracket included.

Open Stainless Steel Hose Reel

Open reel design includes 12 ft of 3/8 in hose and a ratcheting system that holds position until a slight tug retracts it automatically.

Exposed Piping System

All-in-one assembly combines the hose reel, faucet, control valve, vacuum breaker, and mounting hardware in one package.

Dual-Temperature Deck Mount Faucet

Single-hole deck mount faucet features a polished chrome plated brass body, lever handles, and color-coded indexes.

Quarter-Turn Eterna Cartridges

Spring-check cartridges help prevent cross-flow and support smooth temperature control.

Low-Flow Spray Valve

Included 1.07 GPM spray valve has a swivel, heat-resistant handle, and hold-down ring for efficient cleaning.

Flexible Connections

Includes 18 in flexible stainless steel supply hoses, 16 in and 40 in risers, and a 36 in flexible water hose connector with stainless steel quick disconnect.

Flexible Mounting Hardware

Multi-fit bracket supports wall, ceiling, or under-counter mounting, plus a 345° epoxy-coated pivot deck mount bracket.

Type Hose Reel Assembly
Style Open Reel
Mounting Type Deck Mount
Material Stainless Steel
Finish Stainless Steel
Connection Size 3/8 Inch NPT
Hose Length 12 Feet
Hose Size 3/8 Inch
Flow Rate 1.07 GPM
Temperature Range 40°F to 140°F
Controls Lever Handles
Selling Unit Each
Units Per Case 1

Warranty & Protection

One-year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

It is an open stainless steel hose reel assembly with exposed piping, a deck mount faucet, and a low-flow spray valve.
The assembly includes 12 ft of 3/8 in hose.
Yes. The ratcheting system holds the hose at the desired length until a slight tug retracts it automatically.
The multi-fit bracket supports wall, ceiling, or under-counter mounting, and the package also includes a 345° pivot deck mount bracket.
The included spray valve is rated at 1.07 GPM.
The assembly carries a one-year limited warranty, the hose reel has a two-year limited warranty, and the hose has a one-year limited warranty.
