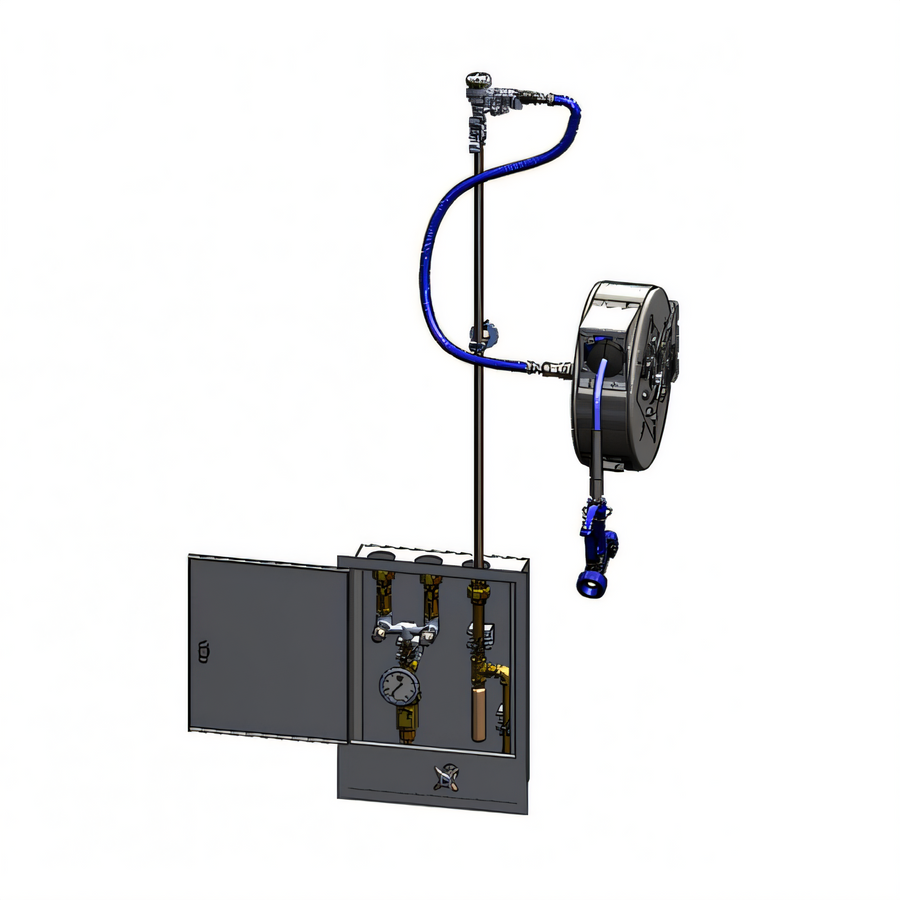

T&S Brass Enclosed Retractable Hose Reel Assembly with Flush-Mount Stainless Steel Control Cabinet and 3/8 Inch x 30 Foot Hose

Wall-Mount System with Multi-Fit Bracket, High-Flow Water Gun, and Built-In Backflow Protection

This enclosed hose reel system combines a flush-mount stainless steel cabinet, 30-foot non-marking hose, and built-in backflow protection for reliable washdown performance.

  • Enclosed retractable hose reel assembly with a 3/8 Inch x 30 Foot heavy-duty non-marking hose.
  • Flush-mount stainless steel control cabinet with locking latch helps keep the water control system protected and organized.
  • Built-in check valves, backflow preventer, vacuum breaker, and water hammer arrestor support safer water handling.
  • High-flow stainless steel water gun with front-style trigger and swivel offers controlled spray performance.
  • Ratcheting reel holds hose length in place until a slight tug retracts it automatically.
  • Multi-fit bracket supports wall, ceiling, or under-counter mounting options.

Product Weight:

92.0 lb

Flush-Mount Stainless Steel Control Cabinet

Locking latch encloses the water control system in a clean, durable cabinet.

3/8 Inch x 30 Foot Heavy-Duty Hose

Includes a heavy-duty non-marking hose rated to 300 PSI for extended reach.

Integrated Backflow Protection

Includes 1/2 Inch in-line check valves, a dual check valve backflow preventer, a continuous pressure vacuum breaker, and a water hammer arrestor.

Manual Shut-Off and Mixing Valves

Features a shut-off valve with a 4-arm handle and a loose key mixing valve with compression spindles.

Bi-Metallic Thermometer

The 3 Inch dial face provides quick temperature checks at a glance.

High-Flow Stainless Steel Water Gun

Includes a blue rubber cover, front-style trigger, swivel, and 5/16 Inch orifice for controlled spray.

Ratcheting Retract System

Holds the hose at the desired length until a slight tug retracts it automatically.

Multi-Fit Mounting and Service Hardware

Includes a wall bracket, multi-fit bracket for wall, ceiling, or under-counter mounting, 1/2 Inch NPT female union inlets and outlet, and a 24 Inch flexible water hose connector with stainless steel quick disconnect.

Type Retractable Hose Reel Assembly
Style Enclosed
Installation Type Wall Mounted
Material Stainless Steel
Finish Coated Metal
Hose Length 30 Feet
Hose Diameter 3/8 Inch
Water Connection Required
Water Inlet Size 1/2 Inch NPT Female Union (2 Inlets)
Water Outlet Size 1/2 Inch NPT
Pressure Rating 300 PSI
Pressure Range 20 to 125 PSI
Temperature Range 40 °F to 140 °F
Shipping Weight 92 Pounds
Selling Unit Each
Units Per Case 1

Warranty & Protection

One-year limited warranty; hose reel has a two-year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

It includes a 3/8 Inch x 30 Foot heavy-duty non-marking hose.
The ratcheting system holds the hose length until a slight tug retracts it automatically.
The included multi-fit bracket supports wall, ceiling, or under-counter mounting, and a wall bracket is included.
It includes (2) 1/2 Inch NPT female union inlets and a 1/2 Inch NPT outlet.
It includes in-line check valves, a dual check valve backflow preventer, a continuous pressure vacuum breaker, and a water hammer arrestor.
The overall assembly has a one-year limited warranty, and the hose reel has a two-year limited warranty.
