T&S Brass

T&S Brass Open Wall-Mount Retractable Hose Reel System with 3/8" x 35' Hose, Mixing Faucet, and Blue Spray Valve

SKU: B-7232-U05XS10ES
GTIN: 671262722902
$2,471.29
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Floor Maintenance New Arrivals Retractable Hose Reel T&S Brass

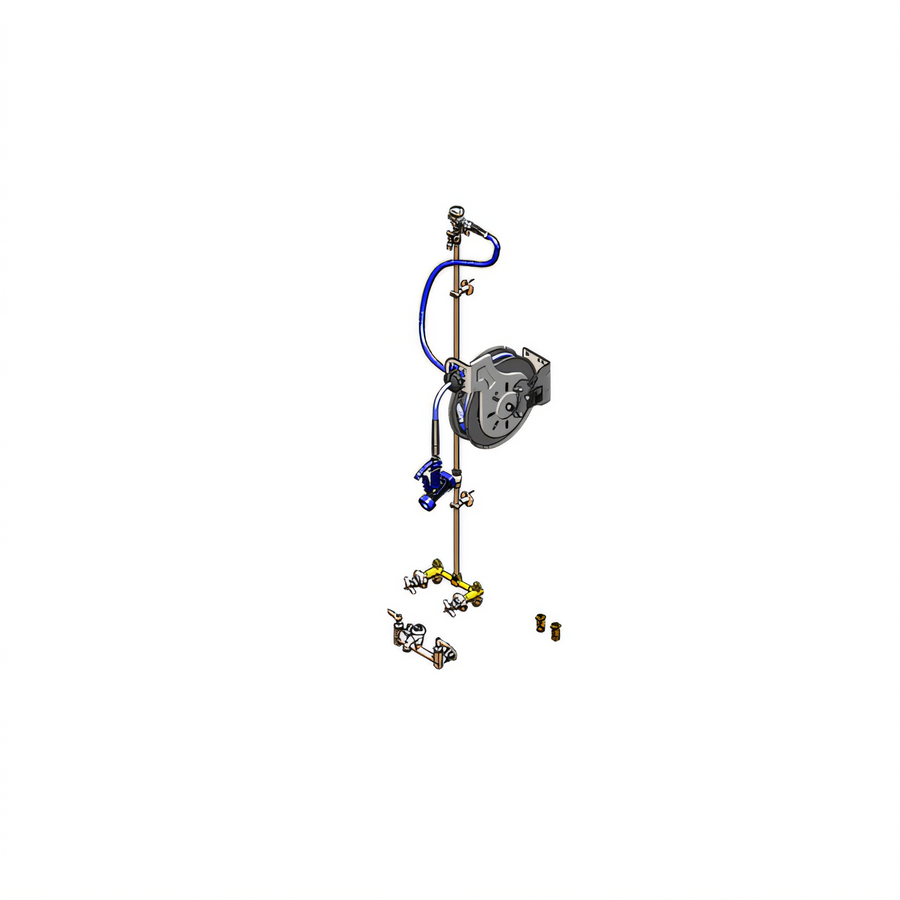

T&S Brass Open Wall-Mount Retractable Hose Reel System with 3/8" x 35' Hose, Mixing Faucet, and Blue Spray Valve

Epoxy-Coated Metal Reel, 8" Wall-Mount Faucet, 1/2" NPT Connections

Built as an all-in-one washdown station, this open wall-mounted hose reel system combines a 35-foot hose, mixing faucet, and ratcheting rewind for efficient cleaning.

  • Open epoxy-coated metal hose reel for durable wall-mounted commercial use.
  • Includes a 3/8" x 35' heavy-duty non-marking hose rated to 300 PSI.
  • 8" wall-mount mixing faucet with quarter-turn Eterna cartridges, spring checks, and 4-arm color-coded handles.
  • Continuous pressure vacuum breaker and stainless steel quick-disconnect connector help streamline installation and use.
  • Ratcheting rewind system holds hose length in place until a slight tug retracts it automatically.
  • Includes a high-flow blue spray valve/water gun, risers, and wall brackets for a complete setup.

Product Weight:

60.8 lb

Open Coated Hose Reel

Open epoxy-coated metal reel design keeps the hose accessible and is built for commercial washdown use.

35-Foot Non-Marking Hose

Supplied with a 3/8" x 35 ft. heavy-duty hose rated to 300 PSI for extended reach.

8-Inch Wall-Mount Mixing Faucet

Integrated wall-mount mixing faucet features quarter-turn Eterna cartridges with spring checks and 4-arm handles with color-coded indexes.

Continuous Pressure Vacuum Breaker

Includes a continuous pressure vacuum breaker to help protect the water supply during operation.

Ratcheting Retract System

The ratcheting mechanism holds the hose at the desired length until a slight tug retracts it automatically; an adjustable hose bumper is included.

Quick-Disconnect Water Connection

A 36" flexible water hose connector with stainless steel quick disconnect, plus 16" and 40" risers and (2) 2-3/8" wall brackets, are included.

High-Flow Blue Spray Valve

The included spray valve/water gun features a blue rubber cover, front trigger style, swivel, and 5/16" flow orifice.

Type Hose Reel Assembly
Style Open
Installation Type Wall Mounted
Hose Length 35 Feet
Pressure Range 20 to 125 PSI
Temperature Range 40°F to 140°F
Finish Epoxy Coated
Water Inlet Size 1/2 Inch NPT
Selling Unit Each
Units Per Case 1

Warranty & Protection

One year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Installation and maintenance instructions PDF Download PDF Submittal PDF Download

Frequently Asked Questions

It includes a 3/8" x 35 ft. heavy-duty, non-marking hose.
This model uses an open coated hose reel design.
Yes, a continuous pressure vacuum breaker is included.
The assembly includes a high-flow spray valve/water gun with a blue rubber cover, front trigger, swivel, and 5/16" flow orifice.
The performance data lists a pressure range of 20 to 125 psi and a temperature range of 40°F to 140°F.
