T&S Brass

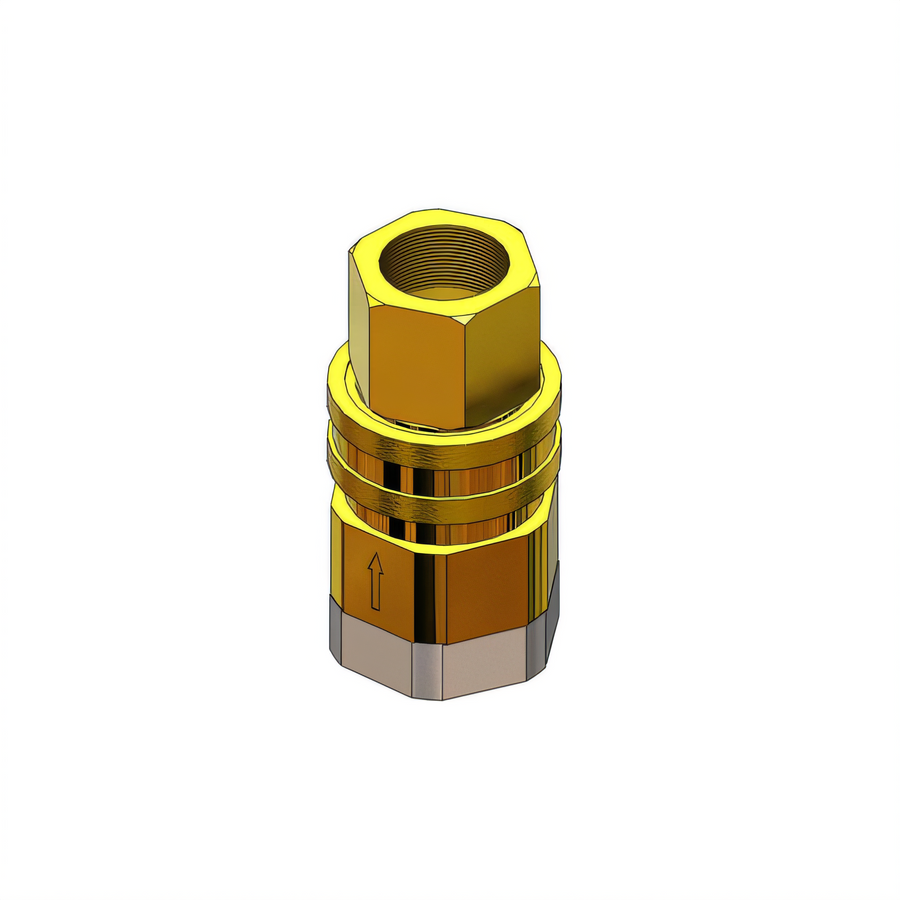

Safe-T-Link 1 Inch NPT 2-Piece Quick Disconnect Gas Appliance Connector

SKU: AG-5E
GTIN: 671262230186
$116.57
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts T&S Brass

Safe-T-Link 1 Inch NPT 2-Piece Quick Disconnect Gas Appliance Connector

Brass Construction, Female Freespin Inlet and Outlet

This brass quick disconnect provides a fast, full-flow gas connection with built-in shut-off action when disconnected.

  • 2-piece quick disconnect design simplifies appliance hookup and removal.
  • 1" NPT female freespin inlet and outlet help make installation alignment easier.
  • Quick-disconnect socket acts as a shut-off valve when the plug and socket are disconnected.
  • Brass socket and plug construction supports dependable long-term use.
  • High-flow design is tested for efficient gas delivery, with AG-5E performance listed up to 420,000 BTU/hr depending on connector length.
  • Certified to ANSI Z21.41 / CSA 6.9, NSF 2, and NFPA 54.

Product Weight:

1.54 lb

2-Piece Quick Disconnect

Allows fast connection and disconnection of gas appliances for easier service and changeover.

1 Inch NPT Female Freespin Connections

Female freespin inlet and outlet connections help simplify alignment during installation.

Socket Shut-Off Valve Action

The quick-disconnect socket acts as a shut-off valve when the plug and socket are separated.

Brass Construction

Brass socket and plug construction provides durability for commercial gas applications.

High-Flow Performance

Designed for efficient full gas flow; performance data lists AG-5E capacity from 280,000 to 420,000 BTU/hr depending on connector length.

Fusible Link Thermal Shut-Off

Performance data notes a maximum temperature rating of 350 °F with fusible link thermal shut-off.

Compliance

Certified to ANSI Z21.41 / CSA 6.9 and NSF 2, and compliant with NFPA 54.

Type Gas Appliance Connector
Style 2-Piece Quick Disconnect
Material Brass
Gas Connection Size 1 Inch NPT
Selling Unit Each
Units Per Case 1

Warranty & Protection

Five-year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

The AG-5E uses 1" NPT female inlet and outlet connections.
Yes. The quick-disconnect socket acts as a shut-off valve when the plug and socket are disconnected.
The socket and plug are made from brass.
The product notes a flow rate of 378,000 BTU/hr minimum, with AG-5E performance listed from 280,000 to 420,000 BTU/hr depending on connector length.
This product carries a five-year limited warranty.
The documentation lists ANSI Z21.41 / CSA 6.9, NSF 2, and NFPA 54 compliance.
