Dormont ReliaGuard Double SwivelGuard Commercial Gas Hose Connector Kit, 1 Inch ID x 48 Inch, Gray PVC-Coated Stainless Steel

For moveable, caster-mounted equipment

Built for commercial kitchens, this 1-inch x 48-inch gas connector kit combines 360° swivel flexibility, thermal shut-off protection, and a restraining cable to help reduce hose stress.

  • Built for moveable, caster-mounted commercial cooking equipment.
  • 1-inch inside diameter and 48-inch length support high-capacity gas service.
  • 304 stainless steel corrugated tubing with stainless braid and gray PVC coating.
  • Double SwivelGuard fittings provide 360° flexibility and help reduce connector stress.
  • Standard Snap quick-disconnect, full port brass valve, and restraining cable are included.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

10.5 lb

Double SwivelGuard 360° Rotational Fittings

Rotational end fittings at both ends help reduce stress on the connector and allow the appliance to sit closer to the wall.

Standard Snap Quick-Disconnect

Quick-disconnect fitting includes thermal shut-off when internal temperature exceeds 350°F (177°C).

304 Stainless Steel Corrugated Tube

Annealed, corrugated stainless steel tubing provides flexible, corrosion-resistant gas service.

Stainless Steel Braid

Multi-strand stainless steel braid helps protect the corrugations as equipment moves.

Gray PVC Coating

Flame-resistant outer coating withstands temperatures up to 350°F (177°C) and will not hold a flame.

Restraining Cable and Hardware

PVC-coated steel restraining cable helps prevent strain from being transmitted to the connector.

Full Port Brass Valve

Full port valve is included with the kit for the gas connection assembly.

Type Gas Hose Connector Kit
Style Double SwivelGuard
Material 304 Stainless Steel
Finish Gray PVC Coated
Color Gray
Inside Diameter 1 Inch
Length 48 Inches
BTU 295,000 BTU/hr
Max Operating Pressure 1/2 psi
Restraining Device Included
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 10.5 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited 5-year warranty.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It is designed for moveable commercial cooking equipment, including caster-mounted appliances.

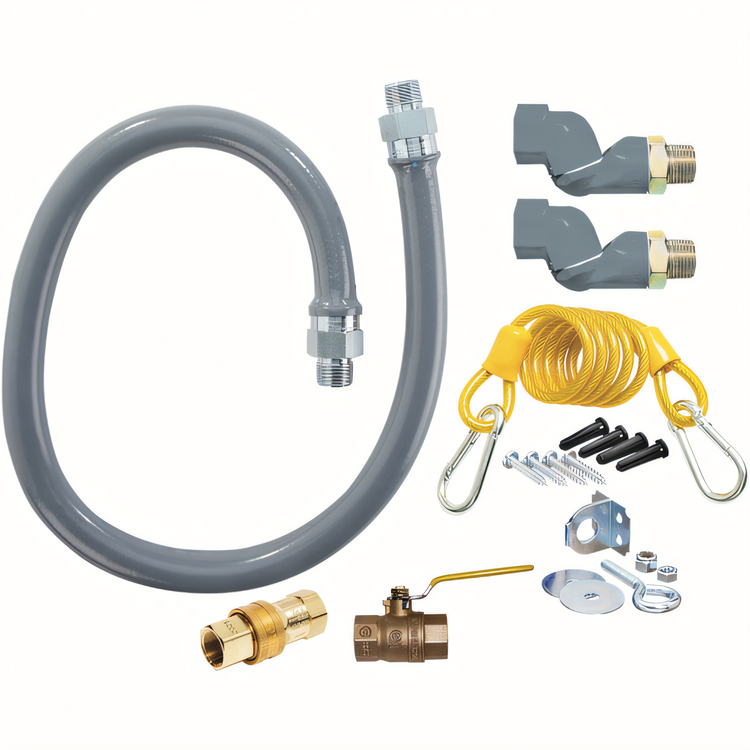

The kit includes the ReliaGuard gas hose, Double SwivelGuard fittings, a Standard Snap quick-disconnect, a restraining device with hardware, and a full port valve.
The quick-disconnect is designed to shut off gas when internal temperature exceeds 350°F (177°C).
The maximum operating pressure is 1/2 psi.
Yes. The documentation states that it is for indoor use only and not for use in temperatures less than 32°F (0°C).
Its natural gas flow capacity is 295,000 BTU/hr at a 0.5 inch WC pressure drop.
