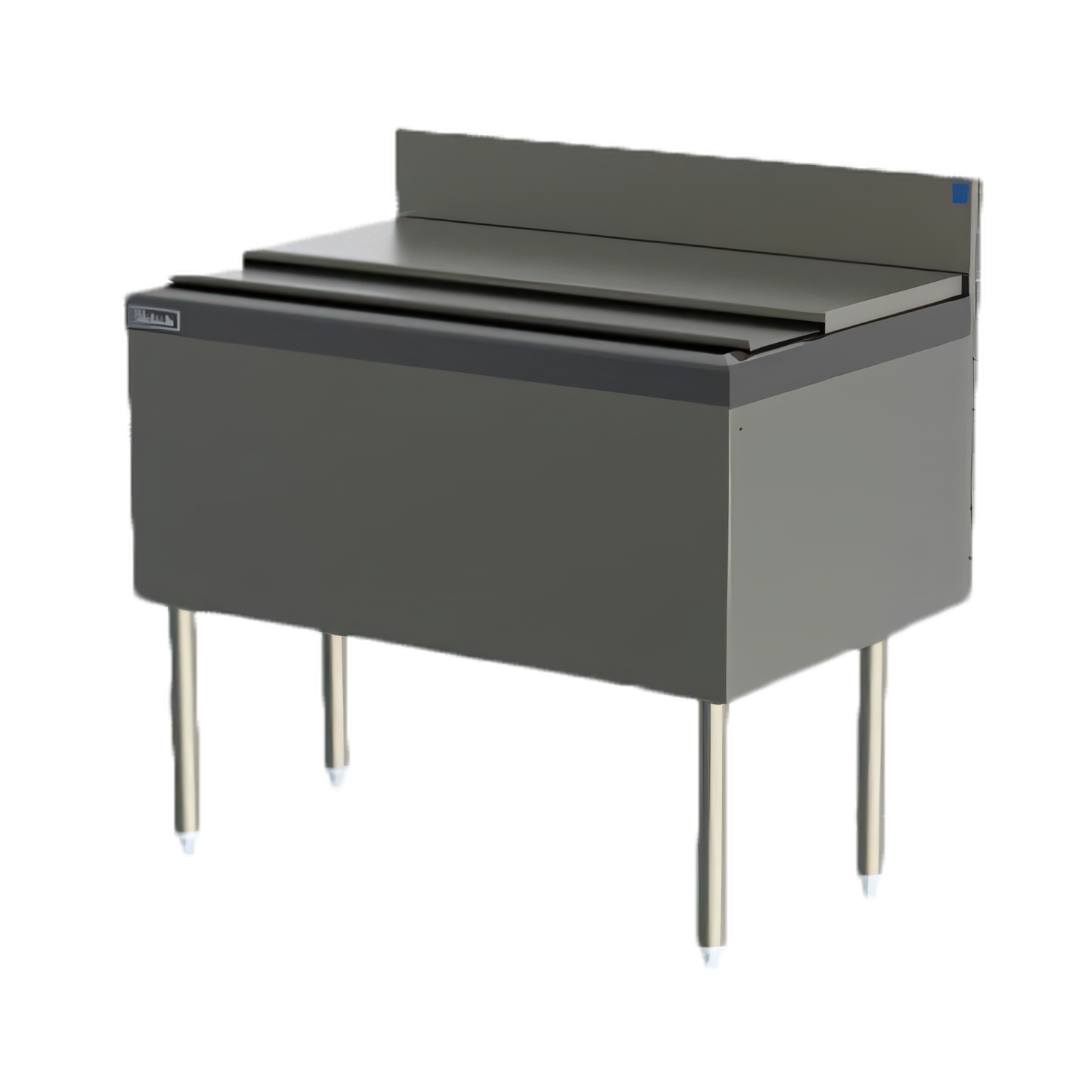

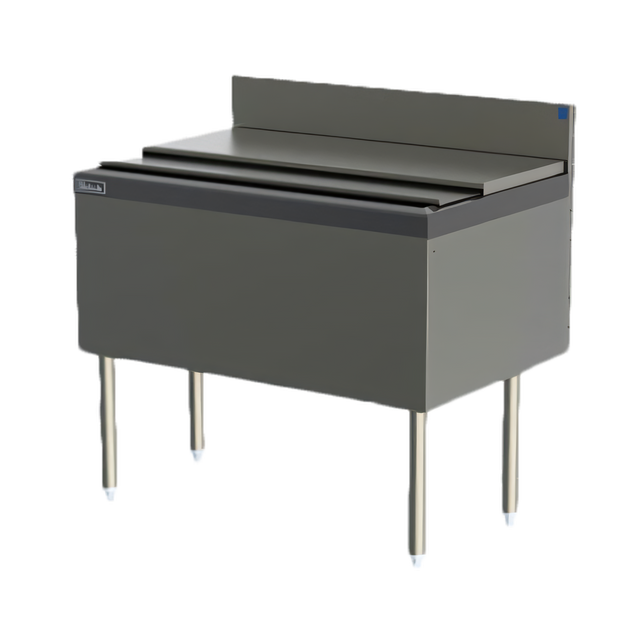

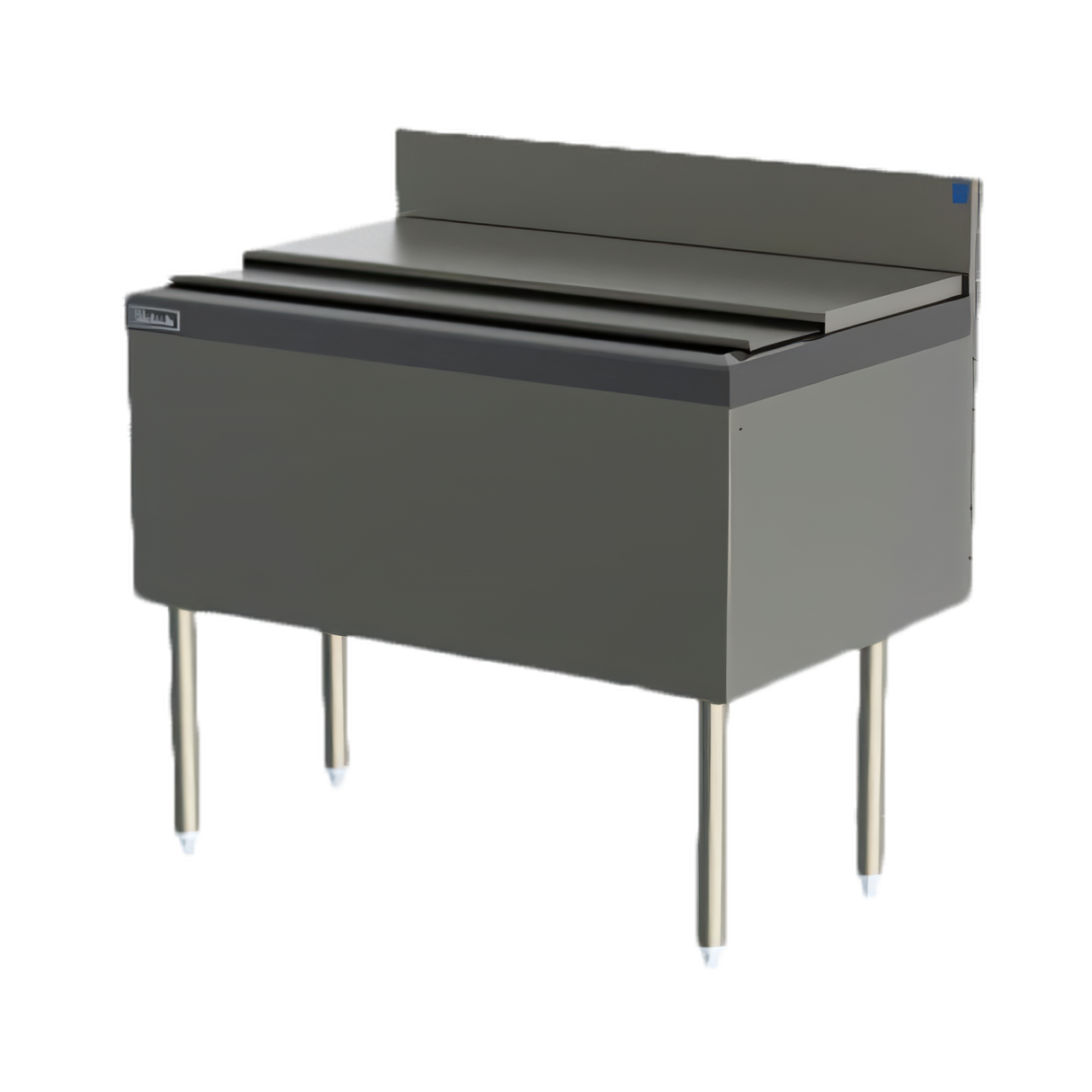

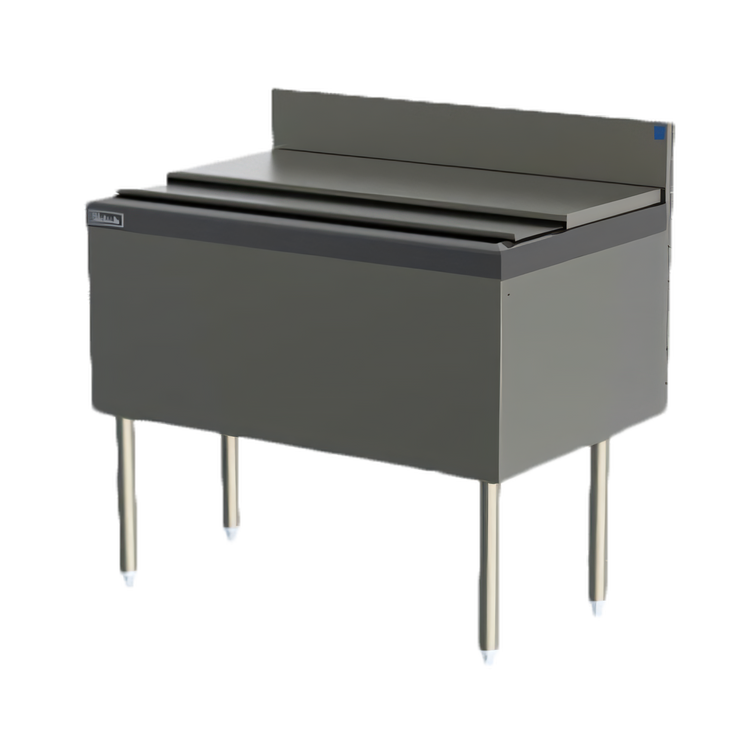

Top Shelf TSF Series 42-Inch Modular Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate
Top Shelf TSF Series 42-Inch Modular Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate
24-Inch Deep, Approx. 125-Lb. Ice Capacity
Built for efficient bar service, this full-depth TSF ice bin pairs a concealed 10-circuit cold plate with durable stainless steel construction and a generous 42-inch work area.
- 42-inch modular TSF full-depth underbar unit designed for ice storage and cocktail service.
- Concealed 10-circuit aluminum cold plate chills beverages without taking up bin space.
- Approximate 125-lb. ice capacity supports busy bar operations.
- 6-inch backsplash with 1-inch top return helps contain splashes and spills.
- Stainless steel front and sides with galvanized steel back and bottom for long-term durability.
- Includes a 1/2" NPS male drain and stainless steel legs with adjustable thermoplastic feet.
Overall Dimensions:
42.0"W x 24.0"D x 36.5"HProduct Weight:

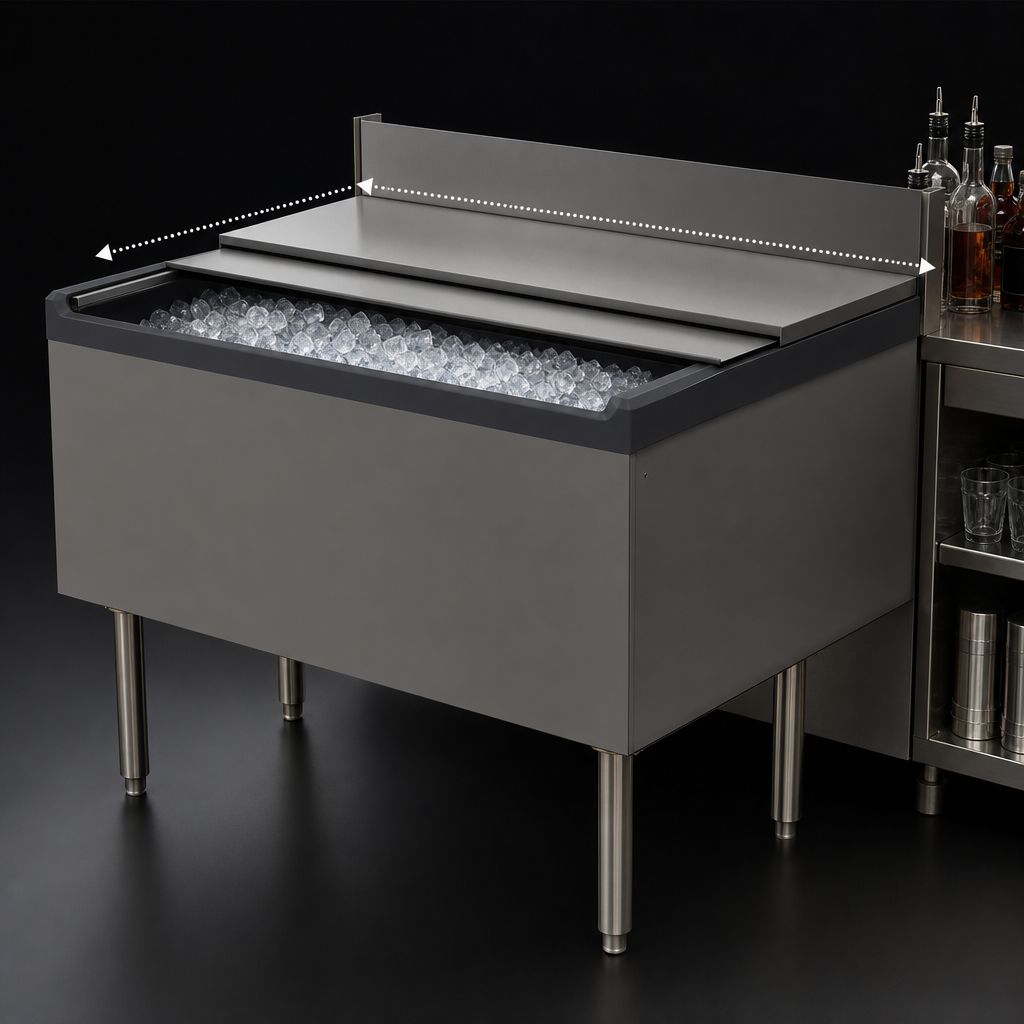

170.0 lbModular TSF Full-Depth Design
Full-depth 24-inch work surface increases usable ice chest volume and service space.

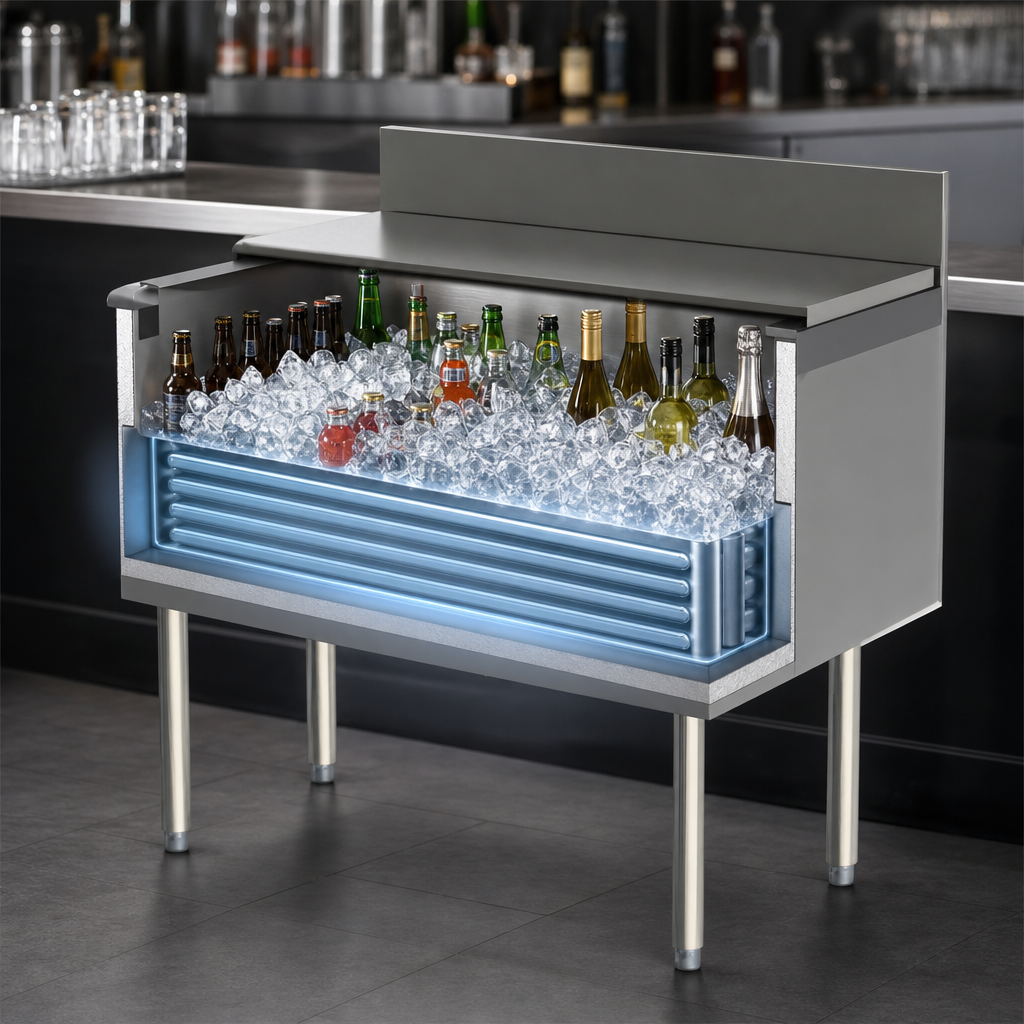

Concealed 10-Circuit Cold Plate
Aluminum cold plate is hidden under the bin liner to chill beverages using the ice in the chest.
Approximate 125-Lb. Ice Capacity
Provides substantial ice storage for high-volume cocktail and bar service.
10-3/4-Inch Deep Stainless Steel Ice Bin
Deep bin helps hold more ice while offering a durable, easy-to-clean stainless steel interior.
6-Inch Backsplash With 1-Inch Return
Helps reduce splashback and keeps the work area cleaner during service.
ABS Plastic Top Ledge
Durable top ledge material helps protect the upper edge of the unit.
Stainless Steel Legs With Adjustable Feet
1-5/8-inch tubular stainless steel legs and 1-inch adjustable thermoplastic feet provide stable support.
1/2-Inch NPS Male Drain
Factory drain connection supports straightforward plumbing tie-in.
Mixed-Material Cabinet Construction
Stainless steel front and sides are paired with galvanized steel back and bottom for a durable underbar build.
