John Boos PB-DIIBWS1821-P Ice & Water Dispensers
Description

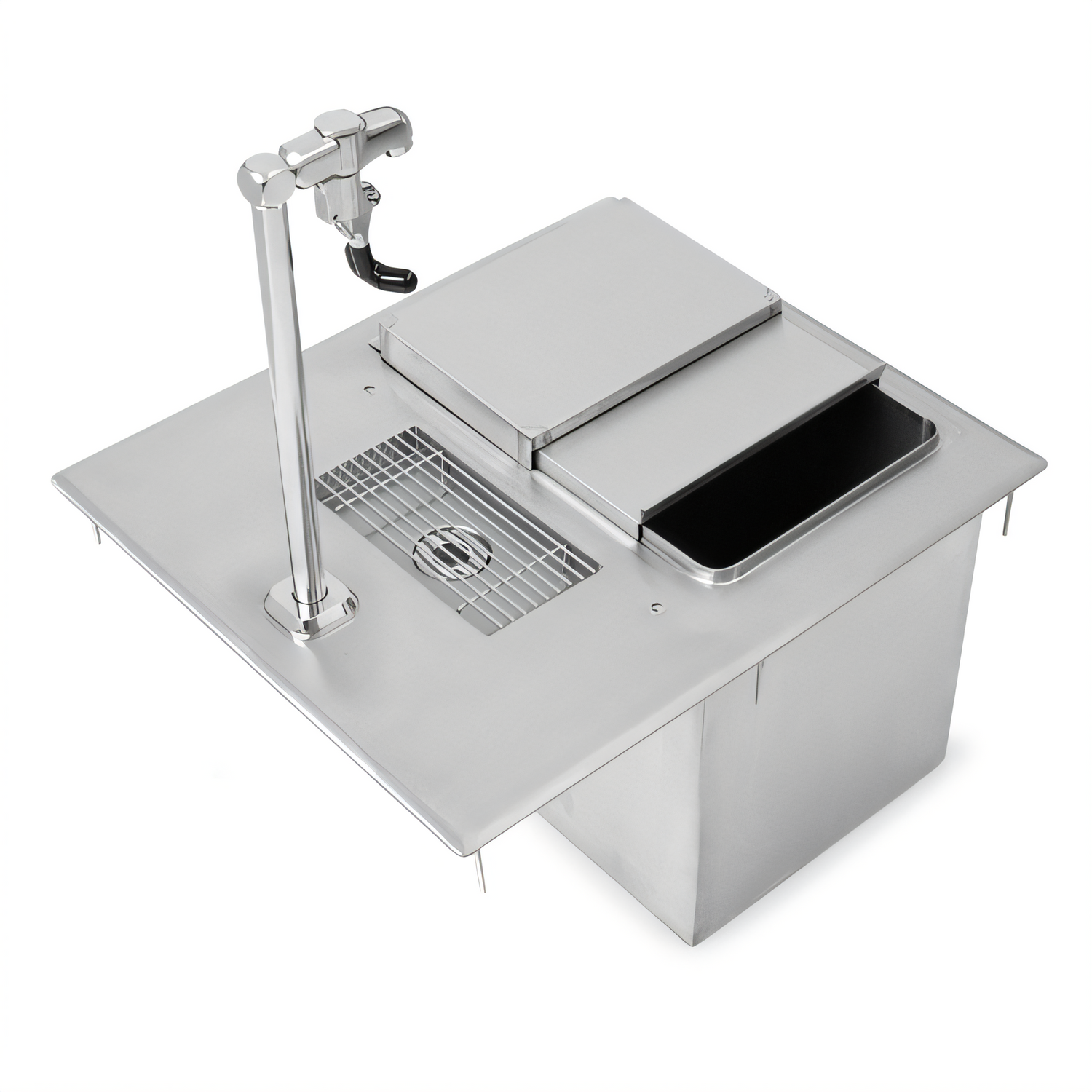

John Boos PB-DIIBWS1821-P Drop-In Ice & Water Station
Compact 18" × 21" self-serve ice bin with glass-filler faucet — NSF ListedBring professional ice service and touch-free water dispensing to any counter with this rugged, all-stainless steel unit from John Boos. Engineered for bars, cafés, concessions, stadium suites and break-rooms, the PB-DIIBWS1821-P installs flush in a simple cut-out, saving valuable workspace while delivering long-term durability you can count on.
Why You’ll Love It
- 11" deep insulated ice bin (13" W × 9" F-B) keeps up to 28 lb* of ice cold and ready.
- Smooth removable sliding lid protects ice between uses.
- Integrated water deck with removable sink grate for fast drainage & easy sanitation.
- Lever-activated PBF-SGL-LF glass filler faucet included – lead-free & low splash.

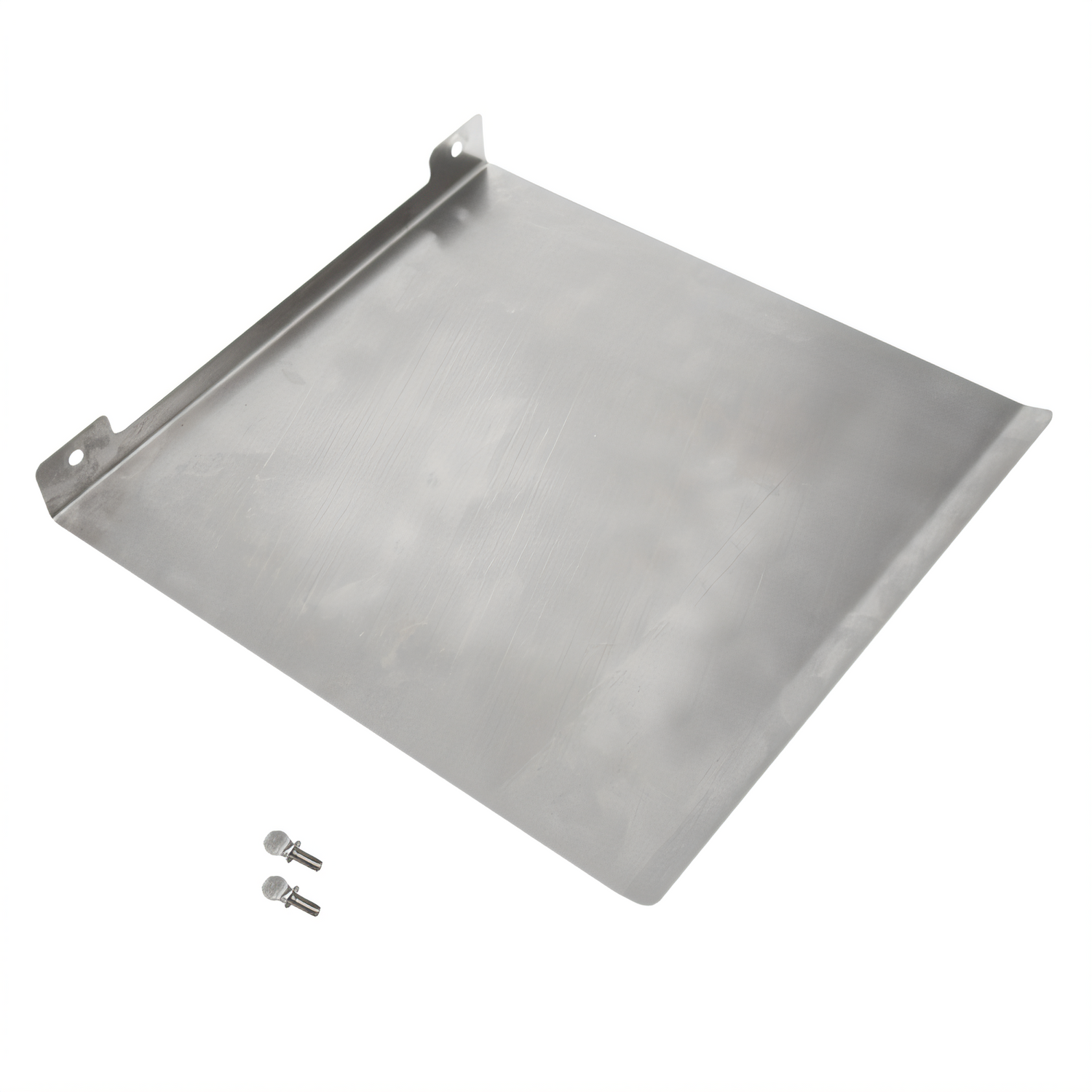

- 14" W × 14-3/4" H removable side splash guard contains overspray.
- TIG-welded 14 ga 300-series stainless top; 18 ga stainless base – built for high-volume use.
- Ships with both drain plugs (models PBDR-15CP & PBDR-325CP) for ice bin & water deck.
- NSF certified for food-contact safety.
At-a-Glance Specifications
| Overall Dimensions | 18" W × 21" D × 13" H |
|---|---|
| Countertop Cut-Out | 17-1/8" W × 20" D |
| Ice Bin Interior | 13" W × 9" F-B × 11" H (insulated) |
| Recommended Ice Capacity | 28 lb |
| Top Material | 14 ga / 300-series stainless steel |
| Base Material | 18 ga / 300-series stainless steel |
| Faucet | PBF-SGL-LF glass filler (included) |
| Splash Guard | 14" W × 14-3/4" H, removable (ships loose) |
| Unit Weight | ≈ 29 lb* |
| Certifications | NSF, Lead-Free |
Simple Installation
- Drop the unit into the cut-out and secure with supplied mounting studs.
- Connect the 1/2" NPT water inlet to the glass filler.
- Plumb the bin and sink drains to an approved waste line or ice dump.
*Ice capacity and unit weight are approximate. Shipping weight will be higher due to protective packaging.
Care & Cleaning Tips
- Wash daily with mild, non-chloride detergent and a soft cloth.
- Rinse, then wipe dry following the stainless steel grain to maintain the passive protective film.
- Avoid abrasive pads, bleach, or cleaners containing quaternary salts to prevent pitting.
