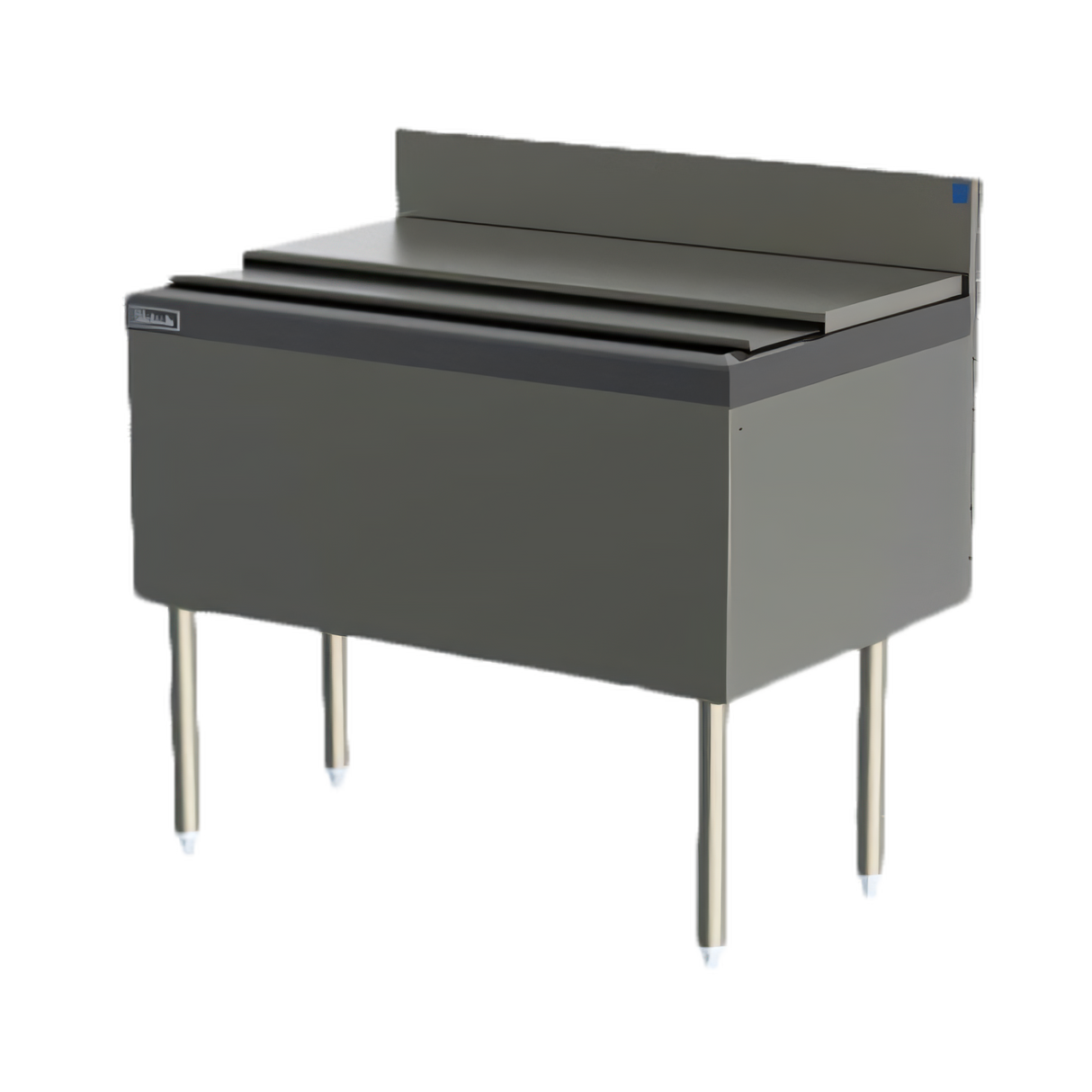

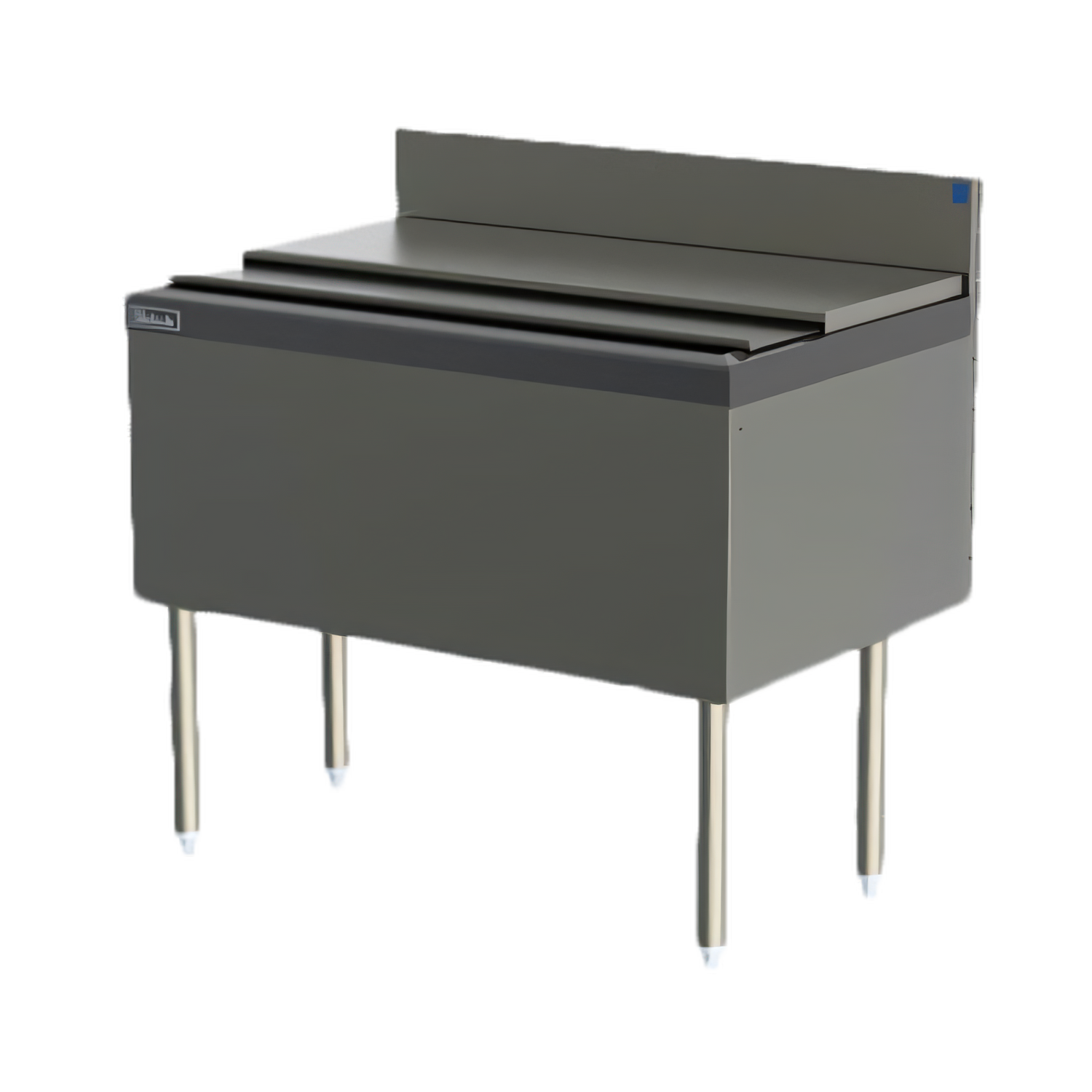

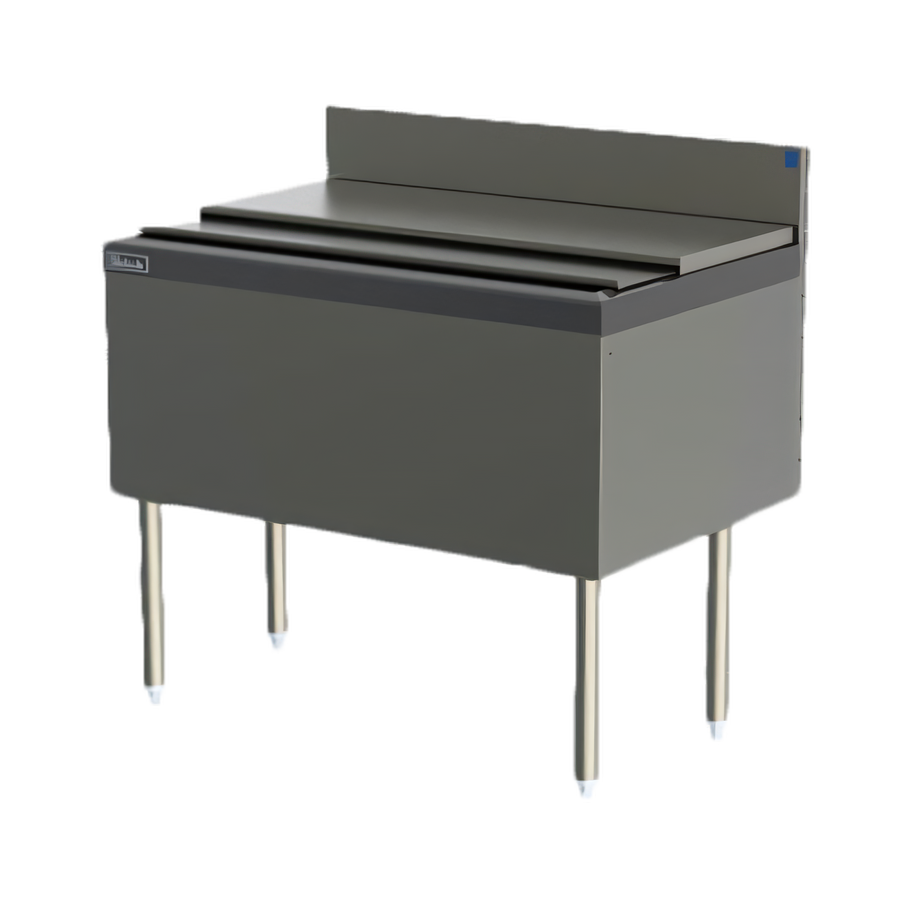

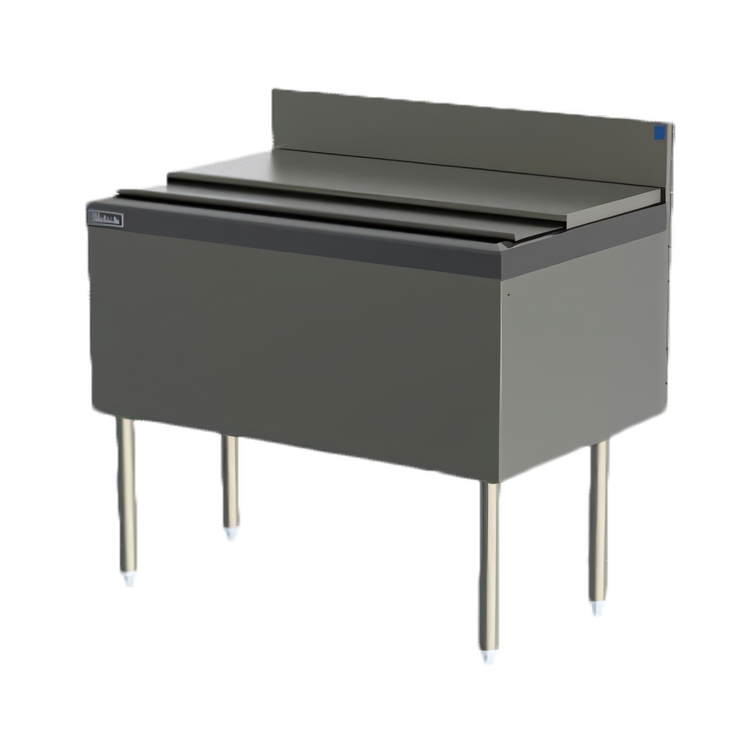

Perlick Top Shelf TSF Series Full-Depth Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate, 24 x 24 Inches

SKU: TSF24IC10
$2,987.60
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment New Arrivals Perlick Corporation Restaurant Equipment Underbar Equipment

Perlick Top Shelf TSF Series Full-Depth Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate, 24 x 24 Inches

Approx. 65-lb. Ice Capacity; Stainless Steel and Galvanized Construction

Built for efficient cocktail service, this full-depth underbar ice bin pairs a concealed 10-circuit cold plate with a durable stainless steel build and compact 24-inch footprint.

  • Full-depth TSF modular design provides a 24" x 24" footprint for underbar cocktail stations.
  • Concealed 10-circuit aluminum cold plate chills beverages using the bin's ice supply.
  • Approx. 65-lb. ice capacity supports busy bar service.
  • Stainless steel ice bin, front, and sides with galvanized back and bottom for durability.
  • 6" backsplash with 1" top return helps contain splashes.
  • 1/2" NPS male drain plus stainless steel legs and adjustable thermoplastic feet.

Overall Dimensions:

24.0"W x 24.0"D x 36.5"H

Product Weight:

140.0 lb

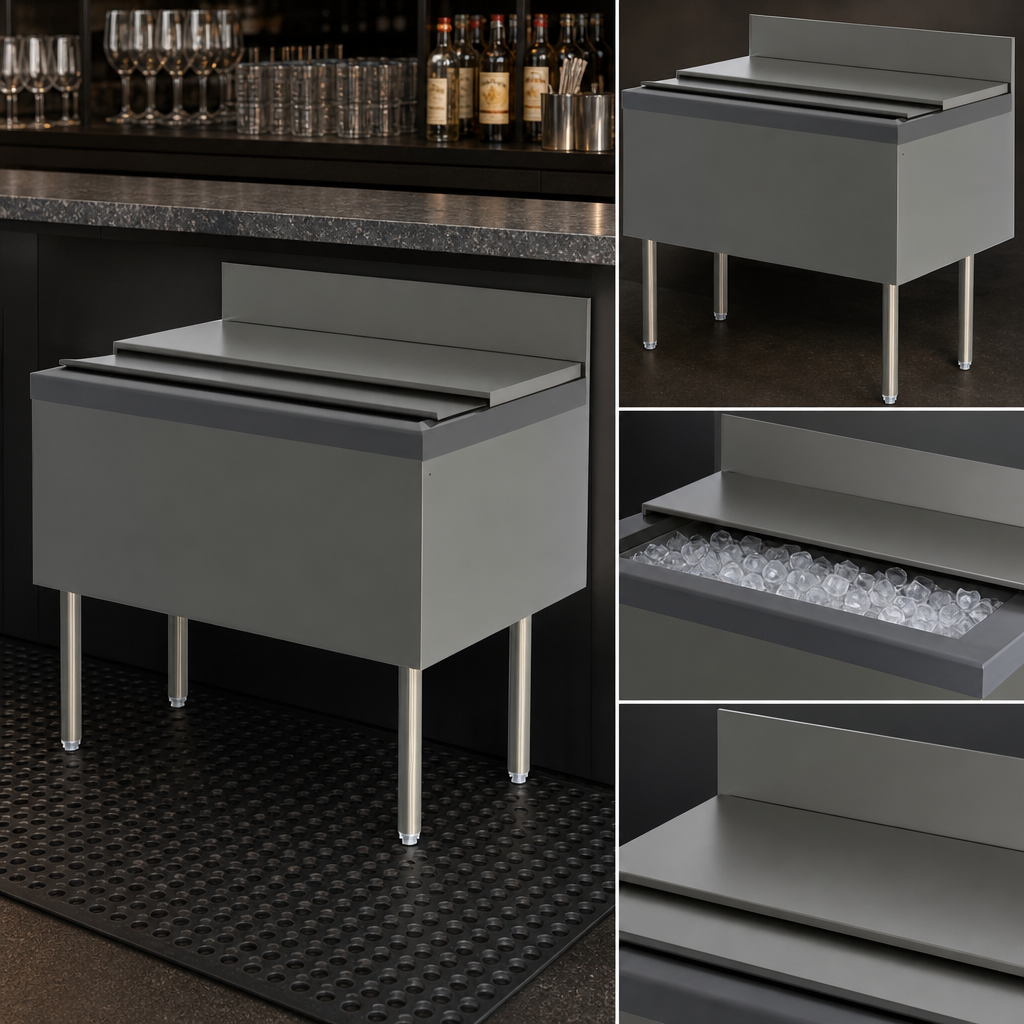

TSF Full-Depth Modular Design

Part of the TSF full-depth underbar lineup, designed to maximize ice storage and usable work surface.

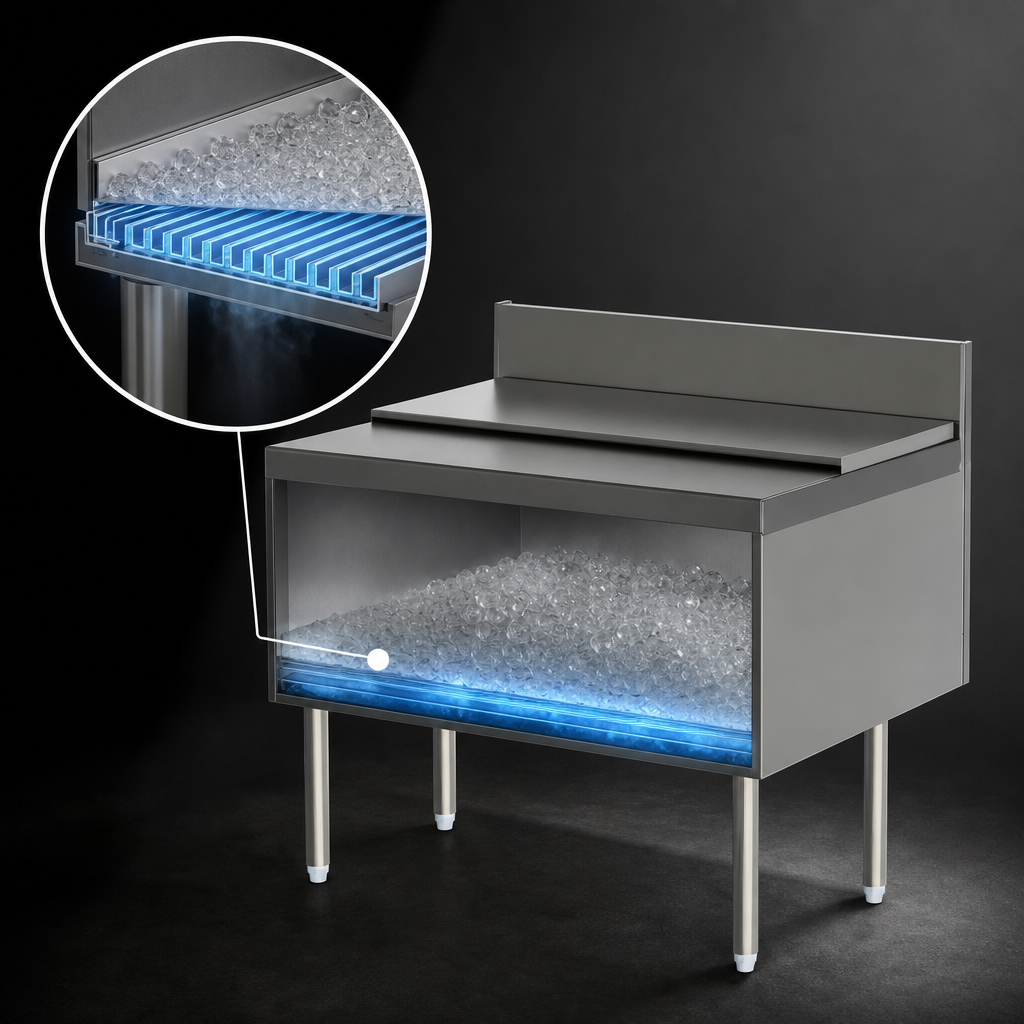

Concealed 10-Circuit Cold Plate

Aluminum cold plate is hidden under the bin liner to help chill beverages efficiently and sanitary.

Approximate 65-Lb. Ice Capacity

Sized to provide about 65 pounds of ice storage for cocktail service.

Deep Stainless Steel Ice Bin

10-3/4-inch deep stainless steel bin provides durable ice storage.

6-Inch Backsplash With Return

The 6-inch backsplash includes a 1-inch return at the top to help contain spills and splashes.

Mixed-Material Construction

Stainless steel front and sides are paired with a galvanized steel back and bottom, plus an ABS plastic top ledge.

Drain and Leg Assembly

Includes a 1/2-inch NPS male drain, 1-5/8-inch tubular stainless steel legs, and 1-inch adjustable thermoplastic feet.

Type Underbar Ice Bin/Cocktail Unit
Style TSF Series
Installation Type Freestanding
Capacity 65 lb.
Material Stainless Steel
Drain Connection Size 1/2 Inch NPS Male
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 140 lb.

Documents

PDF Cutsheet PDF Download PDF Ts design guide PDF Download

Frequently Asked Questions

It has an approximate ice capacity of 65 lb.
Yes. It includes a 10-circuit aluminum cold plate concealed under the bin liner.
The unit measures 24 inches wide by 24 inches deep by 36.5 inches high.
It features stainless steel front and sides, a galvanized steel back and bottom, and an ABS plastic top ledge.
It uses a 1/2-inch NPS male drain connection.
Yes. It includes a 6-inch backsplash with a 1-inch return at the top.
