Omcan USA Trento 48765 Floor Dough Sheeter, Variable Speed, 17.6 lb Dough Capacity, 60 in Folding Table

SKU: 48765
$9,107.59

Want to speak to an expert?

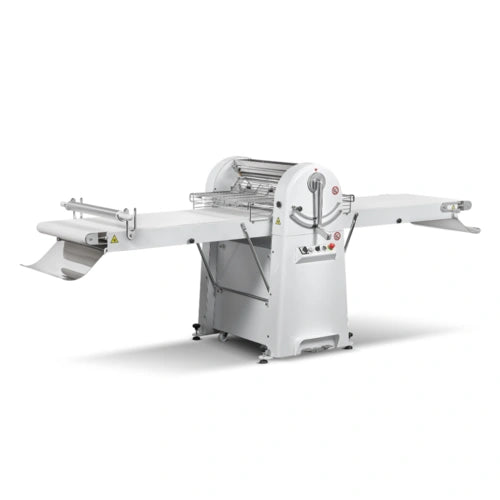

The Omcan USA Trento 48765 is a floor-model dough sheeter with variable speed control, adjustable thickness, and a 60 in folding table.

  • Handles up to 17.6 lb (8 kg) of workable dough.
  • Uses galvanized hard chrome-plated cylinders with a 0–40 mm rolling thickness range.
  • Includes removable scrapers, a removable safety guard, swivel wheels, and stabilizing feet.
  • Powered by a 1 HP (750 W) motor at 220 V, 60 Hz, single phase.

Overall Dimensions:

42.0"W x 40.0"D x 89.0"H

Product Weight:

591.0 lb

Variable speed control

The sheeter is specified with variable speed control.

Adjustable thickness

Rolling thickness is adjustable from 0 to 40 mm.

60 in folding table

The table length is 60 in (1500 mm) and the table folds for storage.

Dough capacity

The maximum workable dough quantity is 17.6 lb (8 kg).

Chrome-plated cylinders

The machine uses galvanized hard chrome-plated cylinders.

Removable scrapers

The scrapers can be removed for cleaning.

Removable safety guard

The safety guard is removable for cleaning and maintenance.

Mobility and stabilization

Swivel wheels provide mobility, while stabilizing feet support positioning.

Die-cast construction components

The shoulders and casing are made from aluminium die-cast components.

Dual commands

The low-voltage electrical system has hand and foot-pedal commands.

Manufacturer model BE-IT-1500
Product type Floor dough sheeter
Bench or floor Floor
Maximum workable dough quantity 17.6 lb (8 kg)
Table length 60 in (1500 mm)
Table configuration Folding
Rolling thickness 0–40 mm
Maximum cylinder opening 0–37 mm
Cylinder diameter 70 mm (2.8 in)
Cylinder length 600 mm (23.6 in)
Maximum belt speed in/out 0.303 / 0.513 m/s
Roller material Steel
Cylinder finish Galvanized hard chrome-plated
Power 1 HP (750 W)
Electrical 220 V / 60 Hz / 1 Ph
Net weight 540 lb (245 kg)
Gross weight 591 lb (268 kg)
Closed dimensions (W × D × H) 41.7 × 39.8 × 88.6 in (1060 × 1010 × 2250 mm)
Working dimensions when opened (W × D × H) 133.1 × 39.8 × 45.7 in (3380 × 1010 × 1160 mm)

Warranty & Protection

Parts and labour warranty; the provided materials do not specify a warranty duration.

Frequently Asked Questions

Its maximum workable dough quantity is 17.6 lb (8 kg).
The rolling thickness is adjustable from 0 to 40 mm.
It requires 220 V, 60 Hz, single-phase power and is rated at 1 HP (750 W).
It is a floor-model dough sheeter.
It has a 60 in (1500 mm) folding table.
It has a removable safety guard and removable scrapers.
