Micro Matic Pro-Line E-Series 80-Inch Three-Section Refrigerated Back Bar Cabinet with Solid Locking Doors

SKU: MBB78-E
$4,065.93
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

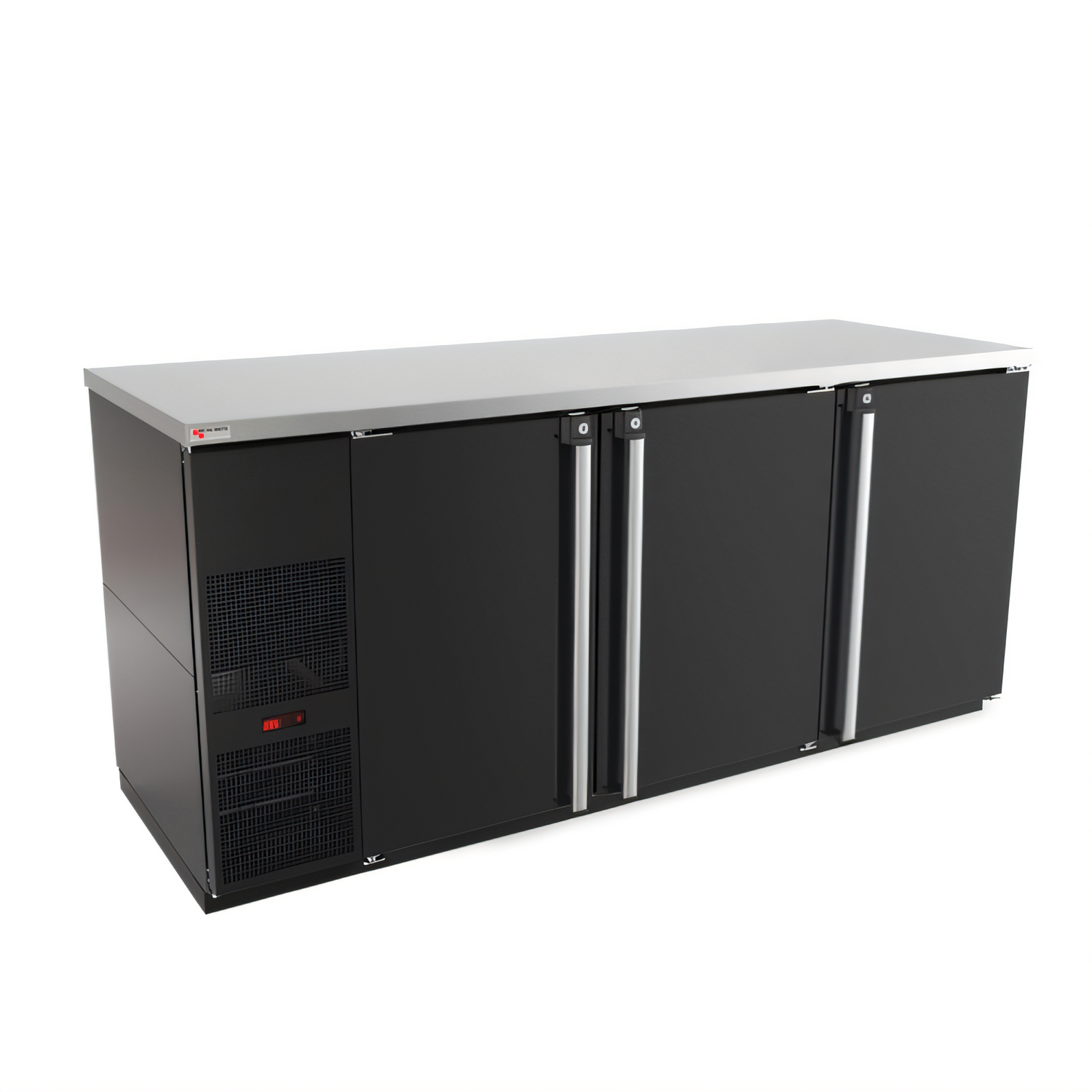

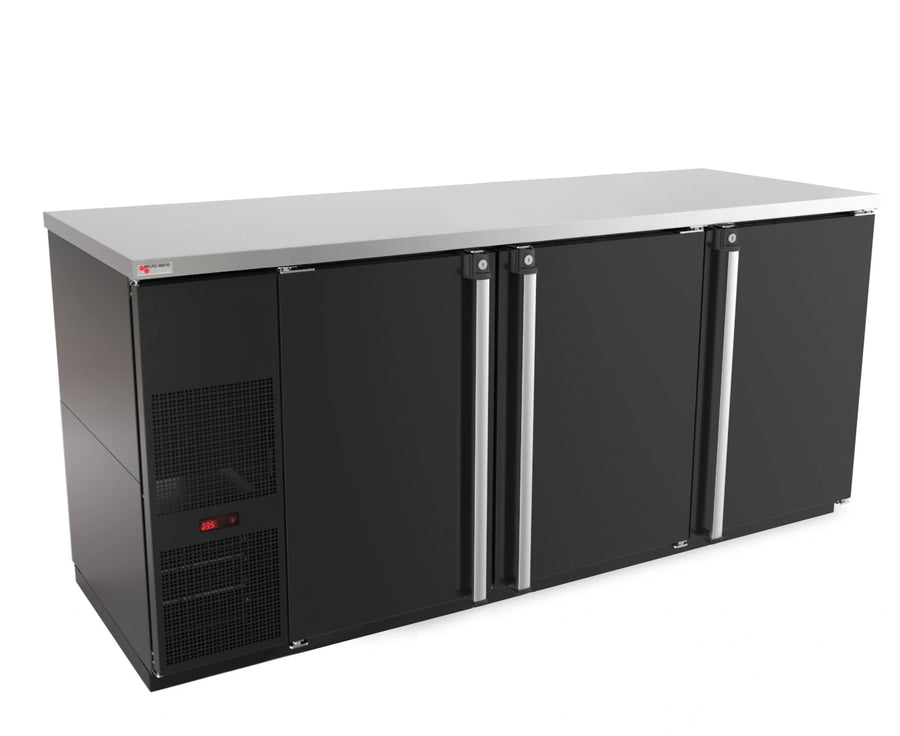

Micro Matic Pro-Line E-Series 80-Inch Three-Section Refrigerated Back Bar Cabinet with Solid Locking Doors

Self-Contained, Side-Mounted Refrigeration, Black Exterior

A spacious 80-inch back bar cooler that keeps drinks cold with self-contained refrigeration, locking doors, and easy digital temperature control.

  • 80-inch, three-section back bar cabinet with 30.8 cu ft. of storage and room for up to four 1/2 kegs.
  • Self-contained, front-breathing refrigeration is designed for easier installation behind the bar.
  • Three solid hinged doors with locks help secure inventory during off-hours.
  • Adjustable digital thermostat and interior lighting improve temperature control and product visibility.
  • Stainless steel top and interior pair with a black vinyl steel exterior for durability.
  • Includes two flat shelves and four divider shelves; automatic condensate evaporator means no drain connection required.

Overall Dimensions:

80.0"W x 29.5"D x 36.88"H

Product Weight:

377.0 lb

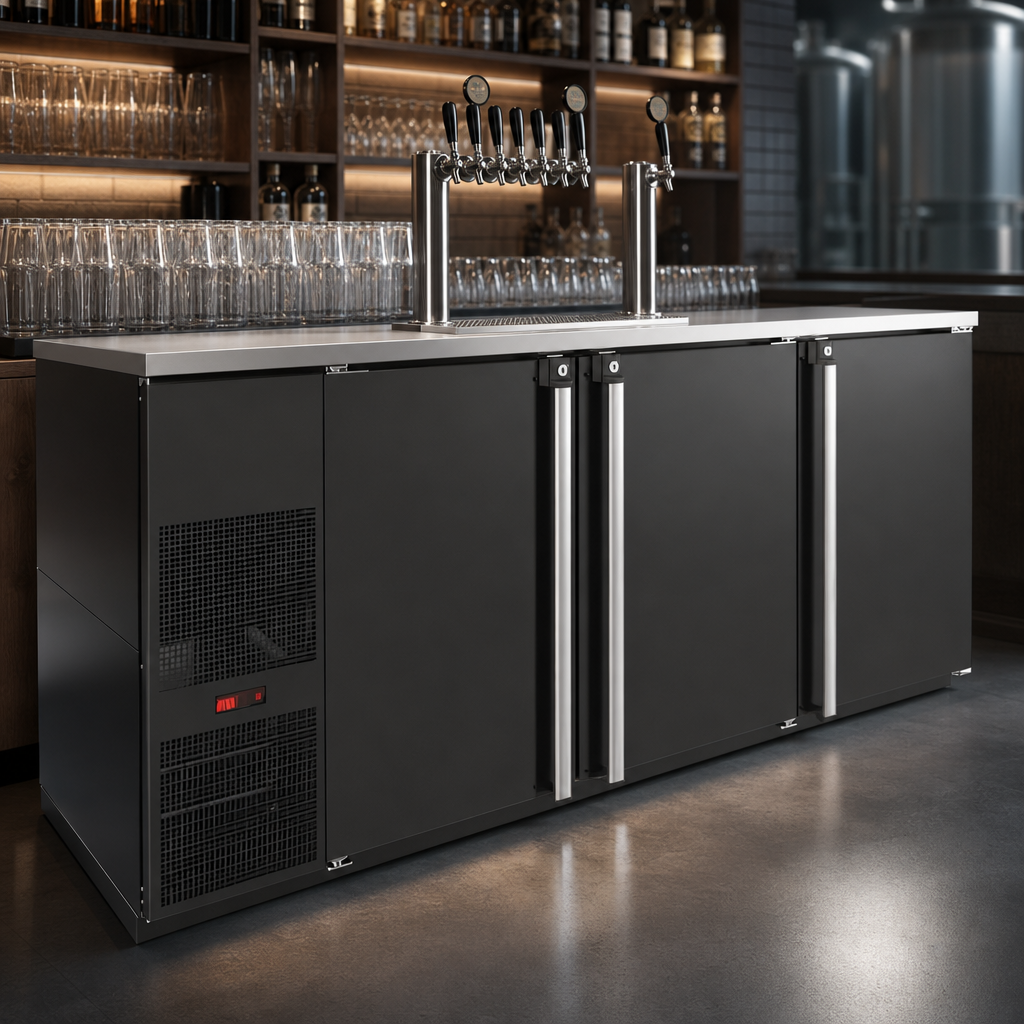

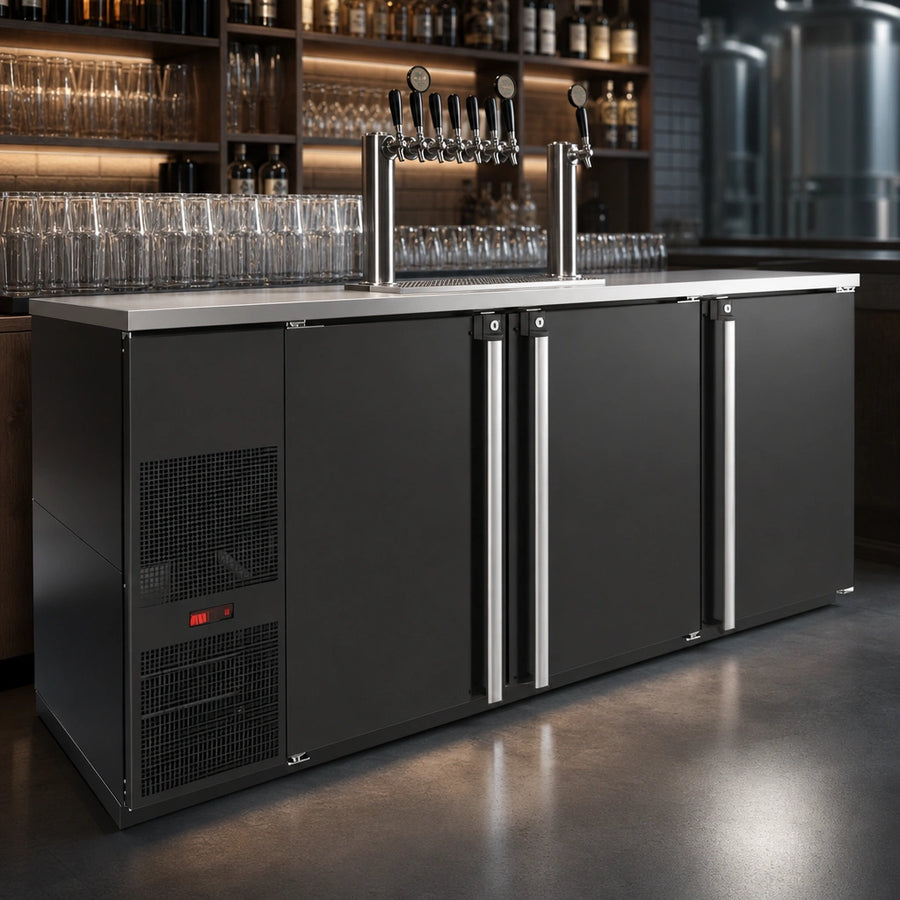

Beer-Industry Design

Designed by beer-industry experts for performance and value.

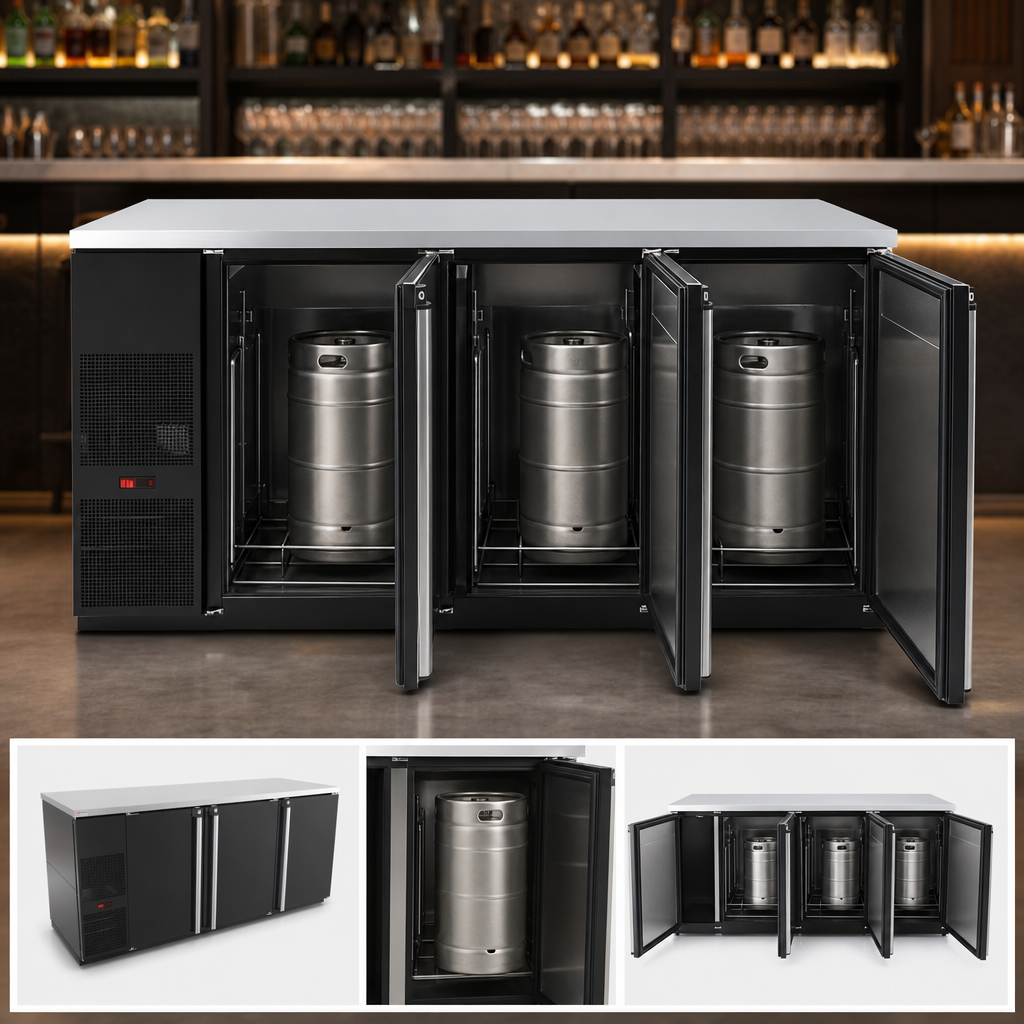

Three-Section Capacity

30.8 cu ft. interior provides storage for up to four 1/2 kegs.

Front-Breathing Refrigeration

Self-contained refrigeration with front ventilation supports easier placement and exhaust airflow.

Adjustable Digital Thermostat

Exterior-mounted digital control makes temperature adjustments simple.

Locking Solid Doors

Three hinged solid doors include locks for added security.

Shelving Package

Includes two flat shelves and four divider shelves.

Automatic Condensate Evaporator

No drain connection required; condensate is routed to a pan in the compressor housing.

Stainless Steel Interior

Stainless steel walls, floor, and top with black vinyl steel exterior for durability.

Interior Lighting

Illuminates the cabinet for easier product visibility.

R290 Refrigerant

Uses R290 hydrocarbon refrigerant.

Type Refrigerated Back Bar Cabinet
Style Three-Section
Installation Type Freestanding
Capacity 30.8 Cubic Feet
Refrigeration Type Self-Contained
Refrigeration Location Side Mounted
Color Black
Interior Finish Stainless Steel
Controls Digital
Refrigerant Type R290
Horsepower 1/3 HP
Door Count 3
Voltage 115 Volts
Amps 3.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Selling Unit Each
Units Per Case 1
Shipping Width 80 Inches
Shipping Depth 30 Inches
Shipping Height 37 Inches
Shipping Weight 377 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year limited warranty.

Frequently Asked Questions

It has a 30.8 cu ft. interior capacity.
The cabinet is designed to hold up to four 1/2 kegs.
No. It uses an automatic condensate evaporator, so no drain connection is required.
It operates on 115/60/1 power, draws 3.0 amps, and includes an 8-foot cord with a NEMA 5-15P plug.
Casters or 6-inch fixed legs are available and must be ordered separately.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
