Key specifications

BTU
1,771 BTU
Amps
3 Amps
Phase
1-Phase
Dimensions
73.1"W × 24.4"D × 36.2"H
Type
Back Bar Cooler
Installation Type
Floor Model
Spec sheet
Serv-Ware SKU: BB4-24G-HC

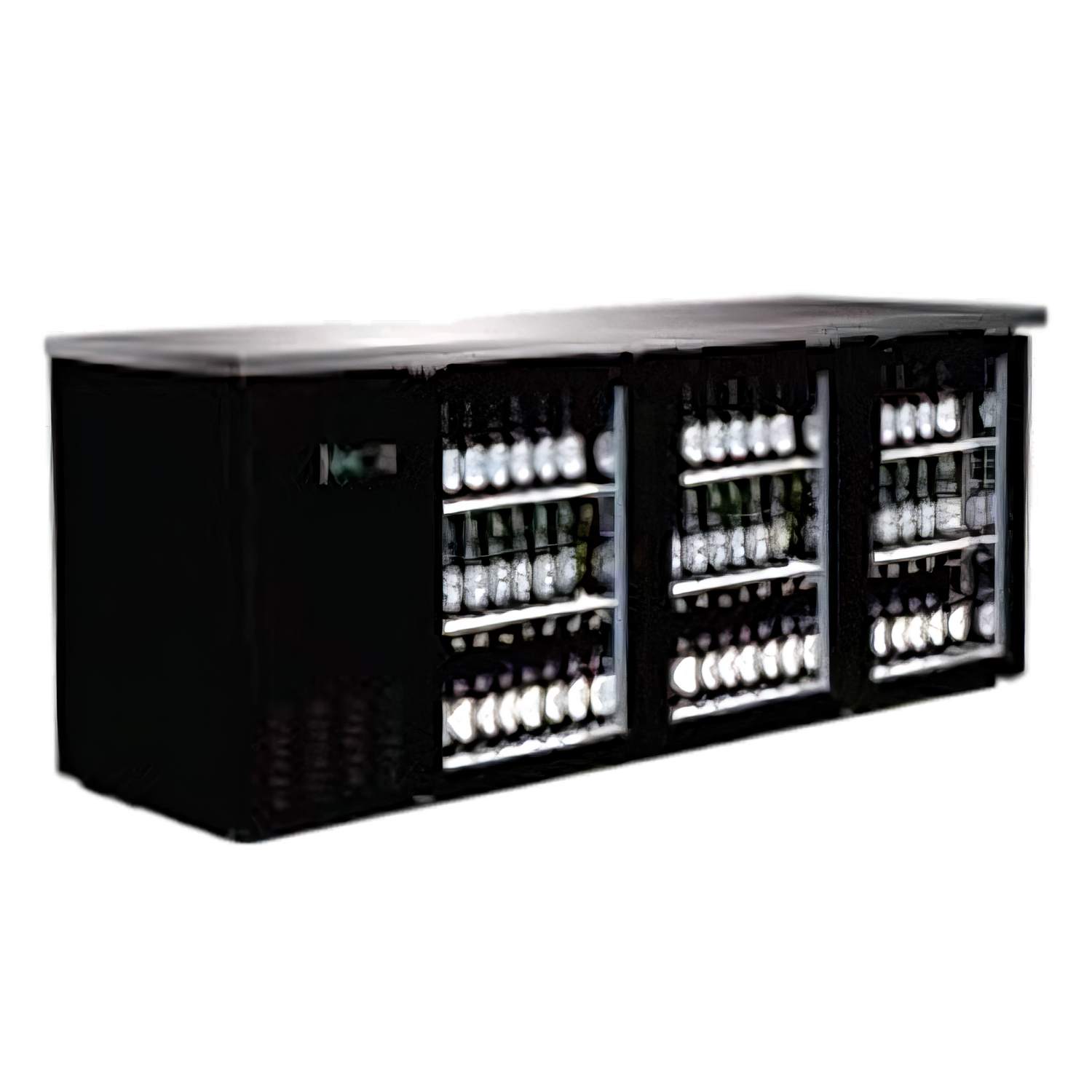

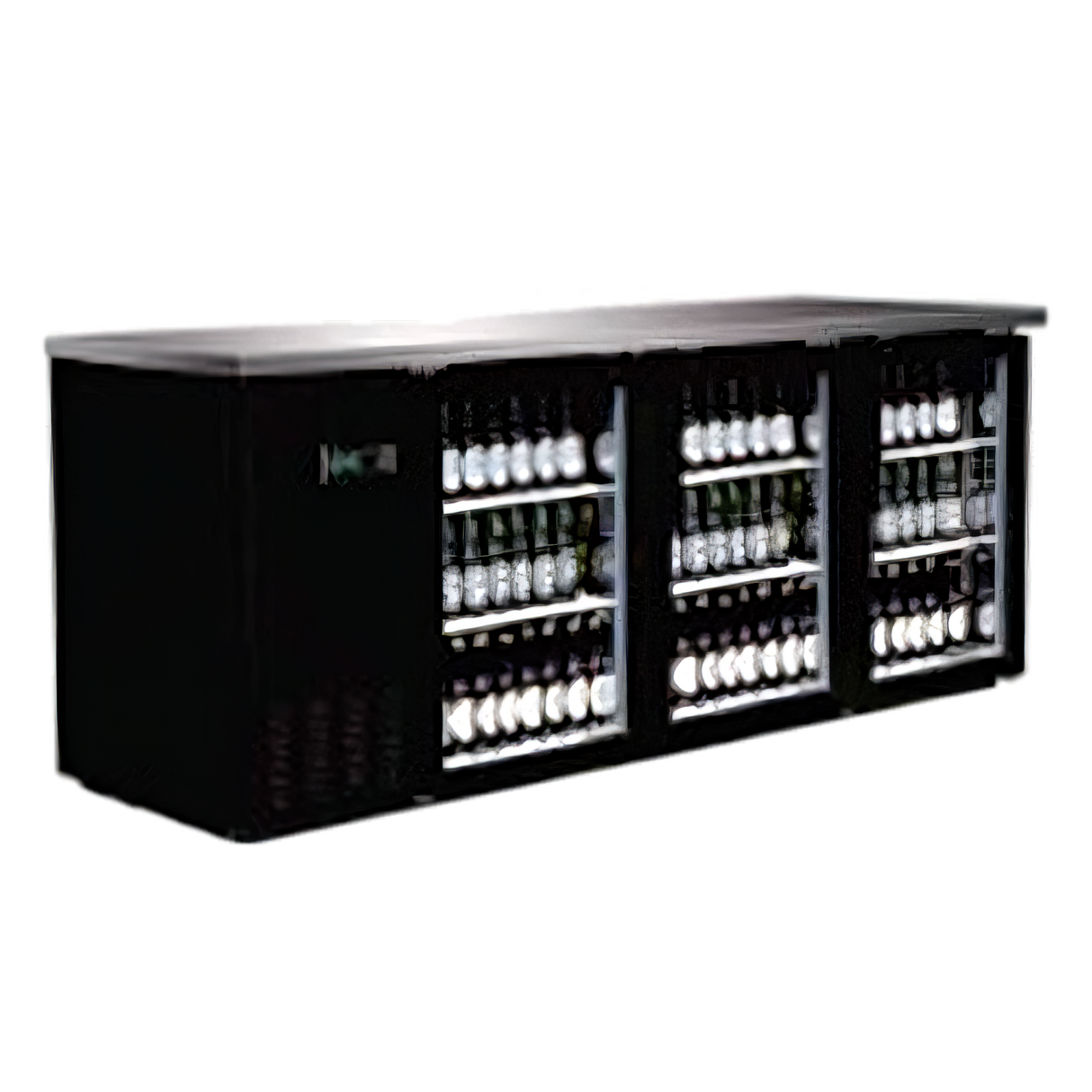

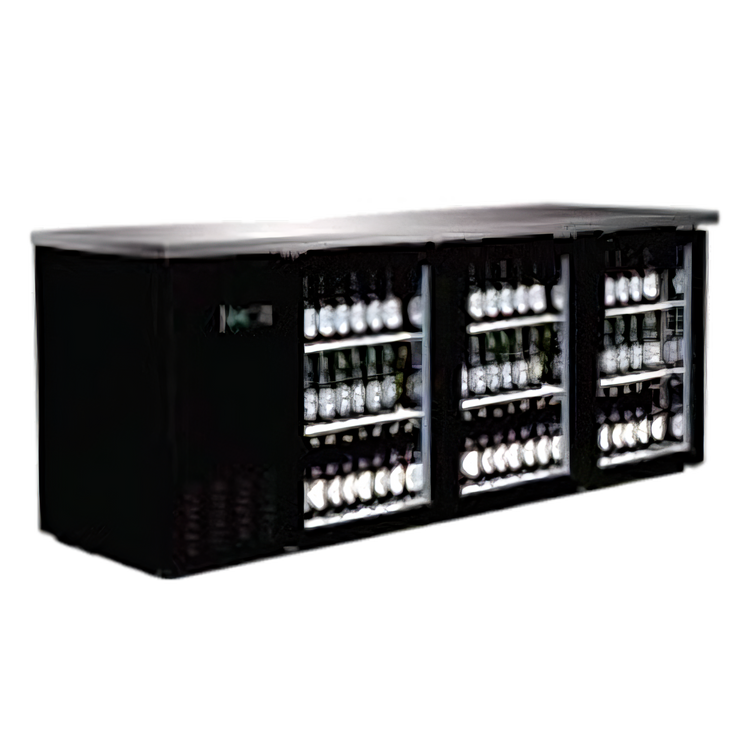

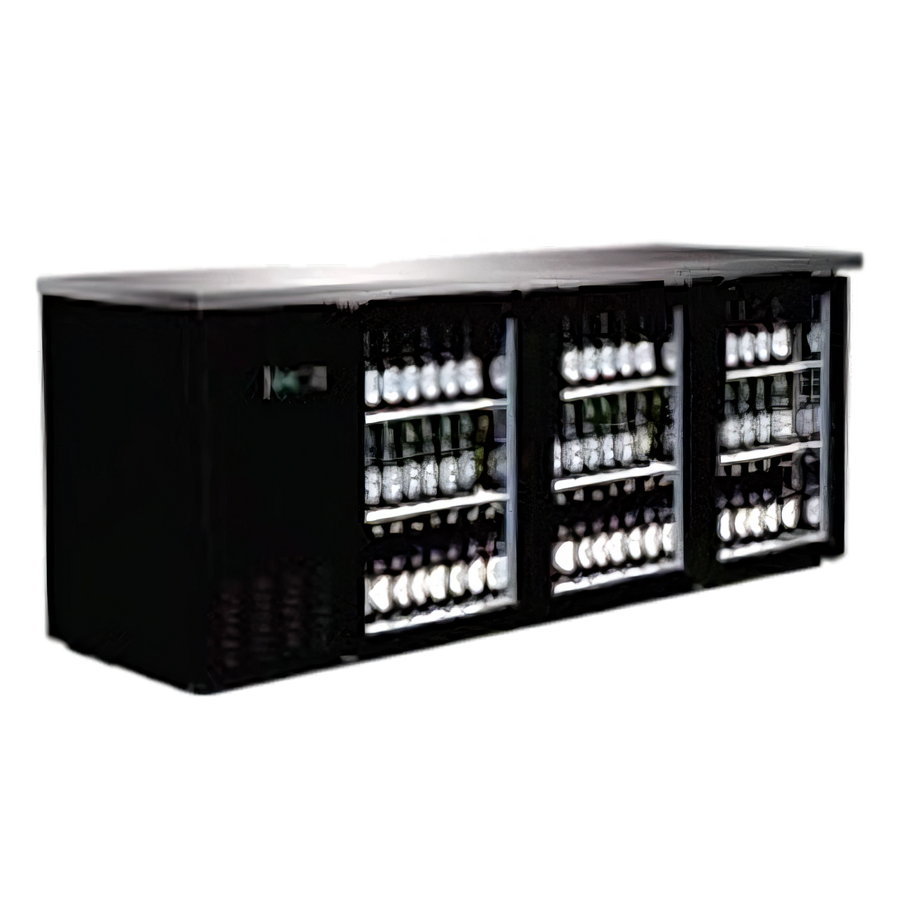

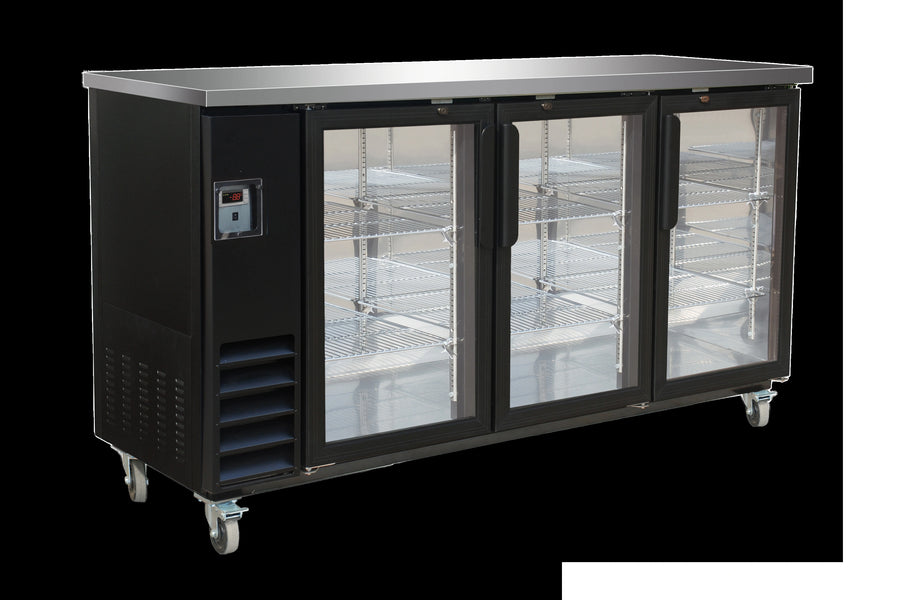

Serv-Ware BB4-24G-HC 73-Inch 3-Door Glass Back Bar Cooler

$2,534.70
/each
Estimated to ship in 6–9 business days
Included: Serv-Ware warranty Three-year parts and labor warranty on the entire unit and five-year compressor parts-only warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $234/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Back Bar Cooler
Installation Type Floor Model
Material Painted Steel
Color Black
Interior Material Stainless Steel
Top Finish Stainless Steel
Capacity 17.2 cu. ft.
Door Qty 3 Doors
Door Type Glass
Door Swing Swing
Door Closure Self-Closing
Shelf Count 1 Per Door
Shelf Material PVC-Coated Wire
Refrigeration Type Self-Contained, Side-Mounted
Temperature Range 33°F–41°F
Refrigerant Type R290
Refrigerant Charge 4.59 oz
BTU 1,771 BTU
Defrost Interval 6 Hours
Insulation Material CFC-Free Foam
Voltage 115 Volts
Amps 3 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Horsepower 3/7 HP

Description

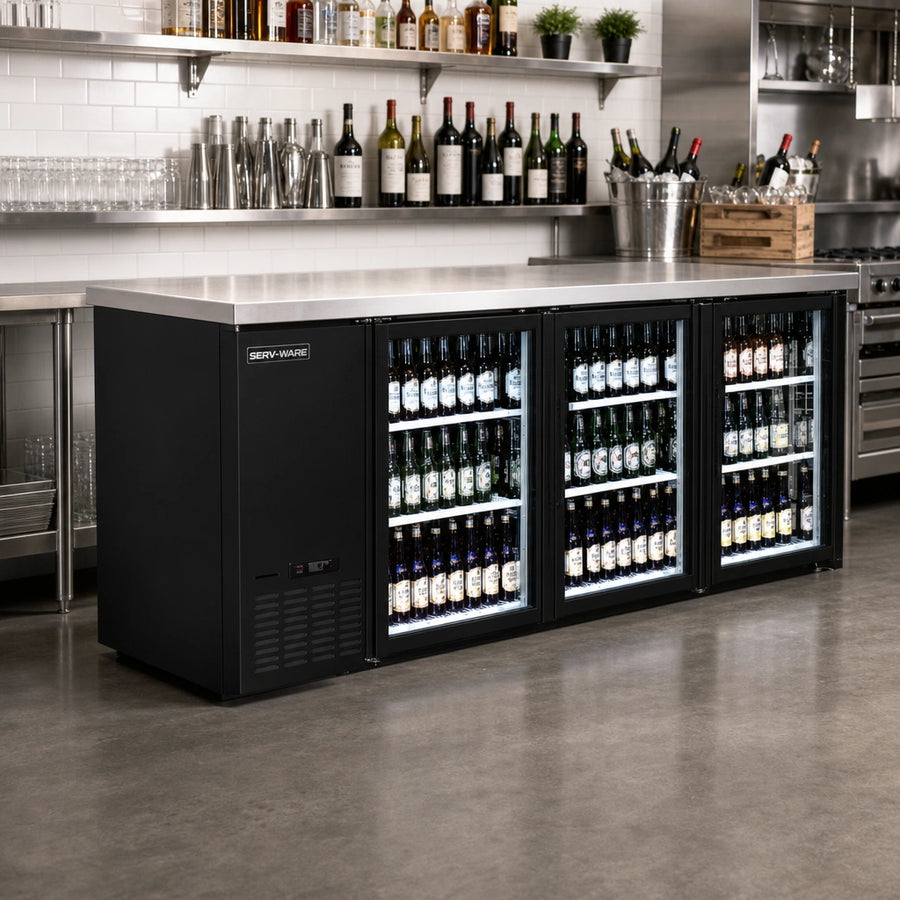

Serv-Ware BB4-24G-HC is a back bar cooler with three glass swing doors, a stainless steel top, and self-contained side-mounted refrigeration.

It provides 17.2 cu. ft. of storage capacity with a 33°F–41°F temperature range. An electronic thermostat and digital LED temperature display support accurate control and easy reading.

  • Black painted steel exterior and stainless steel interior
  • One PVC-coated wire shelf per door
  • Self-closing doors with replaceable magnetic gaskets
  • 115-volt, 1-phase electrical operation

Overall Dimensions:

73.1"W x 24.4"D x 36.2"H

Product Weight:

416.0 lb

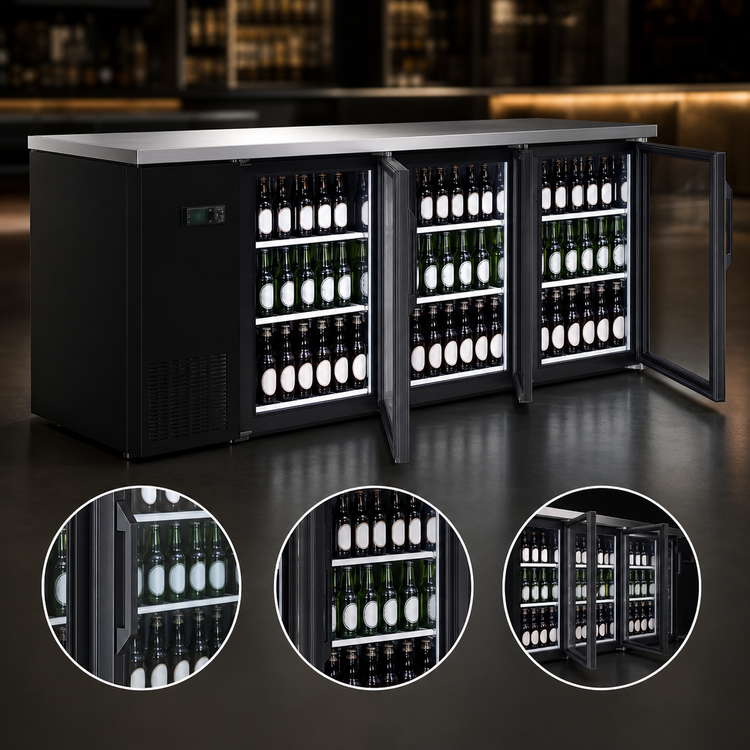

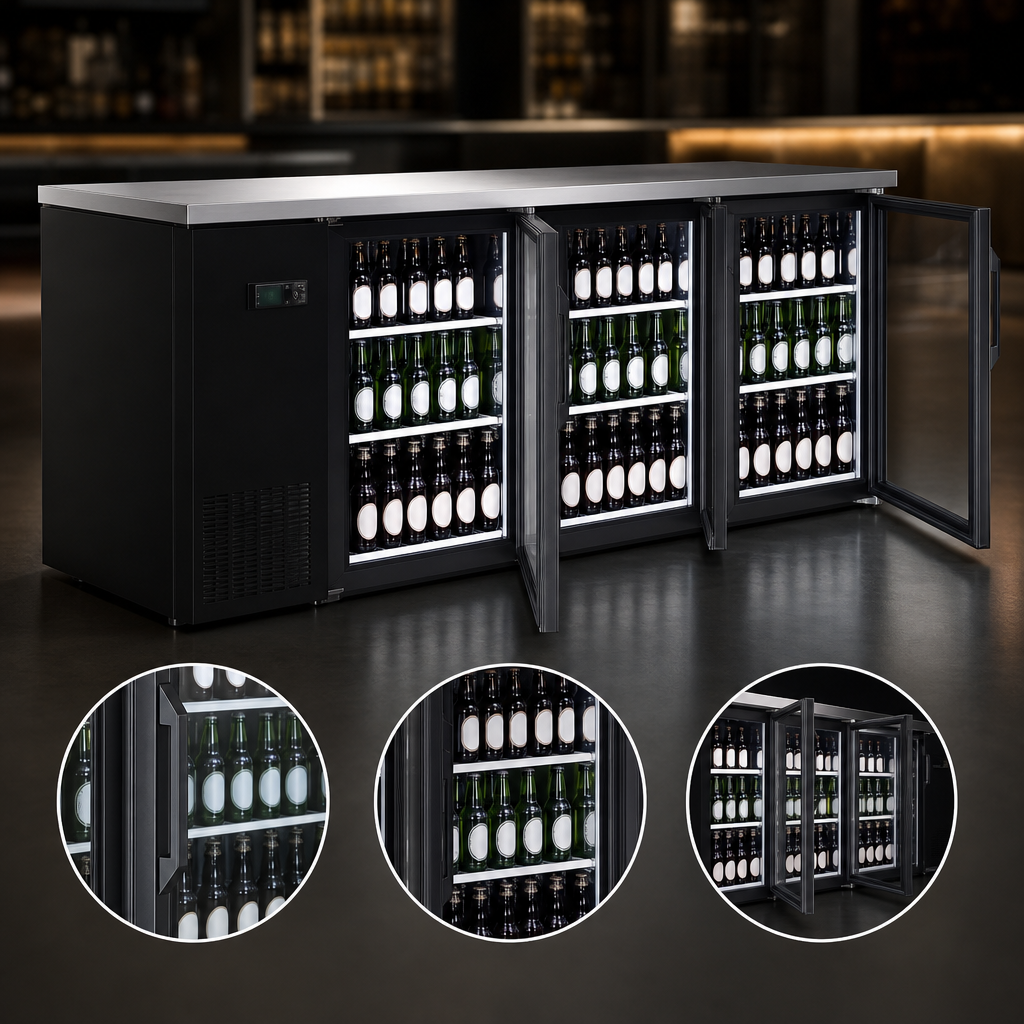

Three Glass Swing Doors

Provides access to the refrigerated storage area through three glass swing doors.

Electronic Temperature Control

An electronic thermostat and digital LED temperature display support accurate control and easy reading.

Self-Closing Doors

The doors are self-closing and use magnetic gaskets that can be replaced without tools.

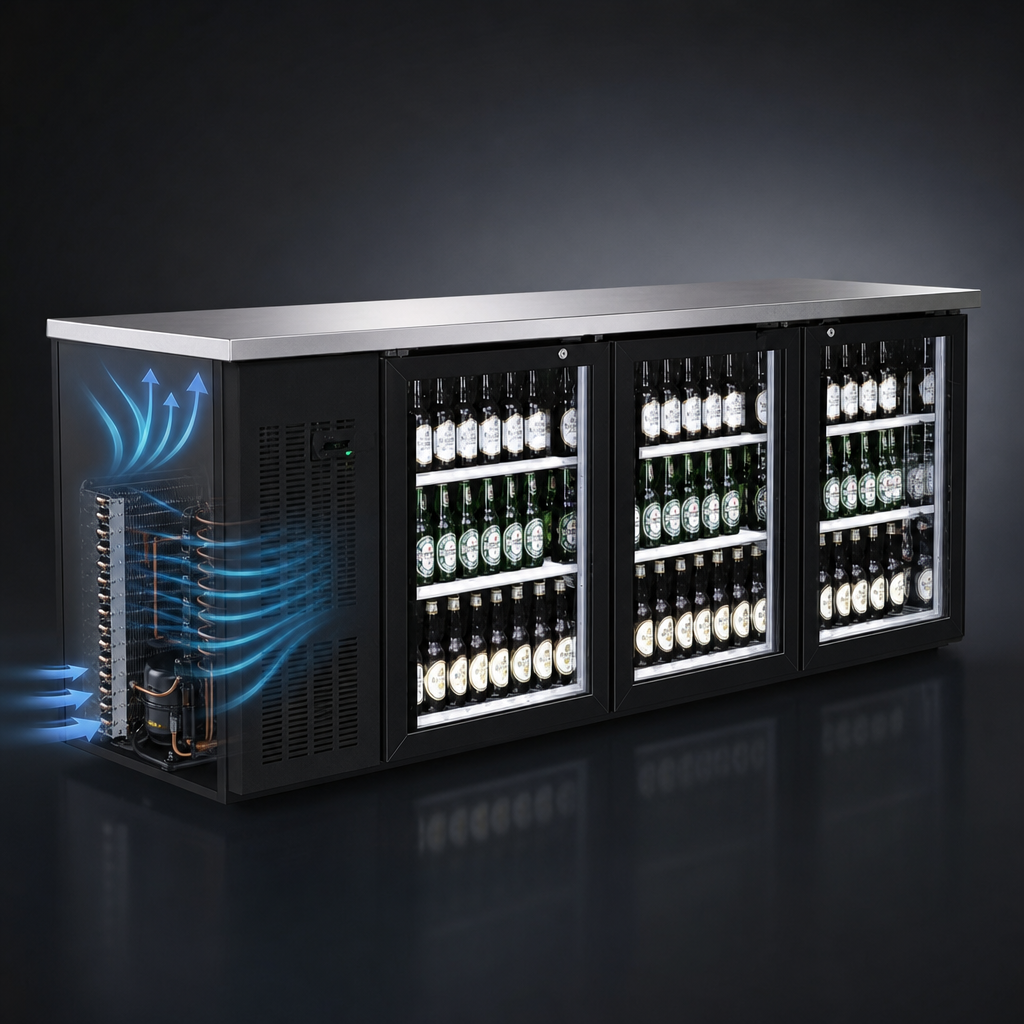

Side-Mounted Refrigeration

The refrigeration system is self-contained and side-mounted.

Stainless Steel Top

The unit has a stainless steel top and stainless steel interior.

CFC-Free Refrigerant and Foam

The product specification identifies CFC-free refrigerant and foam.

Six-Hour Defrosting

The unit defrosts every 6 hours.

Frequently Asked Questions

The cooler has a storage capacity of 17.2 cu. ft.
The temperature range is 33°F–41°F.
The unit has one PVC-coated wire shelf per door.
It requires 115 Volts, 3 Amps, 60 Hz, and 1-Phase power, with a NEMA 5-15P plug.
The dimensions are 73.1 in. wide by 24.4 in. deep by 36.2 in. high.
The unit has a 3-year parts and labor warranty on the entire unit and a 5-year compressor parts-only warranty.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
