Key specifications

Amps
12 Amps
Phase
1-Phase
Dimensions
30.0"W × 36.38"D × 74.75"H
Type
Holding Cabinet
Style
Pass-Thru
Installation Type
Floor Model
Spec sheet
Metro SKU: C599L-SFC-LPFC GTIN: 0-41105-46889-0

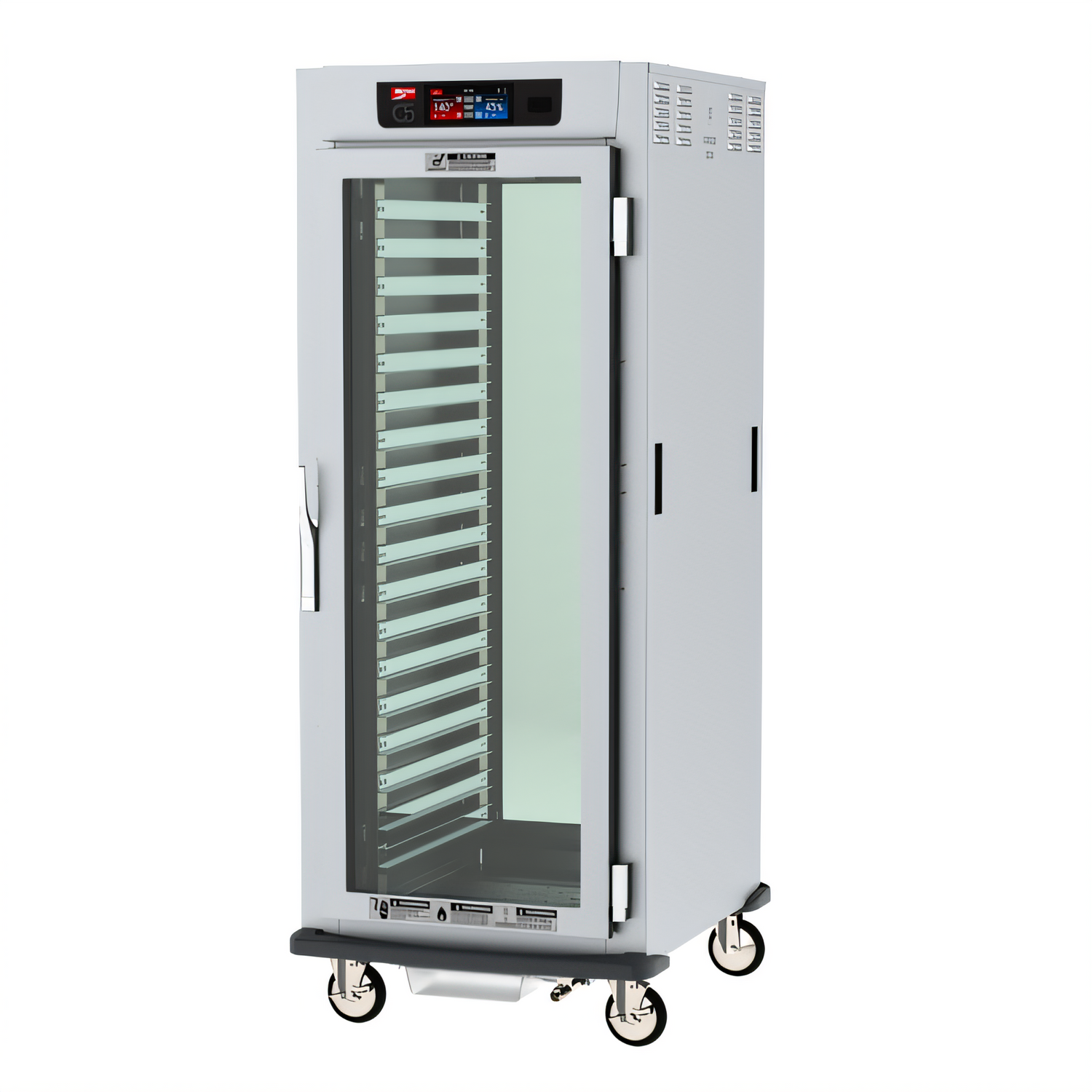

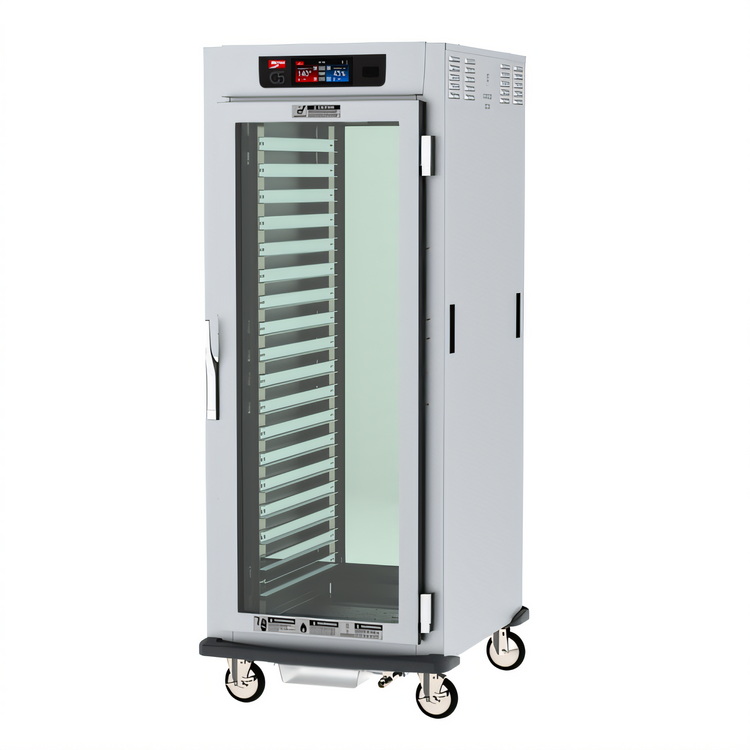

Metro C5 C599L-SFC-LPFC 18-Pan Pass-Through Holding Cabinet

$10,044.00
/each
Estimated to ship in 9–12 business days
Configuration
Style
Accessories
Included: Metro warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $929/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Material 304 Stainless Steel
Country of Origin USA
Finish Polished
Interior Finish Stainless Steel
Pan Size 18 in x 26 in
Pan Capacity 18 Pans
Door Style Full Glass
Door Count 2
Slide Type Lip Load
Slide Spacing 3 in O.C.
Controls 6.8 in Touchscreen
Temperature Range 90°F to 200°F
Water Reservoir Capacity 4 gal
Heater Top Mounted
Insulation 2.5 in Fiberglass
Caster Size 5 in
Bumper Type Polymer
Voltage 120 Volts
Amps 12 Amps
Watts 1,440 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 7.5 ft

Description

Metro C5 C599L-SFC-LPFC is a full-height, mobile, pass-thru controlled humidity heated holding and proofing cabinet with two full glass doors.

It accommodates 18 18 in x 26 in pans on lip-load slides with 3 in slide centers. The 6.8 in touchscreen displays and controls cabinet temperature and actual relative humidity.

  • Stainless steel cabinet with 5 in casters and a polymer bumper and drip trough combination
  • 120 Volts, 1,440 Watts, 12 Amps, 60 Hz, and NEMA 5-15P plug
  • Temperature range of 90°F to 200°F
  • Made in USA, NSF, and cULus certified

Overall Dimensions:

30.0"W x 36.38"D x 74.75"H

Product Weight:

366.98 lb

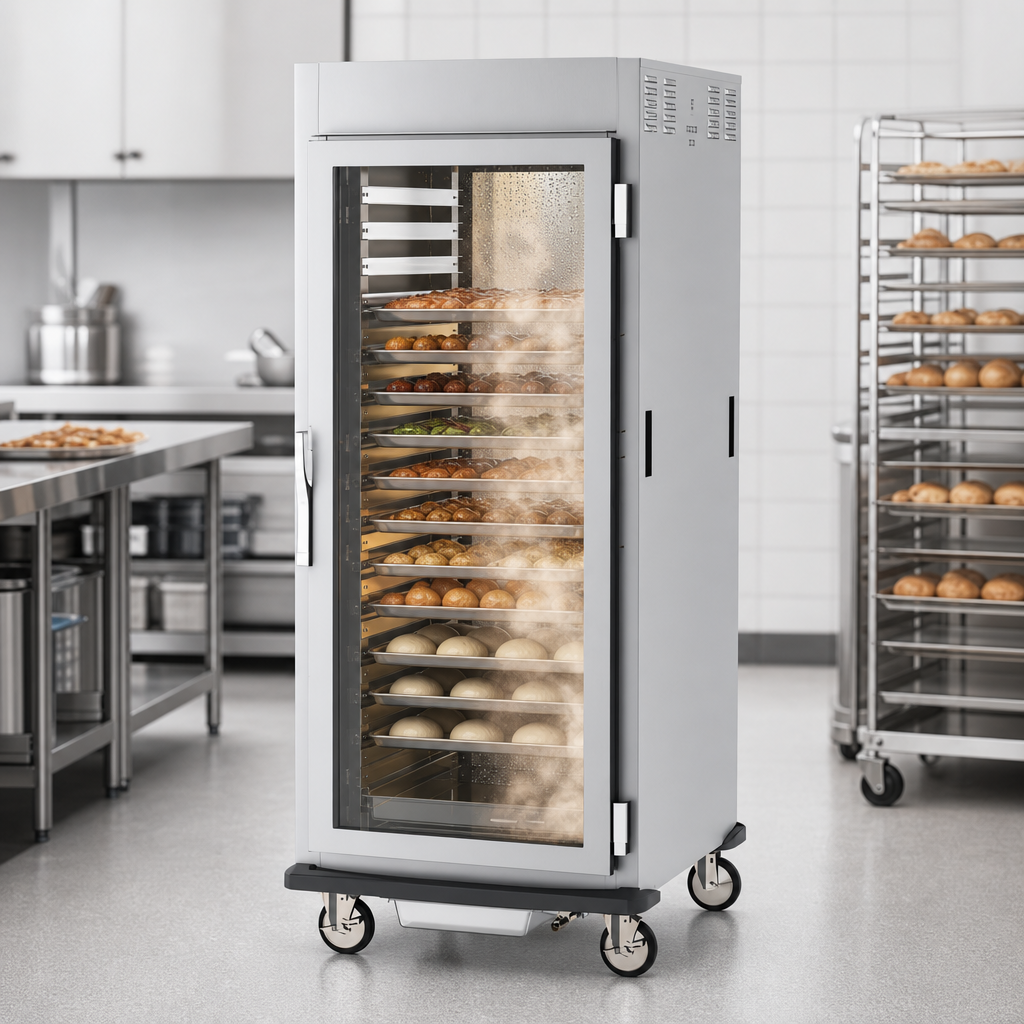

Controlled Humidity

Measures and displays actual relative humidity while providing individual control of cabinet temperature and humidity.

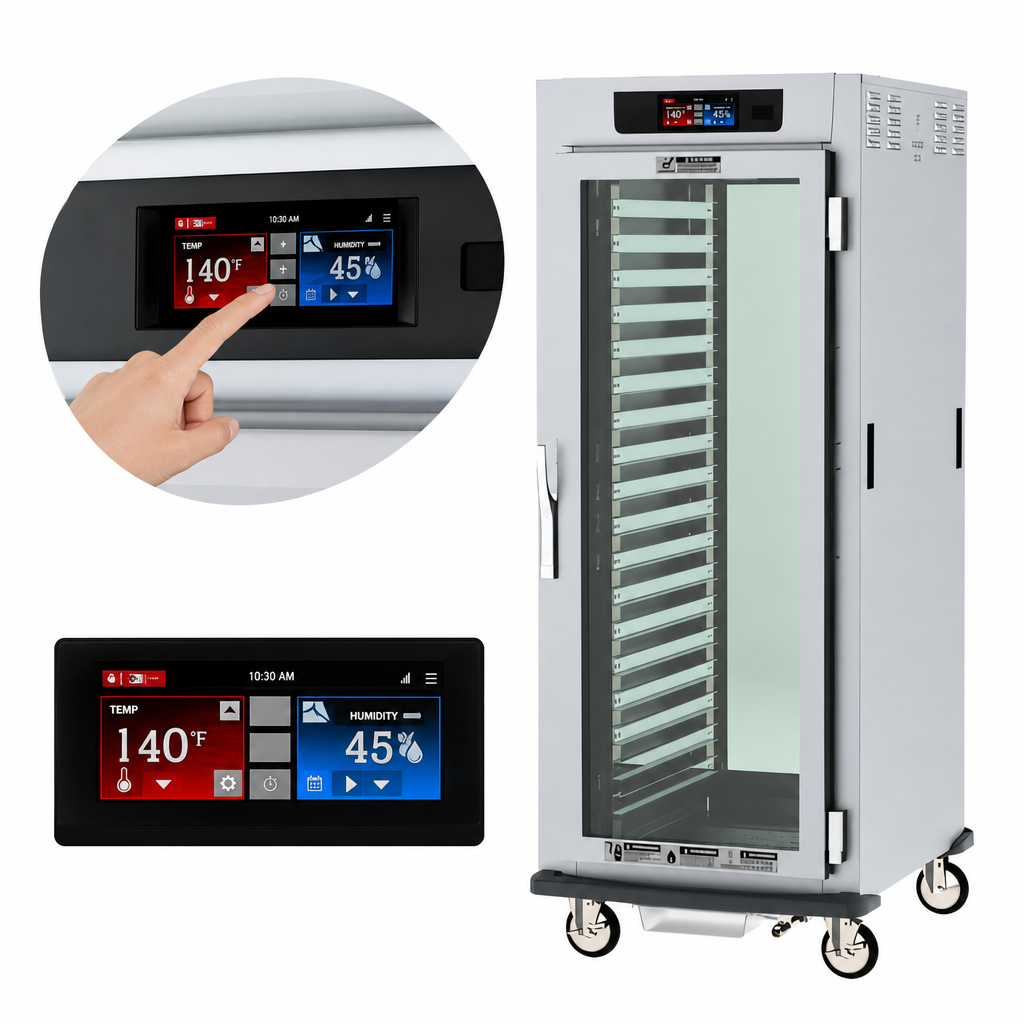

Touchscreen Controls

The 6.8 in touchscreen provides temperature and humidity display, menu presets, timers, and cabinet settings.

Pass-Thru Design

The full-height pass-thru configuration has two full glass doors.

Pan Storage

Lip-load slides accommodate 18 18 in x 26 in pans at 3 in slide centers.

Temperature Priority

The control system automatically prioritizes internal temperature over humidity.

HACCP Data Logging

A USB port supports HACCP data logging and saving or loading customized settings.

Programmable Operation

Menu presets, programmable timers, auto-start, low-temperature and water alarms, and control lock functions support cabinet operation.

Mobile Base

The cabinet is mobile and equipped with 5 in casters.

Frequently Asked Questions

It accommodates 18 pans measuring 18 in x 26 in.
Yes. It has two full glass doors in a pass-thru configuration.
The temperature range is 90°F to 200°F.
The cabinet operates at 120 Volts, 12 Amps, 1,440 Watts, and 60 Hz, with a NEMA 5-15P plug.
Yes. It is a mobile floor model equipped with 5 in casters.
The cabinet is 30 in wide, 36.38 in deep, and 74.75 in high.
