Key specifications

Amps
12 Amps
Phase
1-Phase
Dimensions
30.0"W × 36.38"D × 74.75"H
Type
Heated Holding Cabinet
Style
Controlled Humidity
Installation Type
Floor Model
Spec sheet
Metro SKU: C599L-SDS-U GTIN: 0-41105-46883-8

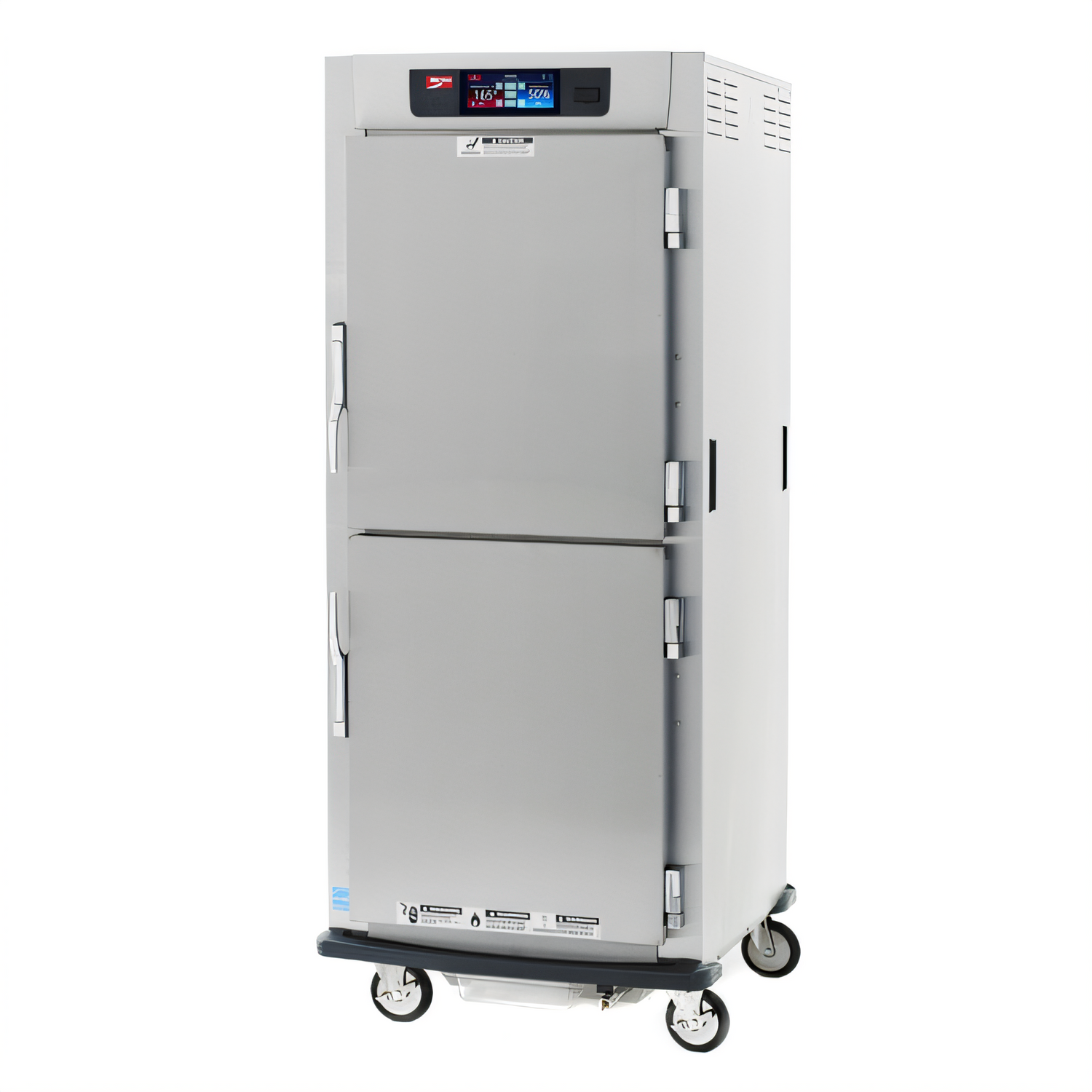

Metro C5 C599L-SDS-U 17-Pan Humidity Holding Cabinet

$8,164.00
/each
Estimated to ship in 9–12 business days
Configuration
Style
Electrical
Door latch
Accessories
Included: Metro warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $755/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Heated Holding Cabinet
Style Controlled Humidity
Installation Type Floor Model
Material 304 Stainless Steel
Country of Origin USA
Finish Polished
Interior Finish Aluminum
Size Full Height
Pan Size 18 x 26 in; 12 x 20 x 2.5 in
Pan Capacity 17 18 x 26 in sheet pans; 34 12 x 20 x 2.5 in pans
Compartments 1
Door Style Solid Dutch
Door Construction Insulated Double Panel
Slide Type Universal Wire
Slide Spacing 3 in centers; 1.5 in increments
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 7.5 ft
Controls 6.8 in Touchscreen
Temperature Range 90°F to 200°F
Heater Top Mounted
Insulation 2.5 in High-Density Fiberglass
Water Reservoir Capacity 4 gal
Caster Diameter 5 in
Bumper and Drip Trough Polymer
Energy Efficiency ENERGY STAR

Description

The Metro C5 C599L-SDS-U is a full-height mobile heated holding and proofing cabinet with controlled temperature and actual relative humidity. Its 6.8-inch touchscreen displays cabinet temperature and relative humidity and provides menu presets, programmable timers, auto-start, alarms, HACCP data logging, and control lock.

It has insulated solid Dutch doors, universal wire slides adjustable on 1.5-inch increments, and capacity for 17 18 x 26-inch sheet pans or 34 12 x 20 x 2.5-inch pans. The cabinet is made of Type 304 stainless steel with an aluminum interior and includes 5-inch casters and a polymer bumper and drip trough combination.

Electrical specifications are 120 volts, 60 Hz, single phase, 1,440 watts, 12 amps, and a NEMA 5-15P plug. Metro heated cabinets are for hot food holding applications only.

Overall Dimensions:

30.0"W x 36.38"D x 74.75"H

Product Weight:

374.4 lb

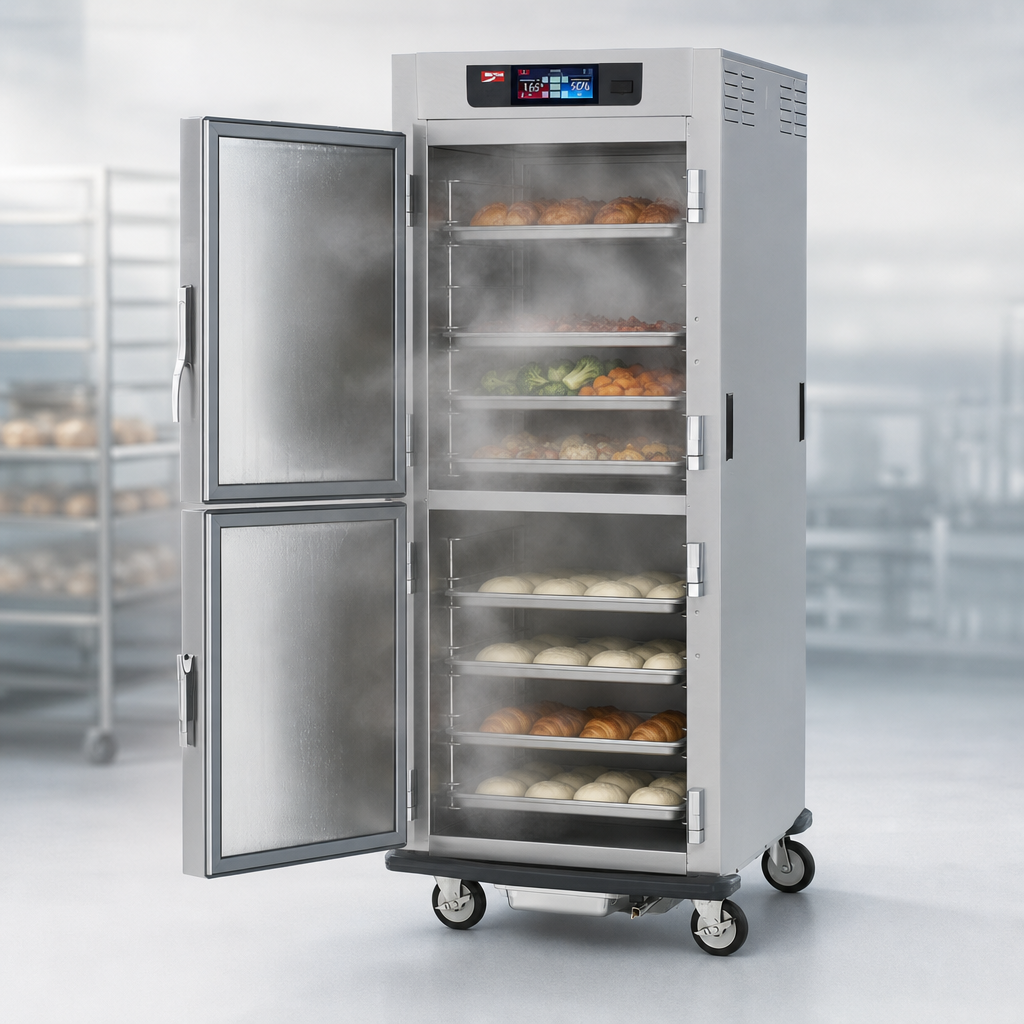

Controlled Humidity Operation

Measures and displays actual relative humidity for controlled humidity operation.

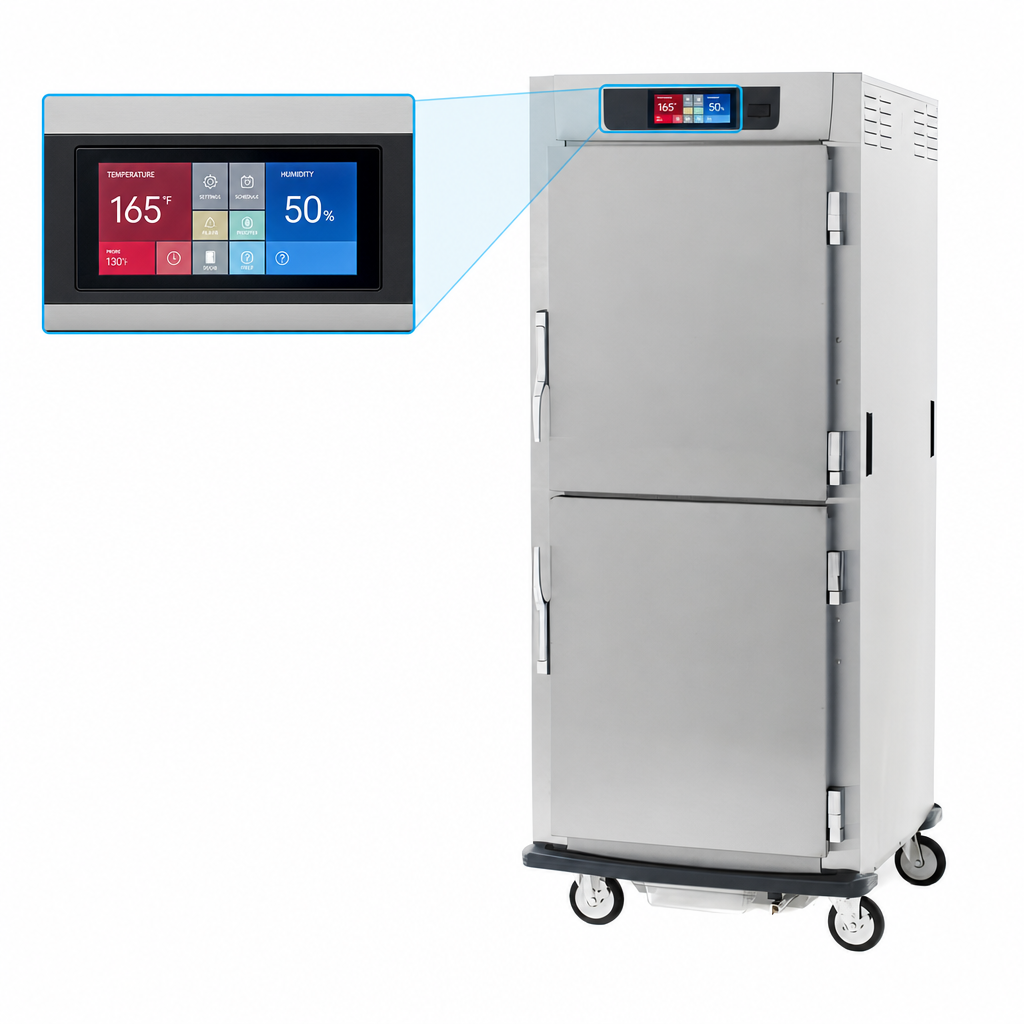

Touchscreen Controls

The 6.8-inch display supports menu presets, programmable timers, auto-start, alarms, HACCP data logging, and control lock.

Universal Wire Slides

Adjustable universal wire slides accommodate the specified sheet pan and pan sizes.

Solid Dutch Doors

Insulated, double-panel solid Dutch doors.

Pan Capacity

Holds 17 18 x 26-inch sheet pans or 34 12 x 20 x 2.5-inch pans.

Stainless Steel Cabinet

Type 304 stainless steel cabinet with a polished exterior and aluminum interior.

Mobile Design

Full-height cabinet with 5-inch casters and a polymer bumper and drip trough combination.

Temperature Range

Operating temperature range is 90°F to 200°F.

Frequently Asked Questions

It holds 17 18 x 26-inch sheet pans or 34 12 x 20 x 2.5-inch pans.
Yes. It measures and displays actual relative humidity and provides controlled humidity operation.
The operating temperature range is 90°F to 200°F.
It requires 120 volts, 60 Hz, single-phase power at 12 amps and 1,440 watts with a NEMA 5-15P plug.
The cabinet is 30 inches wide, 36.38 inches deep, and 74.75 inches high.
It has insulated solid Dutch doors.
