Key specifications

Amps
12 Amps
Phase
1-Phase
Dimensions
30.0"W × 36.38"D × 74.75"H
Type
Heated Holding Cabinet
Style
Reach-In
Installation Type
Floor Model
Spec sheet
Metro SKU: C599L-SDC-U GTIN: 0-41105-46875-3

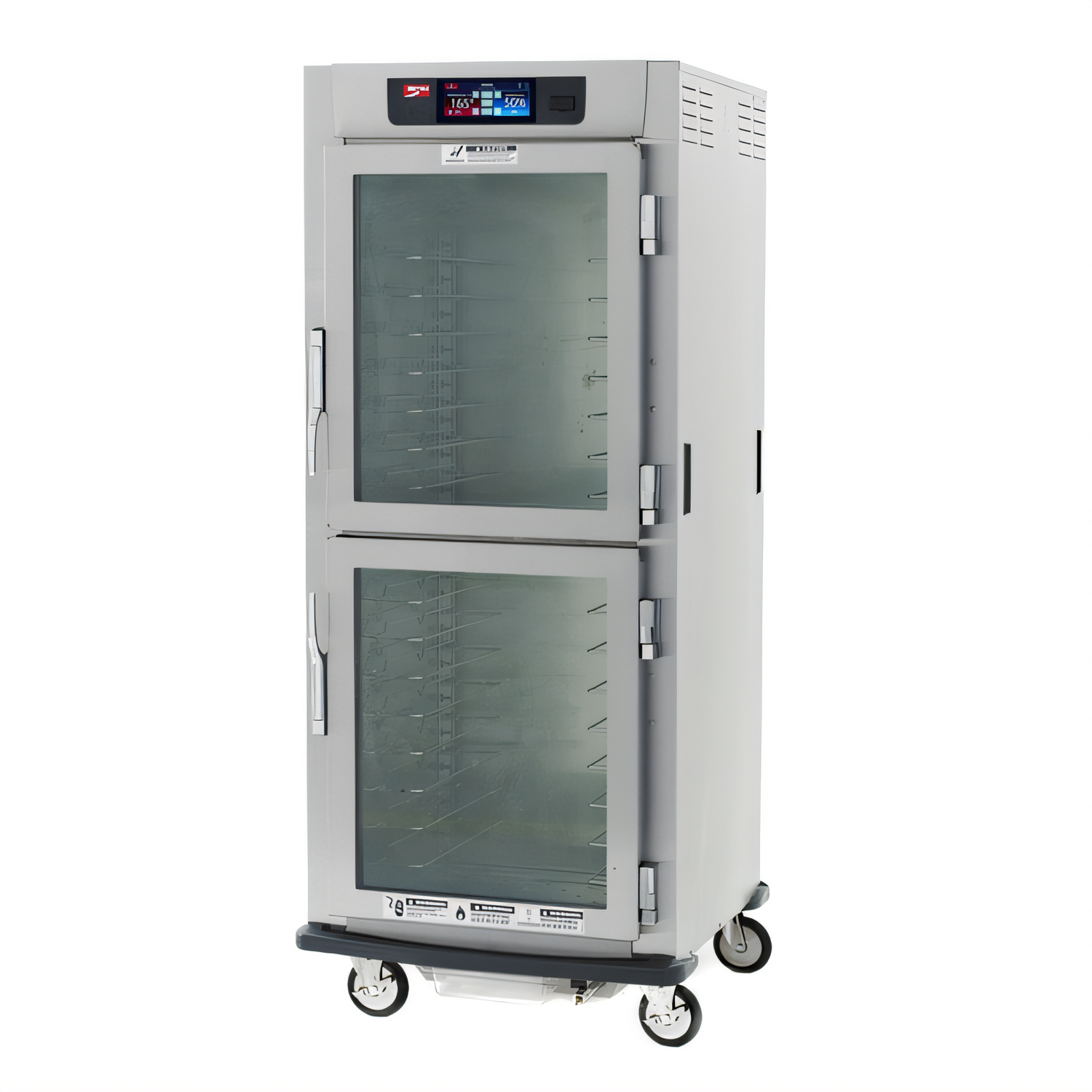

Metro C5 C599L-SDC-U 17-Sheet-Pan Heated Holding Cabinet

$8,872.00
/each
Estimated to ship in 9–12 business days
Configuration
Style
Accessories
Included: Metro warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $821/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Heated Holding Cabinet
Style Reach-In
Installation Type Floor Model
Material 304 Stainless Steel
Country of Origin USA
Finish Polished
Interior Finish Aluminum
Capacity 17 Sheet Pans / 34 Hotel Pans
Pan Size 18" x 26" Sheet Pans / 12" x 20" x 2-1/2" Hotel Pans
Compartments 1
Door Style Glass Dutch
Door Construction Double-Panel Tempered Glass
Slide Type Universal Wire
Slide Centers Adjustable on 1-1/2" Increments
Controls 6.8-inch Touch-Screen
Humidity Control Actual Relative Humidity
Temperature Range 90°F to 200°F
Water Reservoir Capacity 4 gal (15 L)
Insulation 2.5 in High-Density Fiberglass
Caster Size 5 in
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 7.5 ft

Description

This full-height mobile heated holding and proofing cabinet uses controlled temperature and actual relative humidity for hot food holding applications.

It has clear double-panel tempered glass Dutch doors, universal wire slides adjustable on 1-1/2-inch increments, and capacity for 17 18 x 26-inch sheet pans or 34 12 x 20 x 2-1/2-inch hotel pans.

The cabinet includes 6.8-inch touch-screen controls, 5-inch casters, a polymer bumper and drip trough combination, and a 120-volt, 1,440-watt electrical configuration with a NEMA 5-15P plug.

Overall Dimensions:

30.0"W x 36.38"D x 74.75"H

Product Weight:

382.98 lb

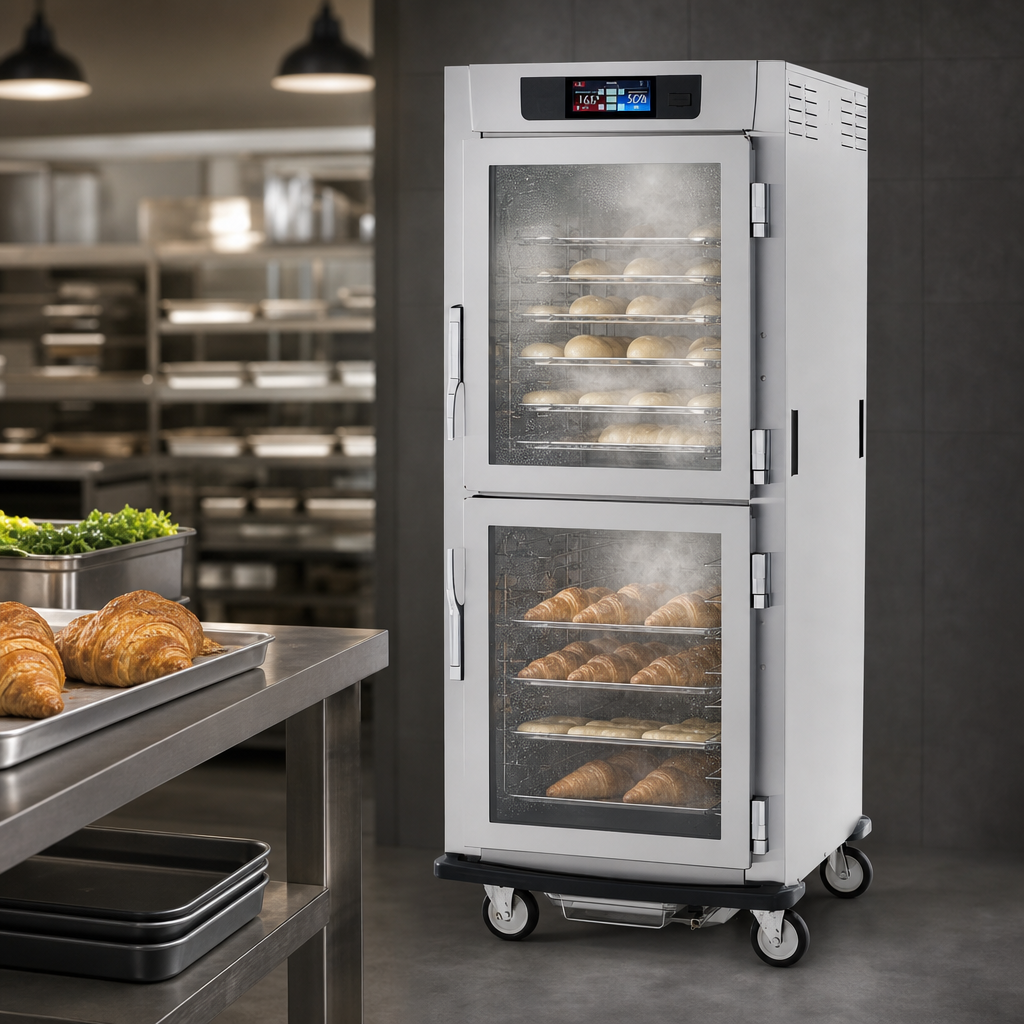

Controlled Humidity

Measures and displays actual relative humidity for individual humidity control.

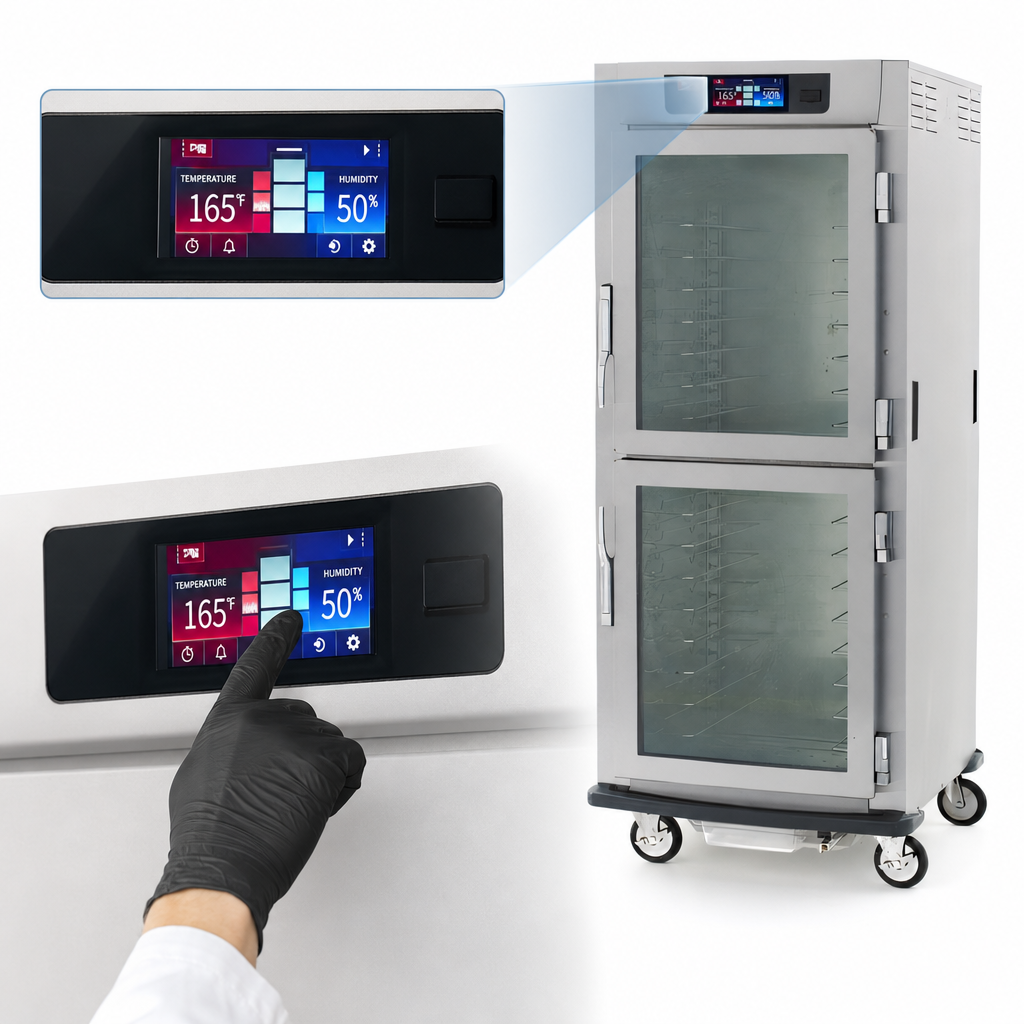

Touch-Screen Controls

The 6.8-inch high-resolution display provides cabinet temperature and relative humidity controls.

Menu Presets

One-touch menu presets support repeatable temperature and humidity settings.

Programmable Timers

Supports holding-time and first-in-first-out management.

Auto-Start

Automatically starts cabinet operation daily at a scheduled time.

USB HACCP Data Logging

The USB port supports HACCP data logging and saving or loading customized settings.

Universal Wire Slides

Accommodate 18 x 26-inch sheet pans and 12 x 20-inch steam or hotel pans.

Temperature Priority

Automatically prioritizes internal temperature over humidity.

Alarms

Low-temperature and low-water alarms indicate when attention is needed.

Frequently Asked Questions

It holds 17 18 x 26-inch sheet pans or 34 12 x 20 x 2-1/2-inch hotel pans.
It has clear double-panel tempered glass Dutch doors.
Yes. The controls measure and display actual relative humidity and provide individual temperature and humidity control.
The cabinet is rated for 120 Volts, 12 Amps, 60 Hz, and 1-Phase operation with a NEMA 5-15P plug.
The cabinet measures 30 inches wide, 36.38 inches deep, and 74.75 inches high, with a listed weight of 382.98 pounds.
Yes. It is a mobile full-height cabinet equipped with 5-inch casters.
