Key specifications

Amps
16.7 Amps
Phase
1-Phase
Dimensions
30.0"W × 36.38"D × 74.75"H
Type
Heated Holding Cabinet
Style
Pass-Thru
Installation Type
Floor Model
Spec sheet
Metro SKU: C599-SFS-LPFC GTIN: 0-41105-46834-0

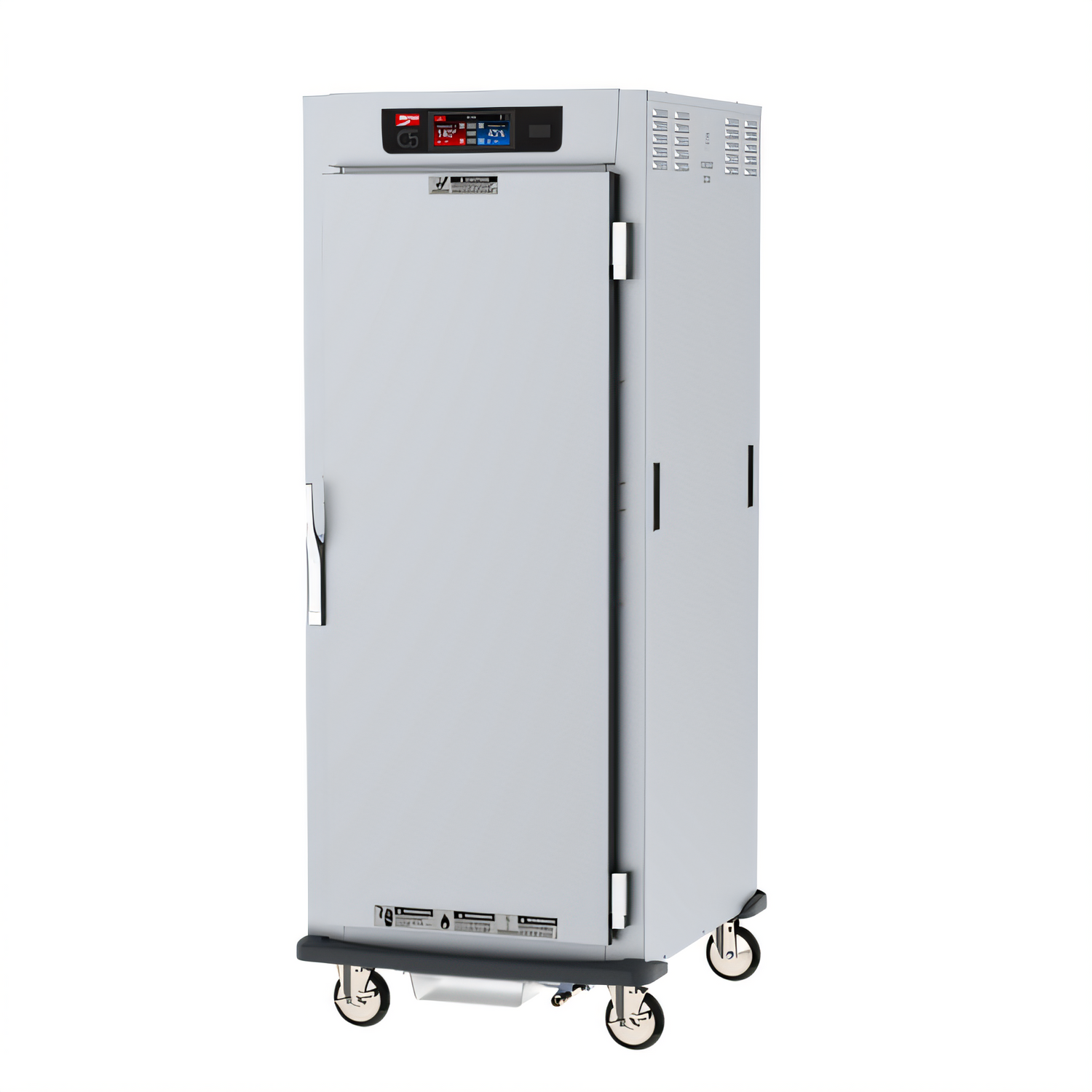

Metro C5 C599-SFS-LPFC 18-Pan Pass-Thru Holding Cabinet

$9,333.00
/each
Estimated to ship in 9–12 business days
Electrical120 V · 60 Hz · 2000 W
Plug
Accessories
Included: Metro warranty 1-year warranty against manufacturing defects

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $863/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Heated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Material 304 Stainless Steel
Country of Origin USA
Finish Polished
Interior Finish Stainless Steel
Cabinet Height Full Height
Capacity 18 Pans
Pan Size 18 x 26 Inches
Maximum Pan Capacity 35 Pans
Slide Type Lip Load
Slide Spacing 3 Inches On Center
Door Configuration 1 Solid Door / 1 Glass Door
Caster Size 5 Inches
Insulation 2.5 Inches High-Density Fiberglass
Heater Top Mounted
Reservoir Capacity 4 Gallons
Controls 6.8-Inch Touchscreen
Temperature Range 90°F to 200°F
Humidity Control Actual Relative Humidity
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Cord Length 7.5 Feet

Description

The Metro C599-SFS-LPFC is a full-height pass-thru heated holding and proofing cabinet with controlled temperature and actual relative humidity. It accommodates 18 18 x 26-inch pans on lip-load slides with fixed 3-inch centers.

The cabinet has one solid door and one glass door, a 6.8-inch touchscreen, stainless steel interior and exterior, 5-inch casters, and a polymer bumper and drip trough combination.

  • Temperature range: 90°F to 200°F
  • Electrical: 120 Volts, 2 kW, 16.7 Amps, 60 Hz, 1-Phase
  • Plug: NEMA 5-20P

Overall Dimensions:

30.0"W x 36.38"D x 74.75"H

Product Weight:

435.0 lb

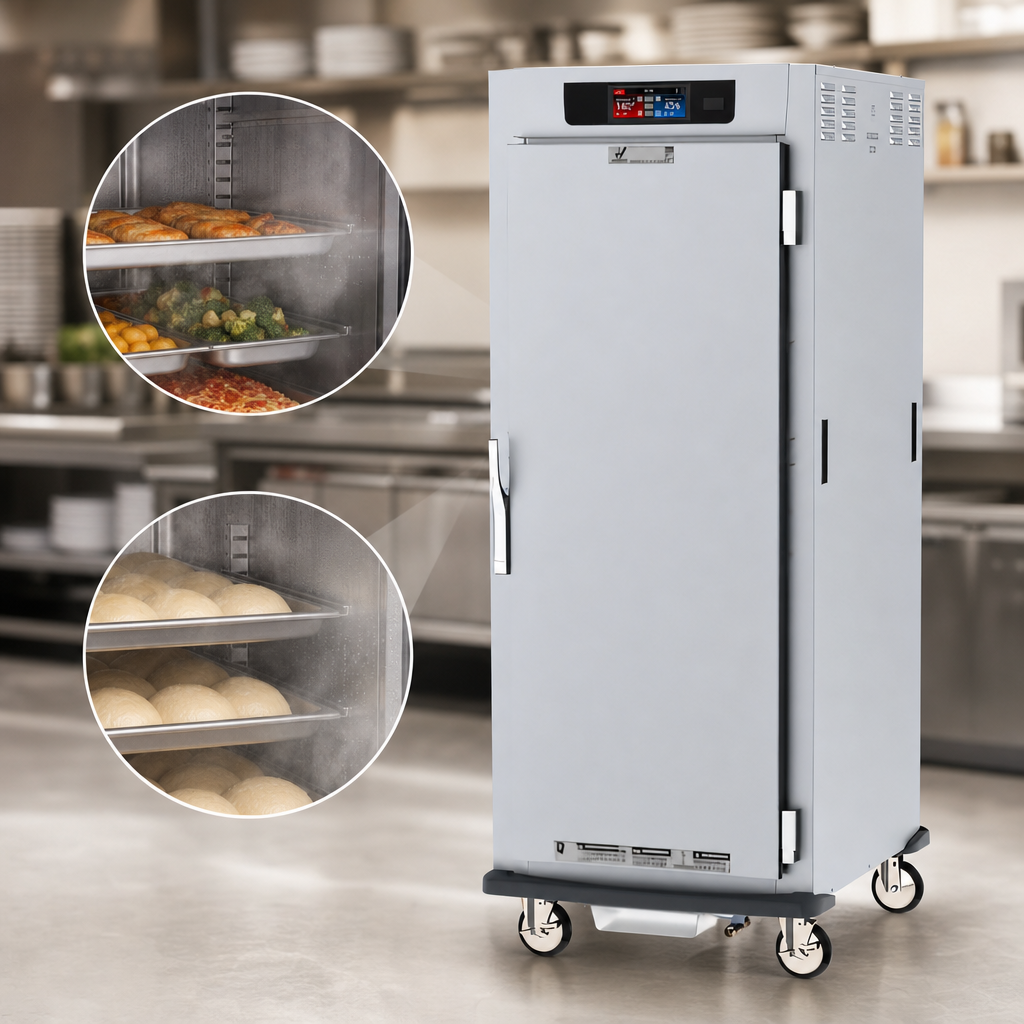

Controlled Temperature and Humidity

Thermostatically controlled heating and closed-loop humidity generation support control of cabinet temperature and actual relative humidity.

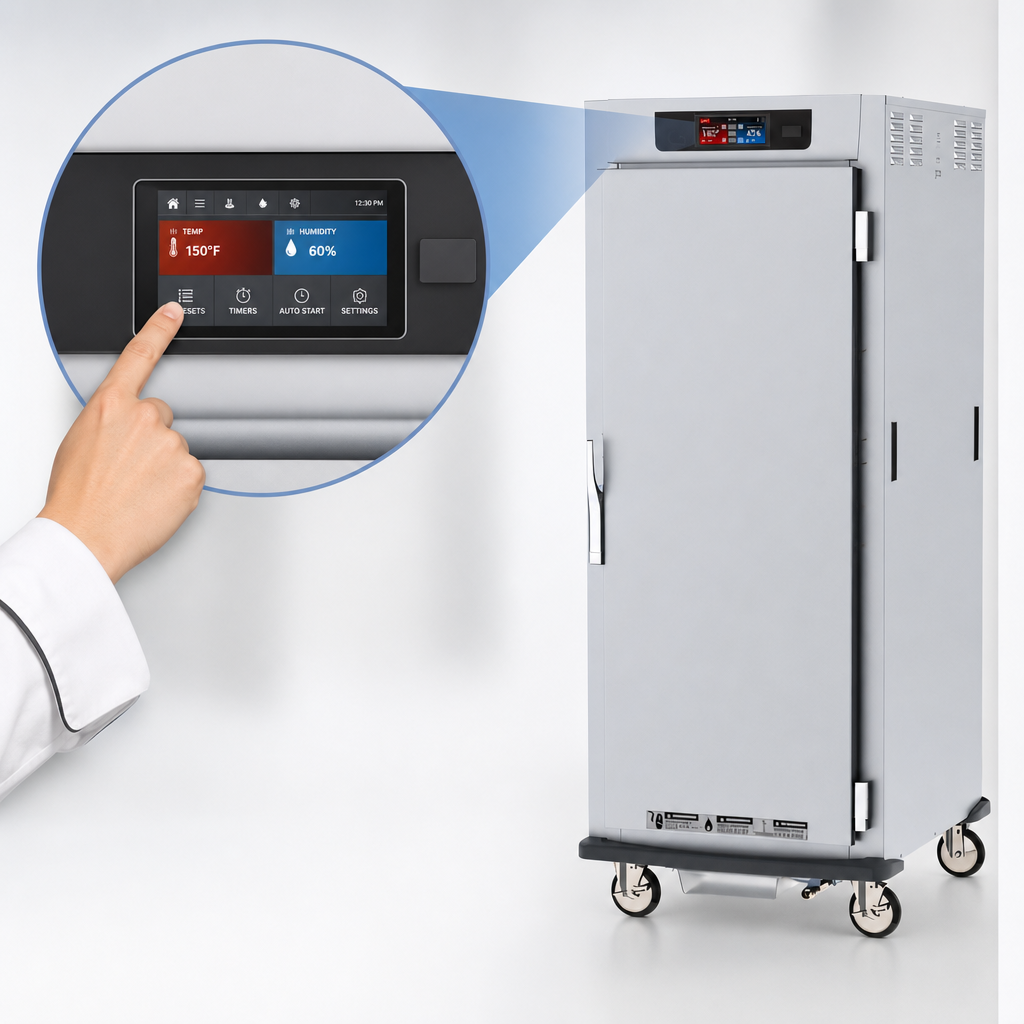

Touchscreen Controls

The 6.8-inch touchscreen displays cabinet temperature and relative humidity and supports menu presets, programmable timers, auto-start, alarms, HACCP data logging, and control lock.

Pass-Thru Door Configuration

The cabinet has one solid door and one glass door in a pass-thru configuration.

Lip-Load Pan Slides

Lip-load slides accommodate 18 x 26-inch pans and are fixed on 3-inch centers.

Insulated Stainless Steel Cabinet

The cabinet uses Type 304 stainless steel with 2.5-inch high-density fiberglass insulation.

Water Reservoir

The humidity generation system uses a 4-gallon water reservoir with drain.

Mobile Design

Five-inch casters support mobile placement.

Frequently Asked Questions

The cabinet is specified for 18 18 x 26-inch pans and has a listed maximum capacity of 35 such pans.
It requires 120 Volts, 16.7 Amps, 2 kW, 60 Hz, and 1-Phase power and uses a NEMA 5-20P plug.
The temperature range is 90°F to 200°F.
It has one solid door and one glass door in a pass-thru configuration.
Yes. It controls and displays actual relative humidity using a closed-loop humidity generation system with a 4-gallon water reservoir.
The cabinet is 30 inches wide, 36.38 inches deep, and 74.75 inches high, with a listed weight of 435 lb.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
