Key specifications

Amps
16.7 Amps
Phase
1-Phase
Dimensions
30.0"W × 36.38"D × 74.75"H
Type
Holding Cabinet
Style
Pass-Through
Installation Type
Floor Model
Spec sheet
Metro SKU: C599-SFC-UPFC GTIN: 0-41105-46828-9

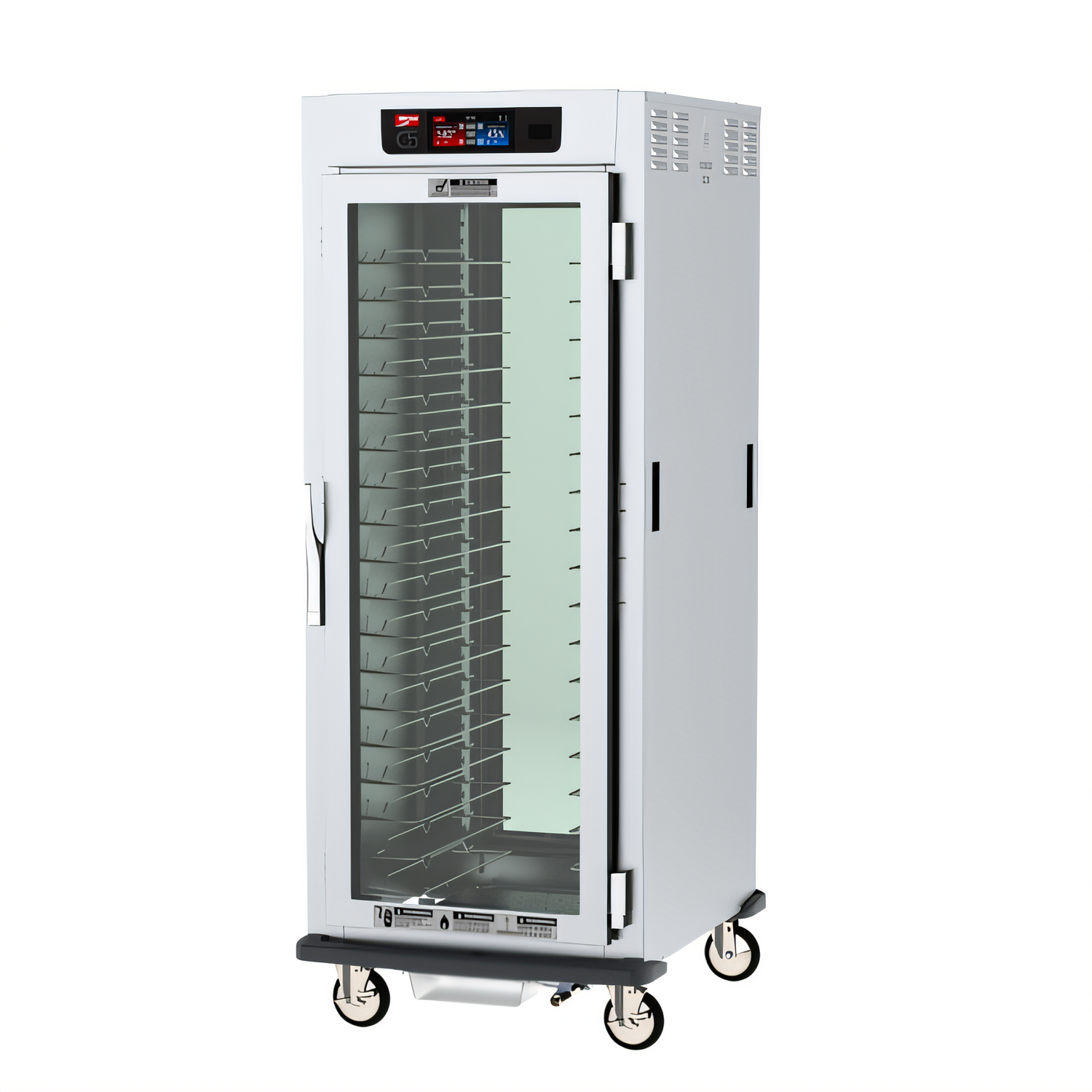

Metro C5 C599-SFC-UPFC 18-Pan Pass-Through Holding Cabinet

$10,161.00
/each
Estimated to ship in 9–12 business days
Electrical120 V · 1-phase · 60 Hz · 16 A
Accessories
Included: Metro warranty 1-year warranty against manufacturing defects

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $940/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Holding Cabinet
Style Pass-Through
Installation Type Floor Model
Material 304 Stainless Steel
Country of Origin USA
Finish Polished
Interior Finish Stainless Steel
Pan Capacity 18 Full-Size Pans; 36 Steam Pans
Pan Size 18" x 26"; 12" x 20" x 2-1/2"
Slide Spacing 3" O.C.; adjustable on 1-1/2" increments
Door Count 2
Door Style Full Glass, Pass-Through
Controls 6.8-Inch Touch-Screen
Temperature Range 90°F to 200°F
Reservoir Capacity 4 gal (15 L)
Insulation 2.5-Inch High-Density Fiberglass
Heater Top-Mounted
Casters 5-Inch
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Cord Length 7.5 ft

Description

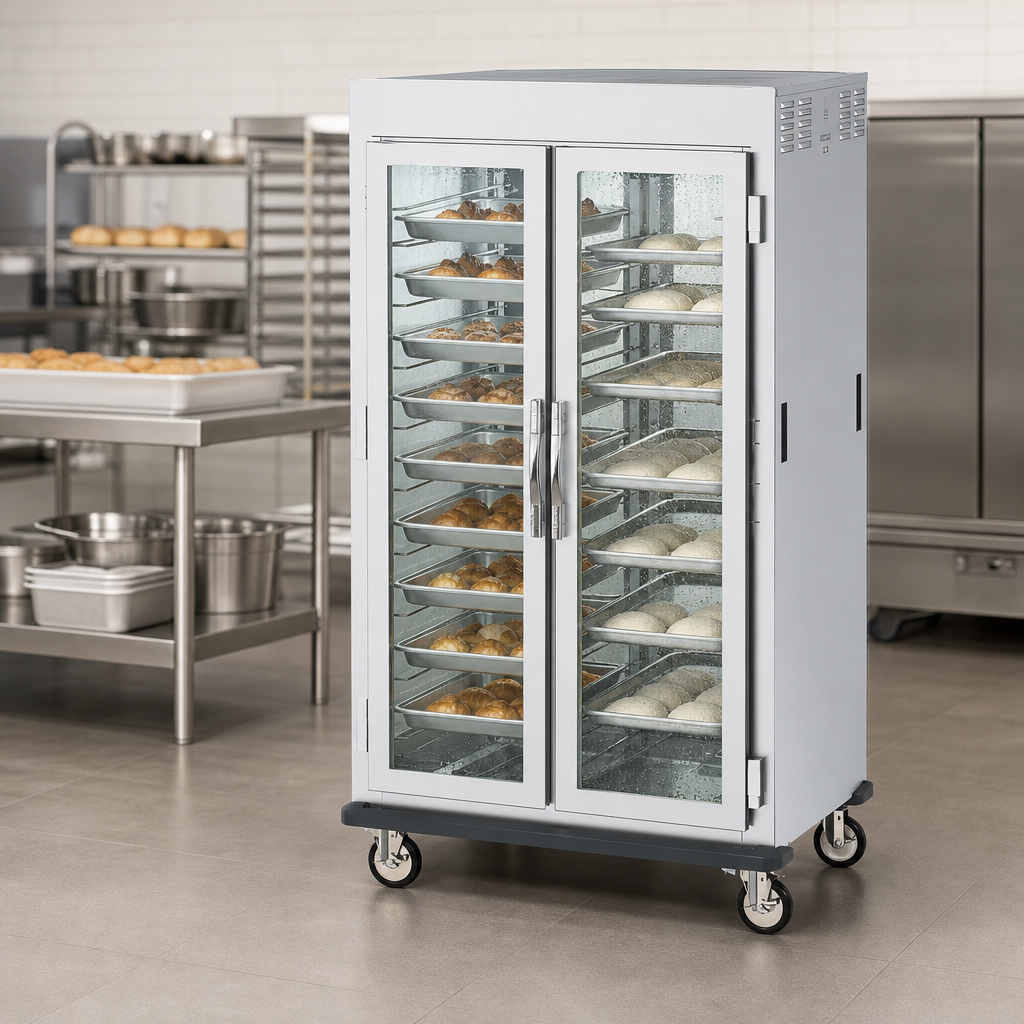

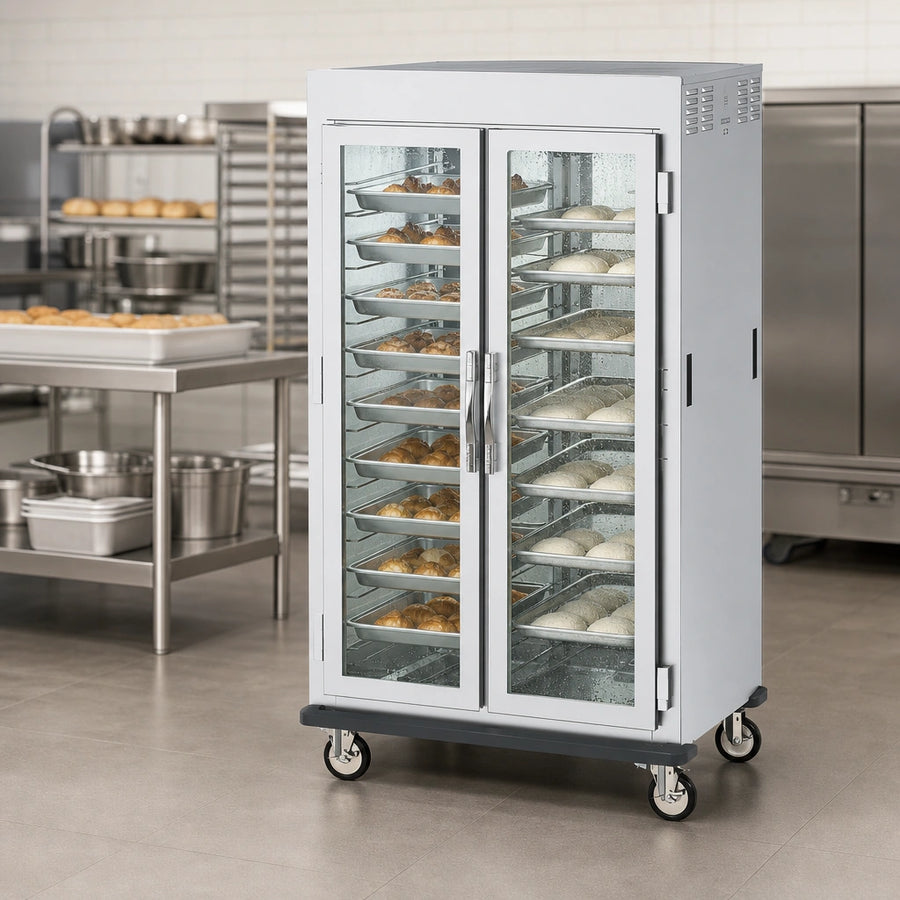

The Metro C5 C599-SFC-UPFC is a full-height, mobile pass-through controlled-humidity heated holding and proofing cabinet with two glass doors.

Its 6.8-inch touch-screen controls display and manage cabinet temperature and relative humidity. Universal wire slides accommodate 18-inch by 26-inch sheet pans and 12-inch by 20-inch by 2-1/2-inch pans.

  • Capacity for 18 18-inch by 26-inch pans or 36 12-inch by 20-inch by 2-1/2-inch pans
  • Temperature range of 90°F to 200°F
  • Type 304 stainless steel construction with a 4-gallon water reservoir
  • 120-volt, 2,000-watt electrical system with a NEMA 5-20P plug

Metro heated cabinets are intended for hot food holding applications only.

Overall Dimensions:

30.0"W x 36.38"D x 74.75"H

Product Weight:

435.0 lb

Controlled Temperature and Humidity

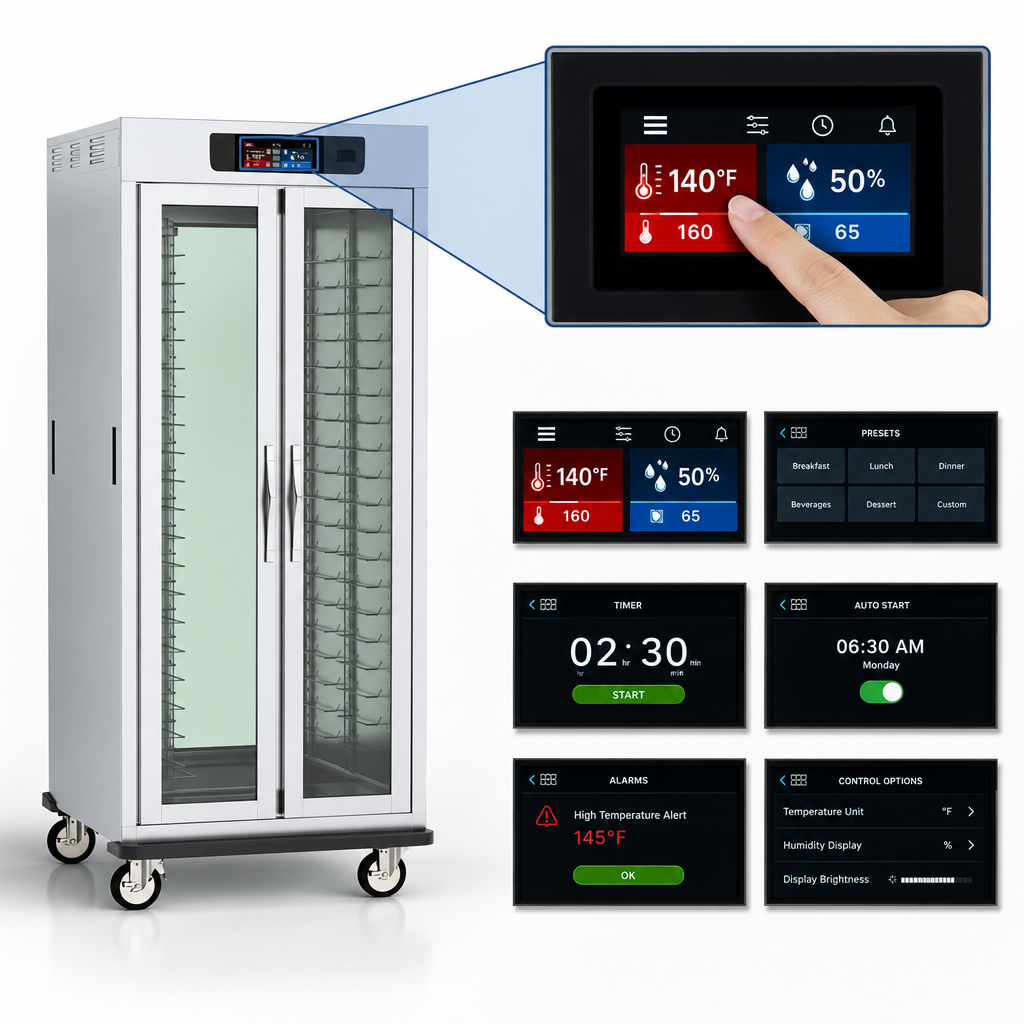

The 6.8-inch touch-screen display shows cabinet temperature and relative humidity with individual control for each.

Touch-Screen Operating Tools

The control system provides menu presets, programmable timers, auto-start, low-temperature and water alarms, USB HACCP data logging, and control lock.

Pass-Through Design

The full-height cabinet has a pass-through configuration with two glass doors.

Universal Wire Slides

Universal wire slides accommodate 18-inch by 26-inch sheet pans and 12-inch by 20-inch steam or GN pans, with adjustment on 1-1/2-inch increments.

Insulated Cabinet

Full-perimeter 2.5-inch high-density fiberglass insulation is specified for the cabinet.

Humidity Reservoir

The humidity generation system uses a 4-gallon, 15-liter water reservoir with a drain and low-water sensor.

Mobile Base

The cabinet is mobile and uses 5-inch casters.

Stainless Steel Construction

The cabinet uses Type 304 stainless steel with a 20-gauge polished exterior and 22-gauge interior.

Frequently Asked Questions

The cabinet accommodates 18 18-inch by 26-inch pans or 36 12-inch by 20-inch by 2-1/2-inch pans.
Yes. The 6.8-inch touch-screen controls display and manage cabinet temperature and relative humidity.
The temperature range is 90°F to 200°F.
The cabinet requires 120 Volts, 16.7 Amps, 2 kW, 60 Hz, and 1-Phase power, with a NEMA 5-20P plug.
Yes. It is a full-height pass-through cabinet with two glass doors.
It uses universal wire slides adjustable on 1-1/2-inch increments.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
