Key specifications

Amps
16.7 Amps
Phase
1-Phase
Dimensions
30.0"W × 36.38"D × 74.75"H
Type
Holding Cabinet
Style
Pass-Thru
Installation Type
Floor Model
Spec sheet
Metro SKU: C599-SDC-LPDC GTIN: 0-41105-46798-5

Metro C5 C599-SDC-LPDC 17-Pan Pass-Thru Holding Cabinet

$10,279.00
/each
Estimated to ship in 9–12 business days
Electrical120 V · 1-phase · 60 Hz · 16 A
Accessories
Included: Metro warranty 1-year warranty against manufacturing defects

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $951/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Material 304 Stainless Steel
Country of Origin USA
Finish Polished
Interior Finish Stainless Steel
Cabinet Height Full Height
Door Style Glass Dutch Doors
Door Count 2 Doors
Controls 6.8-Inch Touch Screen
Slide Type Lip Load
Pan Size 18 x 26 Inches
Pan Capacity 17 Pans
Slide Spacing 3 Inches On Center
Insulation 2.5-Inch Fiberglass
Heater Top Mounted
Caster Size 5 Inches
Water Reservoir Capacity 4 Gallons
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Cord Length 7.5 Feet
Temperature Range 90°F to 200°F

Description

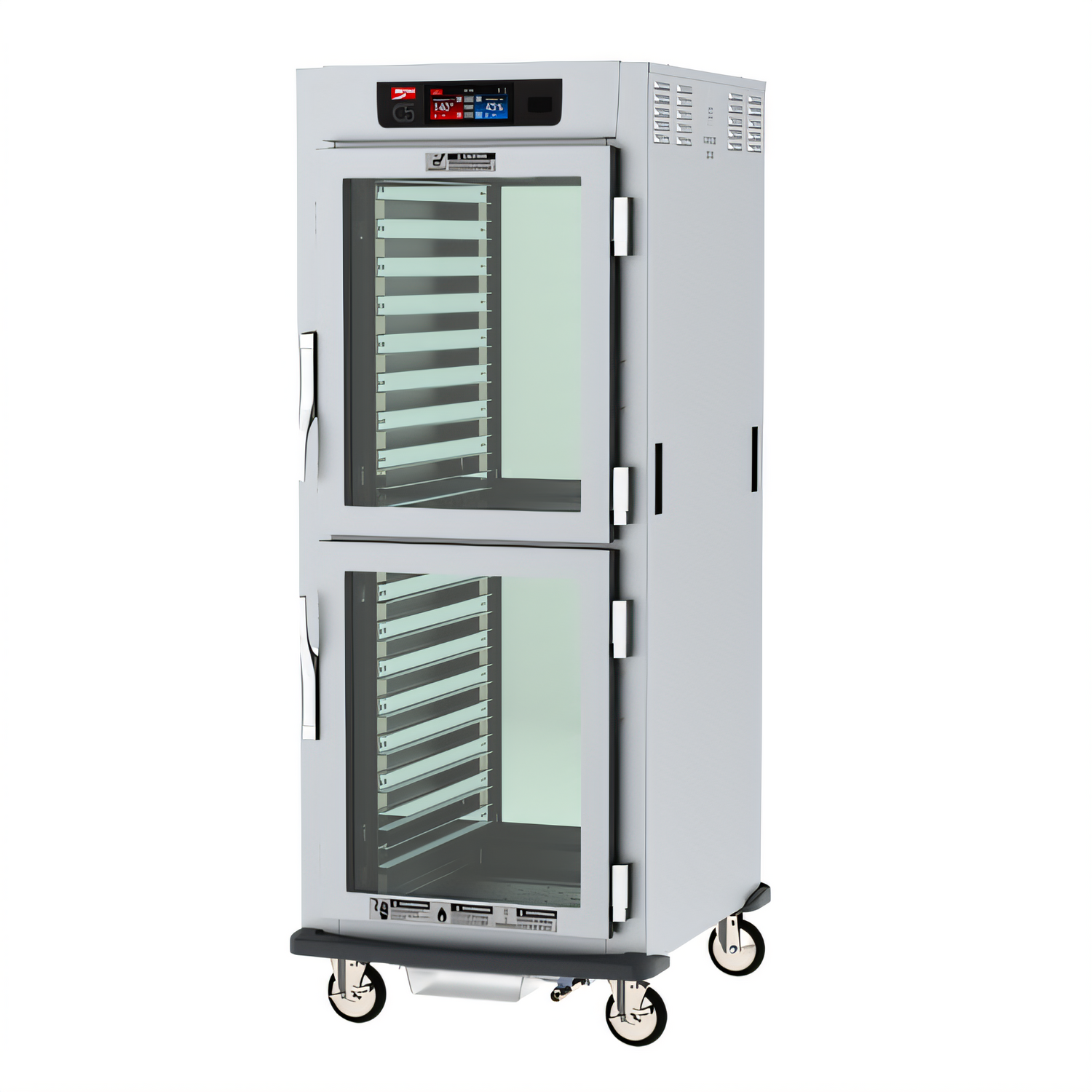

The Metro C5 C599-SDC-LPDC is a full-height mobile pass-thru cabinet for controlled-humidity heated holding and proofing.

It features two glass Dutch doors, lip-load slides for 17 18 x 26-inch pans at 3-inch centers, and 6.8-inch touch-screen controls for cabinet temperature and relative humidity.

  • Construction: Type 304 stainless steel cabinet with a polished exterior and stainless steel interior.
  • Electrical: 120 Volts, 60 Hz, 1-Phase, 2,000 Watts, 16.7 Amps, and NEMA 5-20P plug.
  • Mobility: 5-inch casters with a polymer bumper and drip trough combination.
  • Temperature range: 90°F to 200°F.

Overall Dimensions:

30.0"W x 36.38"D x 74.75"H

Product Weight:

400.0 lb

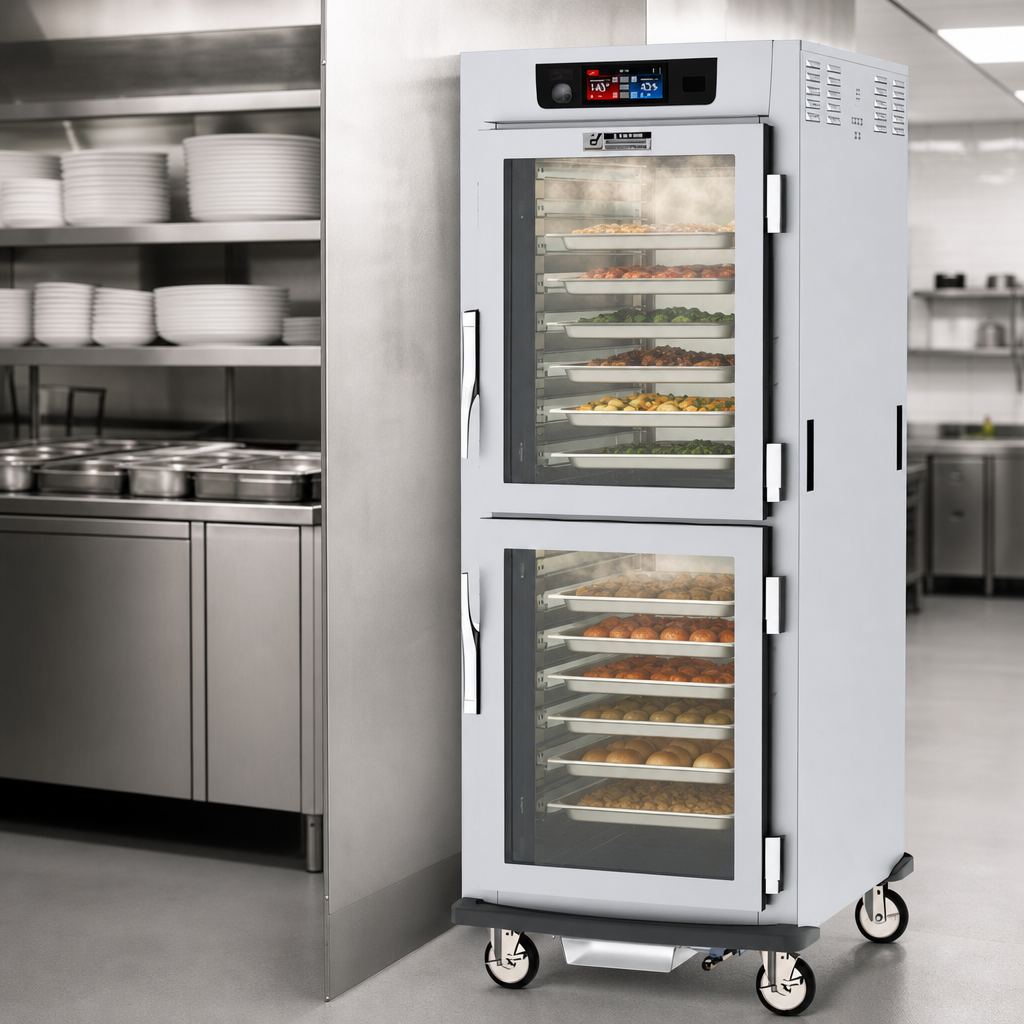

Controlled Humidity

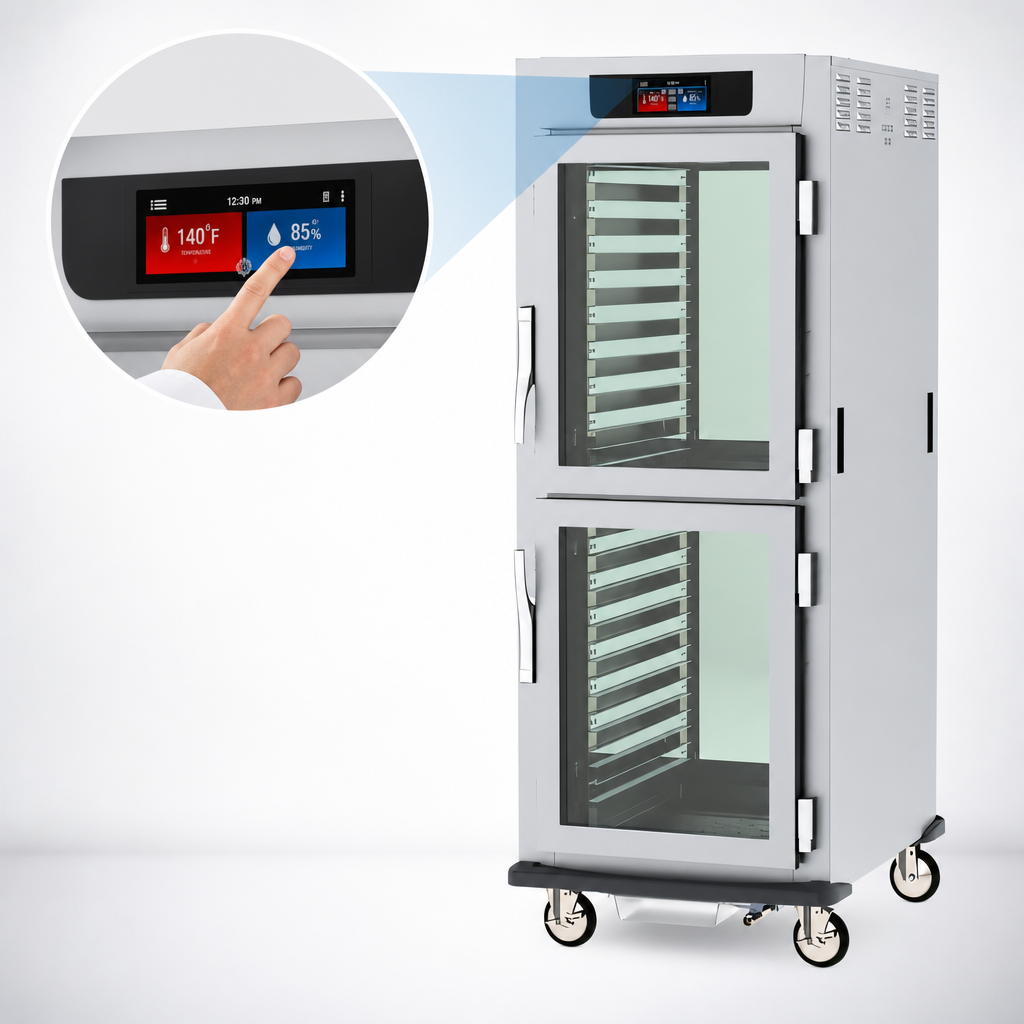

The 6.8-inch touch screen displays cabinet temperature and relative humidity, with individual control for each.

Pass-Thru Configuration

The full-height cabinet has two glass Dutch doors in a pass-thru configuration.

Lip-Load Slides

The cabinet is specified for 17 18 x 26-inch pans with fixed 3-inch-on-center slide spacing.

Stainless Steel Construction

The cabinet uses Type 304 stainless steel with a polished exterior and stainless steel interior.

Mobile Base

Five-inch casters and a polymer bumper and drip trough combination support mobile use.

Insulation and Heating

The cabinet has 2.5-inch fiberglass insulation and a top-mounted heater.

Temperature Range

The specified operating temperature range is 90°F to 200°F.

Electrical Configuration

The cabinet is specified at 120 Volts, 60 Hz, 1-Phase, 2,000 Watts, and 16.7 Amps with a NEMA 5-20P plug.

Frequently Asked Questions

It is specified for 17 18 x 26-inch pans on lip-load slides with 3-inch-on-center spacing.
It has two glass Dutch doors in a pass-thru configuration.
The cabinet is rated at 120 Volts, 60 Hz, 1-Phase, 2,000 Watts, and 16.7 Amps with a NEMA 5-20P plug.
The cabinet is 30 inches wide, 36.38 inches deep, and 74.75 inches high, with a listed weight of 400 pounds.
The specified temperature range is 90°F to 200°F.
Metro states that its heated cabinets are for hot food holding applications only.
