Key specifications

Amps
12 Amps
Phase
1-Phase
Dimensions
30.0"W × 36.38"D × 44.75"H
Type
Holding Cabinet
Style
Pass-Thru
Installation Type
Floor Model
Spec sheet
Metro SKU: C595L-SFC-UPFC GTIN: 0-41105-46659-9

Metro C5 C595L-SFC-UPFC Half-Height Pass-Thru Holding Cabinet

$7,684.00
/each
Estimated to ship in 9–12 business days
Size
Style
Electrical
Casters or legs
Door latch
Accessories
Included: Metro warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $711/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Material 304 Stainless Steel
Country of Origin USA
Size Half Height
Finish Polished
Interior Finish Stainless Steel
Door Style Full Glass
Door Count 2
Pan Capacity 8 18-inch x 26-inch Pans; 16 12-inch x 20-inch x 2.5-inch Pans
Pan Size 18-inch x 26-inch; 12-inch x 20-inch x 2.5-inch
Slide Type Universal Wire
Slide Spacing 3 Inches O.C.; 1.5-Inch Adjustments
Heater Top Mounted
Insulation 2.5-Inch High-Density Fiberglass
Controls 6.8-Inch Touchscreen
Temperature Range 90°F to 200°F
Water Reservoir Capacity 4 Gallons
Caster Size 5 Inches
Bumper Type Polymer Bumper and Drip Trough
Energy Efficiency ENERGY STAR
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 7.5 Feet

Description

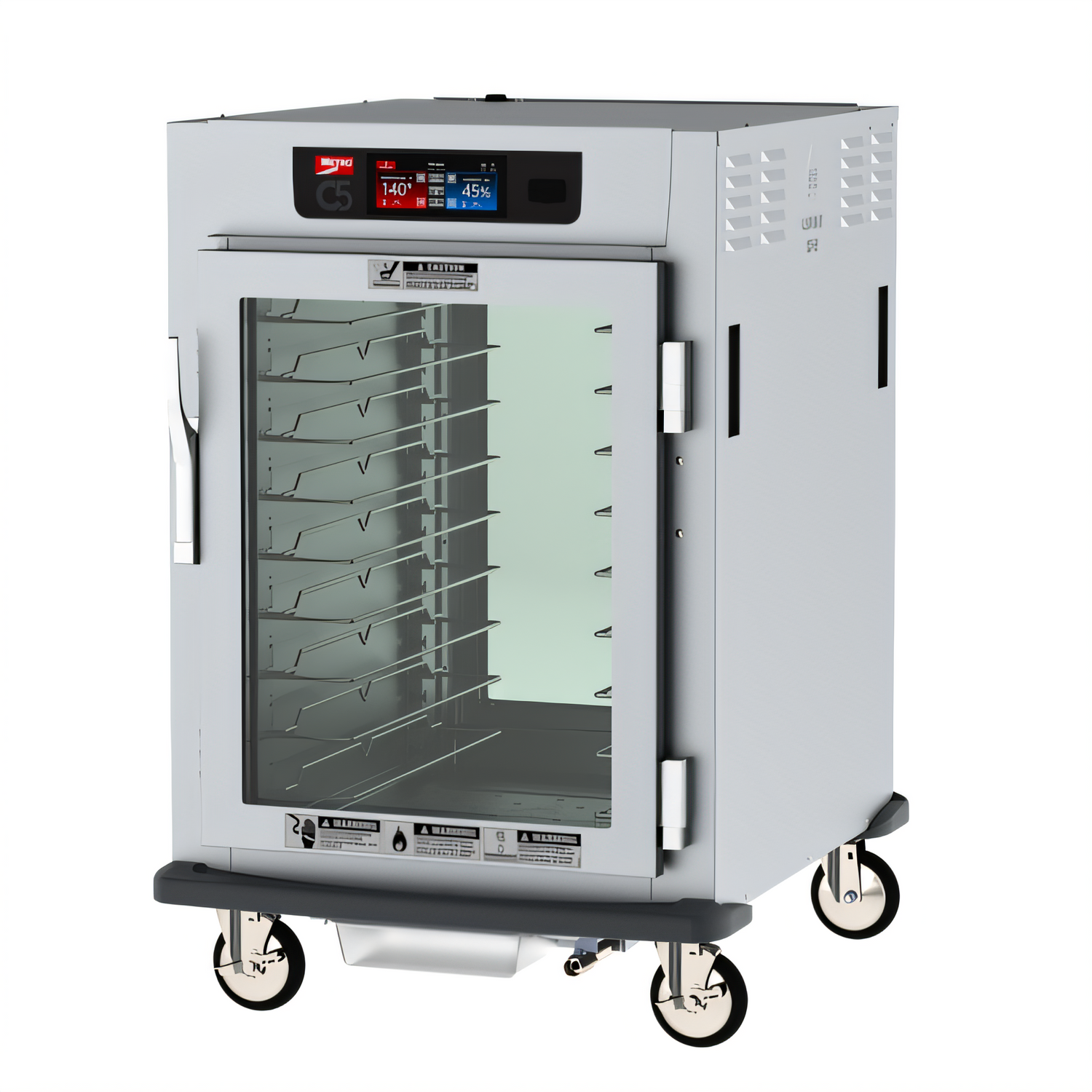

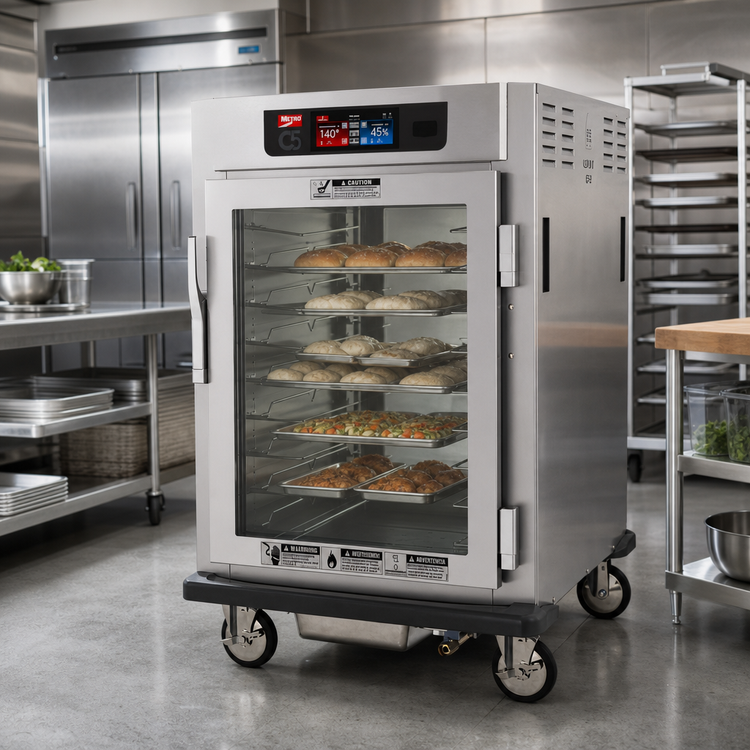

The C595L-SFC-UPFC is a half-height, pass-thru controlled humidity heated holding and proofing cabinet with two full glass doors and mobile 5-inch casters.

Its 6.8-inch touchscreen displays and controls cabinet temperature and actual relative humidity. Universal wire slides accommodate full-size sheet pans and 12-inch x 20-inch pans.

  • Pan capacity: 8 18-inch x 26-inch pans or 16 12-inch x 20-inch x 2.5-inch pans.
  • Controls: Menu presets, programmable timers, auto-start, alarms, USB HACCP data logging, and control lock.
  • Construction: Type 304 stainless steel cabinet with insulated walls, a top-mounted heater, and natural convective airflow.
  • Electrical: 120 volts, 1.44 kW, 12 amps, 60 Hz, with a NEMA 5-15P plug.

Overall Dimensions:

30.0"W x 36.38"D x 44.75"H

Product Weight:

272.69 lb

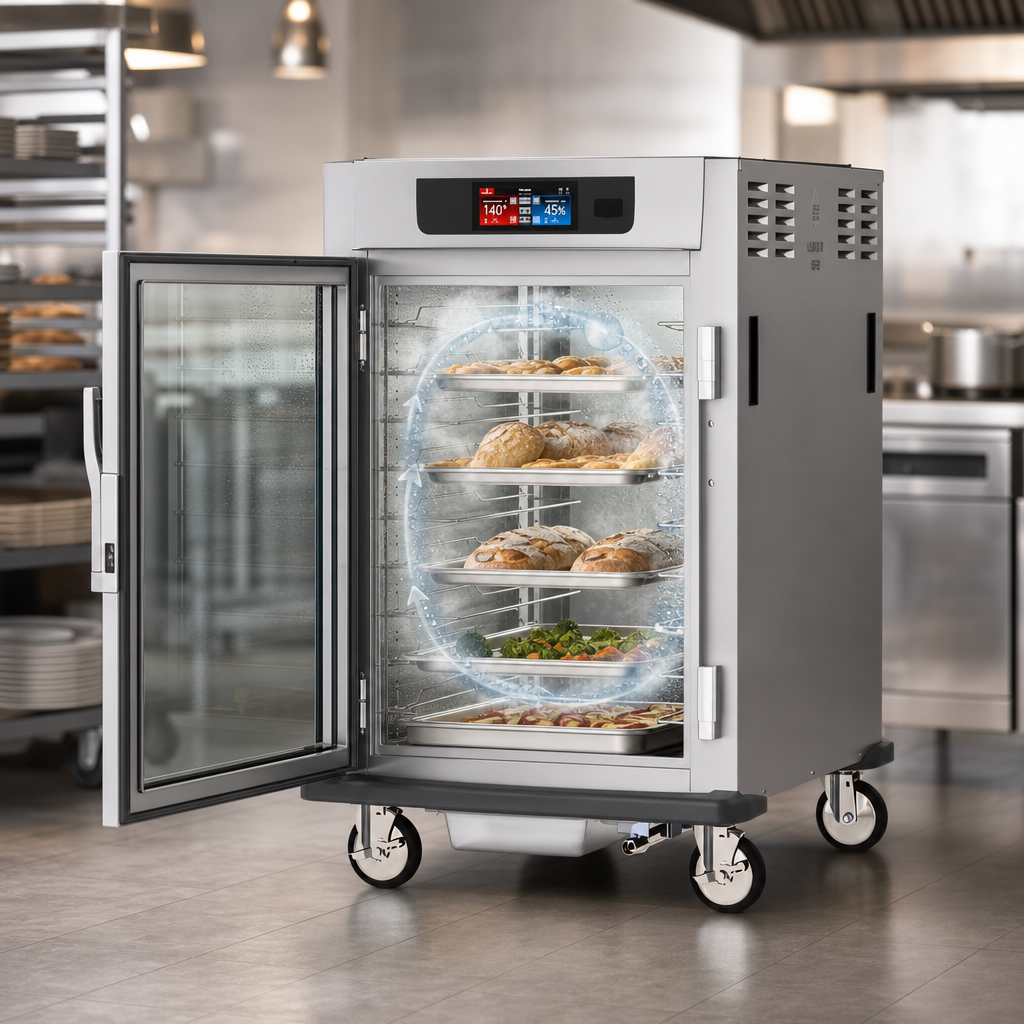

Controlled Humidity

Measures and displays actual relative humidity while providing individual control of cabinet temperature and humidity.

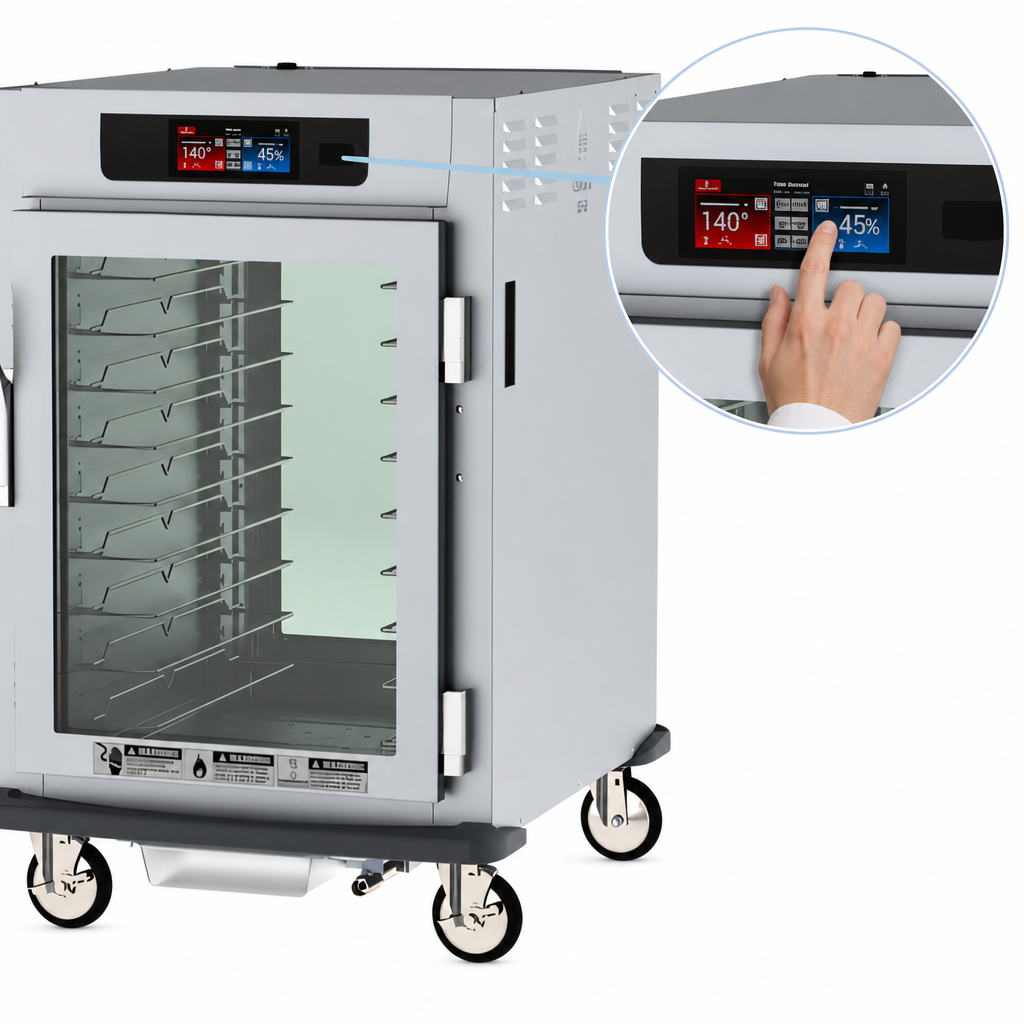

Touchscreen Controls

The 6.8-inch touchscreen includes menu presets, programmable timers, auto-start, low-temperature and water alarms, USB HACCP data logging, and control lock.

Pass-Thru Access

The half-height cabinet has two full glass doors for pass-thru access.

Universal Wire Slides

Universal wire slides accommodate 18-inch x 26-inch sheet pans and 12-inch x 20-inch pans, with adjustment on 1.5-inch increments.

Insulated Cabinet

The cabinet uses full-perimeter, 2.5-inch high-density fiberglass insulation and a natural convective airflow design.

Temperature Priority

The control system automatically prioritizes internal temperature over humidity.

Mobility

Five-inch casters support mobile placement, while the polymer bumper and drip trough combination protects the cabinet perimeter and collects drips.

Frequently Asked Questions

It holds 8 18-inch x 26-inch pans or 16 12-inch x 20-inch x 2.5-inch pans.
Yes. It measures and displays actual relative humidity and provides individual temperature and humidity control.
It operates at 120 volts, 12 amps, 1.44 kW, and 60 Hz, and uses a NEMA 5-15P plug.
The temperature range is 90°F to 200°F.
It has two full glass doors in a pass-thru configuration.
Yes. Metro states that its heated cabinets are for hot food holding applications only.
