Key specifications

Amps
12 Amps
Phase
1-Phase
Dimensions
30.0"W × 36.38"D × 44.75"H
Type
Holding Cabinet
Style
Pass-Thru
Installation Type
Floor Model
Spec sheet
Metro SKU: C595L-SFC-LPFC GTIN: 0-41105-46655-1

Metro C5 C595L-SFC-LPFC 8-Pan Pass-Thru Holding Cabinet

$7,567.00
/each
Estimated to ship in 9–12 business days
Electrical
Accessories
Included: Metro warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $700/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Material 304 Stainless Steel
Finish Polished
Interior Finish Stainless Steel
Country of Origin USA
Cabinet Height Half Height
Door Style Full Glass Doors
Slide Type Lip Load
Slide Spacing 3 Inches
Pan Size 18 x 26 Inches
Pan Capacity 8 Full-Size Pans
Heater Top Mounted
Insulation 2.5-Inch High-Density Fiberglass
Caster Size 5 Inches
Water Reservoir Capacity 4 Gallons
Controls 6.8-Inch Touch Screen
Temperature Range 90°F to 200°F
Energy Efficiency ENERGY STAR
Voltage 120 Volts
Watts 1.44 kW
Amps 12 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 7.5 Feet

Description

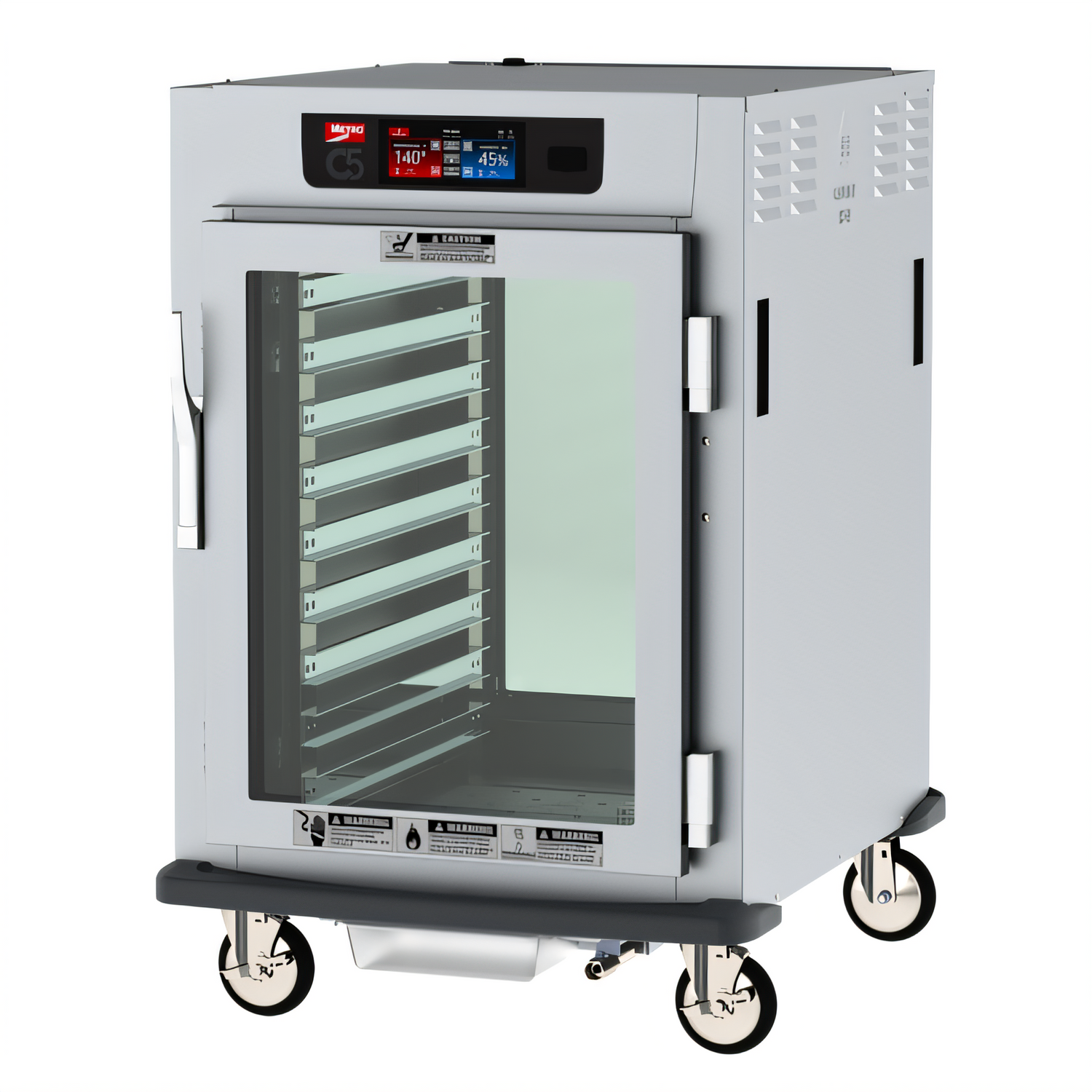

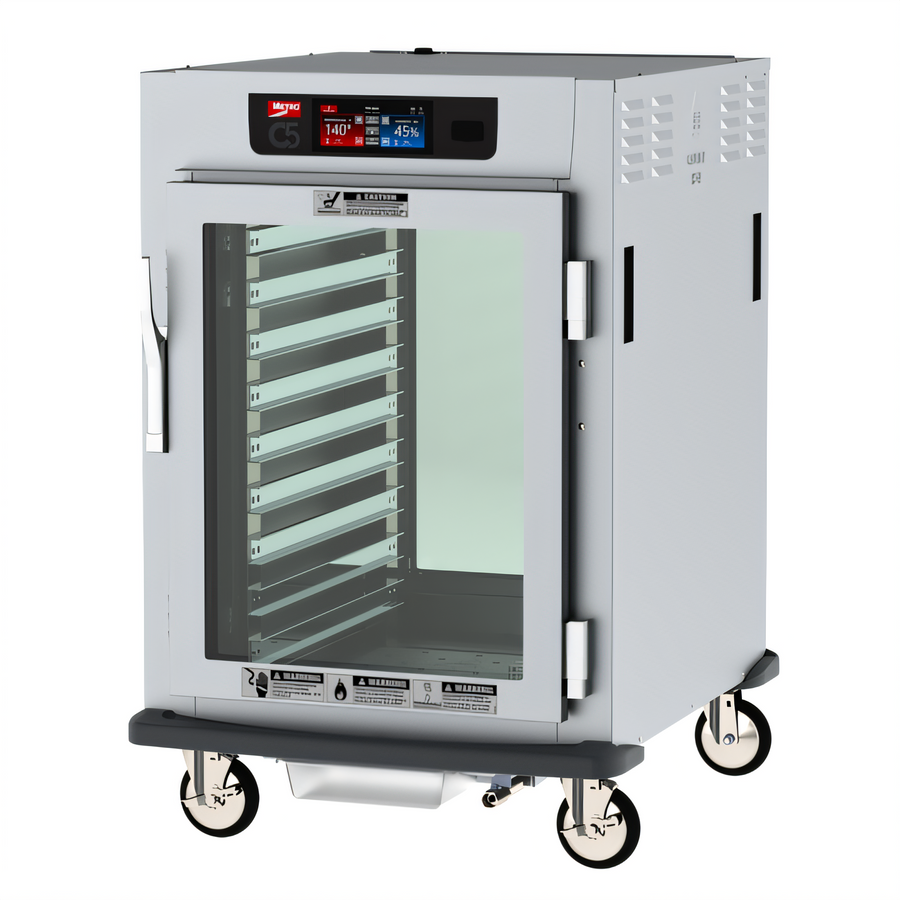

The Metro C5 C595L-SFC-LPFC is a controlled-humidity heated holding and proofing cabinet with a half-height pass-thru design, full glass doors, and lip-load slides for 18 x 26-inch pans.

Its 6.8-inch touch-screen controls display and adjust cabinet temperature and relative humidity. The 304 stainless steel cabinet holds 8 full-size pans and includes 5-inch casters with a polymer bumper and drip trough combination. It operates at 120 Volts, 1.44 kW, and 12 Amps with a NEMA 5-15P plug.

  • For hot food holding applications only.
  • Specified for 8 18 x 26-inch pans on fixed 3-inch centers.
  • Made in USA and listed to NSF, cULus, and ENERGY STAR requirements.

Overall Dimensions:

30.0"W x 36.38"D x 44.75"H

Product Weight:

265.77 lb

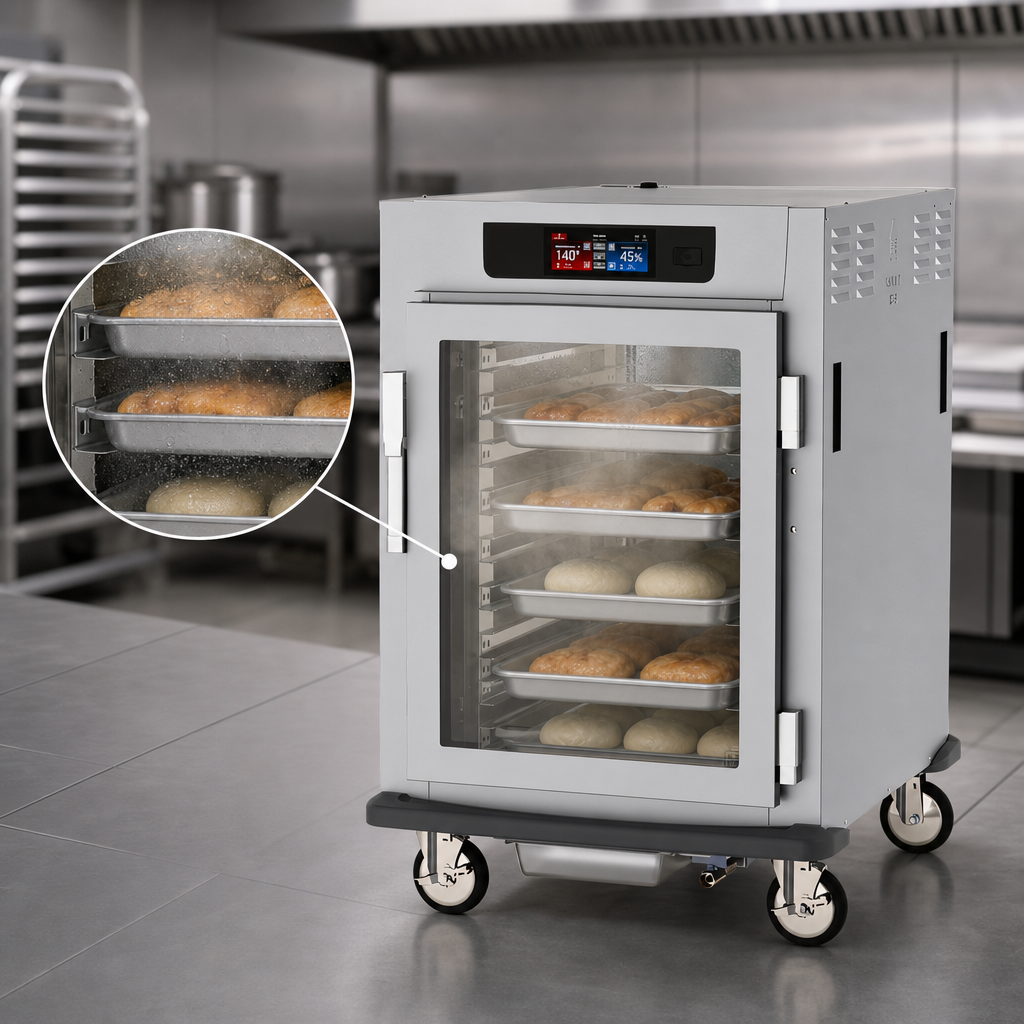

Controlled Humidity

Displays and controls actual cabinet temperature and relative humidity.

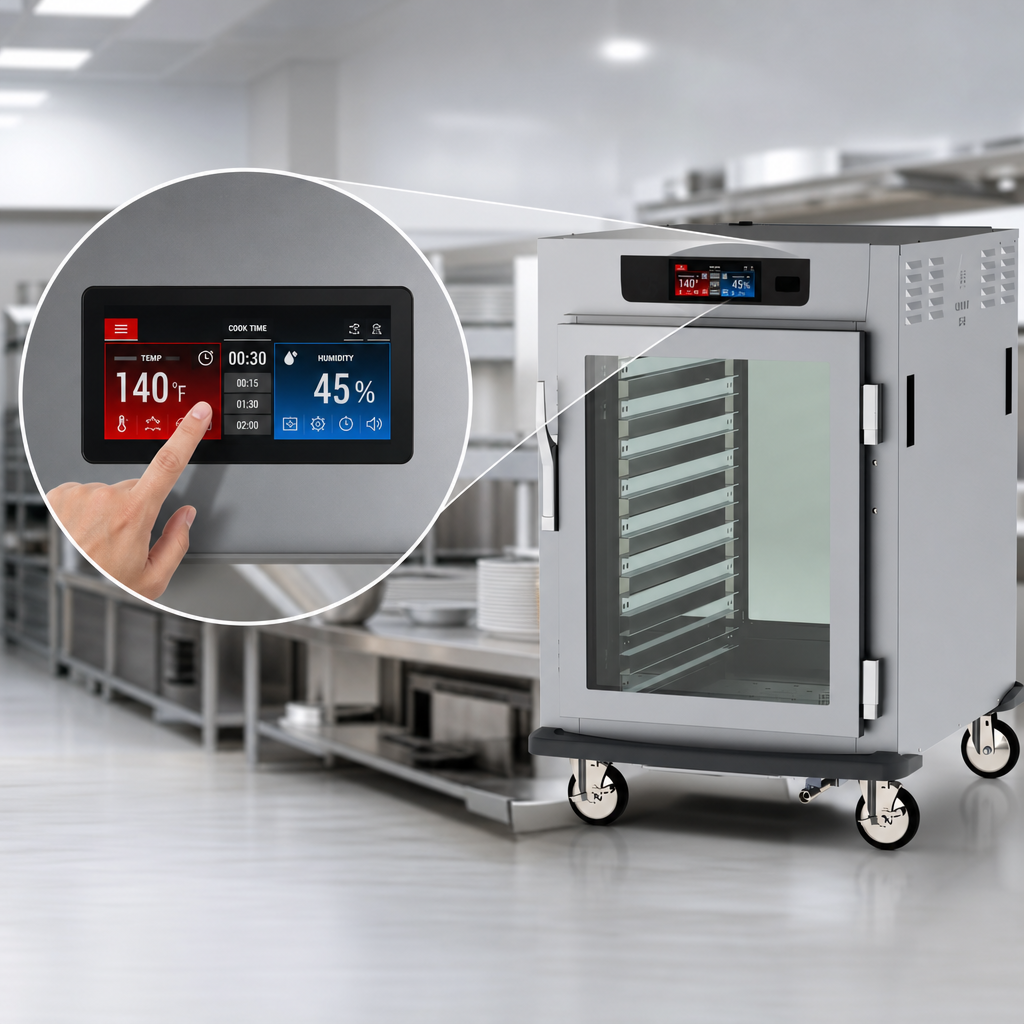

Touch-Screen Controls

6.8-inch high-resolution touch screen with individual temperature and humidity control.

Menu Presets and Timers

Menu presets support repeatable settings, while programmable timers help manage holding times and FIFO.

Auto-Start and Alarms

Auto-start schedules daily operation, and low-temperature and water alarms indicate when attention is needed.

HACCP Data Logging

USB port supports HACCP data logging and saving or loading customized settings.

Pass-Thru Glass Doors

Half-height pass-thru configuration with full glass doors.

Lip-Load Slides

Lip-load slides accommodate 18 x 26-inch pans on fixed 3-inch centers.

Mobile Base

Includes 5-inch casters and a polymer bumper and drip trough combination.

Frequently Asked Questions

It is specified for 8 18 x 26-inch pans on lip-load slides with fixed 3-inch centers.
Yes. The product is specified with full glass doors in a pass-thru configuration.
Yes. The 6.8-inch touch screen displays and controls cabinet temperature and actual relative humidity.
The cabinet operates at 120 Volts, 1.44 kW, 12 Amps, and 60 Hz with a NEMA 5-15P plug.
The cabinet is 30.0 inches wide, 36.38 inches deep, and 44.75 inches high, with a listed weight of 265.77 lb.
Yes. The product is specified as Made in USA.
