Key specifications

Amps
16.7 Amps
Phase
1-Phase
Dimensions
30.0"W × 36.38"D × 44.75"H
Type
Holding Cabinet
Style
Pass-Thru
Installation Type
Floor Model
Spec sheet
Metro SKU: C595-SFS-UPFC GTIN: 0-41105-46637-7

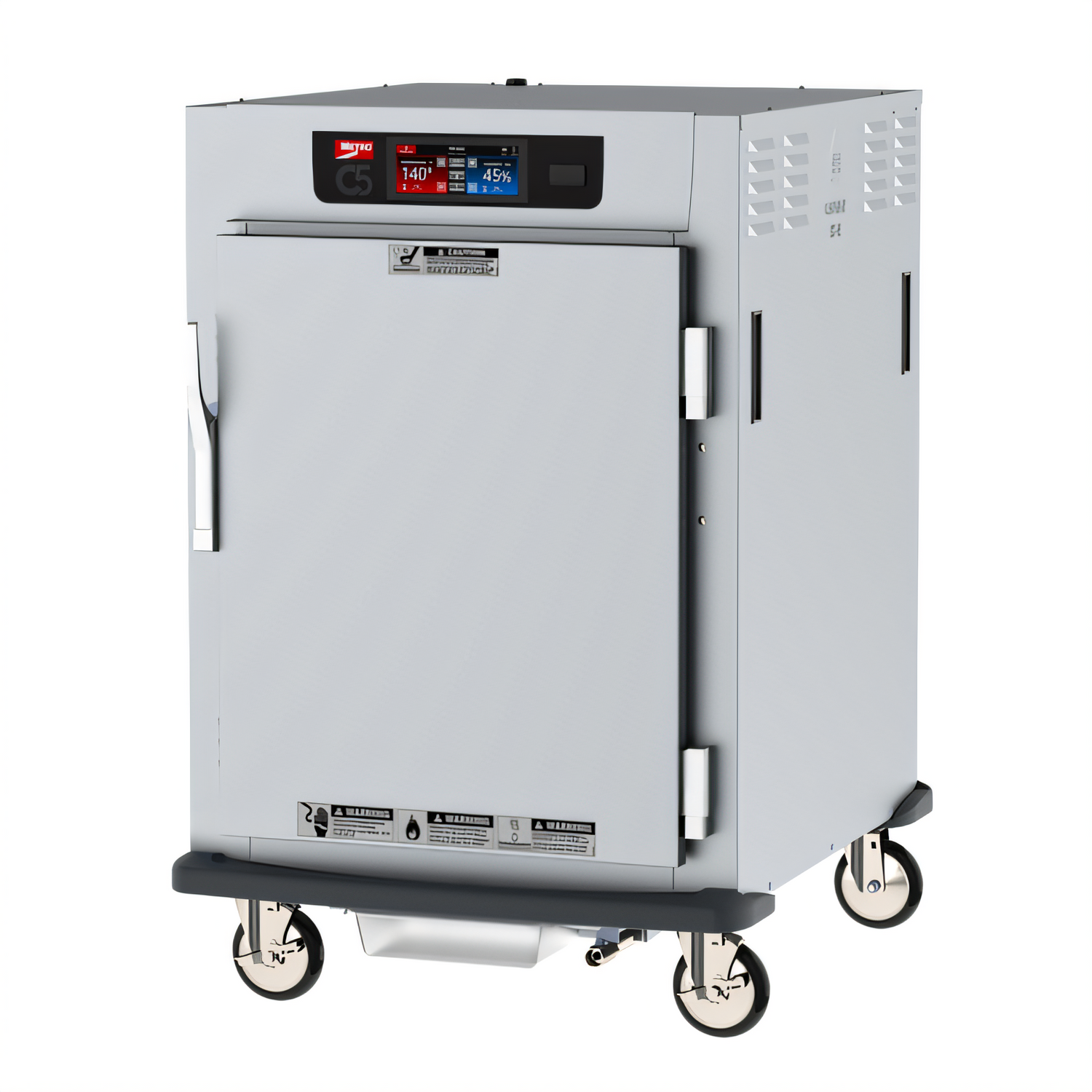

Metro C5 C595-SFS-UPFC 8-Pan Mobile Pass-Through Cabinet

$7,332.00
/each
Estimated to ship in 9–12 business days
Electrical
Accessories
Included: Metro warranty 1-year warranty against manufacturing defects

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $678/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Material 304 Stainless Steel
Country of Origin USA
Finish Polished
Interior Finish Stainless Steel
Capacity 8 18 x 26 in. pans; 16 12 x 20 x 2-1/2 in. pans
Door Style Solid and Glass
Slide Type Universal Wire
Slide Spacing 1-1/2 in. Adjustable Increments
Caster Size 5 in.
Heater Type Top Mounted
Insulation 2-1/2 in. High-Density Fiberglass
Controls 6.8 in. Touch-Screen
Temperature Range 90°F to 200°F
Voltage 120 Volts
Amps 16.7 Amps
Watts 2,000 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Cord Length 7-1/2 ft.
Energy Efficiency ENERGY STAR

Description

The Metro C5 C595-SFS-UPFC is a mobile, half-height pass-thru controlled humidity heated holding and proofing cabinet with solid and glass doors.

Universal wire slides accommodate 8 18 x 26 in. pans or 16 12 x 20 x 2-1/2 in. pans. A 6.8-inch touch-screen controls cabinet temperature and relative humidity.

  • 120-Volt, 2,000-Watt electrical configuration with NEMA 5-20P plug
  • 5-inch casters with polymer bumper and drip trough combination
  • Stainless steel construction with insulated cabinet

Overall Dimensions:

30.0"W x 36.38"D x 44.75"H

Product Weight:

218.0 lb

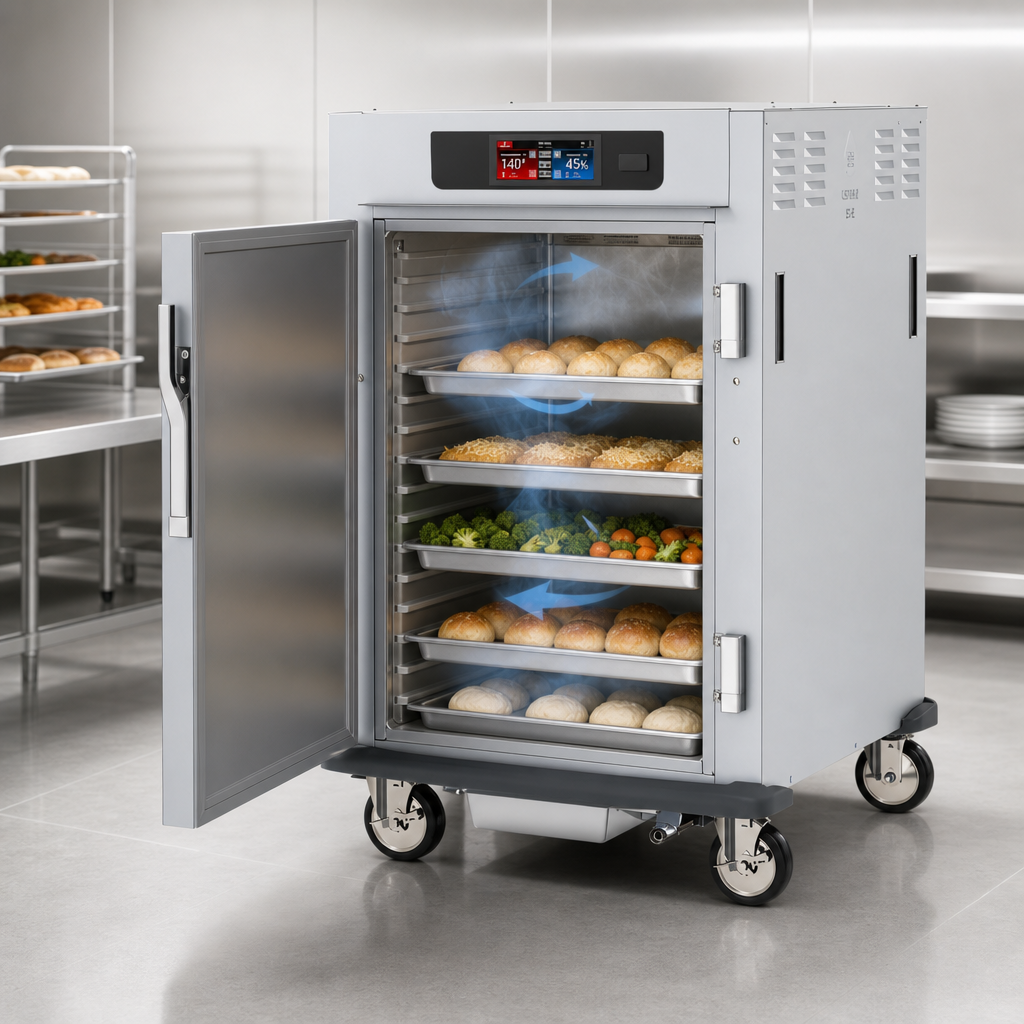

Controlled humidity operation

The cabinet controls and displays temperature and actual relative humidity.

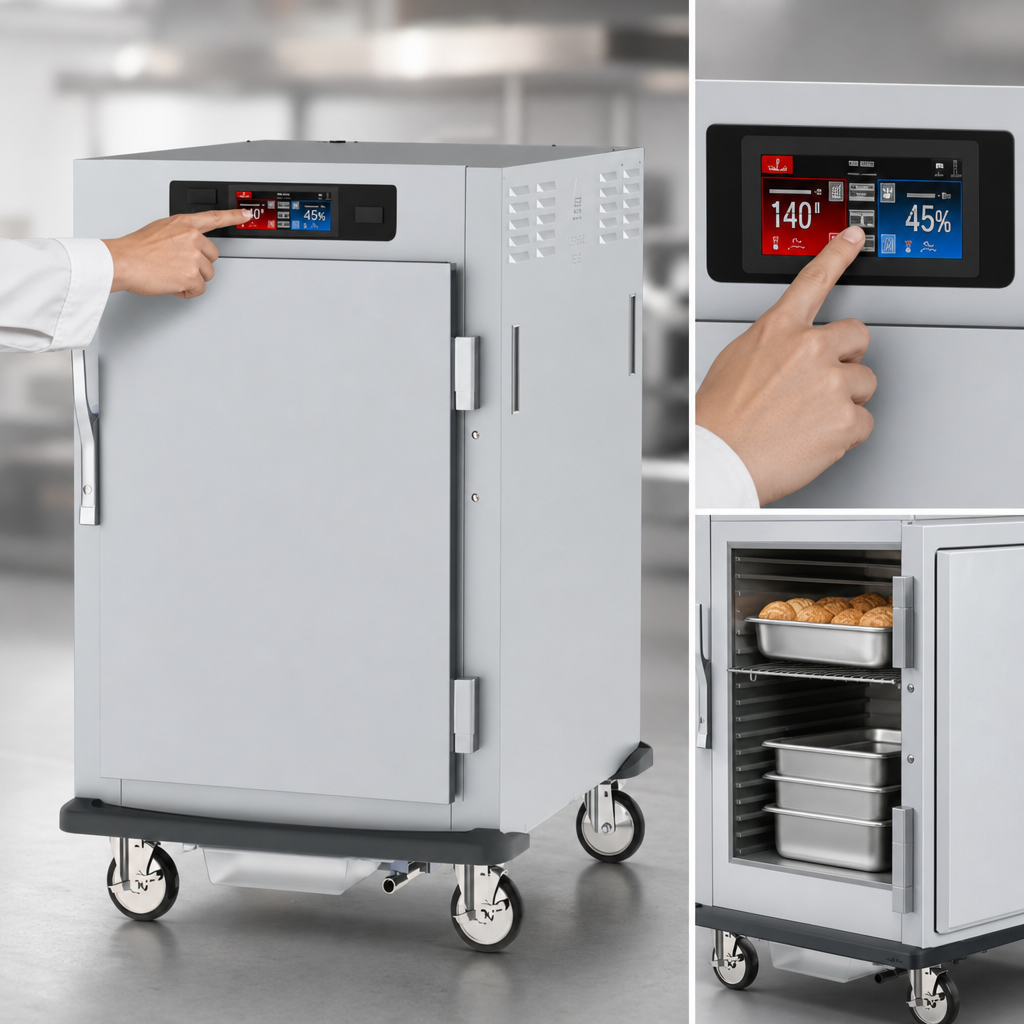

Touch-screen controls

A 6.8-inch high-resolution touch-screen display provides cabinet temperature and relative humidity controls.

Pass-thru design

The half-height cabinet is configured for pass-thru operation with solid and glass doors.

Universal wire slides

Universal wire slides accommodate 18 x 26 in. sheet pans and 12 x 20 x 2-1/2 in. pans, with adjustment on 1-1/2 in. increments.

Insulated stainless steel cabinet

The cabinet has a Type 304 stainless steel exterior, stainless steel interior, and full-perimeter insulation.

Mobile configuration

The cabinet is fitted with 5-inch casters and a polymer bumper and drip trough combination.

Programmable operating controls

The C5 9 Series controls include menu presets, programmable timers, auto-start, alarms, USB HACCP data logging, and control lock.

Frequently Asked Questions

It accommodates 8 18 x 26 in. pans or 16 12 x 20 x 2-1/2 in. pans.
It has solid and glass doors in a pass-thru configuration.
Yes. The 6.8-inch touch-screen controls and displays cabinet temperature and relative humidity.
The cabinet is rated at 120 Volts, 2,000 Watts, 16.7 Amps, and 60 Hz, with a NEMA 5-20P plug.
The cabinet is 30 in. wide, 36.38 in. deep, and 44.75 in. high, and weighs 218 lb.
