Key specifications
- Amps
- 16.7 Amps
- Phase
- 1-Phase
- Dimensions
- 30.0"W × 36.38"D × 44.75"H
- Type
- Holding Cabinet
- Style
- Pass-Thru
- Installation Type
- Floor Model

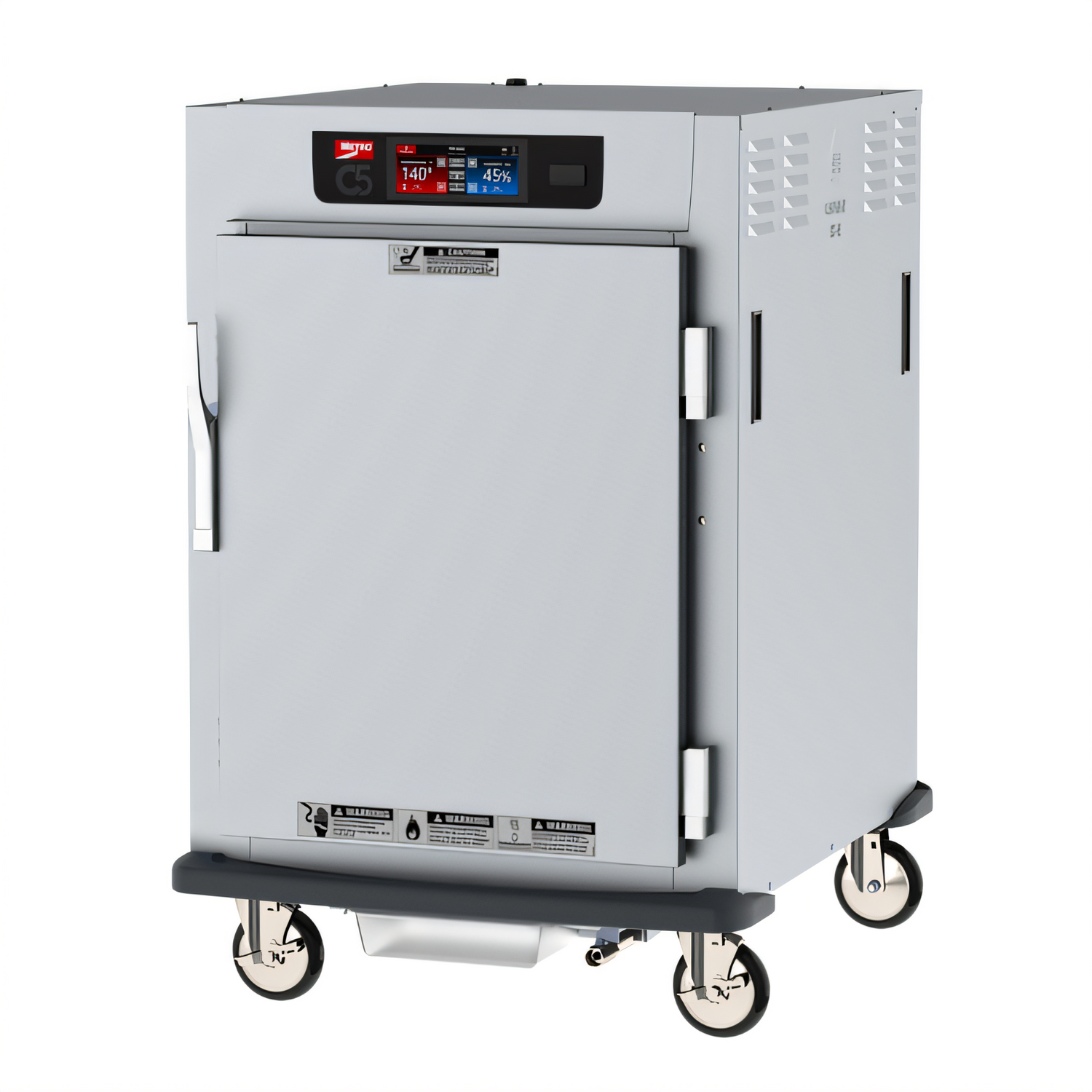

Metro C5 C595-SFS-LPFC 8-Pan Pass-Through Holding Cabinet
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Metro C5 9 Series C595-SFS-LPFC is a half-height, pass-thru controlled-humidity cabinet for heated holding and proofing. Its insulated stainless steel cabinet accommodates eight 18-inch x 26-inch pans and includes one solid and one glass door.
Temperature and actual relative humidity are displayed and controlled through 6.8-inch touchscreen controls. Lip-load slides, 5-inch casters, and a polymer bumper and drip trough combination support daily foodservice operation.
- 120V electrical configuration with 2 kW heating power, 16.7 amps, and a NEMA 5-20P plug
- Made in USA and listed to NSF and cULus standards
- ENERGY STAR listed
Overall Dimensions:
30.0"W x 36.38"D x 44.75"HProduct Weight:

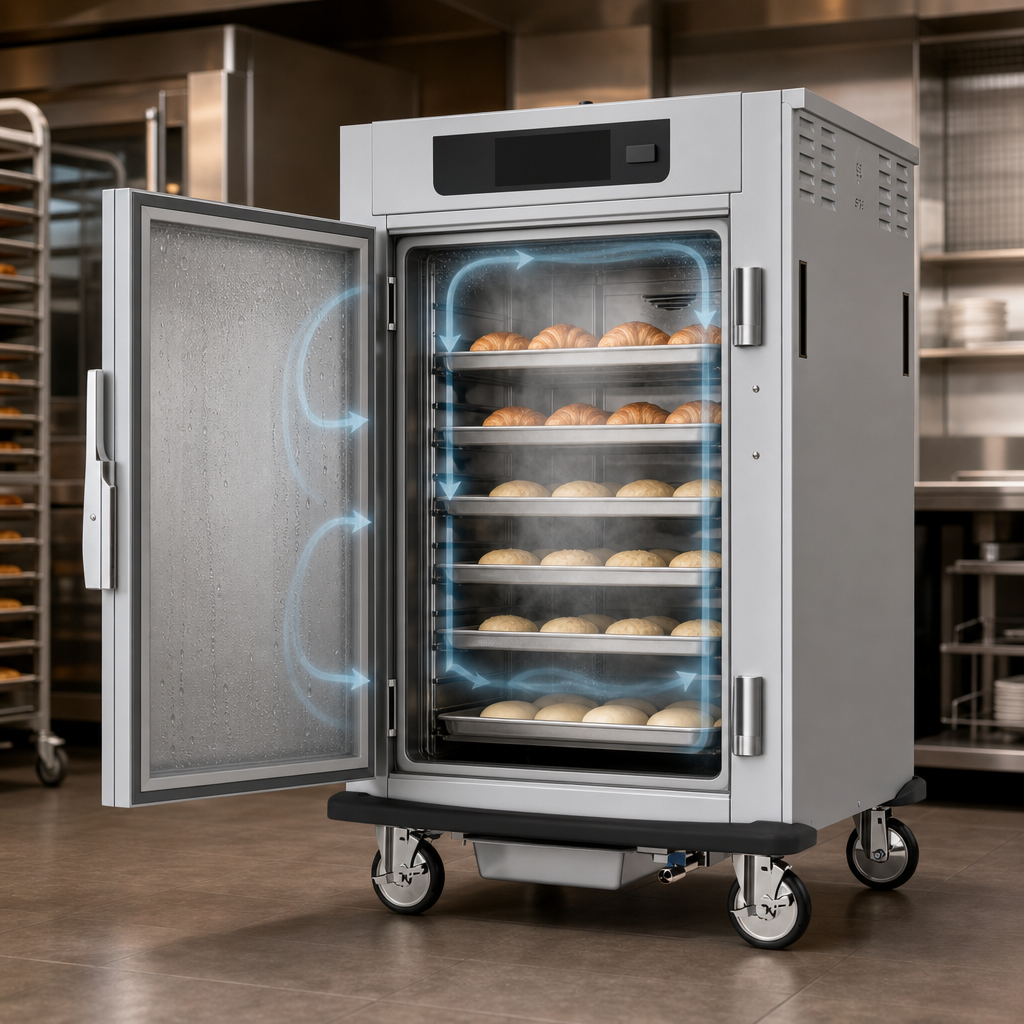

210.0 lbControlled Humidity
Closed-loop systems control cabinet temperature and actual relative humidity.

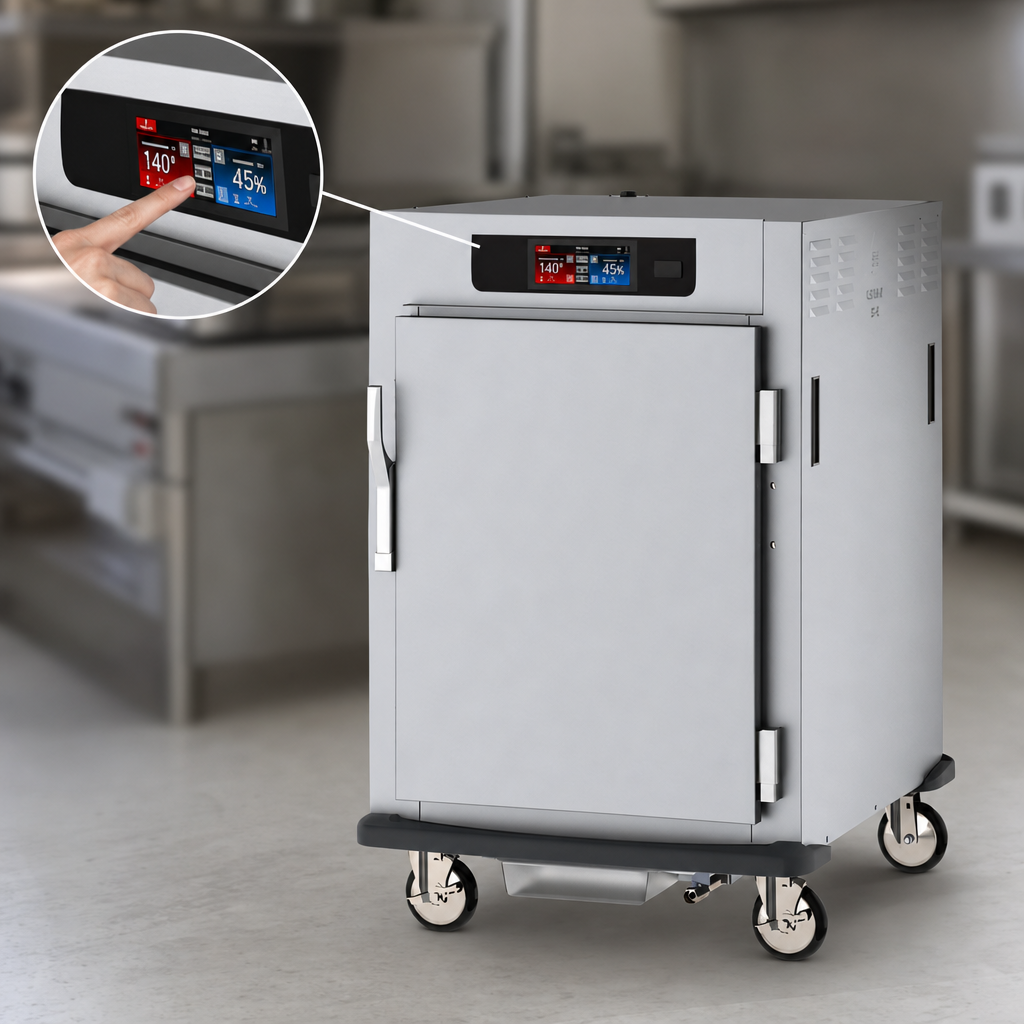

Touchscreen Controls
The 6.8-inch touchscreen displays cabinet temperature and relative humidity and supports menu presets, programmable timers, auto-start, alarms, control lock, and HACCP data logging.
Pass-Thru Door Configuration
The cabinet has one solid door and one glass door for pass-thru operation.
Lip-Load Slides
Lip-load aluminum slides accommodate 18-inch x 26-inch pans and are fixed on 3-inch centers.
Insulated Stainless Steel Construction
The cabinet uses 304 stainless steel construction with full-perimeter high-density fiberglass insulation.
Water Reservoir
A 4-gallon water reservoir supports the humidity generation system.
Mobile Design
The cabinet includes 5-inch casters and a polymer bumper and drip trough combination.
HACCP Data Logging
A USB port provides built-in HACCP data logging and supports saving and loading customized settings.
