Key specifications

Amps
16.7 Amps
Phase
1-Phase
Dimensions
30.0"W × 36.38"D × 44.75"H
Type
Holding Cabinet
Style
Pass-Thru
Installation Type
Floor Model
Spec sheet
Metro SKU: C595-SFC-UPFS GTIN: 0-41105-46627-8

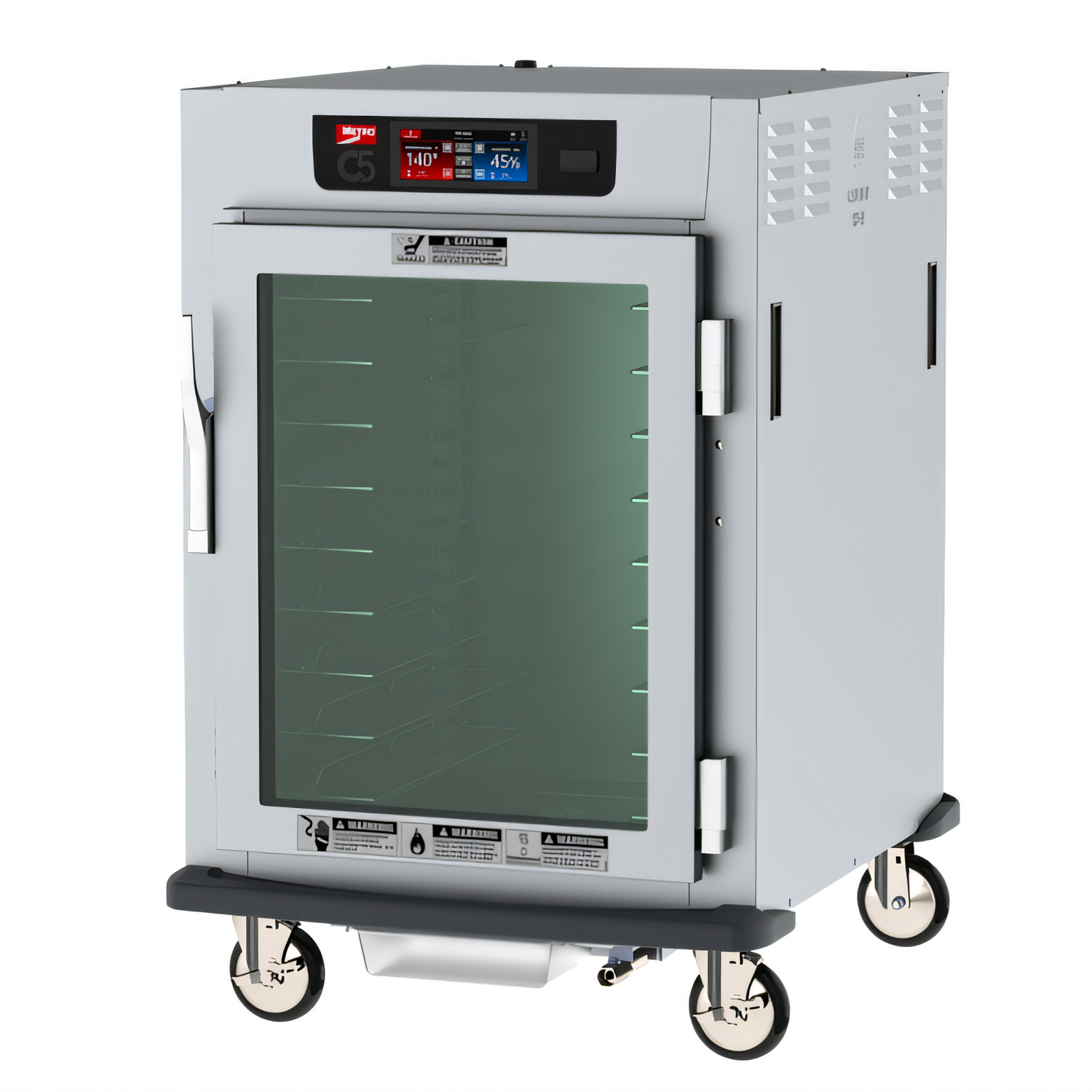

Metro C5 C595-SFC-UPFS 8-Pan Pass-Thru Holding Cabinet

$7,332.00
/each
Estimated to ship in 9–12 business days
Electrical120 V · 1-phase · 60 Hz · 2000 W
Accessories
Included: Metro warranty 1-year warranty against manufacturing defects

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $678/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Material 304 Stainless Steel
Country of Origin USA
Finish Polished
Interior Finish Stainless Steel
Door Style 1 Glass and 1 Solid
Pan Capacity 8 18" x 26" or 16 12" x 20" x 2.5" Pans
Slide Type Universal Wire
Slide Spacing 3 in O.C.; 1.5 in Adjustable Increments
Controls 6.8 in Touchscreen
Temperature Range 90°F to 200°F
Humidity Control Actual Relative Humidity
Water Reservoir 4 gal (15 L)
Insulation 2.5 in High-Density Fiberglass
Heater Top Mounted
Casters 5 in
Bumper and Drip Trough Polymer
Energy Efficiency ENERGY STAR®
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Cord Length 7.5 ft

Description

The Metro C5 C595-SFC-UPFS is a mobile, half-height controlled-humidity heated holding and proofing cabinet with pass-thru configuration, one glass door, and one solid door.

Universal wire slides accommodate up to 8 18" x 26" pans or 16 12" x 20" x 2.5" pans. The 6.8-inch touchscreen displays and controls cabinet temperature and actual relative humidity.

  • 120-volt, 2 kW electrical configuration with NEMA 5-20P plug
  • 5-inch casters with polymer bumper and drip trough combination
  • Type 304 stainless steel construction with insulated cabinet
  • For hot food holding applications only

Overall Dimensions:

30.0"W x 36.38"D x 44.75"H

Product Weight:

218.0 lb

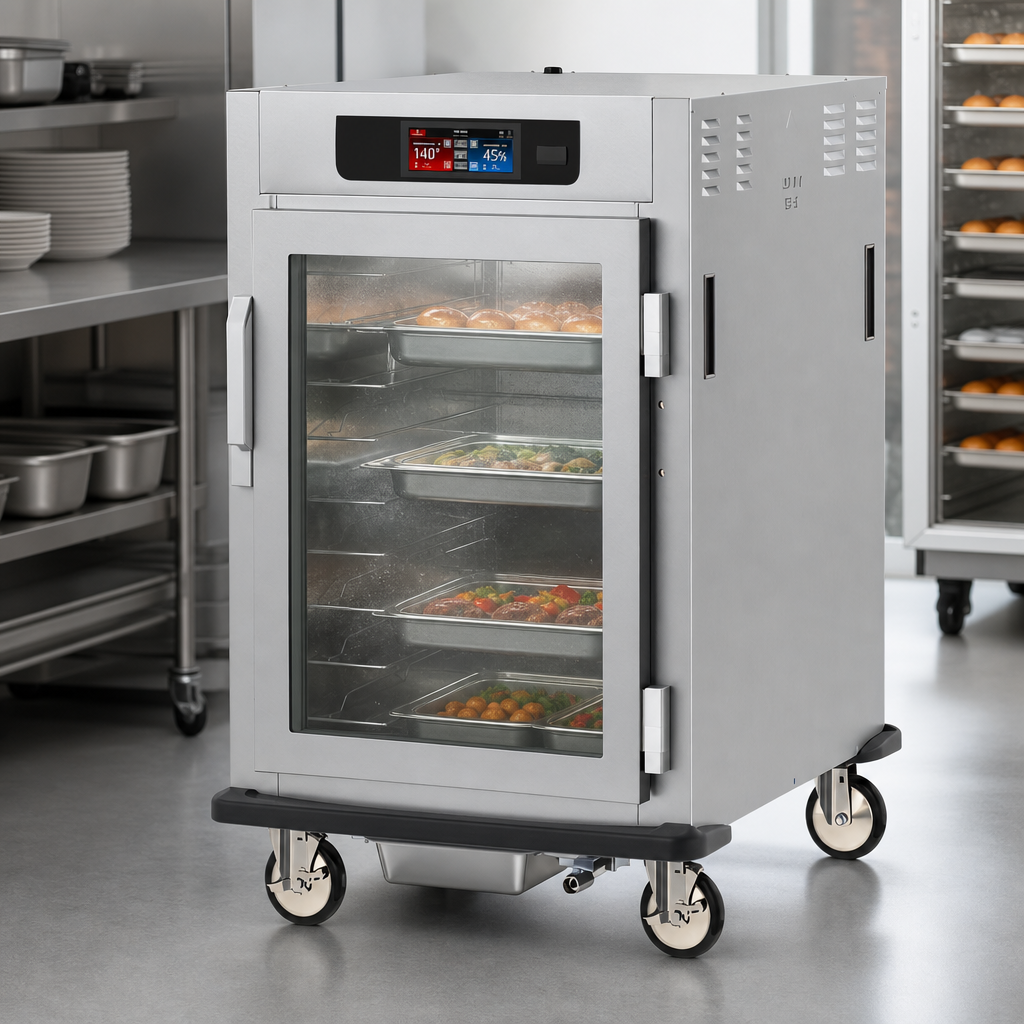

Controlled Humidity

Measures, displays, and controls actual relative humidity alongside cabinet temperature.

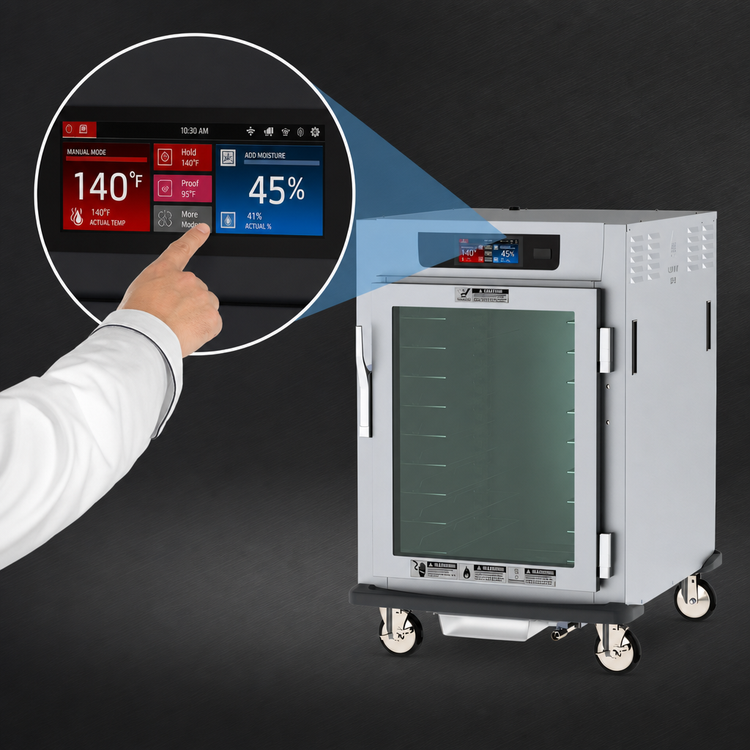

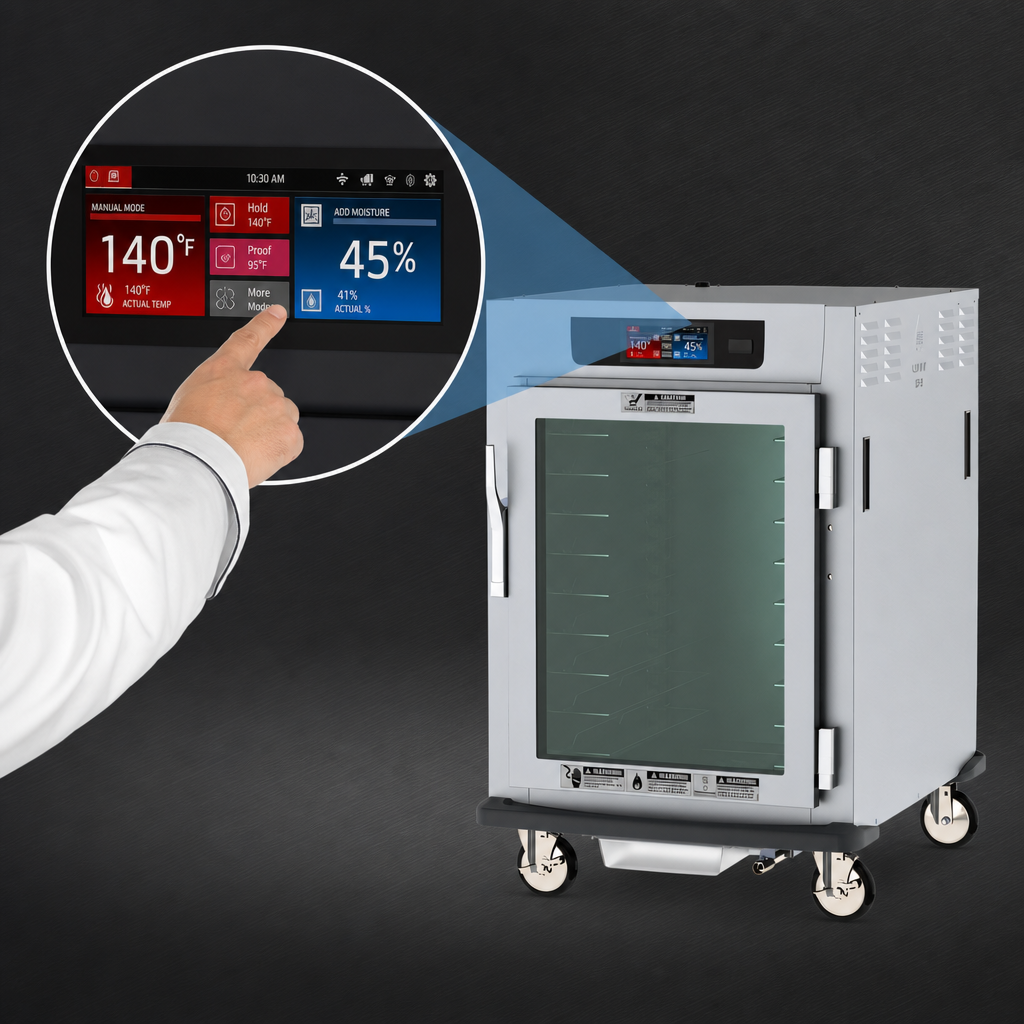

Touchscreen Controls

The 6.8-inch touchscreen provides menu presets, programmable timers, auto-start, alarms, control lock, and USB HACCP data logging.

Pass-Thru Configuration

Configured with one glass door and one solid door for pass-thru use.

Universal Wire Slides

Wire slides accommodate 18" x 26" sheet pans and 12" x 20" pans and adjust on 1.5-inch increments.

Mobile Design

Equipped with 5-inch casters.

Insulated Stainless Steel Construction

Type 304 stainless steel cabinet with 2.5-inch high-density fiberglass insulation.

Water Reservoir

Includes a 4-gallon water reservoir for humidity generation.

Temperature Range

Operates from 90°F to 200°F.

Frequently Asked Questions

It holds 8 18" x 26" pans or 16 12" x 20" x 2.5" pans.
It has one glass door and one solid door in a pass-thru configuration.
The temperature range is 90°F to 200°F.
It requires 120 Volts, 60 Hz, single-phase power, draws 16.7 Amps, and uses a NEMA 5-20P plug.
Yes. It displays and controls actual relative humidity and uses a 4-gallon water reservoir for humidity generation.
The product is 30 inches wide, 36.38 inches deep, and 44.75 inches high, with a listed weight of 218 pounds.
It is made in the USA.
