Key specifications
- Amps
- 16.7 Amps
- Phase
- 1-Phase
- Dimensions
- 30.0"W × 36.38"D × 44.75"H
- Type
- Holding Cabinet
- Style
- Pass-Thru
- Installation Type
- Floor Model

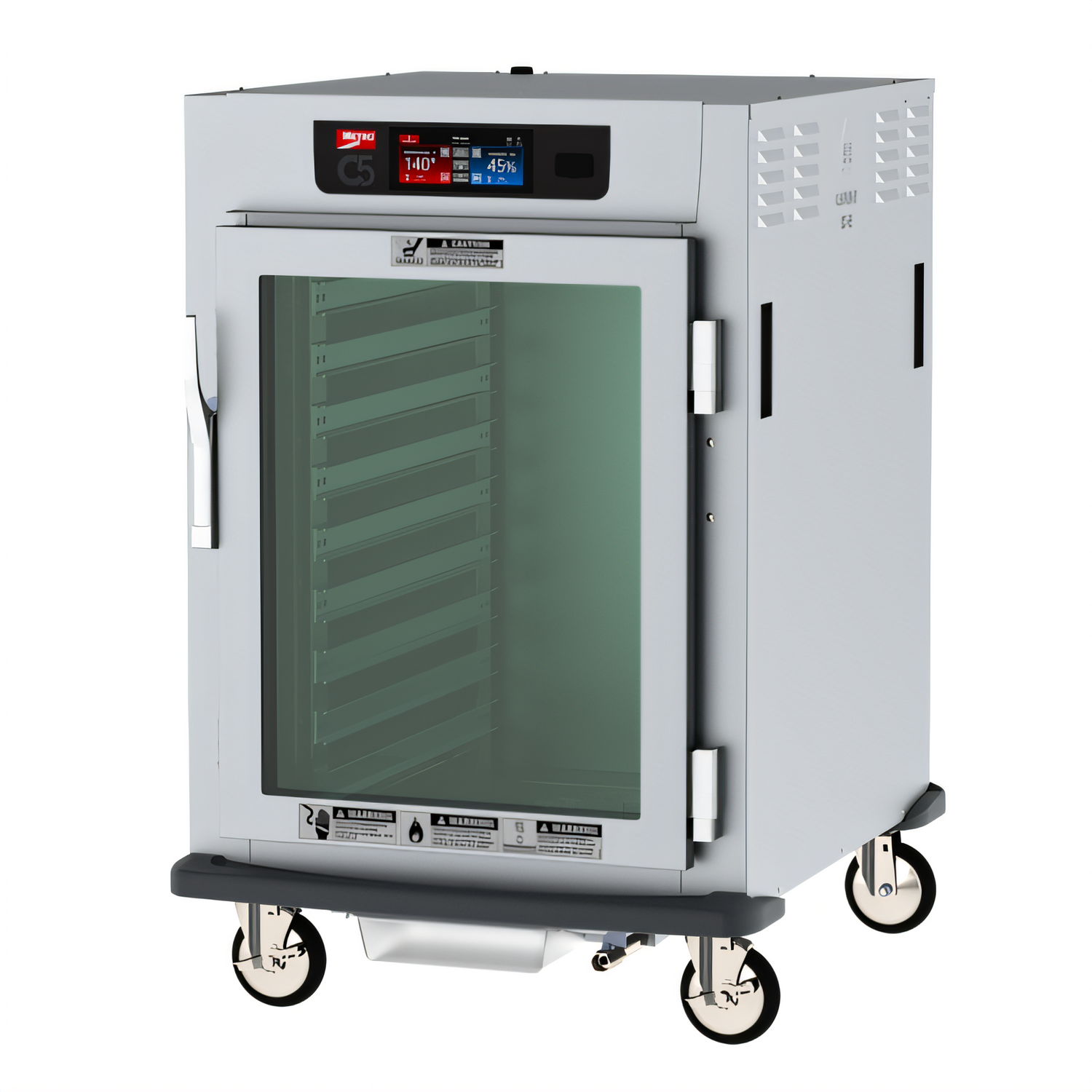

Metro C5 C595-SFC-LPFS 8-Pan Pass-Through Holding Cabinet
- Full glass
- Glass / solid
- Solid
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Metro C5 9 Series C595-SFC-LPFS is a half-height, mobile pass-thru holding and proofing cabinet with controlled temperature and actual relative humidity.
- Touch-screen control: The 6.8-inch display shows cabinet temperature and relative humidity.
- Pan capacity: Lip-load slides accommodate eight 18 x 26-inch sheet pans at fixed 3-inch centers.
- Door configuration: One glass door and one solid door support pass-thru operation.
- Operating features: Menu presets, programmable timers, auto-start, alarms, HACCP data logging, and control lock functionality.
- Construction: The insulated cabinet has a 304 stainless steel polished exterior, stainless steel interior, 5-inch casters, and a polymer bumper and drip trough combination.
Overall Dimensions:
30.0"W x 36.38"D x 44.75"HProduct Weight:
210.0 lbControlled Temperature and Humidity
Displays and controls cabinet temperature and actual relative humidity.

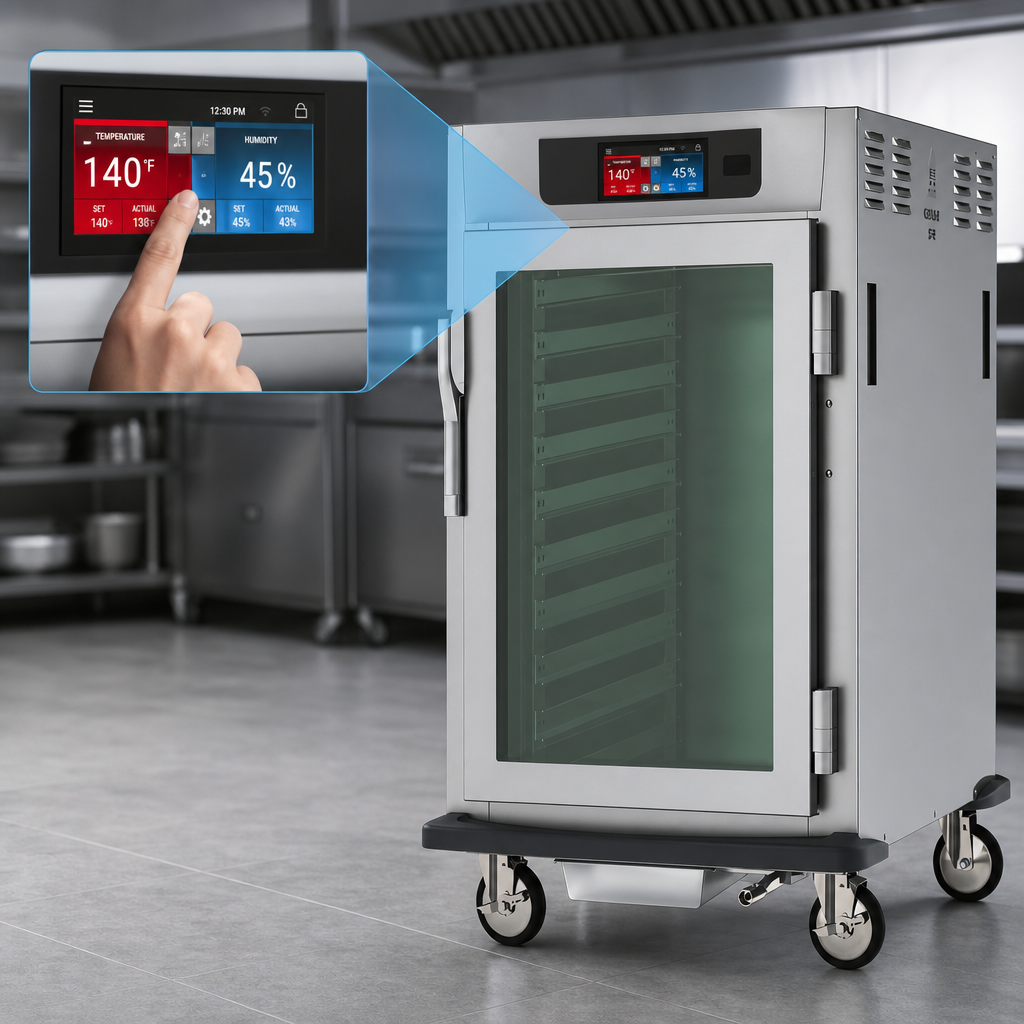

Touch-Screen Controls
A 6.8-inch high-resolution touch screen provides cabinet controls and displays.

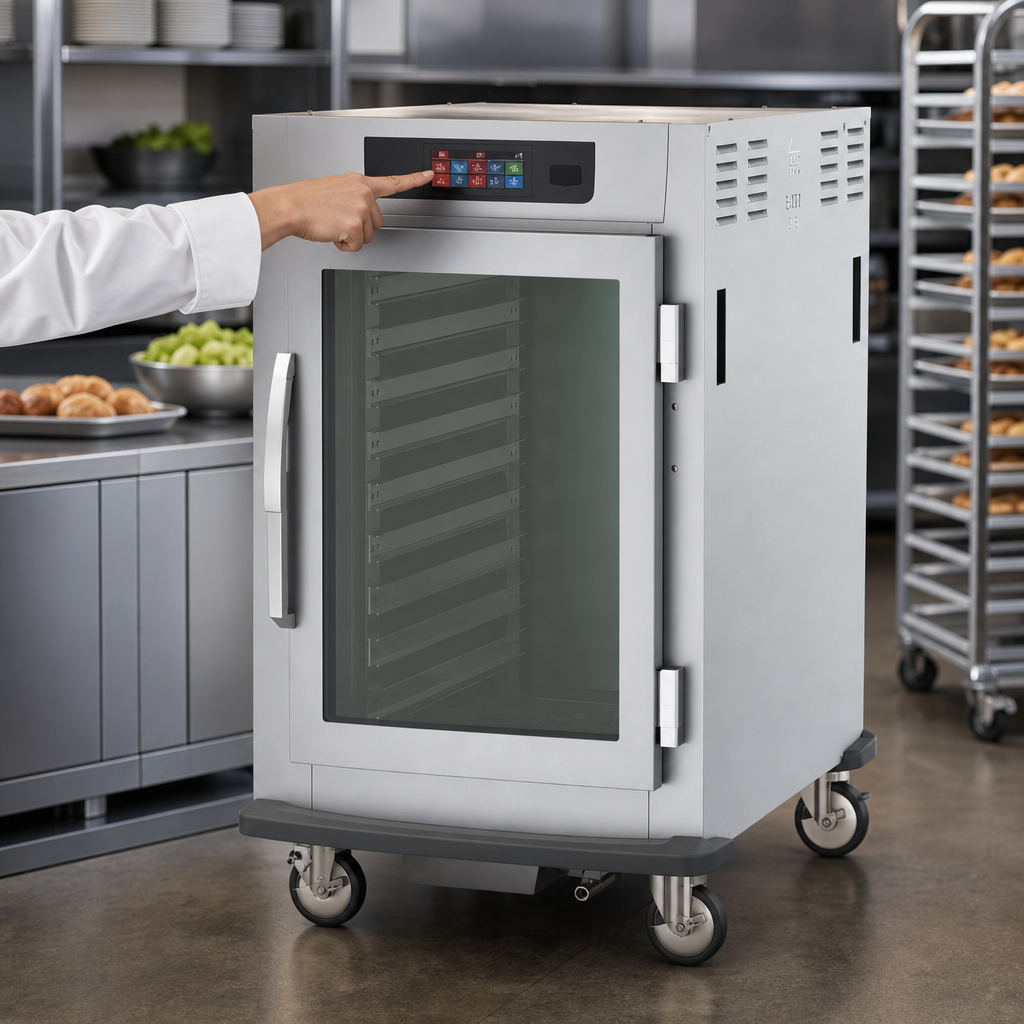

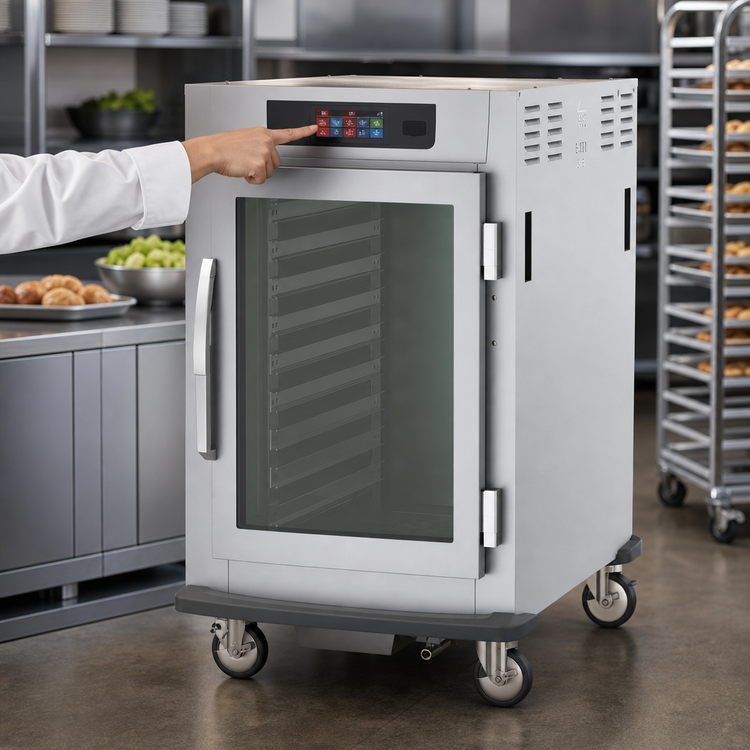

Menu Presets
One-touch menu presets support repeatable temperature and humidity settings.
Programmable Timers and Auto-Start
Programmable timers help manage holding times and FIFO, while auto-start can run the cabinet daily.
HACCP Data Logging
A USB port supports HACCP data logging and saving or loading customized settings.
Lip-Load Pan Slides
Lip-load aluminum slides accommodate 18 x 26-inch sheet pans at fixed 3-inch centers.
Pass-Thru Door Configuration
The cabinet has one glass door and one solid door for pass-thru operation.
Insulated Cabinet
Full-perimeter 2.5-inch high-density fiberglass insulation supports controlled cabinet conditions.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
