Key specifications

Amps
12 Amps
Phase
1-Phase
Dimensions
30.0"W × 36.38"D × 32.25"H
Type
Heated Holding Cabinet
Style
Mobile
Installation Type
Undercounter
Spec sheet
Metro SKU: C593L-SFS-U GTIN: 0-41105-46590-5

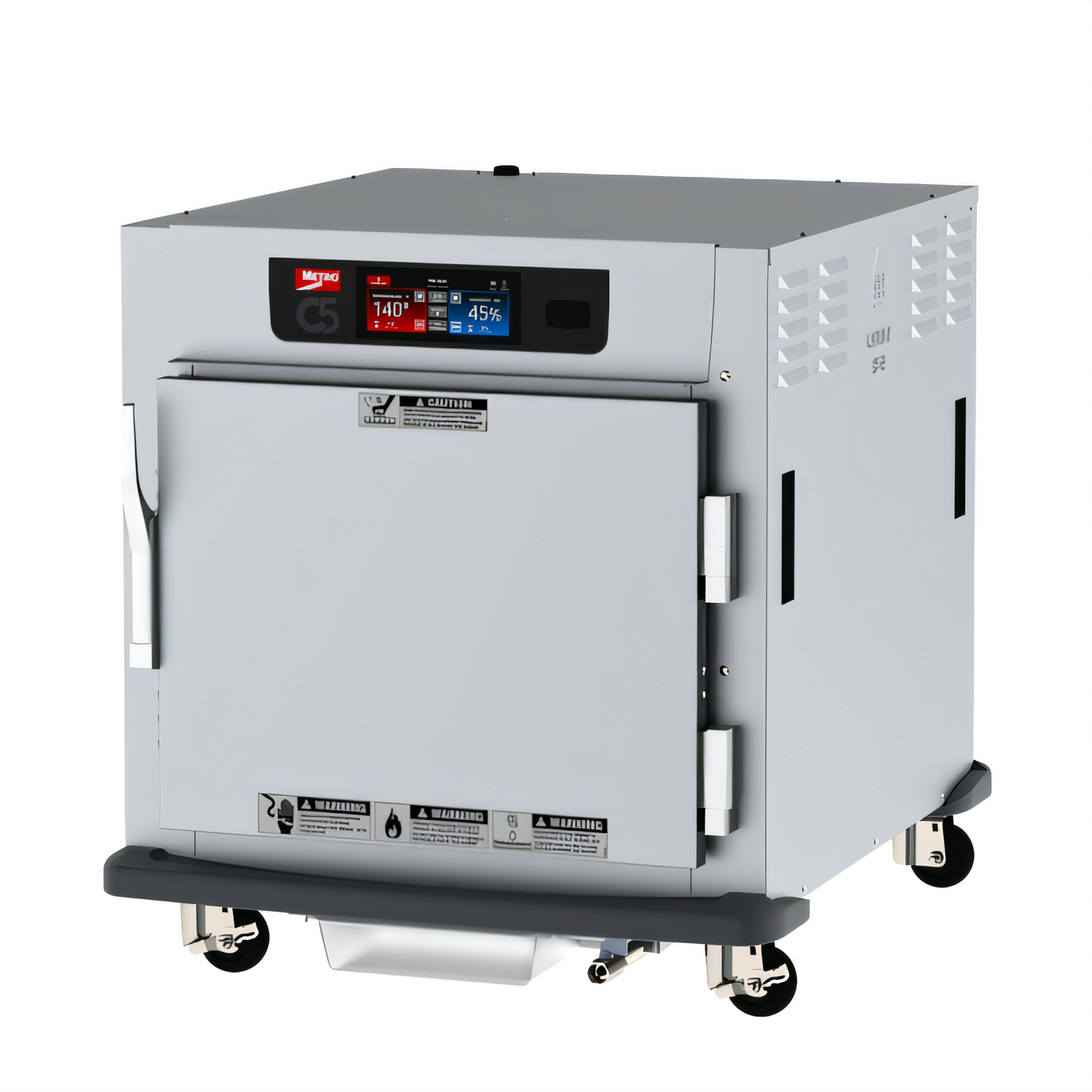

Metro C5 C593L-SFS-U 5-Pan Undercounter Holding Cabinet

$6,027.00
/each
Estimated to ship in 9–12 business days
Shelves
Slides

Need something else? Contact us.

Included: Metro warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $557/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Heated Holding Cabinet
Style Mobile
Installation Type Undercounter
Material 304 Stainless Steel
Country of Origin USA
Finish Polished
Pan Size 18 x 26 in; 12 x 20 x 2-1/2 in
Pan Capacity 5 pans (18 x 26 in) or 10 pans (12 x 20 x 2-1/2 in)
Slide Capacity 5 Pairs
Slide Type Universal Wire
Slide Spacing 1-1/2 in Increments
Door Type Insulated Solid
Insulation 2-1/2 in High-Density Fiberglass
Caster Size 3 in
Bumper Type Polymer with Drip Trough
Water Reservoir Capacity 4 gal (15 L)
Controls 6.8 in Touch Screen
Humidity Control Actual Relative Humidity
Temperature Range 90°F to 200°F
Voltage 120 Volts
Amps 12 Amps
Watts 1,440 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 7-1/2 ft

Description

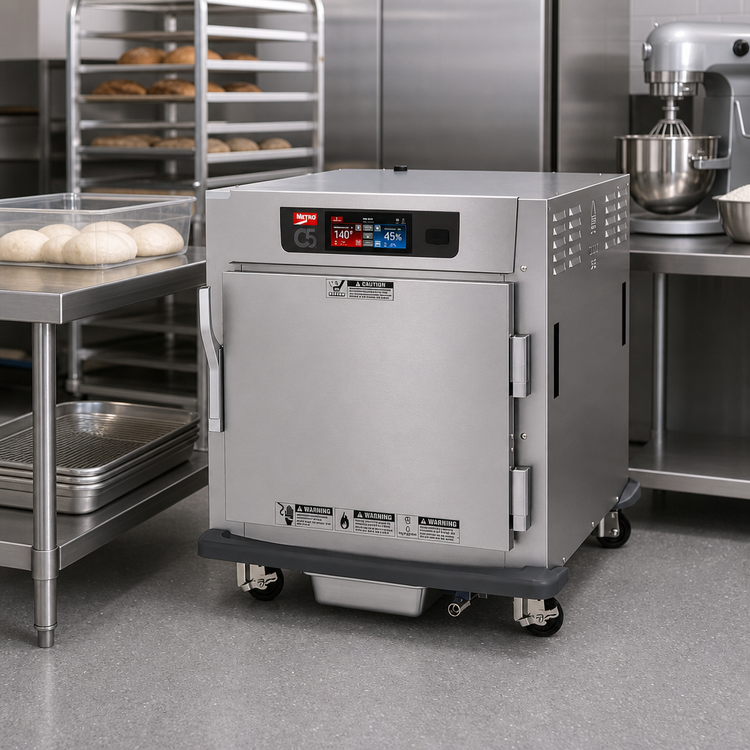

Metro C593L-SFS-U is a mobile undercounter controlled-humidity heated holding and proofing cabinet with a 6.8-inch touch-screen display, insulated solid door, and universal wire slides.

  • Holds five 18 x 26 inch pans or ten 12 x 20 x 2-1/2 inch pans.
  • Provides a 90°F to 200°F temperature range and displays cabinet temperature and relative humidity.
  • Includes 3-inch casters, a polymer bumper and drip trough combination, and a NEMA 5-15P plug.
  • The 120-volt, 1,440-watt configuration draws 12 amps.

Overall Dimensions:

30.0"W x 36.38"D x 32.25"H

Product Weight:

222.4 lb

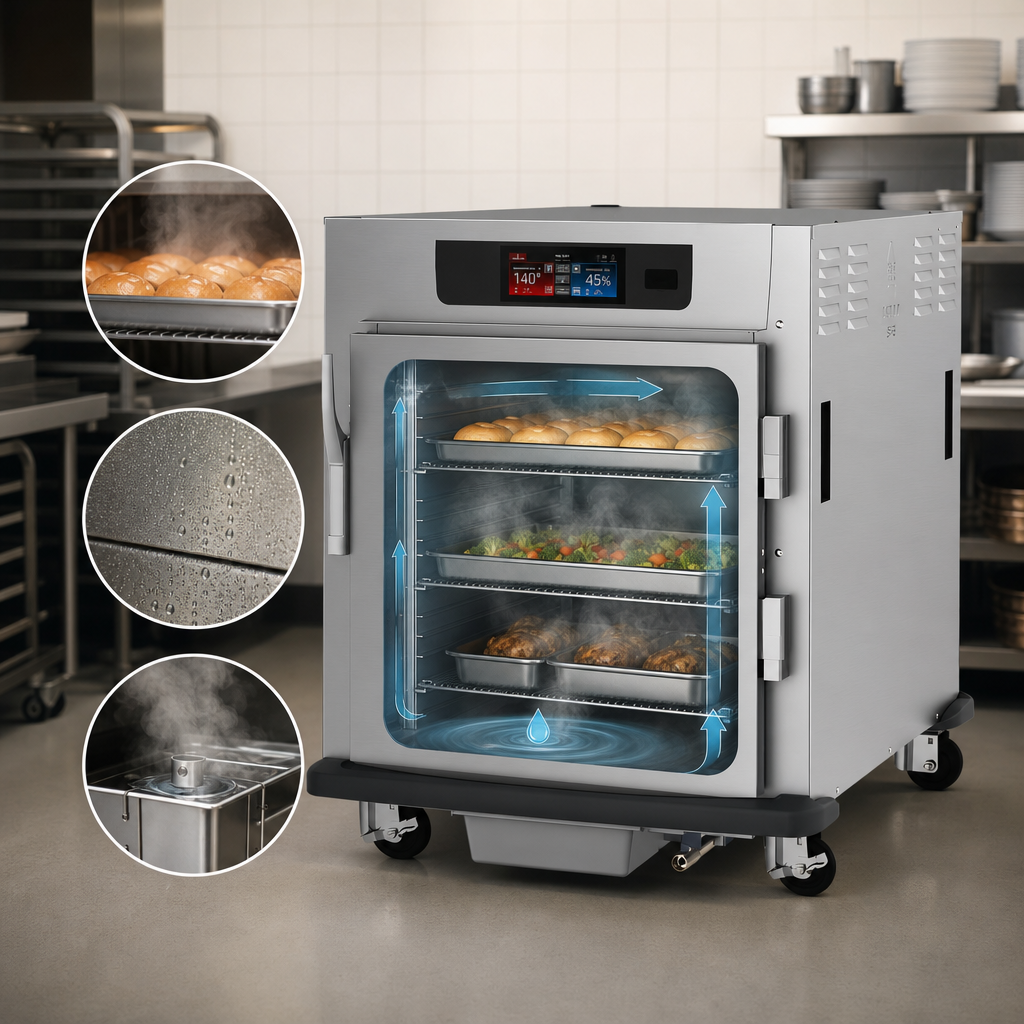

Controlled Humidity System

Closed-loop humidity generation uses a tubular heating element, ducted air system, low-water sensor, and 4-gallon water reservoir with drain.

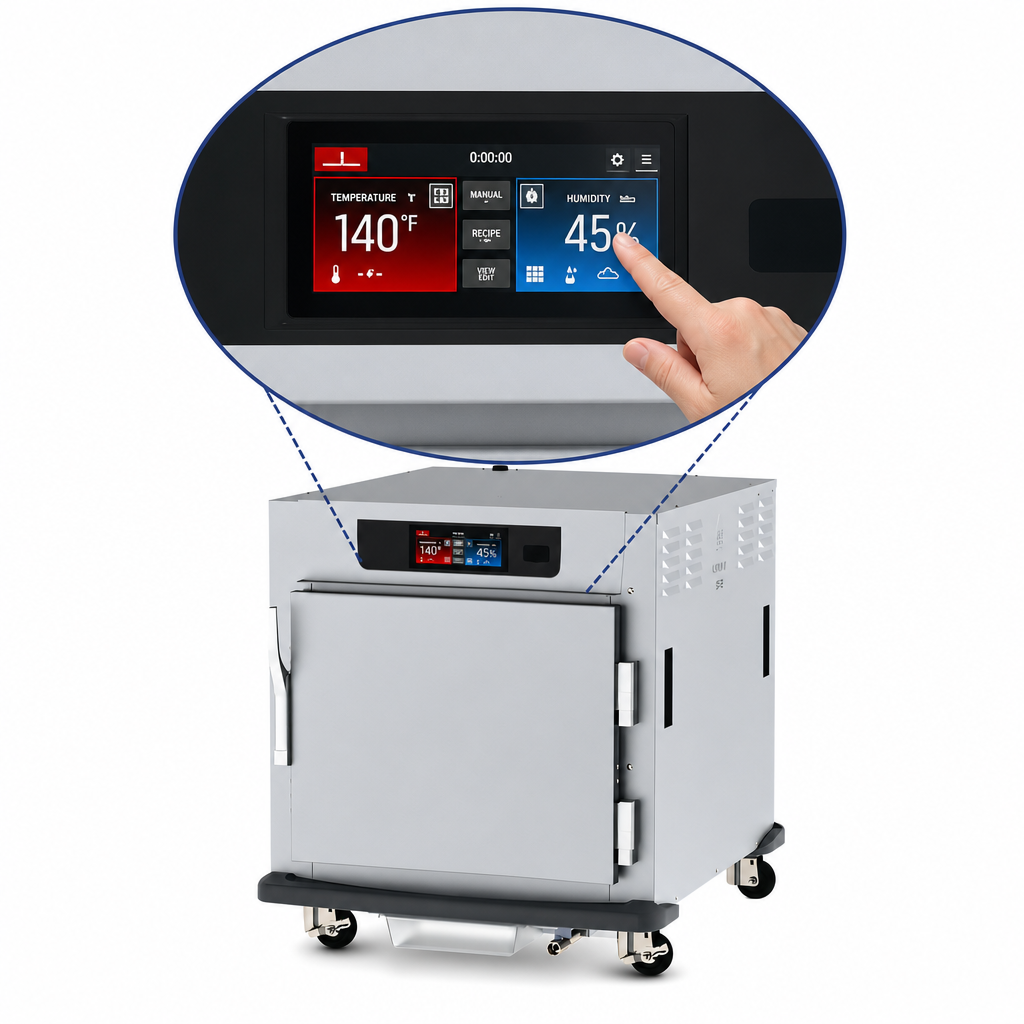

Touch-Screen Controls

The 6.8-inch high-resolution display shows cabinet temperature and relative humidity, with individual control for each.

Universal Wire Slides

Slides accommodate 18 x 26 inch sheet pans and 12 x 20 inch steam or GN pans, with adjustment on 1-1/2 inch increments.

Insulated Solid Door

The solid door uses fully insulated, double-panel construction.

Programmable Operation

Menu presets, programmable timers, auto-start, low-temperature and water alarms, USB HACCP data logging, and control lock support operation.

Temperature Priority

The control system automatically prioritizes internal temperature over humidity.

Mobile Undercounter Design

The cabinet includes 3-inch casters and a polymer bumper and drip trough combination.

Frequently Asked Questions

It holds five 18 x 26 inch pans or ten 12 x 20 x 2-1/2 inch pans.
The temperature range is 90°F to 200°F.
The cabinet is rated for 120 Volts, 60 Hz, single-phase power at 1,440 Watts and 12 Amps, with a NEMA 5-15P plug.
Yes. It includes 3-inch casters.
It has 6.8-inch touch-screen controls that display and control cabinet temperature and relative humidity.
It is an undercounter cabinet.
