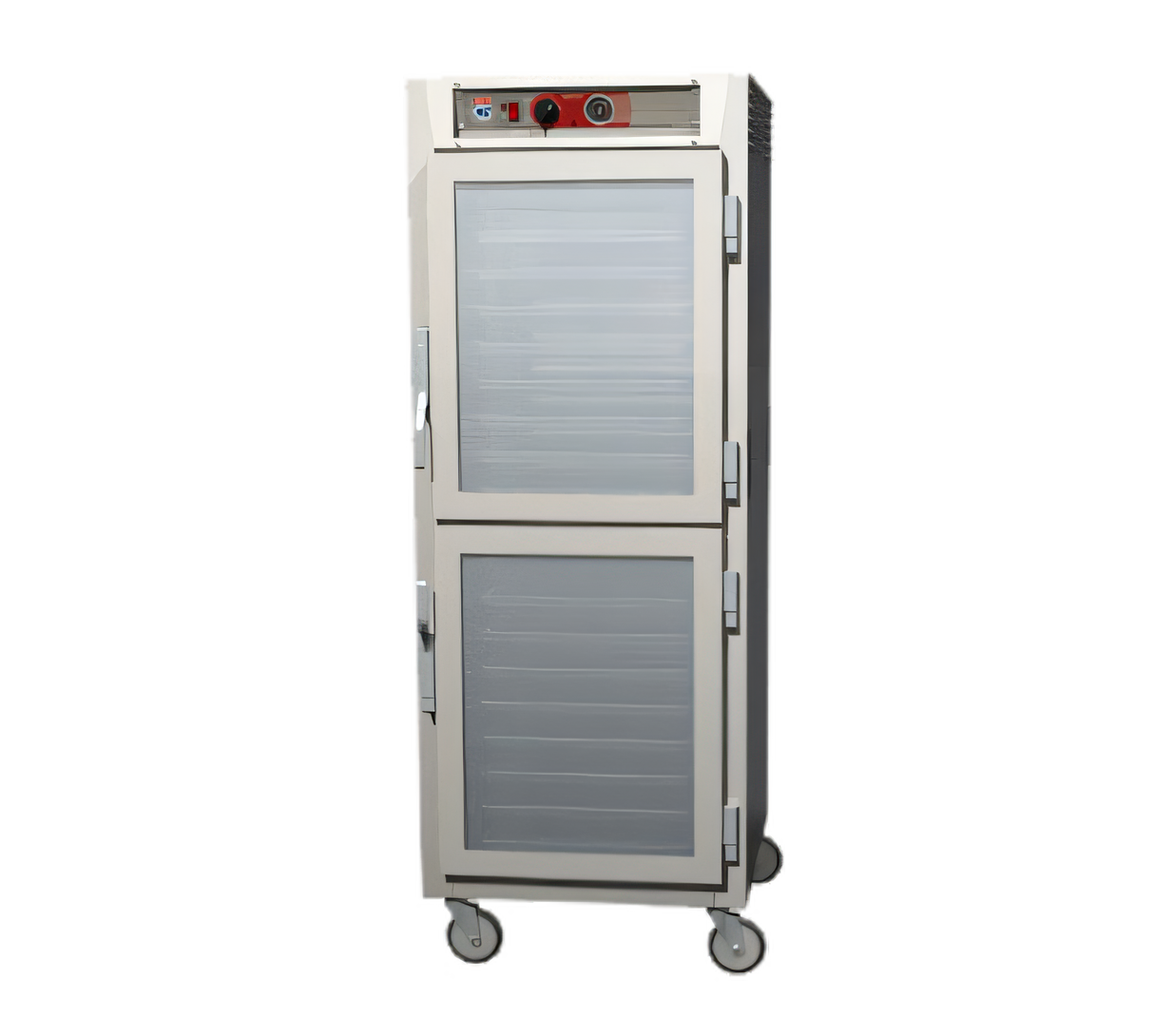

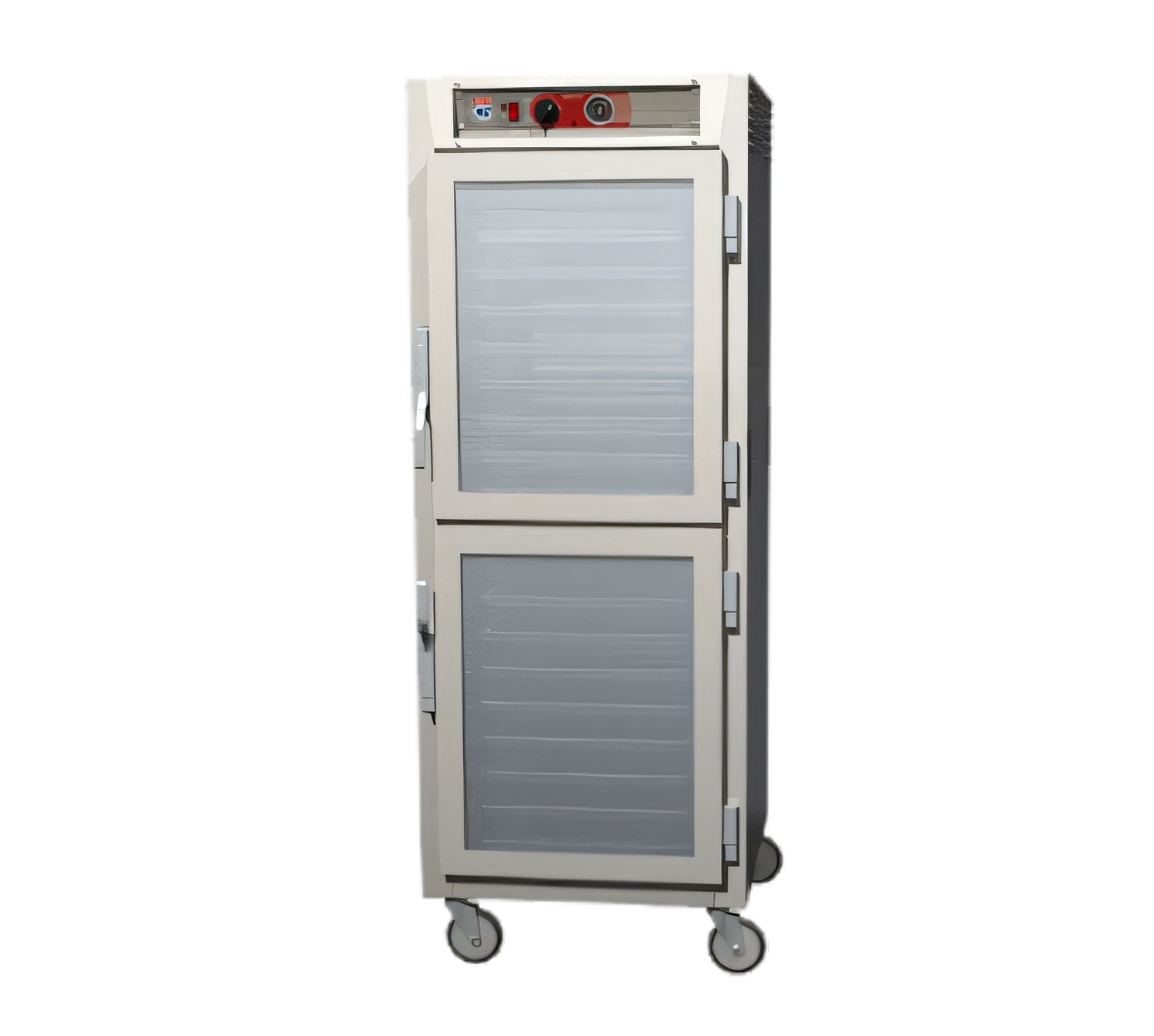

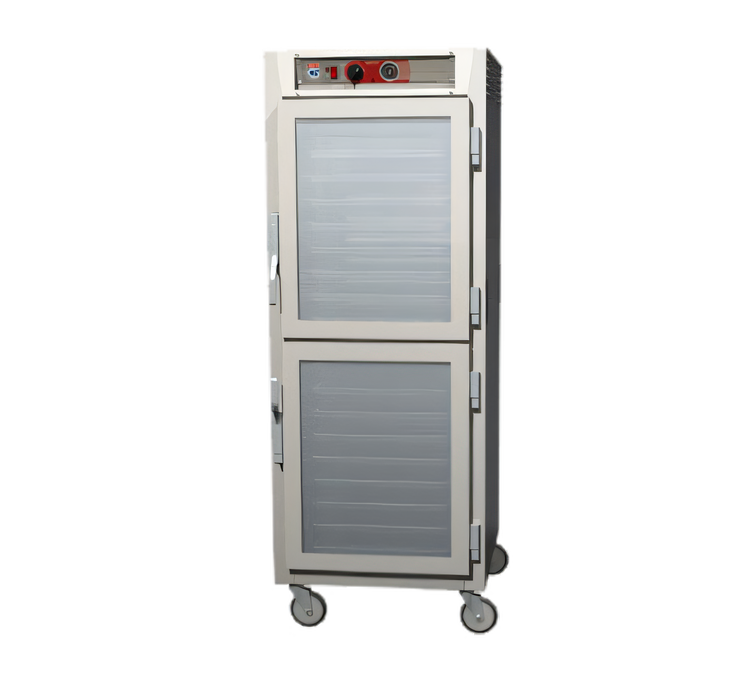

Metro C5 6 Series Mobile Full-Height Pass-Thru Heated Holding Cabinet with Dutch Double-Pane Tempered Glass Doors, 34 Pan Capacity, 120V

SKU: C569-SDC-LPDC
GTIN: 0-41105-46035-1
$8,246.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment

Metro C5 6 Series Mobile Full-Height Pass-Thru Heated Holding Cabinet with Dutch Double-Pane Tempered Glass Doors, 34 Pan Capacity, 120V

Insulated, 304 Stainless Steel, Top-Mount Controls, 70° to 200°F

Keep hot food ready to serve with a mobile, insulated pass-thru cabinet that delivers even heat, clear front-and-rear access, and dependable holding performance.

  • Full-height pass-thru design with Dutch double-pane tempered glass doors for access from both sides.
  • Holds up to (34) 18 x 26 inch full-size pans on fixed lip-load wire slides.
  • Ducted heating system and adjustable thermostat help maintain consistent holding temperatures.
  • Mobile 304 stainless steel construction rides on 5 inch casters, including 2 with brakes.
  • Top-mounted controls and analog thermometer make temperature monitoring simple at a glance.
  • Water pan and floor duct support optional humidity to help maintain food quality.

Overall Dimensions:

29.13"W x 34.63"D x 74.75"H

Product Weight:

400.0 lb

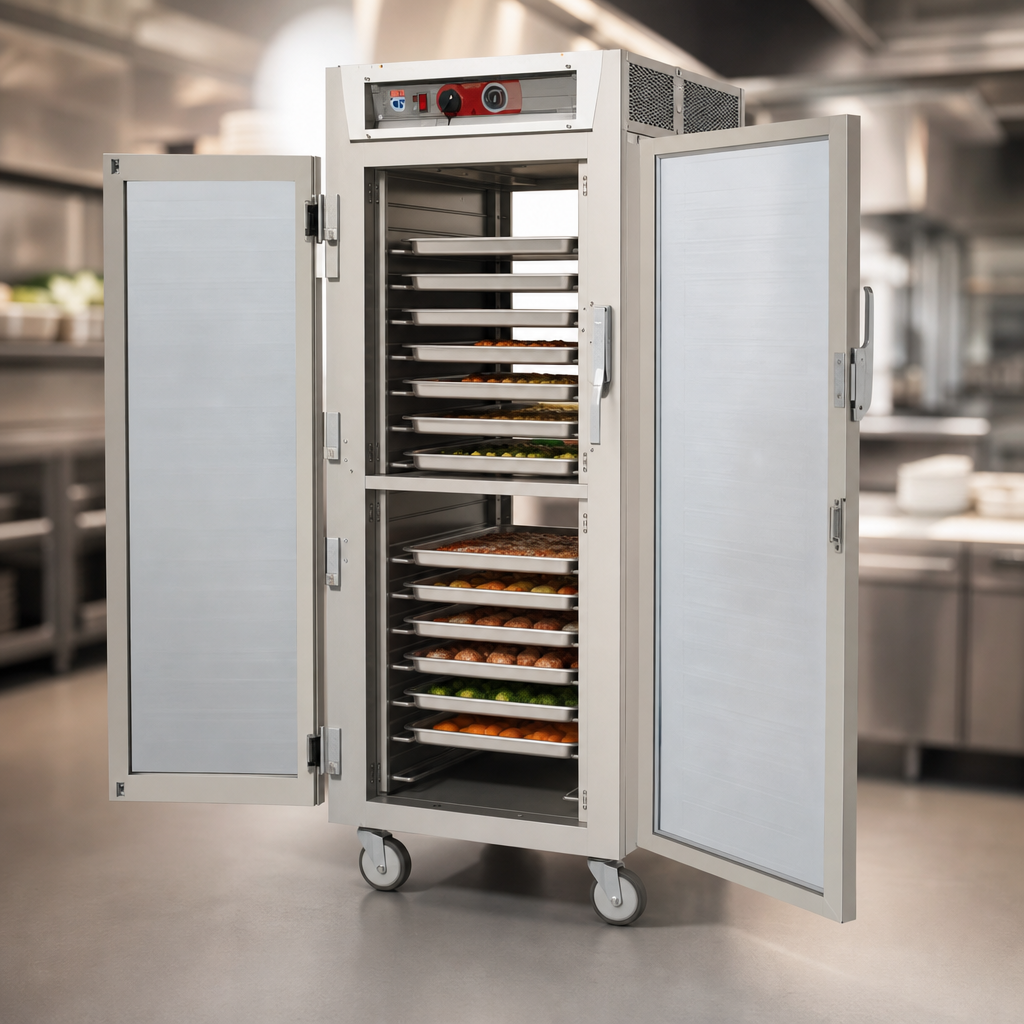

Pass-Thru Cabinet Design

Front and rear doors provide access from both sides, making loading, unloading, and service more efficient.

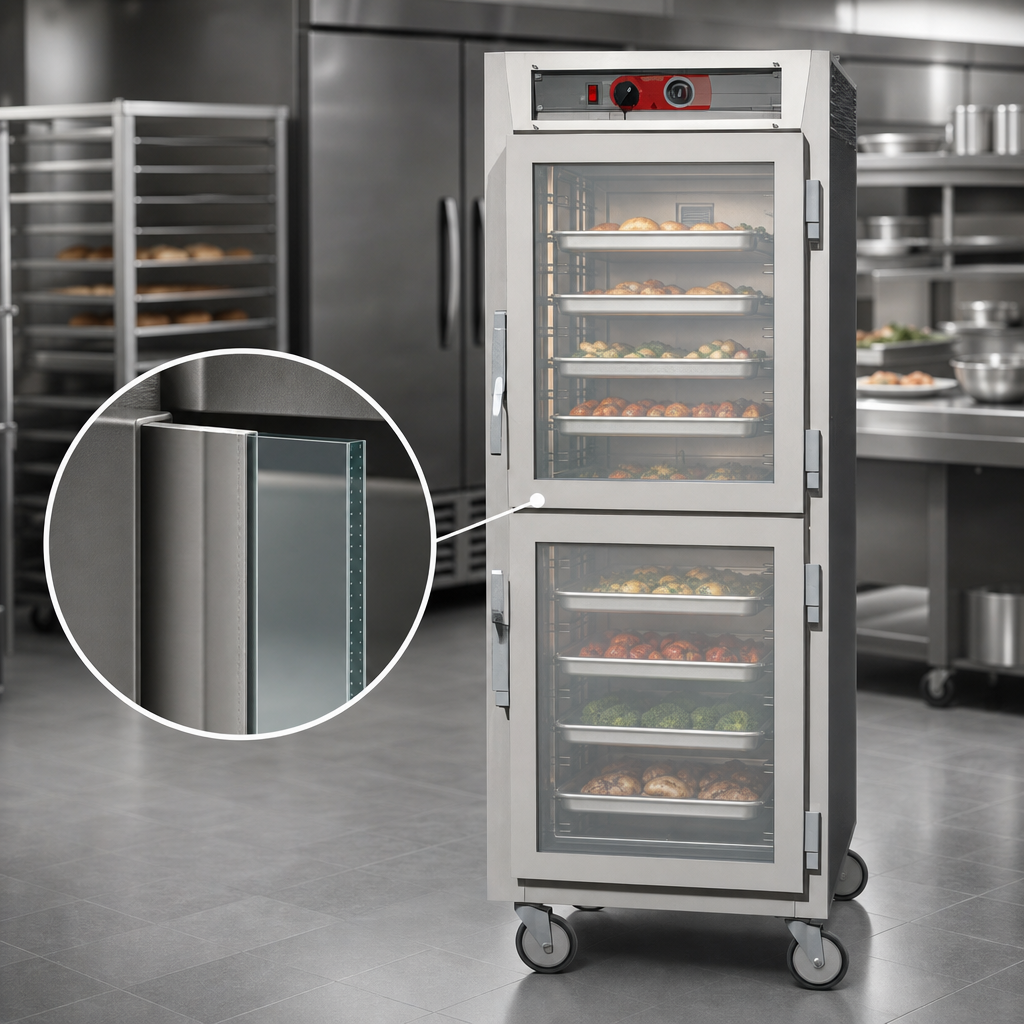

Dutch Double-Pane Tempered Glass Doors

Dutch-style glass doors let staff view contents while helping retain heat inside the cabinet.

Ducted Heating System

Engineered to circulate heat evenly throughout the cabinet for more consistent holding performance.

Top-Mounted Controls with Analog Thermometer

Controls and temperature display are positioned at the top for easy access and quick visual checks.

Fixed Lip-Load Wire Slides

Supports (34) 18 x 26 inch pans on 1-1/2 inch wire slides with fixed 3 inch centers.

Mobile Stainless Steel Construction

304 stainless steel build and 5 inch casters, with 2 brakes, provide durability and easy mobility.

Humidity Support

The floor duct and water pan can be used with clean warm water to add humidity during holding.

Field-Reversible Doors

Door hinging can be reversed in the field for installation flexibility; pass-thru clear-door cabinets require opposite-side hinging front and rear.

Type Heated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Controls Analog Thermostat
Temperature Range 70° to 200°F
Pan Capacity (34) 18 x 26 Inch Pans
Pan Size 18 x 26 Inches
Material 304 Stainless Steel
Voltage 120 Volts
Amps 16 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Country of Origin USA
Shipping Width 30 Inches
Shipping Depth 35 Inches
Shipping Height 75 Inches
Shipping Weight 400 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The thermostat is adjustable from 70° to 200°F.
No. It is for hot food holding only, and food must already be at the proper temperature before being placed in the cabinet.
Yes. The floor duct includes a water pan that can be filled with clean warm water to add humidity while holding food.
Yes. It is supplied with 5 inch casters, including 2 casters with brakes.
Yes. The doors are field reversible. On pass-thru cabinets with clear doors, the front and rear doors must be hinged on opposite sides.
Unplug the cabinet, allow it to cool, and wipe it with a damp cloth and towel dry. Do not wash it with a water jet or high pressure water.
