Metro C5 3 Series Full Height Heated Holding & Proofing Cabinet with Clear Polycarbonate Door and Universal Wire Slides

SKU: C539-MFC-U
GTIN: 0-41105-45591-3
$3,978.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinet Holding Cabinets Holding Cabinets Metro New Arrivals Proofing Cabinets Proofing Cabinets Restaurant Equipment

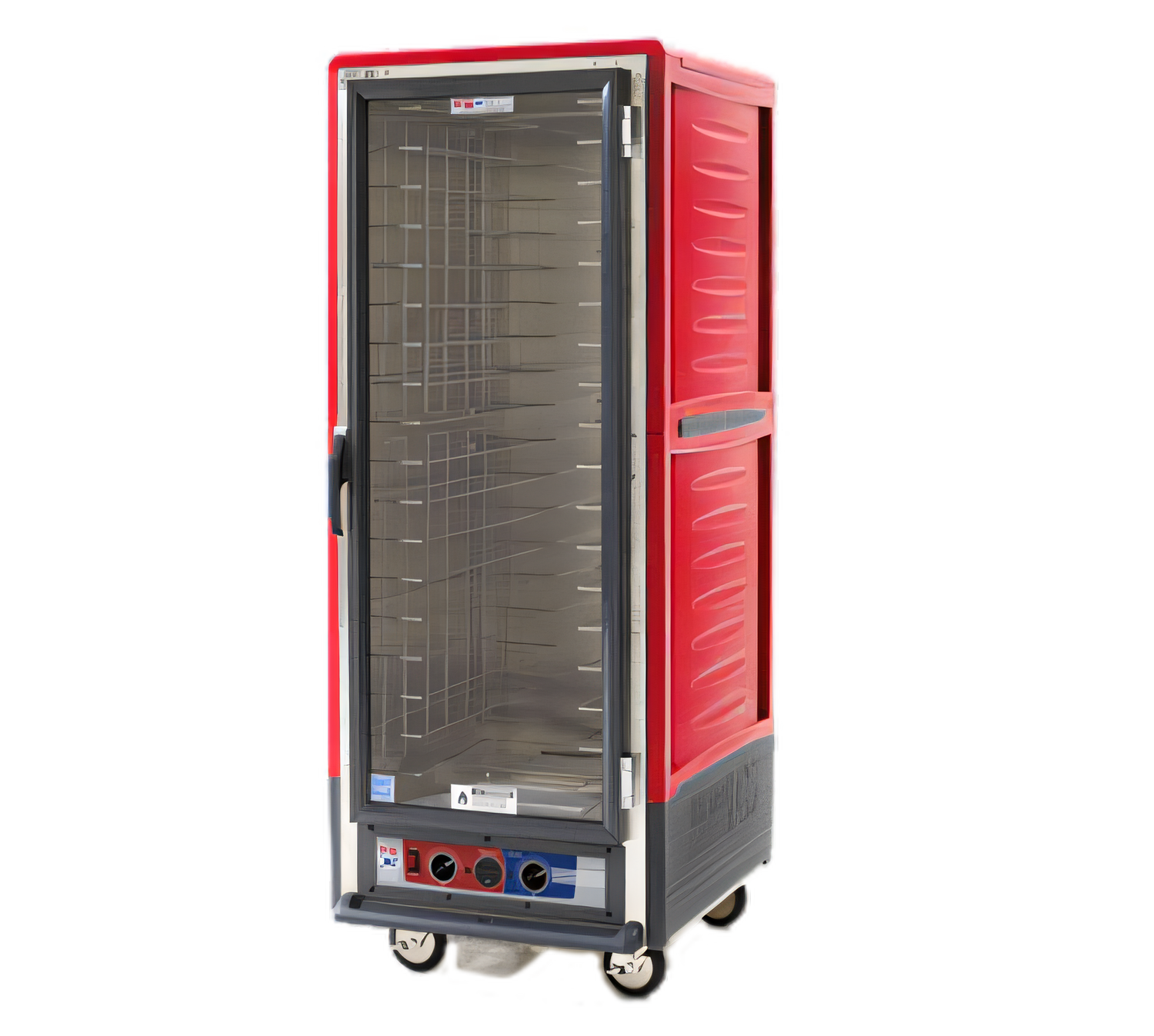

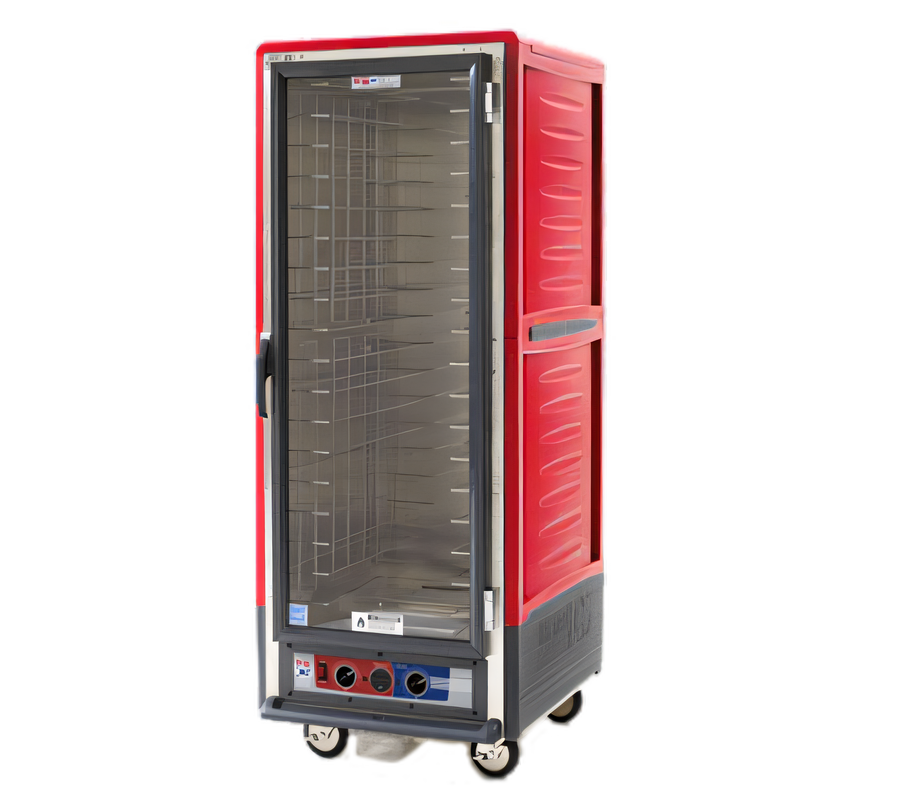

Metro C5 3 Series Full Height Heated Holding & Proofing Cabinet with Clear Polycarbonate Door and Universal Wire Slides

Red Insulation Armour, Mobile 120V Cabinet

Keep foods hot and properly proofed in a cool-to-touch, energy-efficient cabinet built for visibility, mobility, and dependable temperature control.

  • Moisture module supports hot holding and proofing with control up to 200°F.
  • Red Insulation Armour helps retain heat while staying cool to the touch.
  • Clear polycarbonate door lets staff check contents without opening the cabinet.
  • Universal wire slides adjust on 1 1/2-inch centers for flexible loading.
  • Mobile base includes 5-inch casters with two brakes for easy positioning.
  • 120V, single-phase design uses a NEMA 5-20P plug and draws 16.7 amps.
  • Holds up to 18 full-size sheet pans or 34 hotel pans.

Overall Dimensions:

27.63"W x 31.5"D x 71.0"H

Product Weight:

262.0 lb

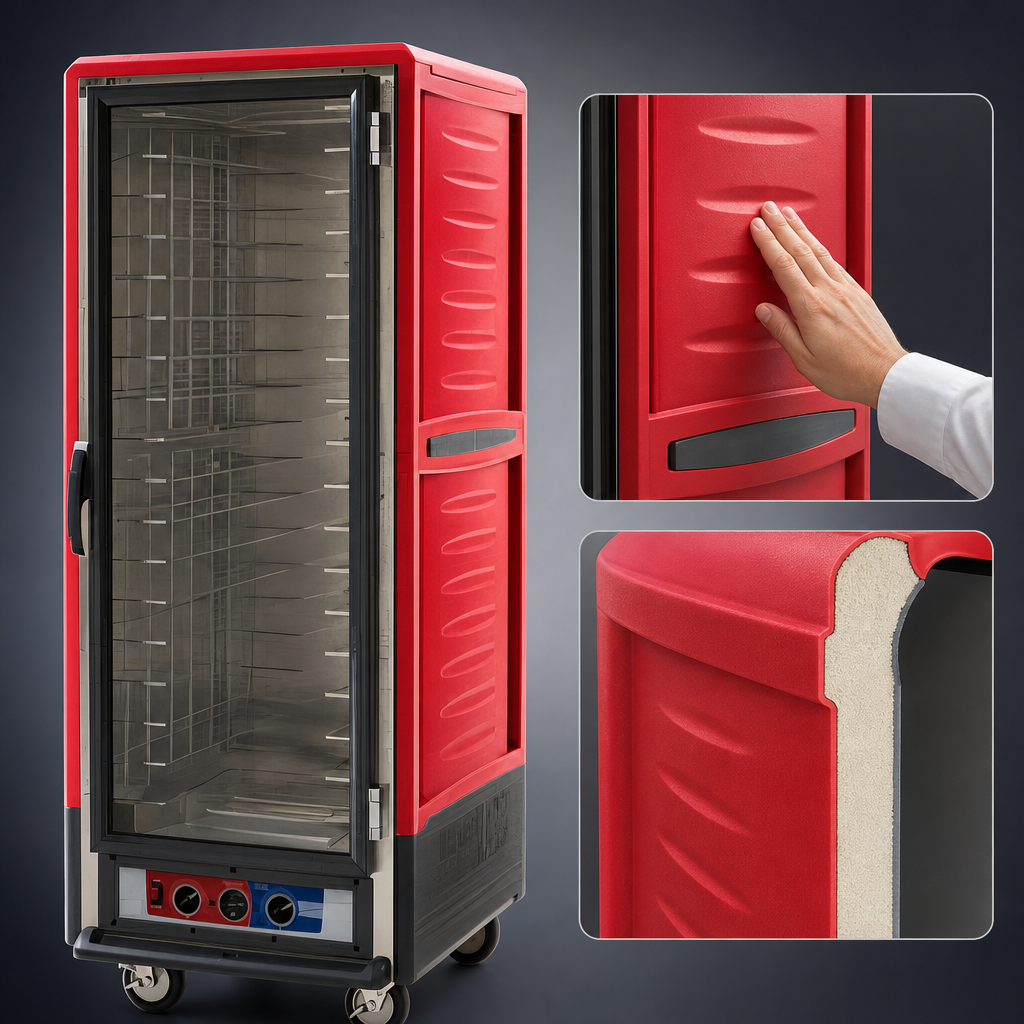

Insulation Armour Exterior

Patented insulated HDPE construction retains heat, improves energy efficiency, and provides a cool-to-touch surface.

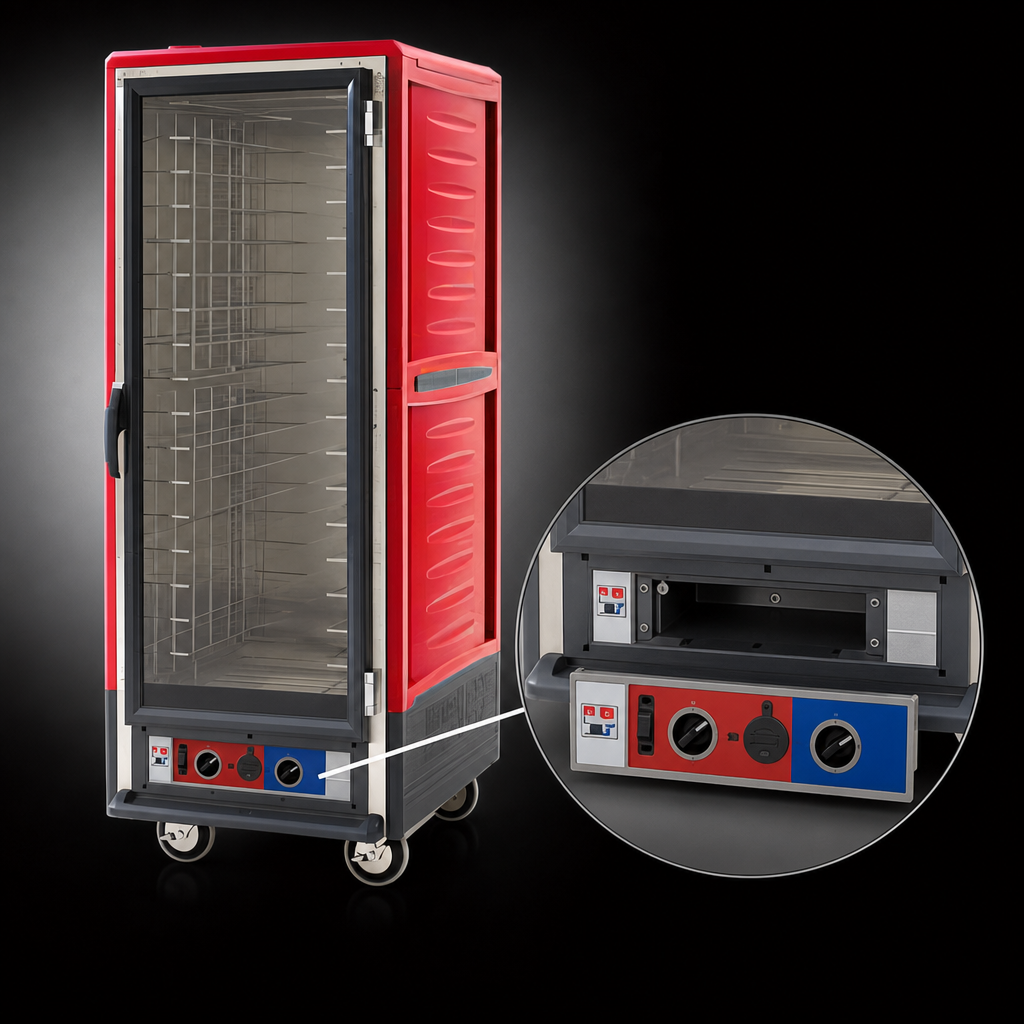

Moisture Control Module

Removable control module provides hot holding and proofing with moisture control and thermostatic temperature control.

Full-Height Clear Door

Clear polycarbonate door improves content visibility while helping reduce heat loss from frequent openings.

Universal Wire Slides

Adjustable slide system on 1 1/2-inch centers supports flexible pan spacing for different menu needs.

Mobile Caster Base

5-inch casters make the cabinet easy to move, and two casters include brakes for stability.

Bottom-Mounted Heat Source

Bottom-mounted heater supports even cabinet heating and keeps the control module accessible.

Aluminum Cabinet Construction

Aluminum exterior and interior are durable and easy to clean for daily commercial use.

Tool-Free Control Module Removal

Control module removes without tools for faster cleaning, service, and future upgrades.

Type Heated Holding & Proofing Cabinet
Style Full Height
Installation Type Floor Model
Material Aluminum
Interior Finish Aluminum
Color Red
Controls Thermostatic
Temperature Range 80°F to 200°F
Pan Capacity (18) 18" x 26" Sheet Pans or (34) 12" x 20" x 2 1/2" Hotel Pans
Pan Size 18" x 26" or 12" x 20" x 2 1/2"
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Country of Origin USA
Shipping Width 28 Inches
Shipping Depth 32 Inches
Shipping Height 71 Inches
Shipping Weight 262 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It provides hot holding with moisture control and proofing capabilities, with an operating range up to 200°F.
Yes. The control module is removable without tools for easier cleaning, servicing, and future upgrades.
It holds up to (18) 18" x 26" sheet pans or (34) 12" x 20" x 2 1/2" hotel pans on universal wire slides.
This model uses a clear polycarbonate door, which improves visibility and reduces heat loss from frequent opening.
The cabinet operates on 120V, 60 Hz, single-phase power, draws 16.7 amps, and uses a NEMA 5-20P plug.
Yes. It includes 5-inch casters, with two casters equipped with brakes.
