Metro

Metro C5 3 Series Full Height Combination Heated Holding and Proofing Cabinet with Dutch Solid Doors and Universal Wire Slides

SKU: C539-CDS-U
GTIN: 0-41105-45189-2
$3,781.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinet Holding Cabinets Holding Cabinets Metro New Arrivals Proofing Cabinets Proofing Cabinets Restaurant Equipment

Metro C5 3 Series Full Height Combination Heated Holding and Proofing Cabinet with Dutch Solid Doors and Universal Wire Slides

Red Insulation Armour, Mobile Floor Model, 120V, 2000W

A cool-to-touch, high-capacity cabinet that combines proofing and holding in a mobile full-height design built for efficient, safe kitchen operation.

  • Full-height combination cabinet for hot holding and proofing applications.
  • Red Insulation Armour™ exterior helps retain heat and stays cool to the touch.
  • Dutch solid insulated aluminum doors simplify loading while reducing heat loss.
  • Removable bottom-mount control module makes cleaning and servicing easier.
  • Universal wire slides adjust on 1.5-inch increments with 3-inch centers.
  • Holds up to 18 full-size sheet pans or 34 hotel pans.
  • 5-inch casters with two brakes provide easy mobility and secure positioning.

Overall Dimensions:

27.63"W x 31.5"D x 71.0"H

Product Weight:

283.0 lb

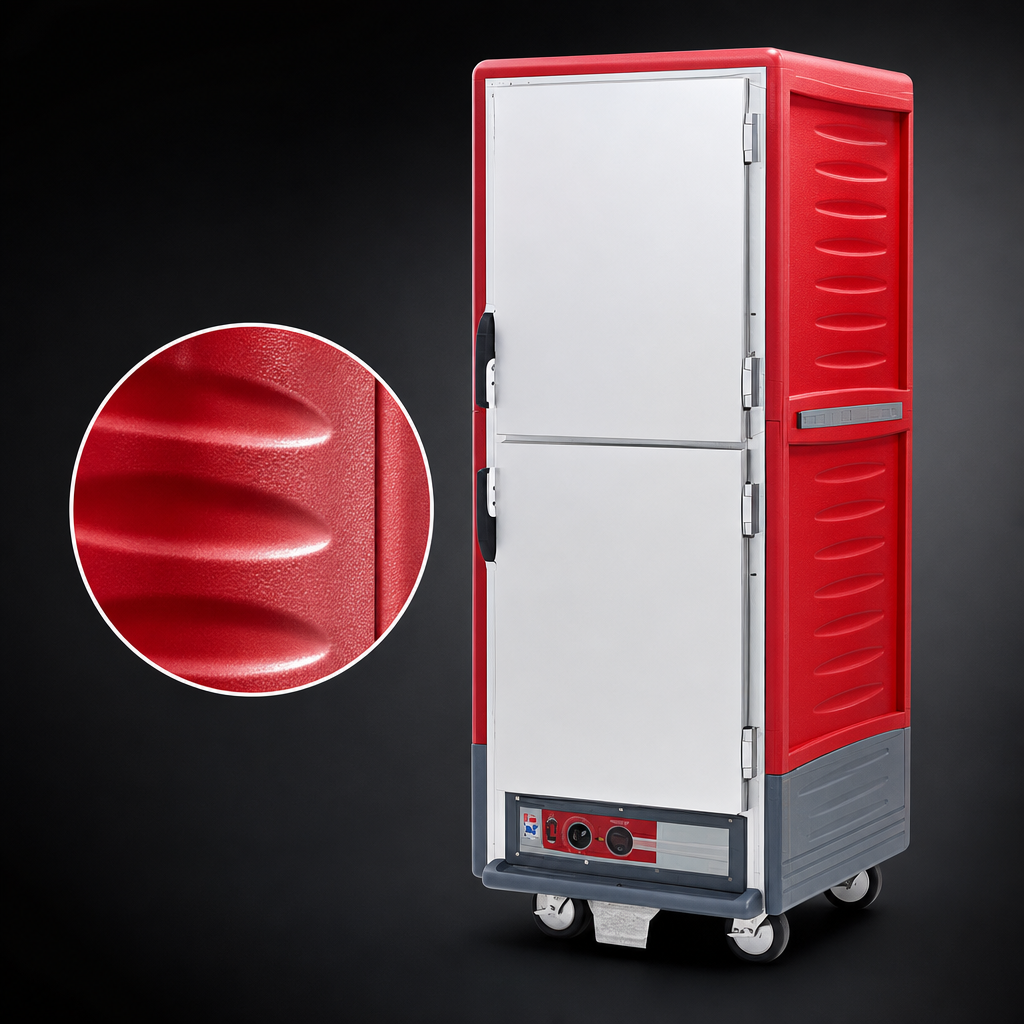

Insulation Armour™ Exterior

Patented insulated polymer exterior helps retain heat, improve energy efficiency, and stay cool to the touch.

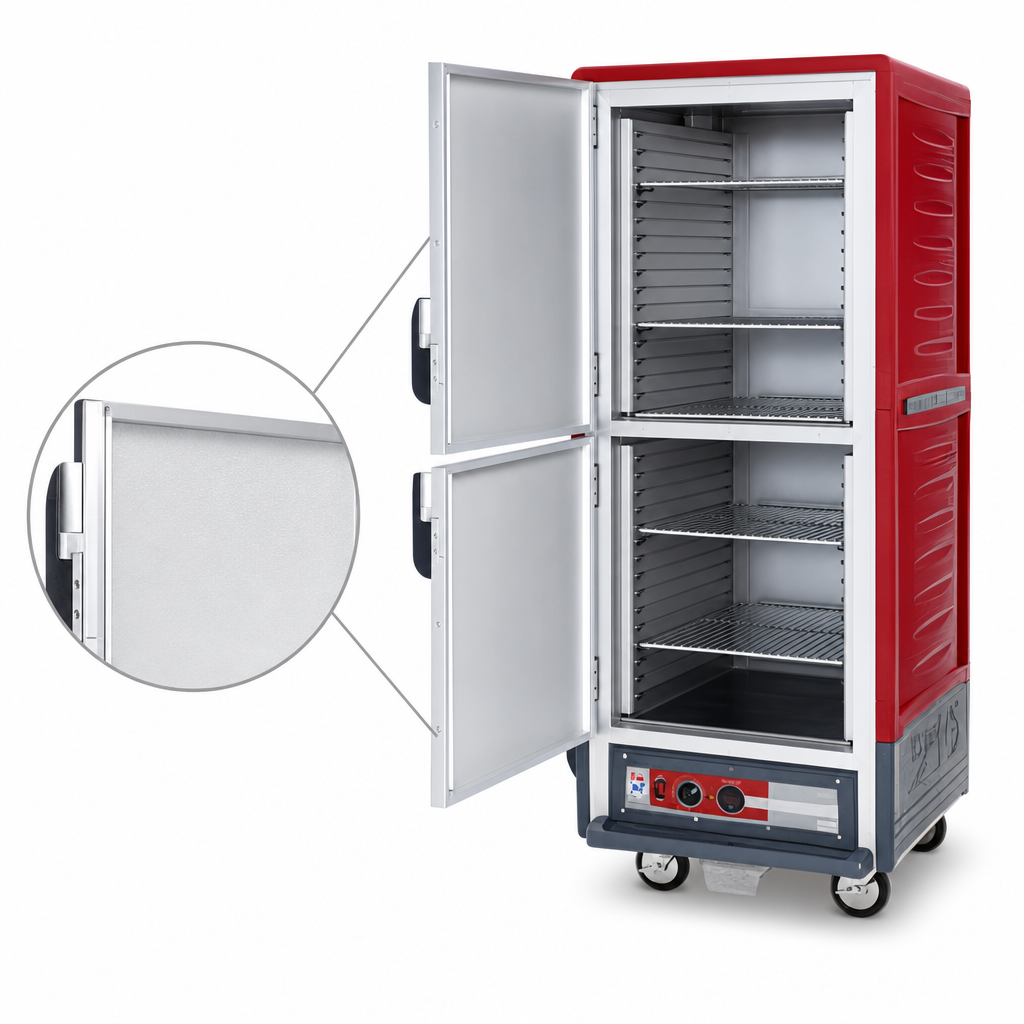

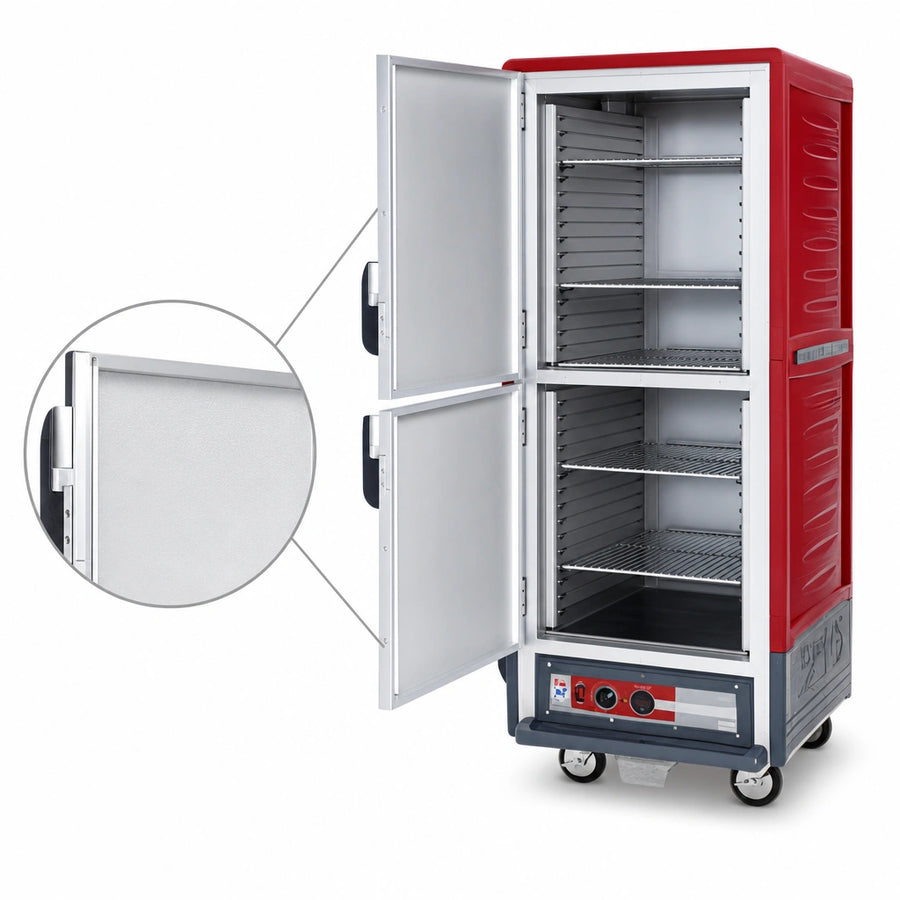

Dutch Solid Insulated Aluminum Doors

Full-height dutch doors provide convenient access while helping limit heat loss.

Removable Control Module

Tool-free removal simplifies cleaning, maintenance, and future servicing.

Combination Proof-and-Hold Operation

Supports hot holding and proofing with a thermostat up to 200°F.

Universal Wire Slides

Slides are adjustable on 1.5-inch increments with 3-inch centers for flexible pan placement.

High-Capacity Interior

Designed to hold up to 18 full-size 18 x 26-inch pans or 34 12 x 20 x 2.5-inch pans.

Mobile Caster Base

Five-inch casters with two brakes make the cabinet easy to move and secure in place.

Bottom-Mounted Heater

Bottom heat distribution supports even performance for holding applications.

Type Combination Heated Holding and Proofing Cabinet
Style Full Height
Installation Type Floor Model
Controls Thermostatic
Temperature Range 80°F to 200°F
Compartments 1
Pan Capacity 18 18 x 26 Inch Pans / 34 12 x 20 x 2.5 Inch Pans
Pan Size 18 x 26 Inches / 12 x 20 x 2.5 Inches
Material Aluminum
Interior Finish Aluminum
Color Red
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Cord Length 7.5 Feet
Country of Origin USA
Shipping Width 28 Inches
Shipping Depth 32 Inches
Shipping Height 71 Inches
Shipping Weight 283 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It provides hot holding and proofing with moisture control for food service applications.
The cabinet operates from 80°F to 200°F.
It holds up to 18 full-size 18 x 26-inch pans or 34 12 x 20 x 2.5-inch pans.
It uses dutch solid insulated aluminum doors and universal wire slides on 3-inch centers with 1.5-inch adjustments.
Yes. The control module removes without tools for easier cleaning and servicing.
It requires 120V, 60Hz, single-phase power at 2000W and 16.7A with a NEMA 5-20P plug and a 7.5-foot cord.
