Metro

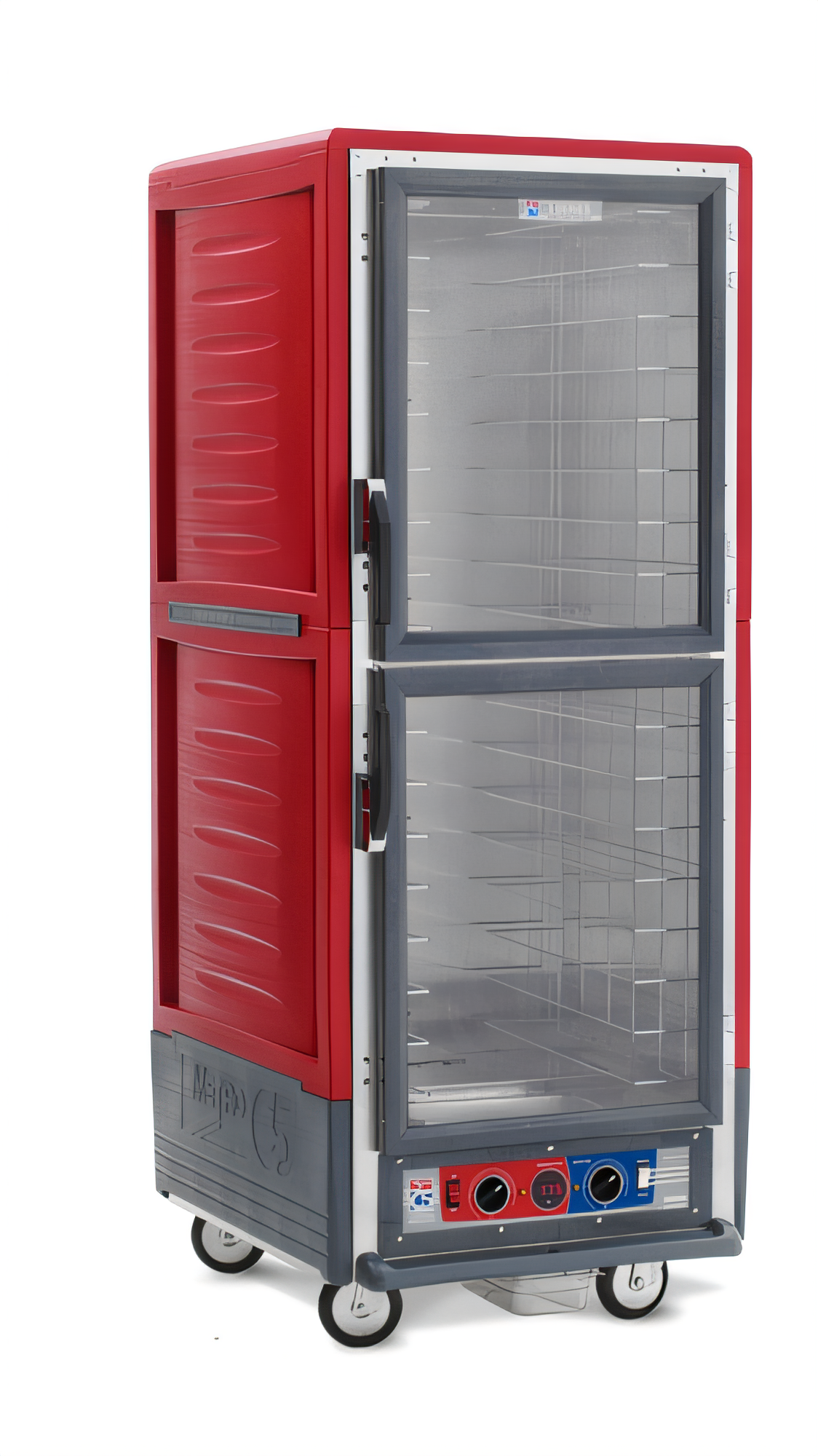

Metro C5 Insulation Armour C539-CDC-4 Mobile Combination Heated Holding & Proofing Cabinet, Full-Height, Dutch Clear Doors, 120V

SKU: C539-CDC-4 GTIN: 0-41105-45161-8
$3,921.00
/each Configurable
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Equipment Equipment Food Holding & Warming Equipment Food Holding & Warming Equipment Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinet Holding Cabinets Holding Cabinets Metro New Arrivals Proofing & Retarding Cabinets Proofing Cabinets Proofing Cabinets Restaurant Equipment

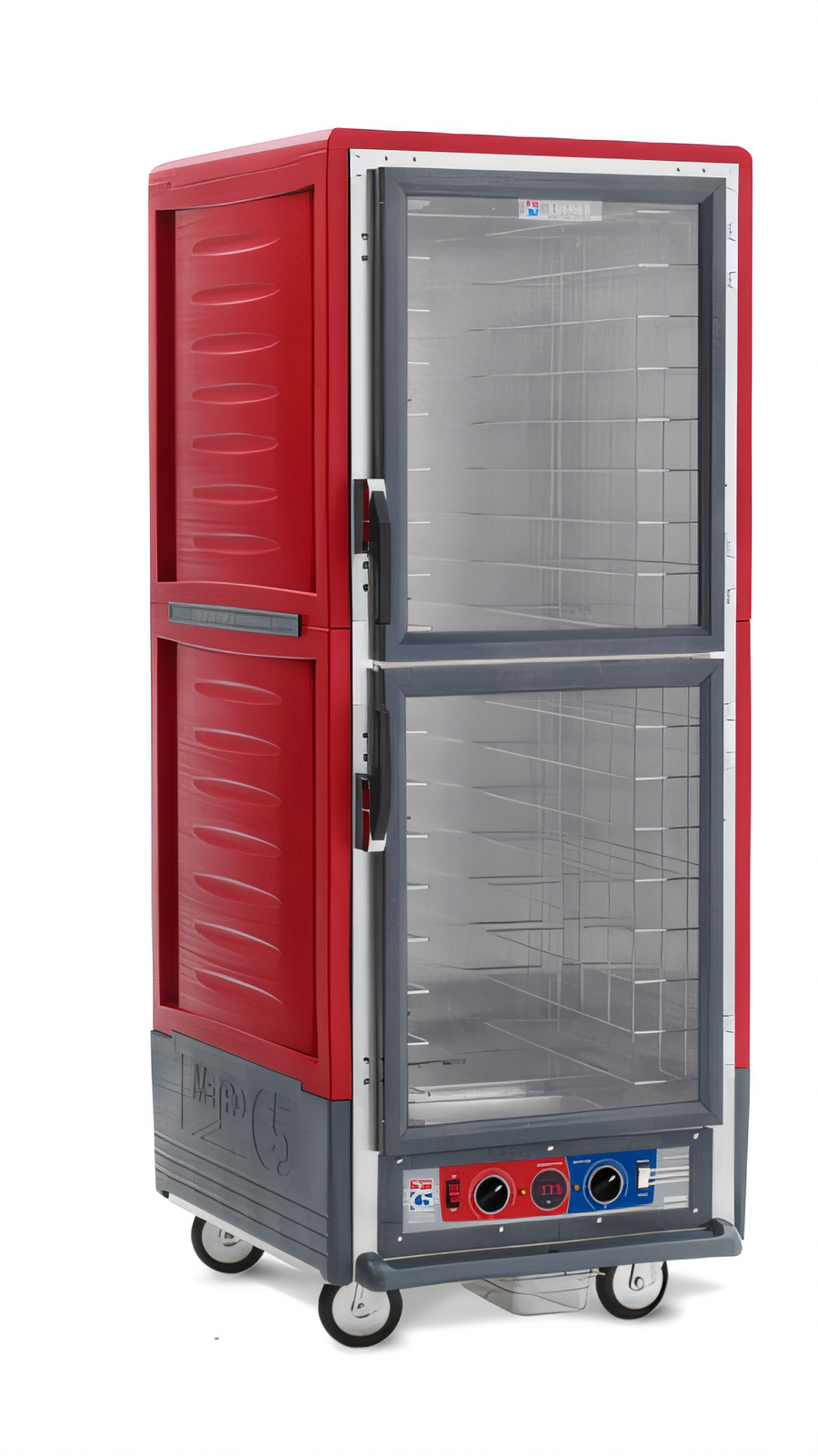

Metro C5 3 Series Single-Section Mobile Full-Height Heated Holding and Proofing Cabinet with Dutch Clear Doors and Fixed Wire Slides

Combination Module, Red Insulation Armour, 120V

This mobile full-height cabinet combines hot holding and proofing in a cool-to-touch design that helps protect staff, preserve visibility, and simplify cleanup.

  • Combination module supports both hot holding and proofing in one cabinet.
  • Red Insulation Armour exterior stays cool to the touch and improves energy efficiency.
  • Dutch clear doors let you monitor contents without opening the cabinet.
  • Fixed wire slides on 3-inch centers maximize pan capacity.
  • Removable bottom-mount control module simplifies cleaning and future upgrades.
  • 5-inch casters with two brakes make mobility and positioning easy.

Overall Dimensions:

27.63"W x 31.5"D x 71.0"H

Product Weight:

229.04 lb

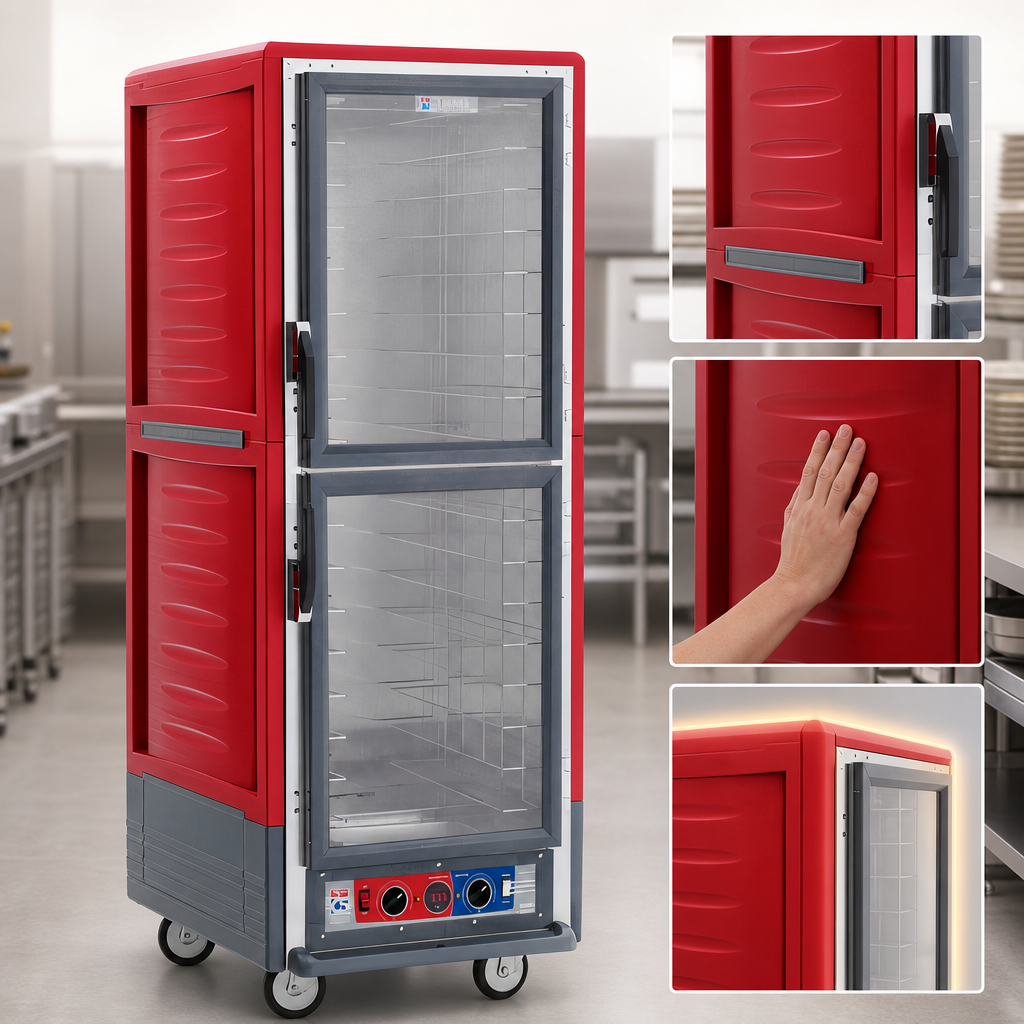

Red Insulation Armour Exterior

Patented HDPE insulation helps the cabinet retain heat, improves energy efficiency, and provides a cool-to-touch exterior for safer handling.

Red Insulation Armour Exterior

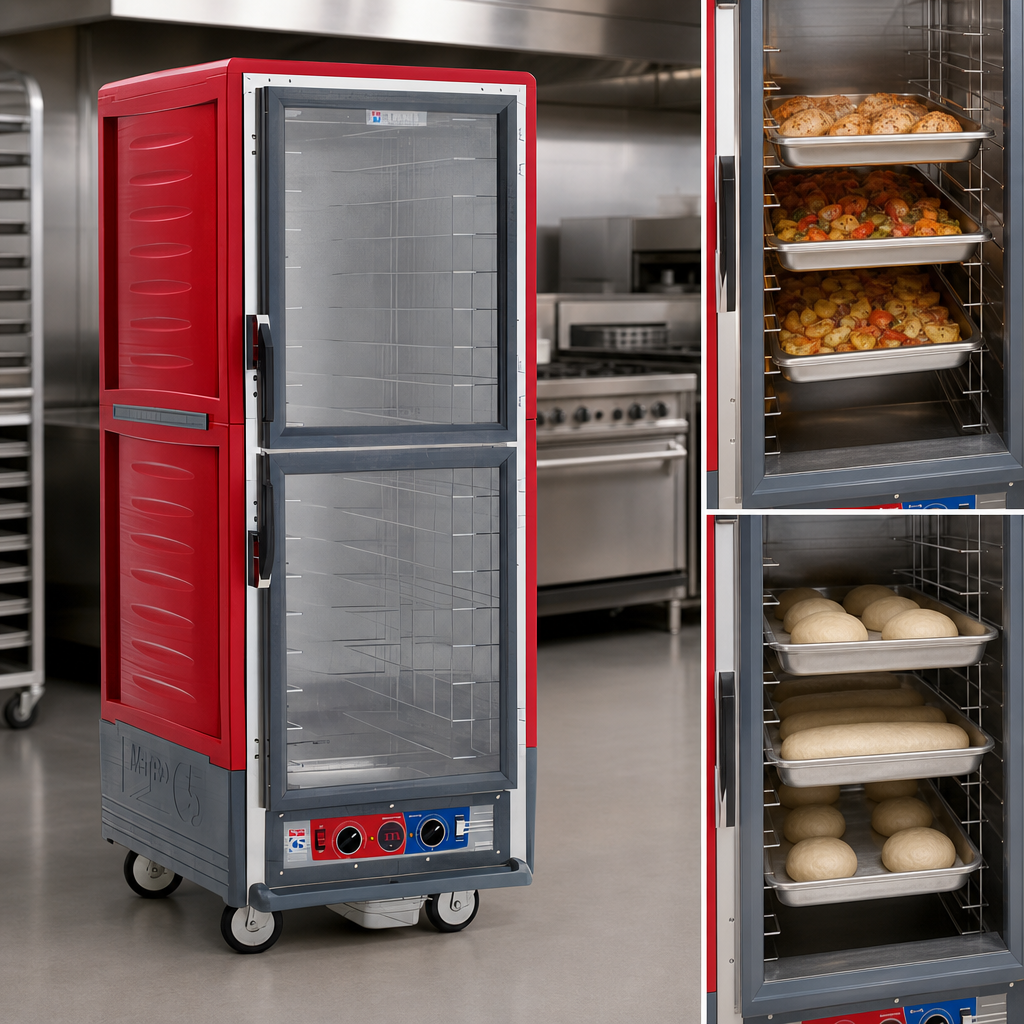

Combination Holding and Proofing Module

Thermostatically controlled forced convection supports both hot holding and proofing with moisture control up to 200°F.

Combination Holding and Proofing Module

Removable Bottom-Mount Control Module

Tool-free removable module includes a digital thermometer, recessed control dials, a master on/off switch, and power indicator lights.

Dutch Clear Polycarbonate Doors

Full-height Dutch-style clear doors provide visibility into the cabinet while helping reduce heat loss during service checks.

Fixed Wire Slide System

Welded 3-inch slide spacing is designed to maximize usable space for sheet pans and hotel pans.

Mobile Casters with Brakes

Five-inch casters with two brakes make the cabinet easy to reposition and secure in place.

Molded-In Hand Holds

Integrated hand holds in the Insulation Armour make the cabinet easier to maneuver in mobile applications.

Type Combination Heated Holding and Proofing Cabinet
Style Full Height
Installation Type Floor Model
Capacity 1 Section
Compartments 1
Controls Digital
Temperature Range 80°F to 200°F
Material Aluminum
Interior Finish Aluminum
Color Red
Pan Capacity 34 12 x 20 x 2.5 Inch Pans / 18 18 x 26 Inch Pans
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Width 28 Inches
Depth 32 Inches
Height 71 Inches
Weight 250 lb.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Instructions PDF Download

Frequently Asked Questions

Yes. It uses a combination module that supports hot holding and proofing with moisture control.
It has full-height Dutch clear polycarbonate doors.
It holds up to 34 12 x 20 x 2.5 inch pans or 18 18 x 26 inch pans on fixed wire slides.
Yes. The control module removes without tools for cleaning and future upgrades.
It operates on 120 Volts, 60 Hz, 1-Phase, 2000 Watts, and 16.7 Amps with a NEMA 5-20P plug.
Yes. It includes 5-inch casters with two brakes for easy movement and positioning.
