Key specifications

Amps
16.7 Amps
Phase
1-Phase
Dimensions
25.13"W × 30.25"D × 42.75"H
Type
Heated Cabinet
Style
Mobile
Installation Type
Floor Model
Spec sheet
Metro SKU: C515-CFC-U GTIN: 0-41105-44519-8

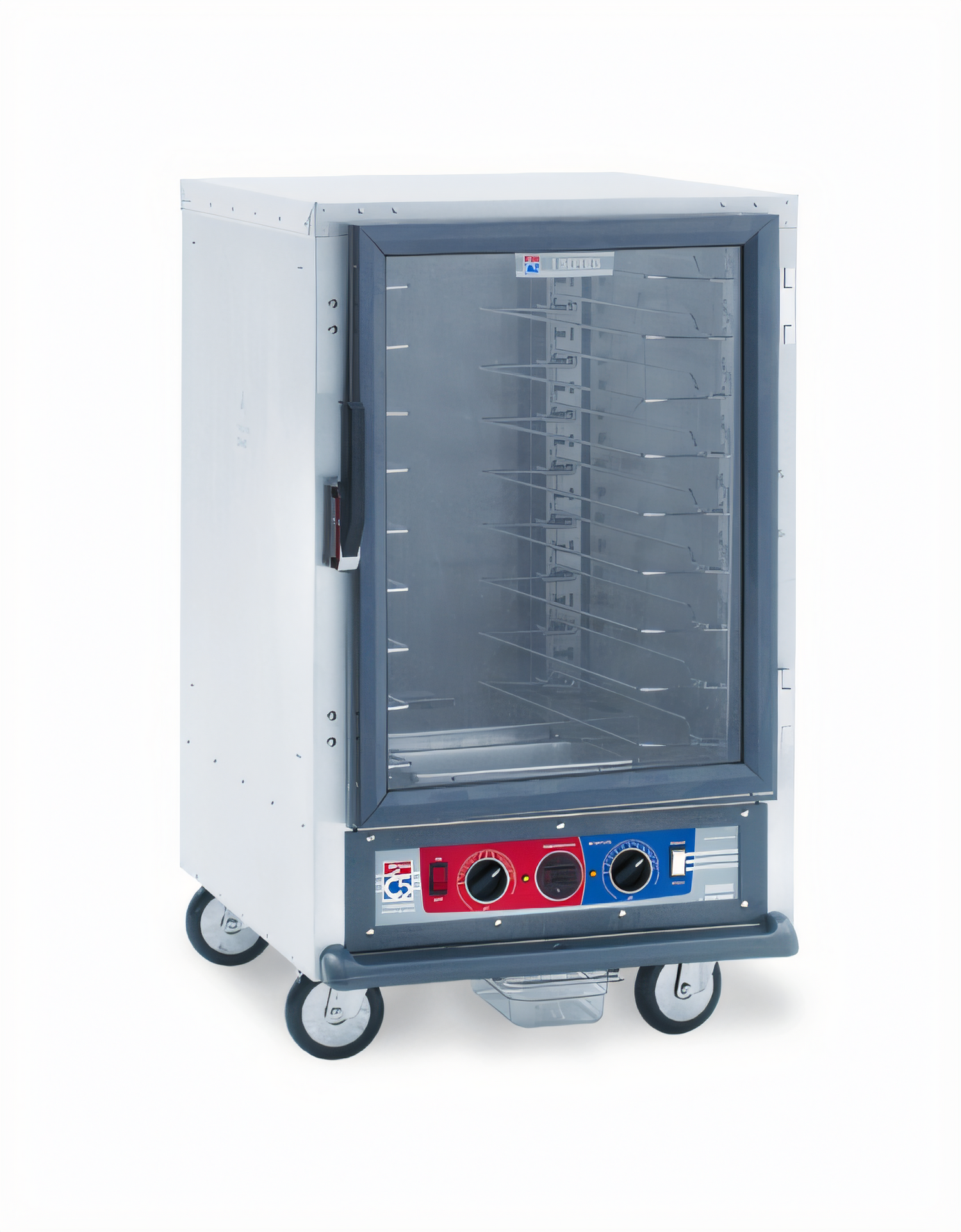

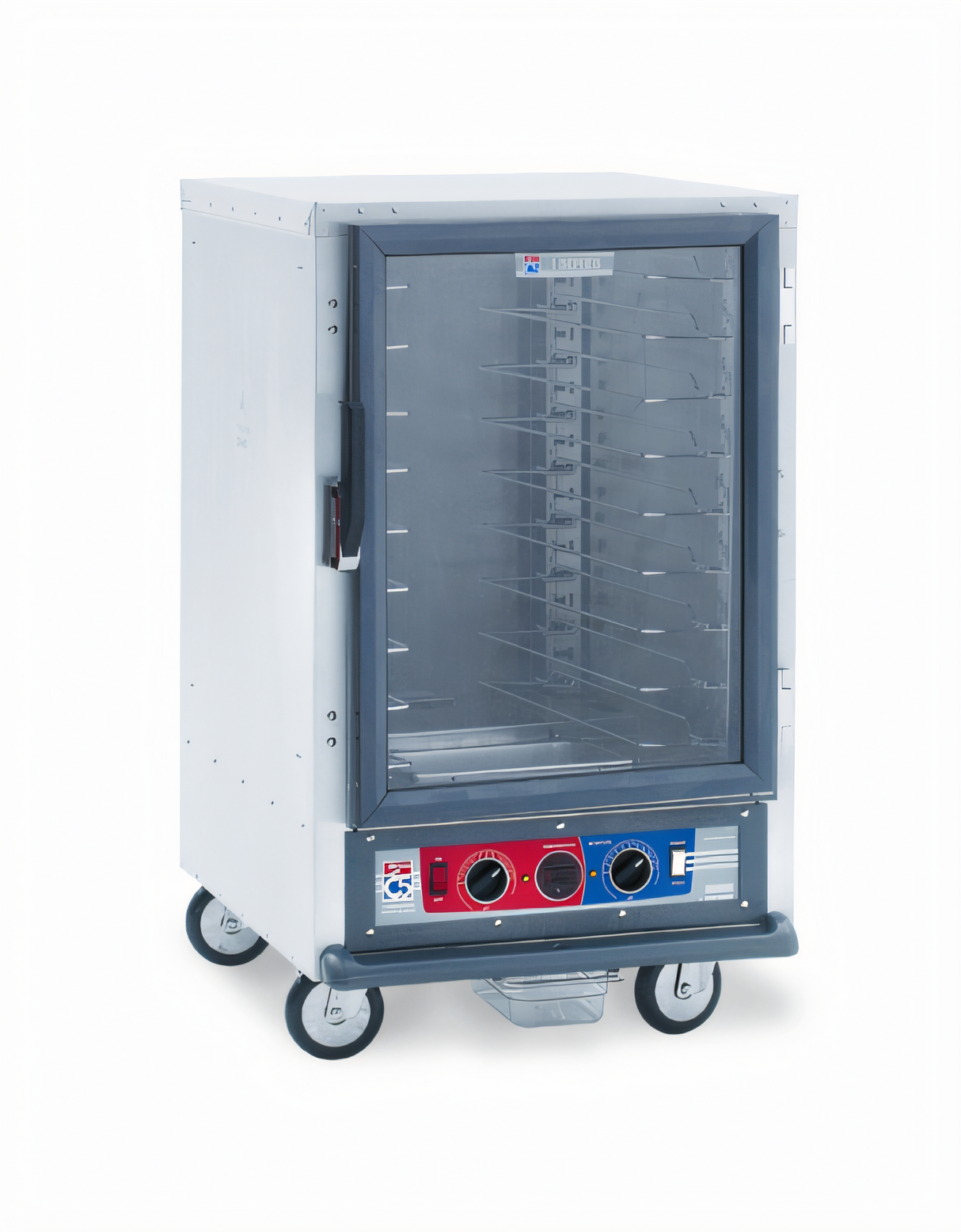

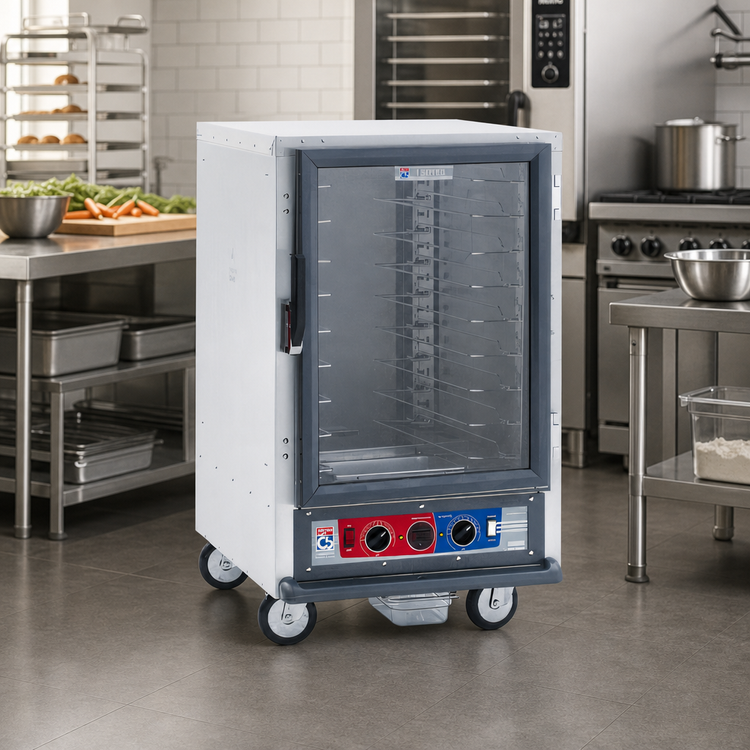

Metro C5 C515-CFC-U Mobile Half-Height Heated Holding Cabinet

$2,663.00
/each
Estimated to ship in 9–12 business days
Height
Slide type
Shelves and slides
Included: Metro warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $246/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Heated Cabinet
Style Mobile
Installation Type Floor Model
Material Aluminum
Size Half Height
Finish Brushed Aluminum
Interior Finish Aluminum
Insulation Non-Insulated
Door Type Clear
Door Material Polycarbonate
Pan Capacity (8) 18" x 26" pans; (16) 12" x 20" x 2 1/2" pans
Slide Spacing Adjustable on 1 1/2" increments
Heater Bottom Mounted
Controls Removable Bottom-Mount Control Module
Casters 5 in; 2 with brakes
Temperature Range 80°F to 190°F
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P

Description

The Metro C5 C515-CFC-U is a mobile, half-height, non-insulated heated holding and proofing cabinet with a clear polycarbonate door.

Universal wire slides adjust on 1 1/2-inch increments and accommodate (8) 18-inch x 26-inch sheet pans or (16) 12-inch x 20-inch x 2 1/2-inch pans. The cabinet includes a removable bottom-mount control module, bottom-mounted heater, and thermostat to 190°F.

  • Aluminum cabinet with brushed exterior and aluminum interior
  • 5-inch casters, including two with brakes
  • 120-volt, 2 kW electrical configuration with NEMA 5-20P plug

Overall Dimensions:

25.13"W x 30.25"D x 42.75"H

Product Weight:

135.18 lb

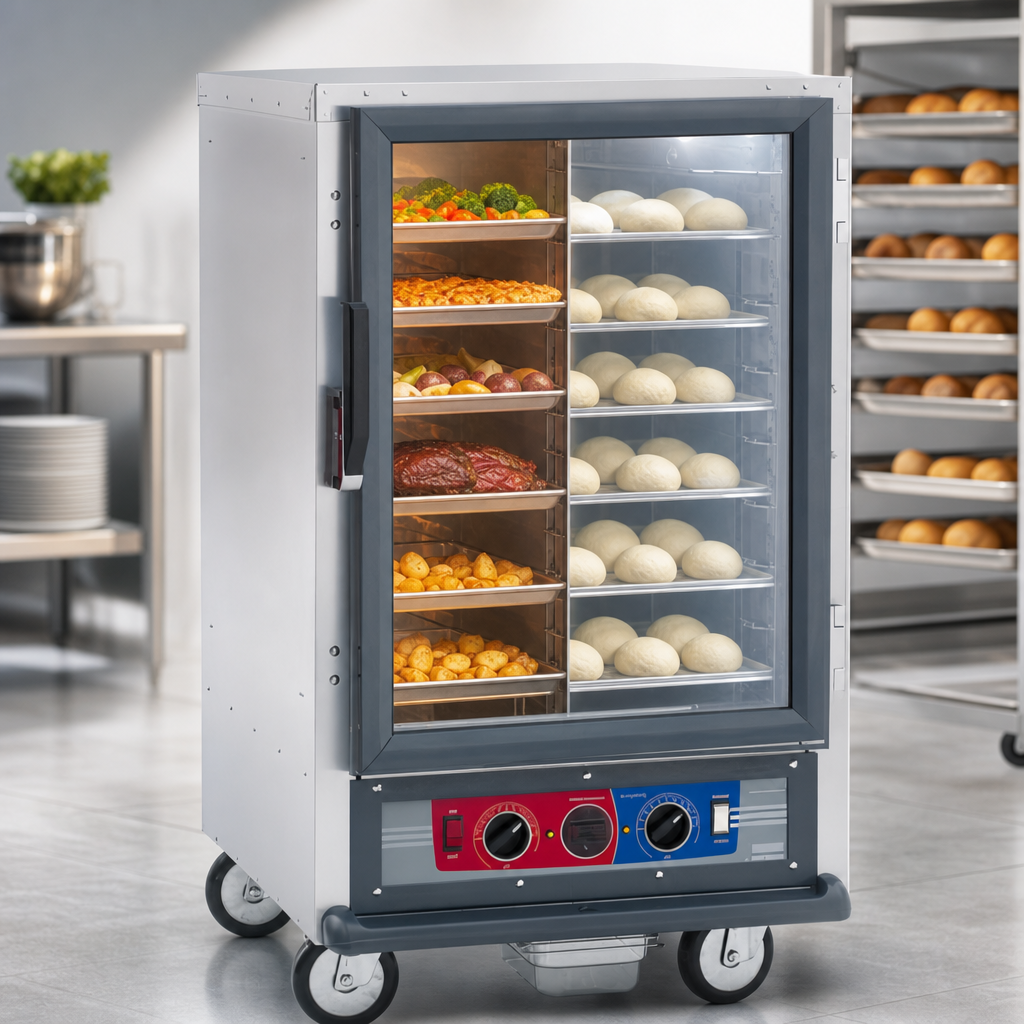

Heated Holding and Proofing

The cabinet is specified for heated holding and proofing applications.

Universal Wire Slides

Wire slides adjust on 1 1/2-inch increments for the listed pan formats.

Clear Polycarbonate Door

The clear door provides visibility of the cabinet contents.

Removable Control Module

The bottom-mount control module is removable.

Bottom-Mounted Heater

The heater is mounted at the bottom of the cabinet.

Mobile Casters

The cabinet uses 5-inch casters, including two with brakes.

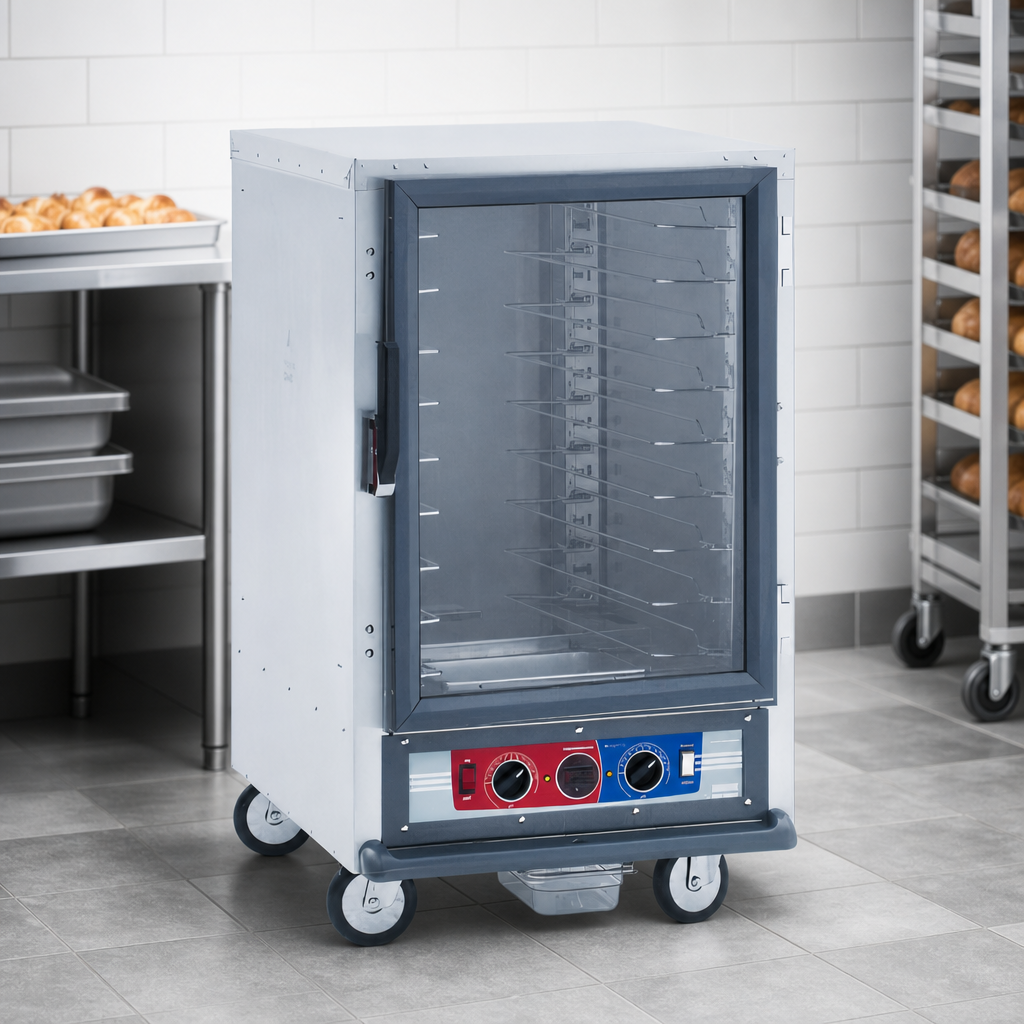

Non-Insulated Cabinet

The cabinet is specified as non-insulated.

Thermostatic Control

The thermostat is specified to 190°F.

Frequently Asked Questions

It accommodates (8) 18-inch x 26-inch sheet pans or (16) 12-inch x 20-inch x 2 1/2-inch pans.
No. This model is specified as non-insulated.
Yes. The model is identified as a heated holding and proofing cabinet.
Yes. The universal wire slides adjust on 1 1/2-inch increments.
It requires 120 Volts, 16.7 Amps, 2 kW, 60 Hz, 1-Phase power and uses a NEMA 5-20P plug.
