Manitowoc

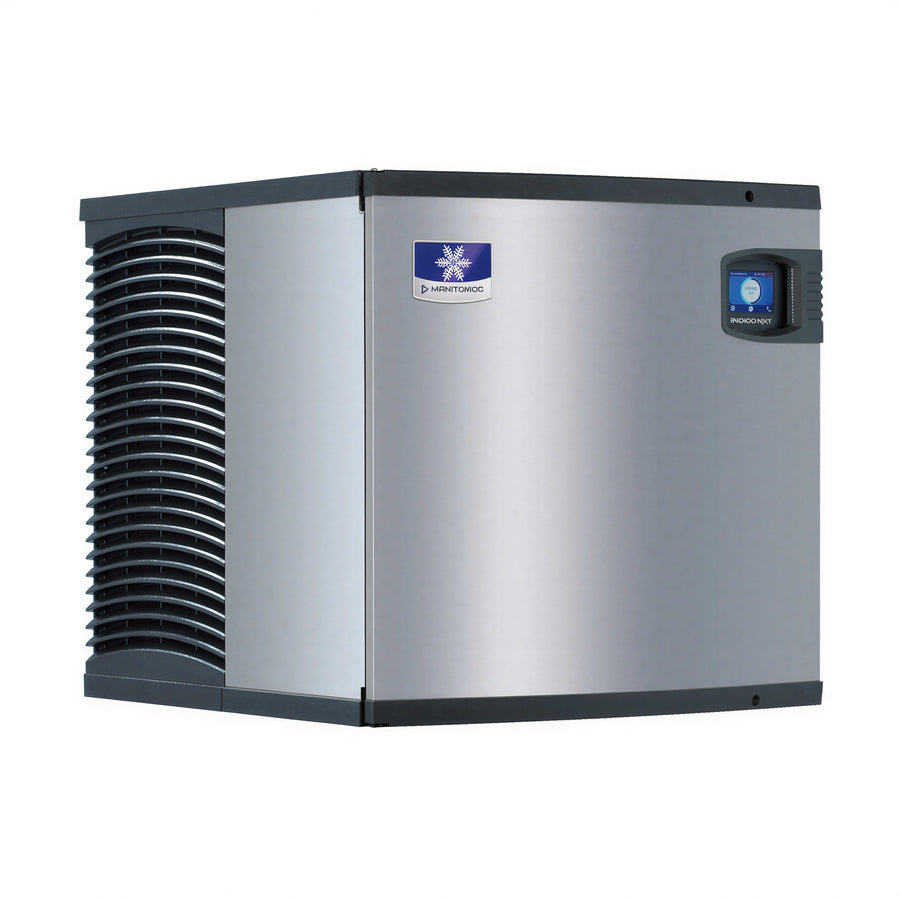

Manitowoc Indigo IYP0420W Commercial Ice Maker, Half-Dice Cubes, Water-Cooled Self-Contained, 466 lb/24 hr, 22"W

SKU: IYP0420W
$4,685.15
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Commercial Ice Makers Ice Machines Ice Machines & Handling Ice Makers & Bins Ice Production Equipment Manitowoc New Arrivals Refrigeration & Ice Restaurant Equipment

The Manitowoc IYP0420W is an Indigo NXT Series commercial ice maker with a water-cooled, self-contained condenser and half-dice cube production.

It produces up to 466 lb of ice per 24 hours at 70°F air and 50°F water, with AHRI-certified production of 416 lb per 24 hours at 90°F air and 70°F water. The easyTouch display provides status information, alerts, asset information, programmable production options, and one-touch cleaning instructions.

  • 22.0 in. wide with a 24.5 in. depth and 21.5 in. height
  • R290A refrigerant
  • 13 display language options
  • Alpha-San antimicrobial protection
  • DuraTech exterior

Overall Dimensions:

22.0"W x 24.5"D x 21.5"H

Product Weight:

135.0 lb

Half-dice cube production

Produces half-dice cubes measuring 3/8 x 1 1/8 x 7/8 in.

Water-cooled self-contained refrigeration

Uses a water-cooled, self-contained condenser and self-contained refrigeration.

easyTouch display

Provides 13 language options, date and time display, reminder and alert icons, one-touch asset information, and continuous operating status.

Programmable production options

Production can be programmed by time, weight, and day or night.

One-touch cleaning

Provides one-touch cleaning with displayed instructions.

Automatic accessory detection

Automatically detects accessories.

Ice sensing and diagnostics

Uses an acoustical ice sensing probe and self-diagnostic technology.

Alpha-San antimicrobial protection

Includes Alpha-San antimicrobial protection.

DuraTech exterior

Uses a DuraTech exterior.

R290A refrigerant

Uses R290A refrigerant.

Series Indigo NXT
Ice Type Half-dice cubes
Condenser Type Water-cooled
Refrigeration Self-contained refrigeration
Ice Production at 70°F Air/50°F Water Up to 466 lb per 24 hours
AHRI-Certified Ice Production at 90°F Air/70°F Water 416 lb per 24 hours
Cube Dimensions 3/8 x 1 1/8 x 7/8 in. (0.95 x 2.86 x 2.22 cm)
Refrigerant R290A
Refrigerant Charge 5.3 oz (150 g)
Electrical 115 V / 60 Hz / 1 phase
Minimum Circuit Ampacity 11.3 A
Maximum Fuse Size 15 A
Potable Water Usage 14 gal (53 L) per 100 lb of ice
Condenser Water Usage 114.7 gal (434 L) per 100 lb of ice
Display Languages 13
Operating Ambient Temperature 40°F to 110°F (4.4°C to 43.3°C)
Ice-Making Water Temperature 40°F to 90°F (4.4°C to 32.2°C)
Ice-Making Water Pressure 20 to 80 psi (137.9 to 551.1 kPa)
Condenser Inlet Water Pressure 20 to 276 psi (137.9 to 1,902.95 kPa)
Installation Location Indoors

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited commercial warranty with three years of parts and labor coverage for the ice maker.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cleaner product guide PDF Download PDF Warranty PDF Download PDF Quick reference guide - english PDF Download PDF Indigo nxt brochure PDF Download PDF Sanitation brochure PDF Download PDF Owner's manual PDF Download PDF Owner's manual PDF Download PDF Ice type brochure PDF Download PDF Sanitation sell sheet PDF Download PDF Quick reference guide - spanish PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The IYP0420W produces half-dice cubes measuring 3/8 x 1 1/8 x 7/8 in. (0.95 x 2.86 x 2.22 cm).
It produces up to 466 lb per 24 hours at 70°F air and 50°F water. Its AHRI-certified production is 416 lb per 24 hours at 90°F air and 70°F water.
Yes. It has a water-cooled, self-contained condenser.
The unit is 22.0 in. wide, 24.5 in. deep, and 21.5 in. high.
The IYP0420W uses R290A refrigerant.
Yes. It provides one-touch cleaning with displayed instructions.
The easyTouch display offers 13 language options, date and time display, reminder and alert icons, one-touch asset information, and continuous operating status.
