Lakeside Manufacturing Adjust-a-Fit 93425 Heated Drop-In Dish Dispenser, Single Self-Leveling Tube, 12" Round Plates, Stainless Steel

SKU: 93425 GTIN: 747069026793
$1,977.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Carts & Mobile Transport Commercial Carts Dish & Tray Dispensers Dish Caddy & Dispenser Dish, Plate & Tray Carts Food Holding & Warming Equipment Lakeside Manufacturing New Arrivals Storage & Transport Storage & Transport

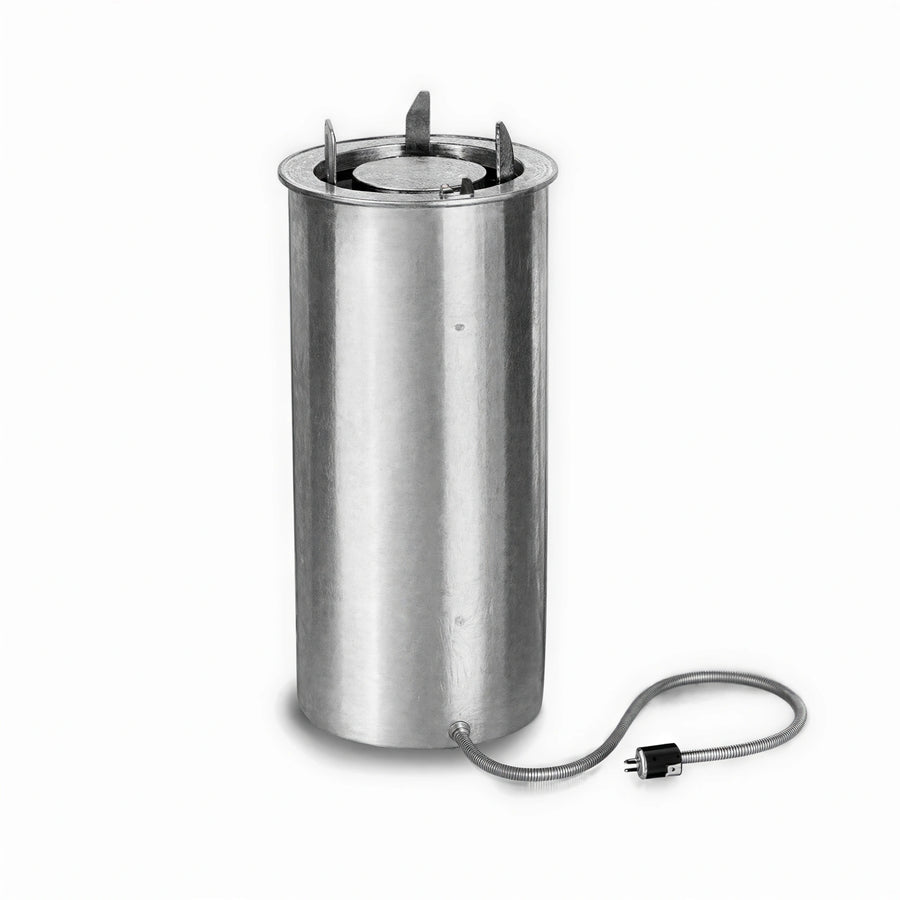

The Lakeside Adjust-a-Fit 93425 is a heated, shielded drop-in dish dispenser with a single self-leveling tube for round plates measuring 8-3/4 to 12 inches in diameter.

Its welded stainless steel construction includes tool-free adjustments for plate diameter and spring tension. The 120 VAC heating system uses thermostatic control, a 5 ft power cord, and a NEMA L5-15P twist-lock plug.

  • ADA-compliant counter height with 22 in vertical plate stacking capacity
  • 450 W heating element with adjustable thermostat
  • NSF and UL listed

Product Weight:

34.0 lb

Heated dispensing

A 450 W bottom-mounted heating element provides convection heat, with thermostatic control adjustable between 100°F and 175°F.

Self-leveling tube

The single dish carriage travels vertically to maintain the dispensing level.

Adjust-a-Fit diameter adjustment

Dish guides provide 3-1/4 in of diameter adjustment without tools or component removal.

Tool-free spring adjustment

Detachable extension springs allow adjustment for various dish weights without tools.

Shielded stainless steel construction

The dispenser tube is fully enclosed in 22-gauge stainless steel, with a welded stainless steel dispenser assembly.

ADA-compliant counter height

The unit has a 25 in height from the flange ring to the base and is designed for ADA height-compliant counters.

Electrical connection

Operates at 120 VAC, 60 Hz, and includes a 5 ft power supply cord with an L5-15P NEMA twist-lock plug.

Type Heated, shielded drop-in dish dispenser
Tube configuration Single self-leveling tube
Plate size 8-3/4 to 12 in diameter
Plate style Round
Construction Welded stainless steel
Stacking capacity 22 in vertical plate stacking capacity
Height to ring 25 in
Top ring diameter 16 in
Counter cut-out 15-1/8 in
Electrical 120 VAC, 60 Hz
Heating power 450 W
Current 3.8 A
Power cord 5 ft with L5-15P NEMA twist-lock plug
Thermostat range 100°F to 175°F
Net weight 34 lb
Listings NSF and UL

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

Lakeside warrants the equipment to the original purchaser against defects in workmanship and materials for one year.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accommodates round plates from 8-3/4 to 12 inches in diameter.
Yes. It has a 450 W heating element and thermostatic control adjustable between 100°F and 175°F.
It operates at 120 VAC, 60 Hz, and includes a 5 ft cord with an L5-15P NEMA twist-lock plug.
The vertical plate stacking capacity is 22 inches.
Yes. The 93425 is an ADA-compliant counter-height model.
The dispenser has welded stainless steel construction, and the heated tube is fully enclosed in 22-gauge stainless steel.
