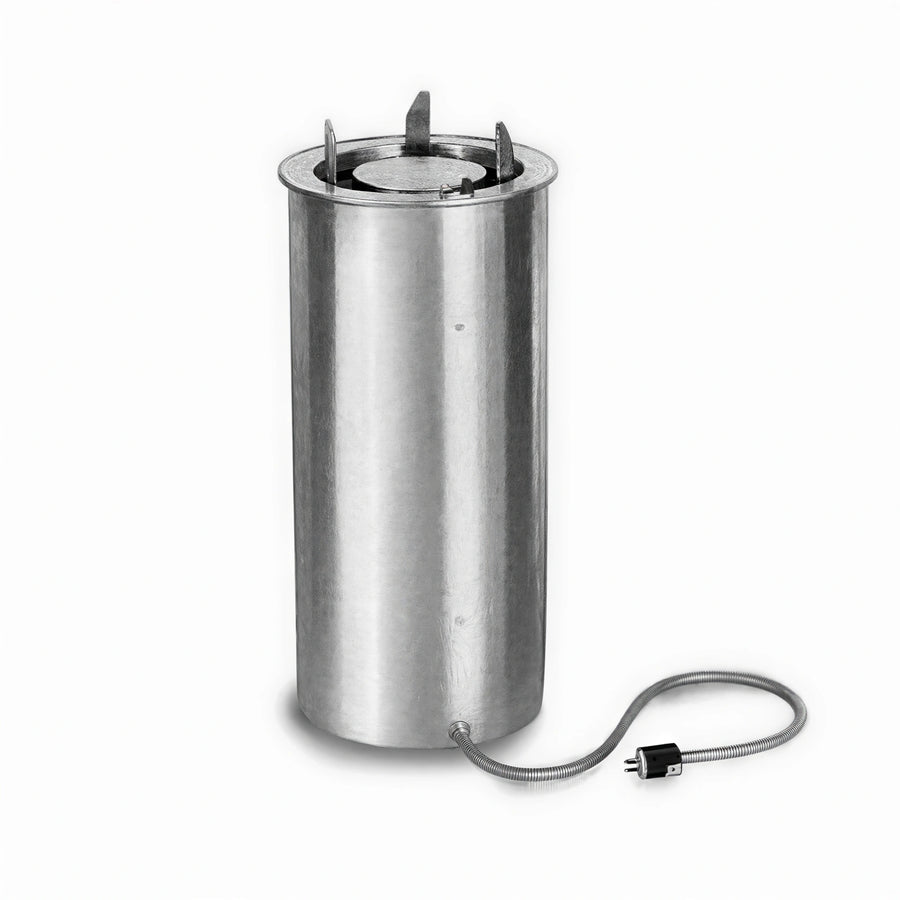

Lakeside Manufacturing Adjust-a-Fit 934 Heated Tubular Drop-In Dish Dispenser, Single Self-Leveling Tube, 12 in Round Dish

SKU: 934 GTIN: 747069012352
$1,958.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Carts & Mobile Transport Commercial Carts Dish & Tray Dispensers Dish Caddy & Dispenser Dish, Plate & Tray Carts Food Holding & Warming Equipment Lakeside Manufacturing New Arrivals Storage & Transport Storage & Transport

The Adjust-a-Fit 934 is a heated, shielded tubular drop-in dish dispenser with a single self-leveling tube for round dishes up to 12 inches in diameter.

  • Stainless steel construction with a 25-inch vertical plate stacking capacity.
  • Adjustable thermostatic control provides settings from 100°F to 175°F.
  • The 450-watt heater operates at 120 VAC, 60 Hz and includes a 5-foot cord with a NEMA L5-15P twist-lock plug.
  • The unit has a 28-inch height to the ring, a 16-inch top ring diameter, and a 15-1/8-inch counter cut-out.

Product Weight:

34.0 lb

Heated operation

A 450-watt heater provides convection heat with thermostatic control adjustable from 100°F to 175°F.

Self-leveling dispensing

The single dish carriage travels vertically in the dispenser tube to maintain dispensing level.

Adjustable dish diameter

Dish guides provide 3-1/4 inches of diameter adjustment without tools or component removal.

Tool-free spring adjustment

Detachable extension springs allow adjustment for various dish weights without tools.

Shielded enclosure

The dispenser tube is fully enclosed for the shielded configuration.

Drop-in installation

The unit is designed to hang from a counter opening by its flange ring.

Stainless steel construction

The dispenser and self-leveling dish carriage use welded stainless steel construction.

Brand Adjust-a-Fit
Type Heated tubular drop-in dish dispenser
Design Shielded (enclosed), single self-leveling tube
Dish shape Round
Dish size 8-3/4 to 12 in. diameter
Construction Stainless steel
Installation style Drop-in
Height to ring 28 in.
Top ring diameter 16 in.
Counter cut-out 15-1/8 in.
Vertical plate stacking capacity 25 in.
Voltage 120 VAC
Frequency 60 Hz
Heater power 450 W
Current draw 3.8 A
Thermostatic range 100°F to 175°F
Power cord length 5 ft
Plug NEMA L5-15P twist-lock
Weight 34 lb

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

Lakeside warrants the equipment to the original purchaser for one year against defects in workmanship and materials existing when shipped.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The 934 accommodates round dishes from 8-3/4 to 12 inches in diameter.
Yes. It has a 450-watt heater and adjustable thermostatic control with a 100°F to 175°F range.
The unit operates at 120 VAC and 60 Hz, draws 3.8 amps, and includes a 5-foot cord with a NEMA L5-15P twist-lock plug.
It is a tubular drop-in dispenser designed to hang from a counter opening by its flange ring. The counter cut-out is 15-1/8 inches.
The 934 has a 25-inch vertical plate stacking capacity.
Yes. Model 934 is the shielded, enclosed configuration.
