Key specifications

Amps
2.2 Amps
Phase
1-Phase
Dimensions
60.0"W × 24.0"D × 36.0"H
Type
Back Bar Cooler
Style
Pass-Thru
Installation Type
Floor Model
Spec sheet
Krowne SKU: PTSD60L

Krowne PTSD60L 60-Inch 4-Door Pass-Thru Back Bar Cooler

$10,815.75
/each
Estimated to ship in 2–5 business days Free Shipping
Included: Krowne warranty 5-year compressor warranty and 2-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,000/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Back Bar Cooler
Style Pass-Thru
Installation Type Floor Model
Material Stainless Steel
Interior Finish Stainless Steel
Compartments 2
Door Count 4 Doors
Door Type Glass
Door Style Sliding
Door Finish Black Vinyl
Access Sides Front and Back
Width 60 Inches
Depth 24 Inches
Height 36 Inches
Weight 380 lb
Refrigeration Type Self-Contained
Refrigeration Location Left Side
Temperature Range 30°F to 40°F
Refrigerant Type R290 Hydrocarbon
Shelf Count 2 Adjustable Shelves, 1 Floor Rack Per Door
Interior Lighting Cool White LED, 7000K
Controls Digital Thermostat
Compressor Horsepower 1/4 HP
Insulation Thickness 2 Inches
Drainage No Drain Required
Voltage 115 Volts
Amps 2.2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet

Description

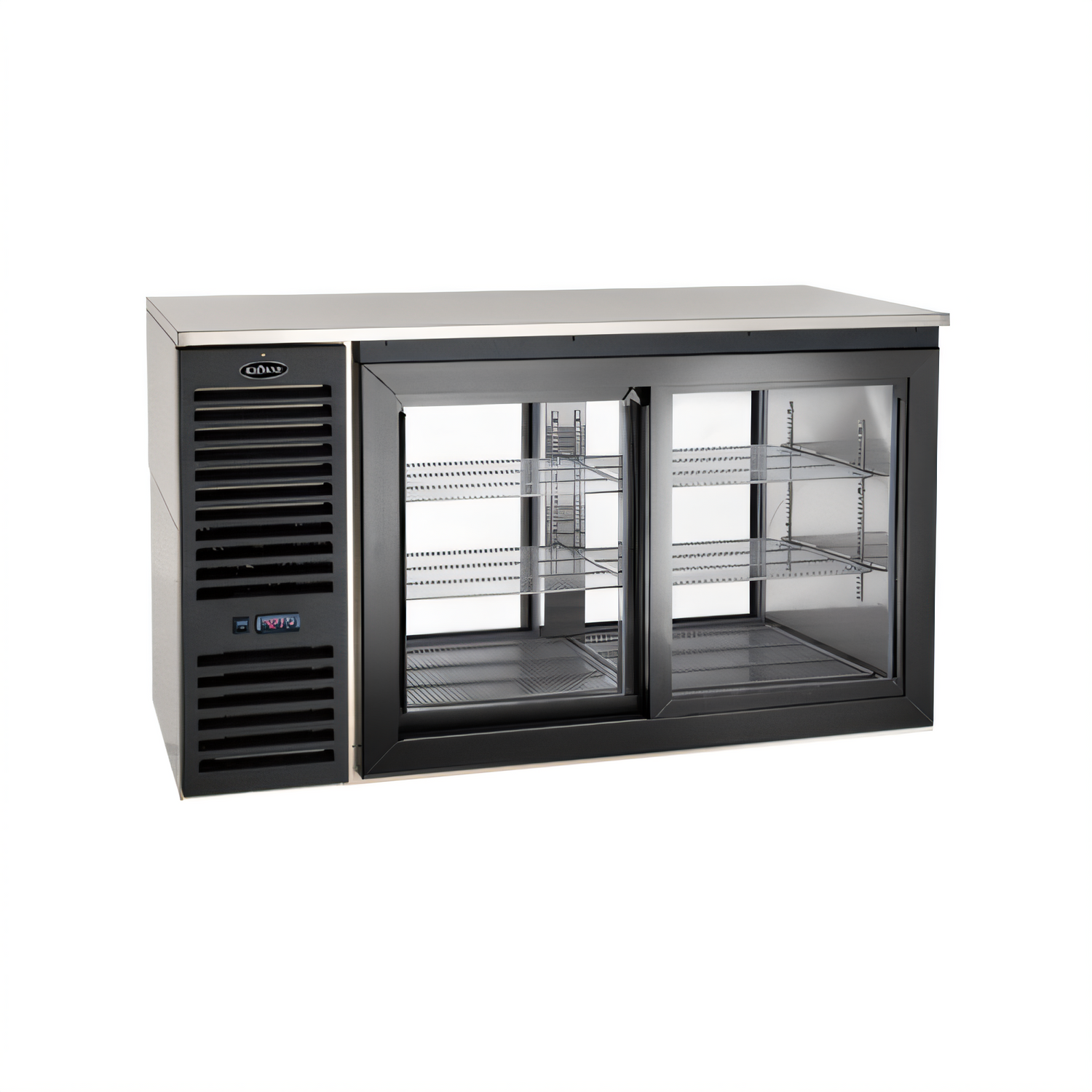

The Krowne PTSD60L is a two-section pass-thru refrigerated back bar storage cabinet with access from both sides through four sliding glass doors. Left-mounted self-contained refrigeration provides a stated operating range of 30°F to 40°F.

  • Measures 60 inches wide by 24 inches deep by 36 inches high.
  • Includes two adjustable shelves and one floor rack per door.
  • Features a stainless steel interior, black vinyl door finish, and built-in cool white LED lighting.
  • Uses R290 hydrocarbon refrigerant and includes a condensate evaporator pan; no drain is required.
  • Electrical connection is 115 volts, 1-phase, 60 Hz, 2.2 amps, with an 8-foot cord and NEMA 5-15P plug.

Overall Dimensions:

60.0"W x 24.0"D x 36.0"H

Product Weight:

380.0 lb

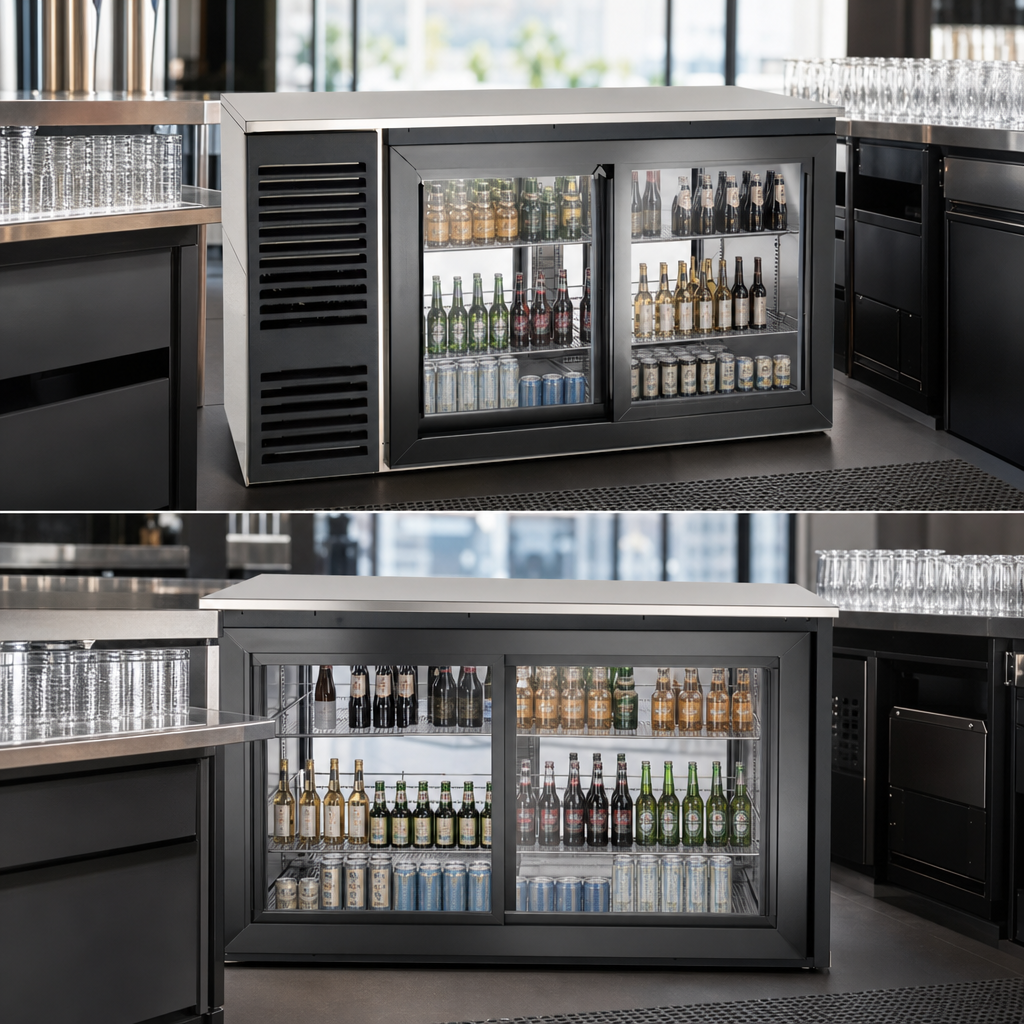

Pass-Through Access

Doors on both sides provide access from the front and back.

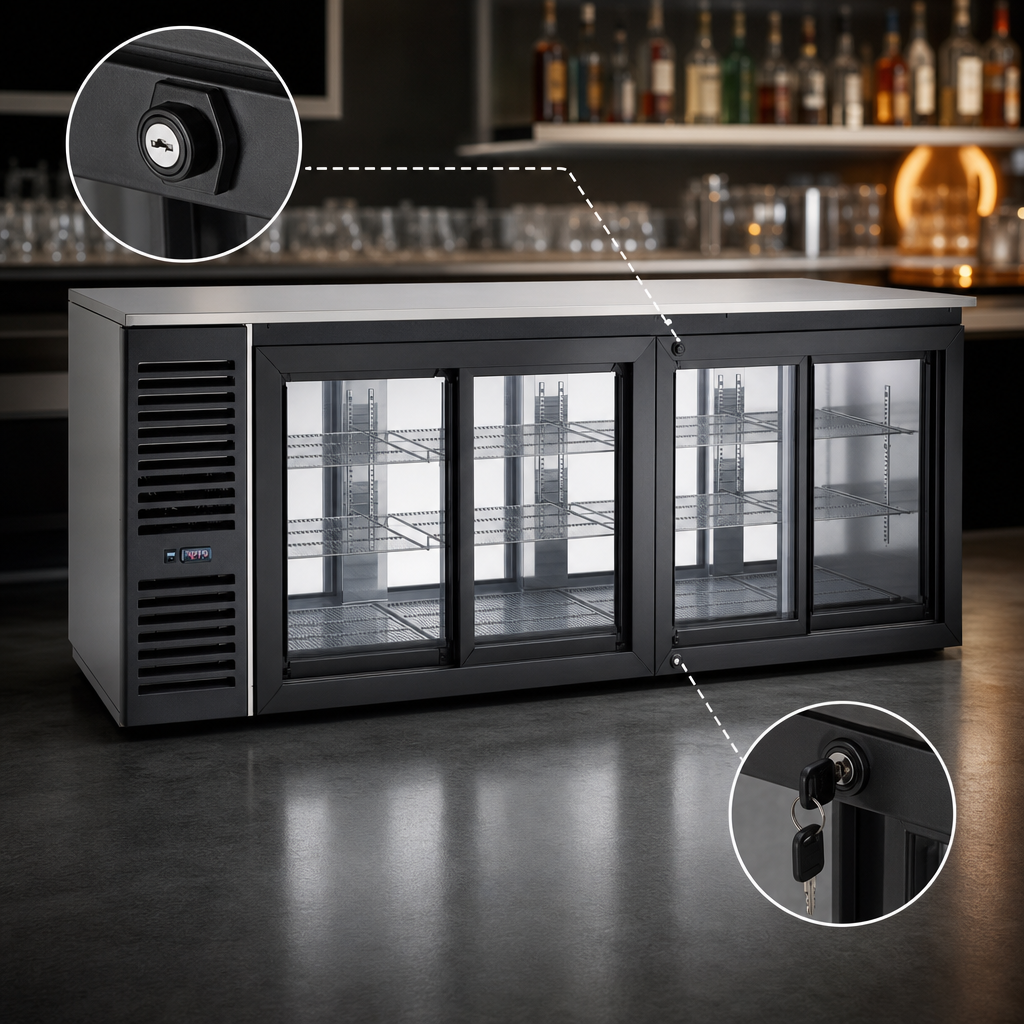

Sliding Glass Doors

Four heavy-duty sliding glass doors include built-in locks.

Self-Contained Refrigeration

The refrigeration system is self-contained and mounted on the left side.

Temperature Control

The stated operating range is 30°F to 40°F, with a digital thermostat on the front grille.

Storage Configuration

The two-section cabinet includes two adjustable shelves and one floor rack per door.

LED Interior Lighting

Built-in cool white LED lighting is specified at 7000K.

Condensate Management

A condensate evaporator pan is included, and no drain is required.

R290 Refrigerant

The unit uses R290 hydrocarbon refrigerant.

Frequently Asked Questions

It has four sliding glass doors with built-in locks.
Yes. Doors on both sides provide pass-thru access from the front and back.
The stated operating range is 30°F to 40°F.
It uses R290 hydrocarbon refrigerant.
It is specified for 115 volts, 1-phase, 60 Hz, and 2.2 amps, with an NEMA 5-15P plug and an 8-foot cord.
No drain is required; a condensate evaporator pan is included.
Each door includes two adjustable shelves and one floor rack.
The equipment is intended for the storage and display of non-potentially hazardous bottled or canned products only.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.

Need help deciding?

Our specialist can help you confirm dimensions, building requirements, and other important details before you buy. We usually reply within 1 hour.

or call (888) 307-5030
