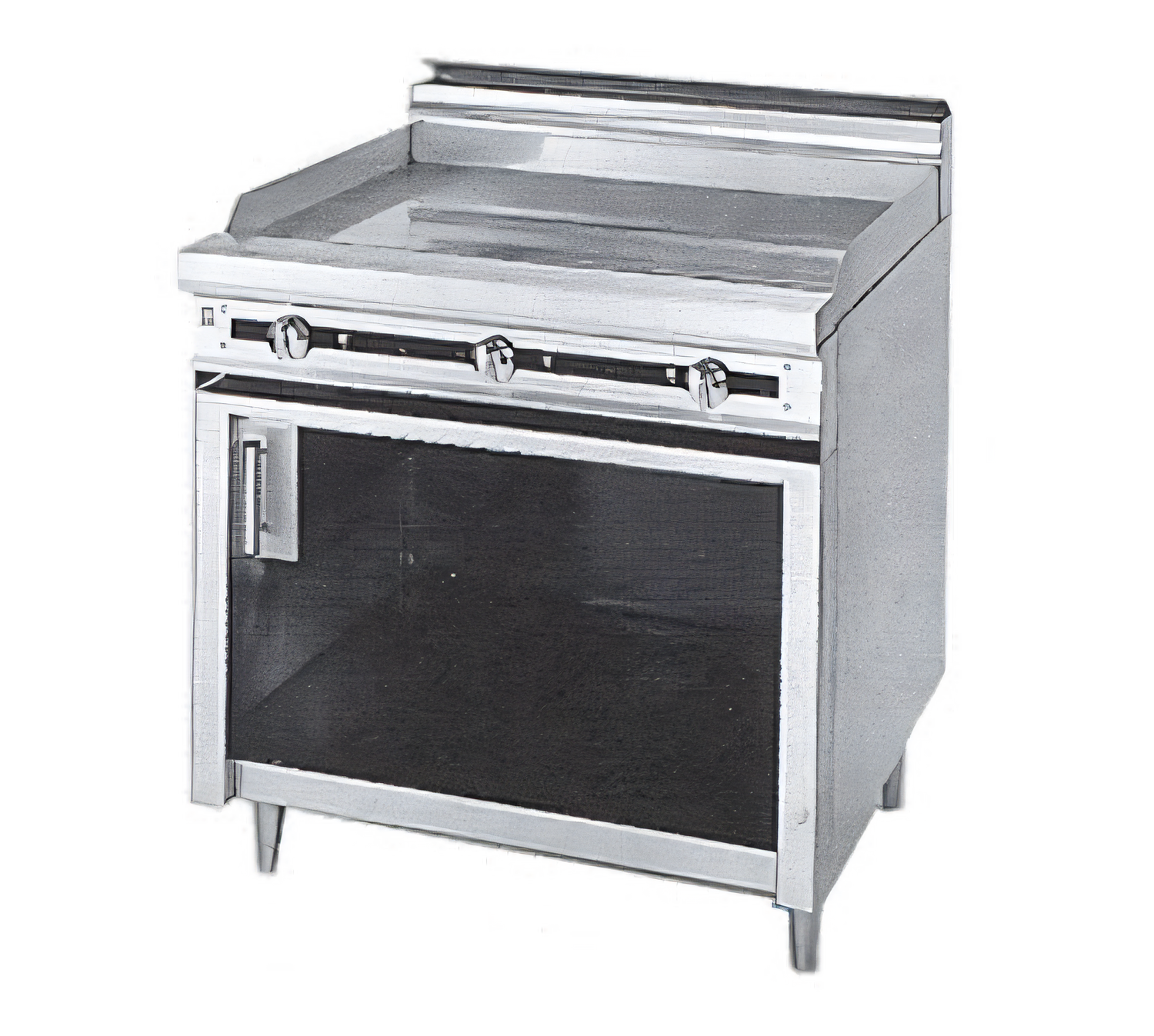

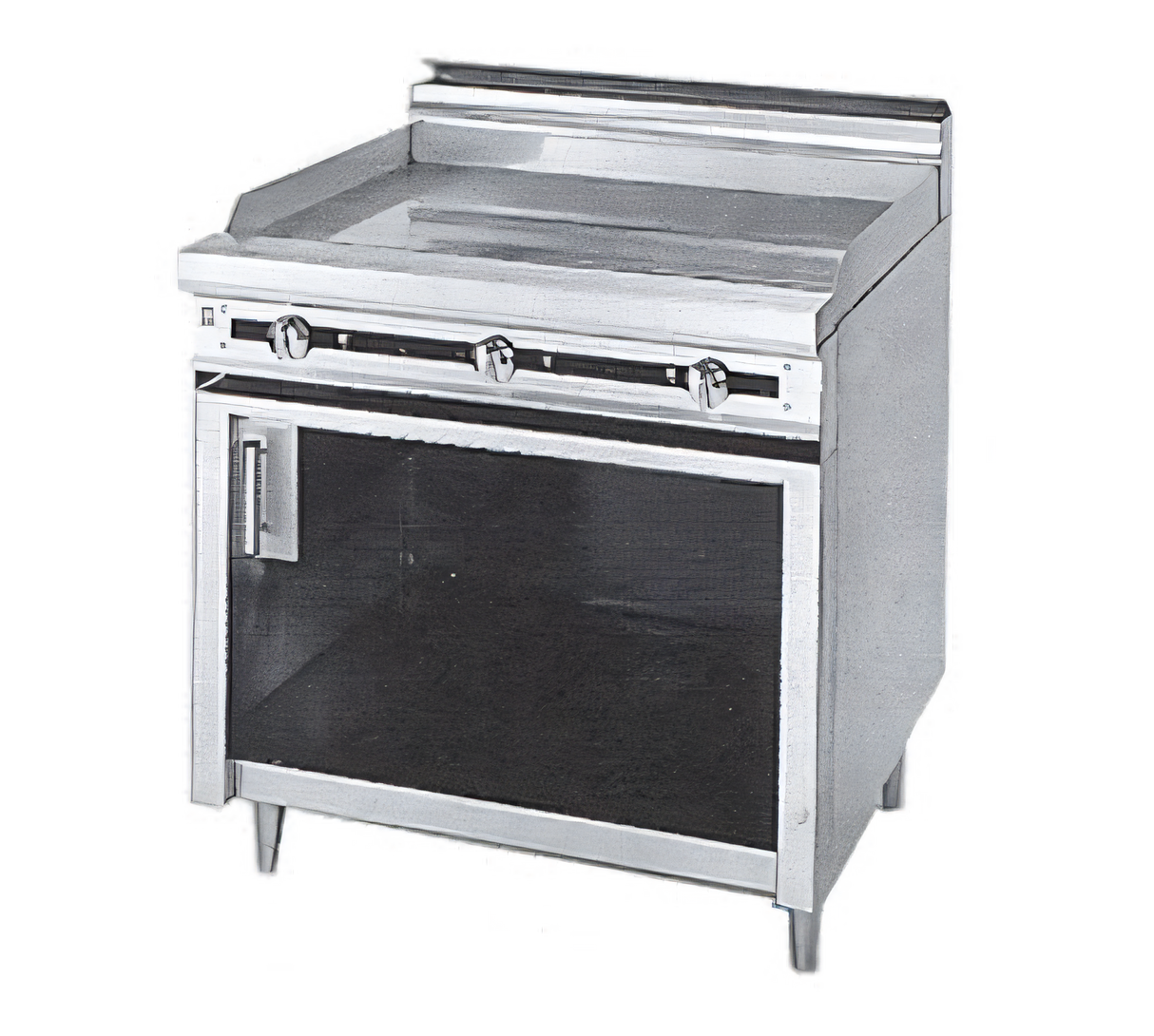

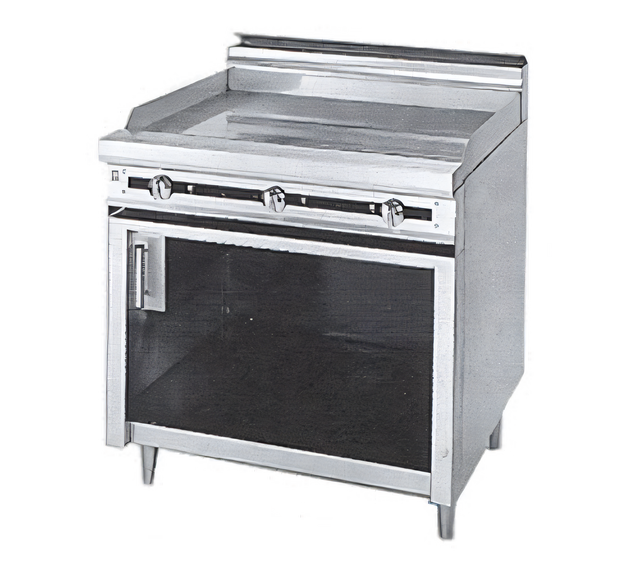

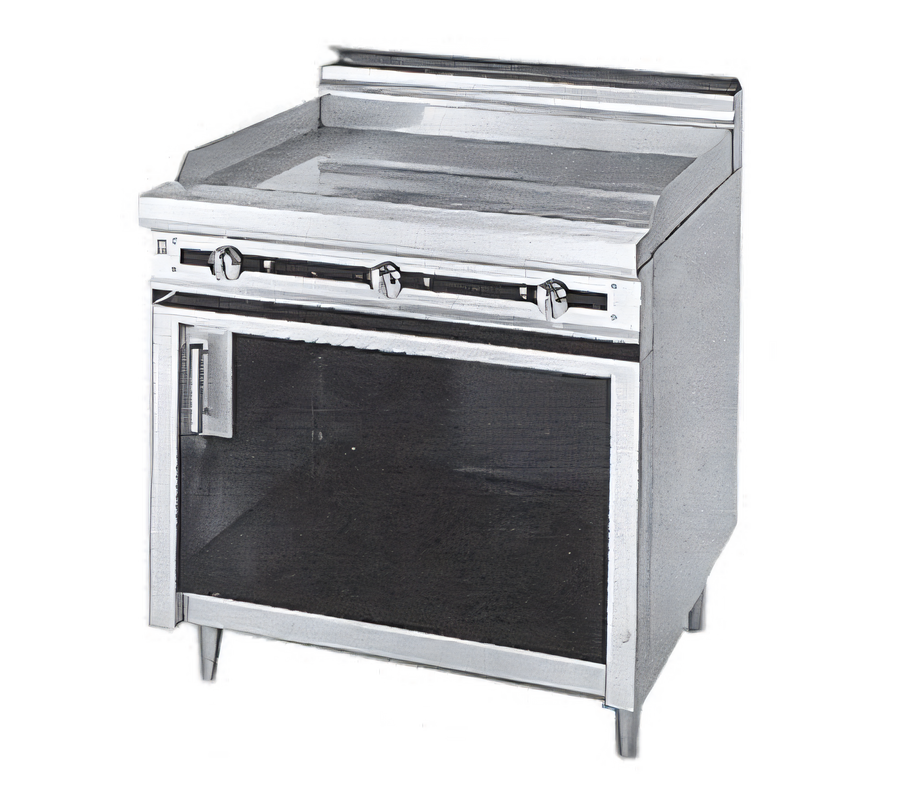

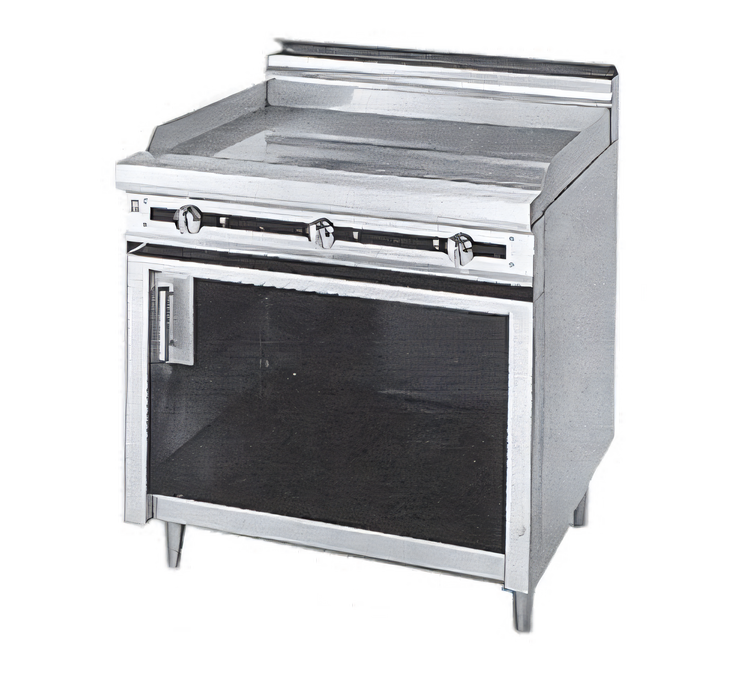

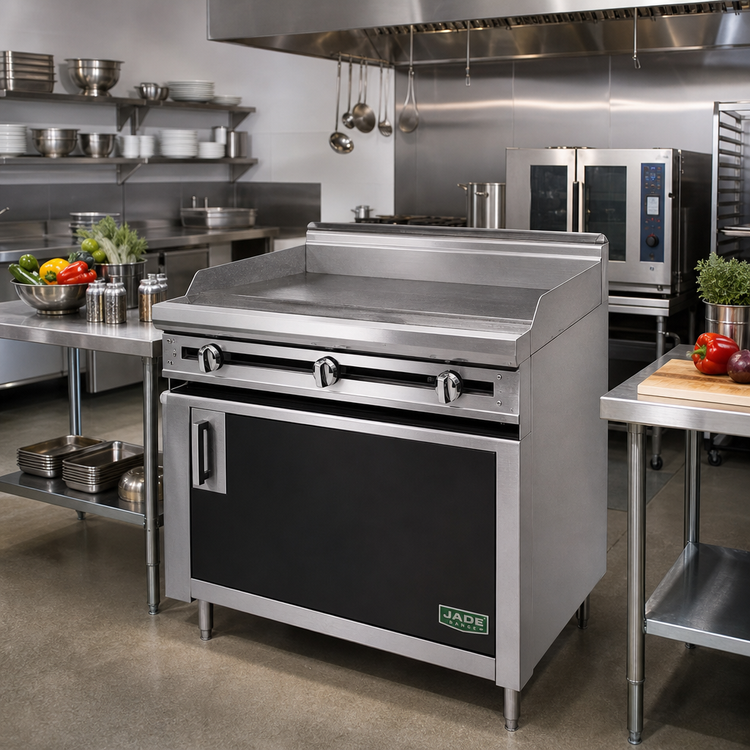

Jade Range Titan JTRH-72GT 72-Inch Heavy Duty Gas Griddle Top Commercial Range with Cabinet Base

SKU: JTRH-72GT
$26,707.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Jade Range Titan JTRH-72GT 72-Inch Heavy Duty Gas Griddle Top Commercial Range with Cabinet Base

Full-Size, Natural Gas or Propane, Thermostatic Controls

Deliver exceptional cooking performance and versatility with the Titan JTRH-72GT heavy-duty gas griddle top range, featuring a durable 1-inch thick polished steel griddle and convenient cabinet base.

  • Heavy-duty 1-inch thick polished steel griddle plate for superior heat retention and even cooking.
  • Precise thermostatic controls ensure consistent griddle temperatures for optimal cooking results.
  • Robust stainless steel construction on front, sides, stub back, and bottom for durability and easy cleaning.
  • Convenient cabinet base provides valuable storage space for kitchen essentials.
  • Equipped with a 6-inch stainless steel plate shelf for added workspace and ingredient staging.
  • Versatile gas operation, convertible for either natural gas or propane upon installation.
  • Includes 6-inch adjustable stainless steel legs for stable and level installation.

Overall Dimensions:

72.0"W x 38.0"D x 36.5"H

Product Weight:

1060.0 lb

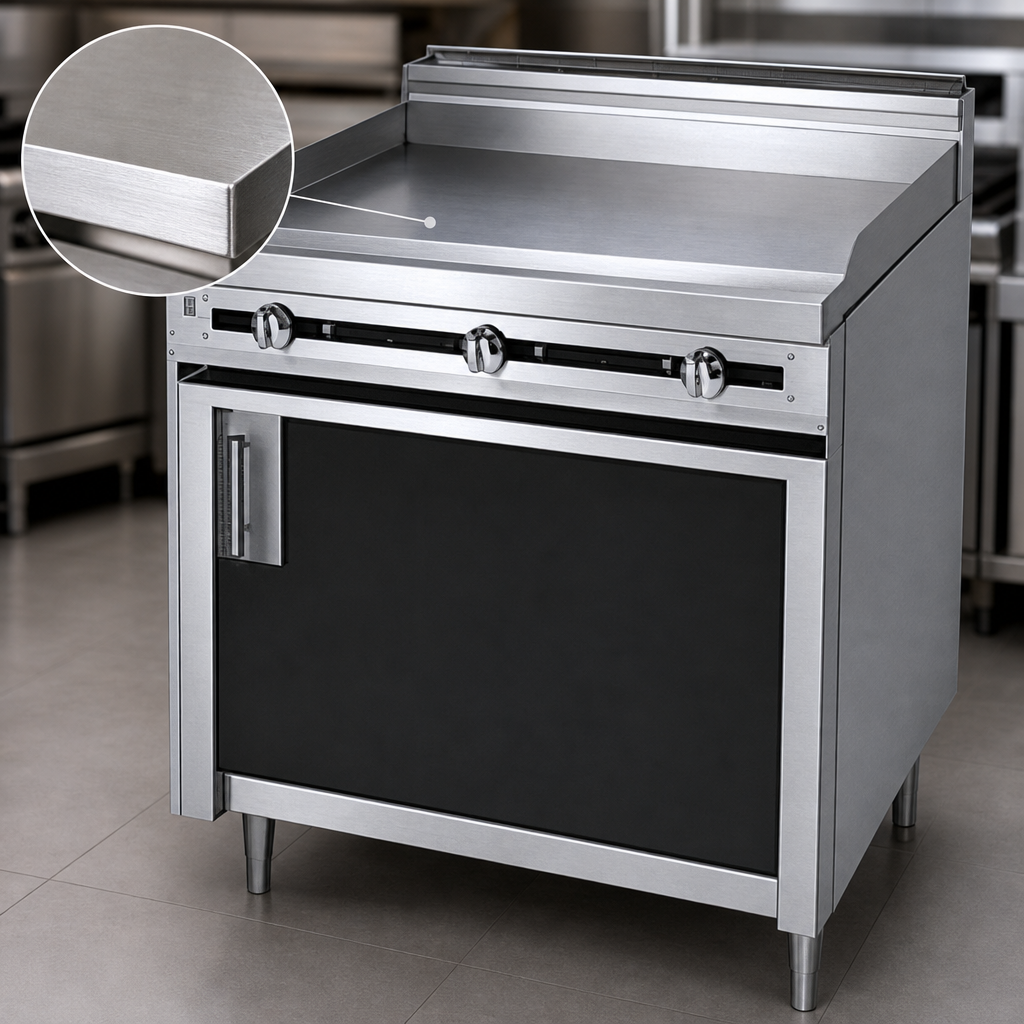

Polished 1-Inch Thick Steel Griddle Plate

Provides exceptional heat distribution and retention for consistent cooking results across the entire 72-inch surface.

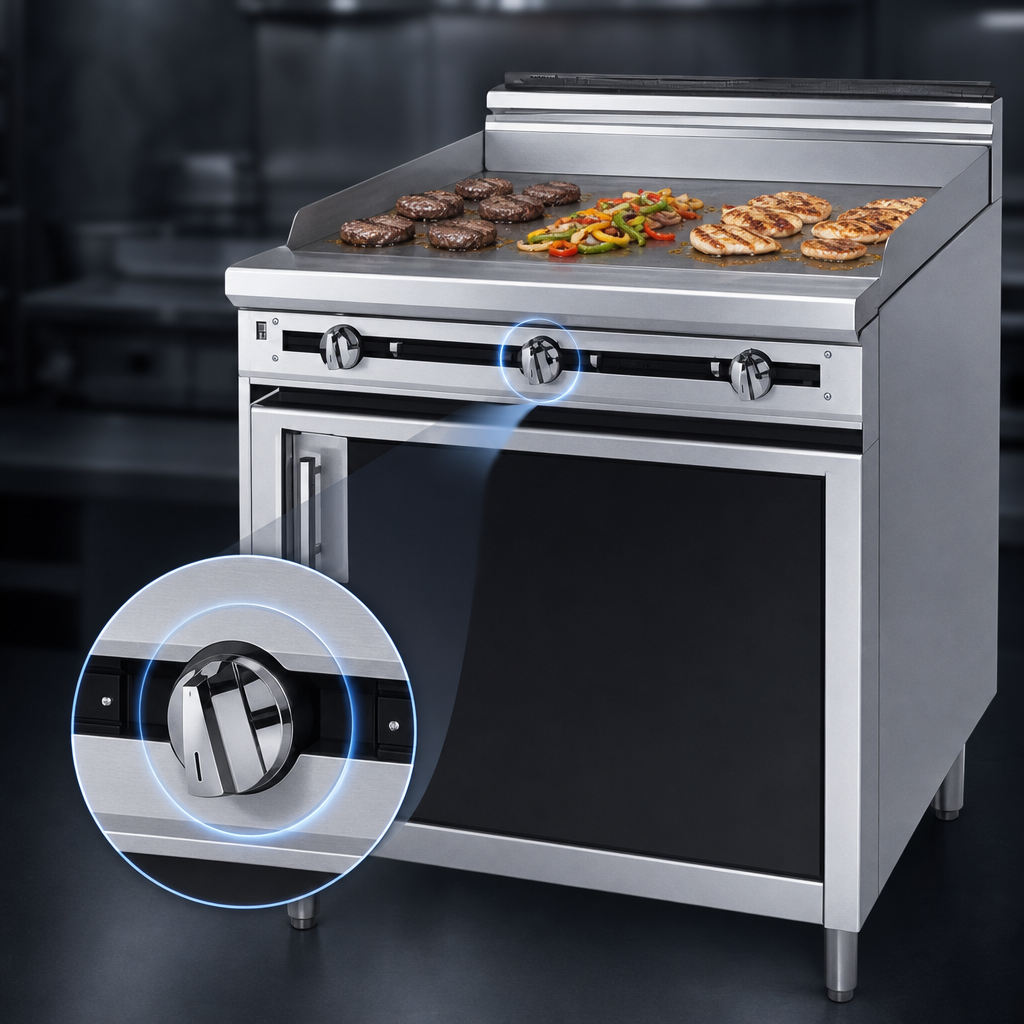

Thermostatic Griddle Controls

Allows for precise temperature management across different griddle zones, ensuring optimal cooking for various items.

Heavy Duty Stainless Steel Construction

Features a 14-gauge stainless steel body, front, sides, stub back, and bottom, offering superior durability and corrosion resistance for commercial use.

Stainless Steel Cabinet Base

Offers enclosed storage beneath the griddle surface, ideal for storing kitchen tools, ingredients, or other essentials.

Stainless Steel Plate Shelf

A 6-inch deep shelf positioned at the top of the range provides a convenient staging area for plates and ingredients.

Stainless Steel Adjustable Legs

Heavy-duty 6-inch stainless steel adjustable legs allow for leveling and stability on uneven floors.

Integrated Grease Trough and Splashguards

Features a 14-gauge stainless steel grease trough and 14-gauge stainless steel side and rear splashguards for easy cleanup and preventing spills.

Variable Multi-Point Gas Connection

Equipped with a 1-1/4 inch front manifold connection and a 1 inch or 3/4 inch capped rear manifold connection to adapt to various gas line configurations.

Gas Pressure Regulator Included

Supplied with a 3/4 inch gas pressure regulator, which must be installed for proper operation.

BTU 180,000 BTU
Controls Thermostatic
Cooking Surface Width 72 Inches
Griddle Plate Thickness 1 Inch
Base Cabinet
Exterior Finish Stainless Steel
Interior Finish Stainless Steel
Installation Type Floor Model
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4 Inches Front Manifold, 1 or 3/4 Inches Rear Manifold
Natural Gas Inlet Pressure (Min) 5 Inches W.C.
Propane Gas Inlet Pressure (Min) 10 Inches W.C.
Maximum Gas Inlet Pressure 14 Inches W.C.
Material Stainless Steel, Polished Steel
Shipping Width 72 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 1060 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA
Type Heavy Duty Range
Style Griddle Top
Plate Shelf Width 6 Inches

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The range is primarily constructed from heavy-duty 14-gauge stainless steel for the body, front, sides, stub back, and bottom, with a polished 1-inch thick steel griddle plate.
The Jade Range Titan JTRH-72GT is designed to operate on either natural gas or propane, which must be specified at the time of order and during installation.
Yes, this JTRH-72GT model features thermostatic controls, allowing for precise and consistent temperature management of the griddle sections.
Yes, a 3/4 inch gas pressure regulator is supplied loose with the range and must be installed for proper operation.
The minimum operating pressure is 5 inches W.C. for Natural Gas and 10 inches W.C. for Propane Gas. The maximum operating pressure for both gas types is 14 inches W.C.
The griddle top has a cooking surface width of 72 inches and features a durable 1-inch thick polished steel plate.
