Jade Range (Middleby)

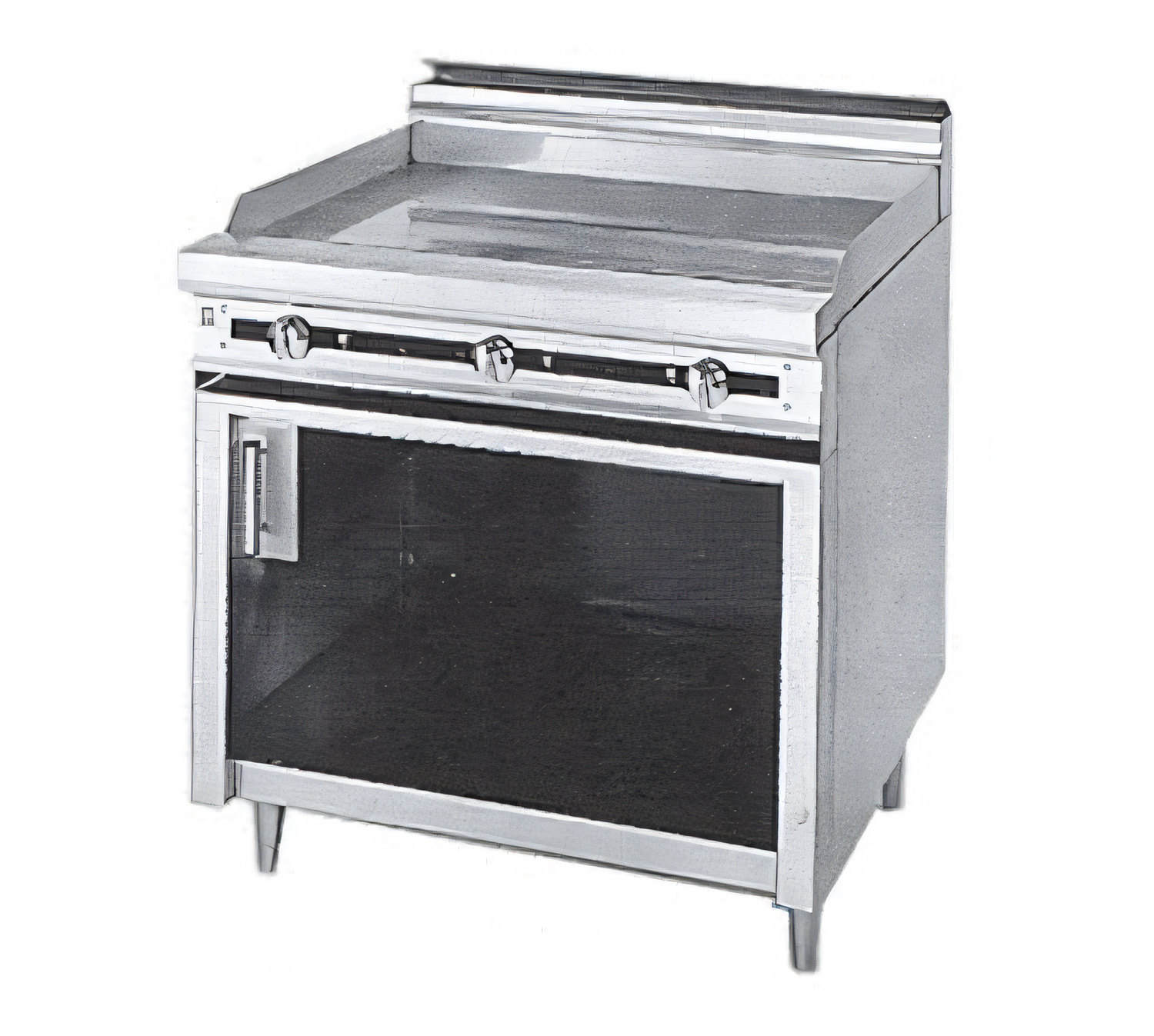

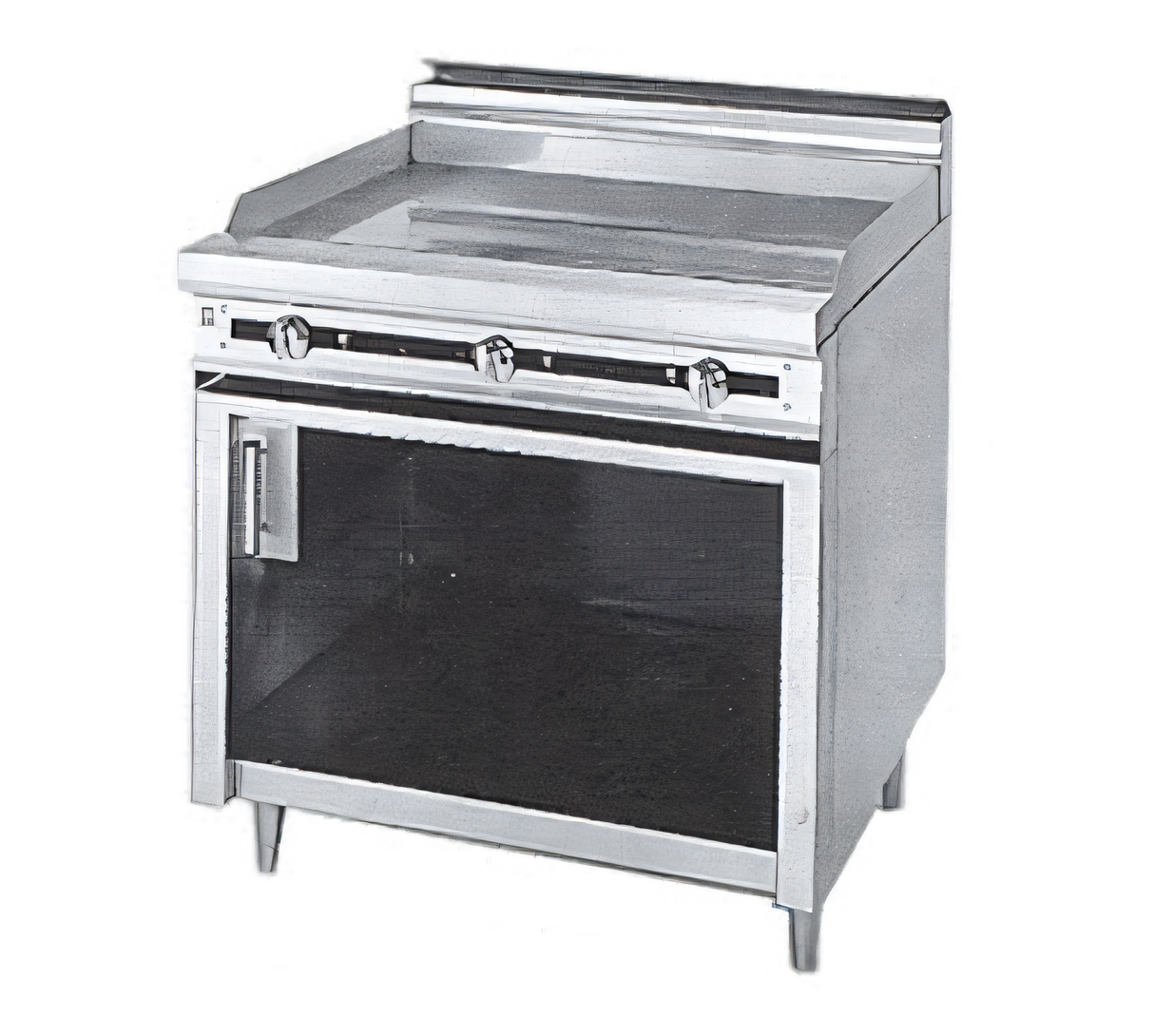

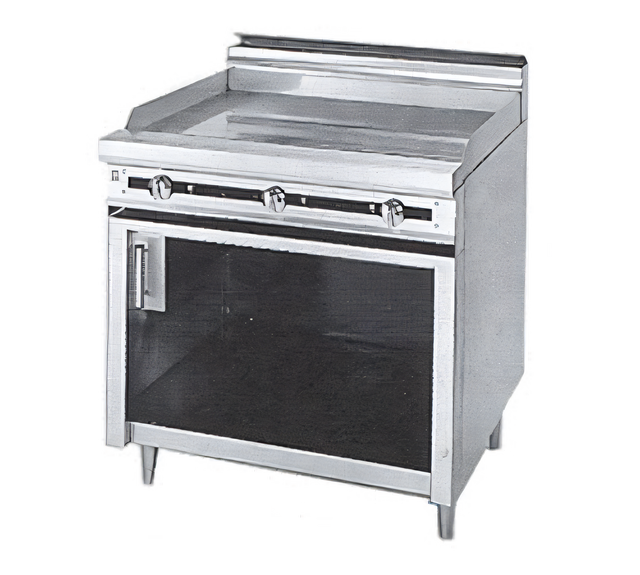

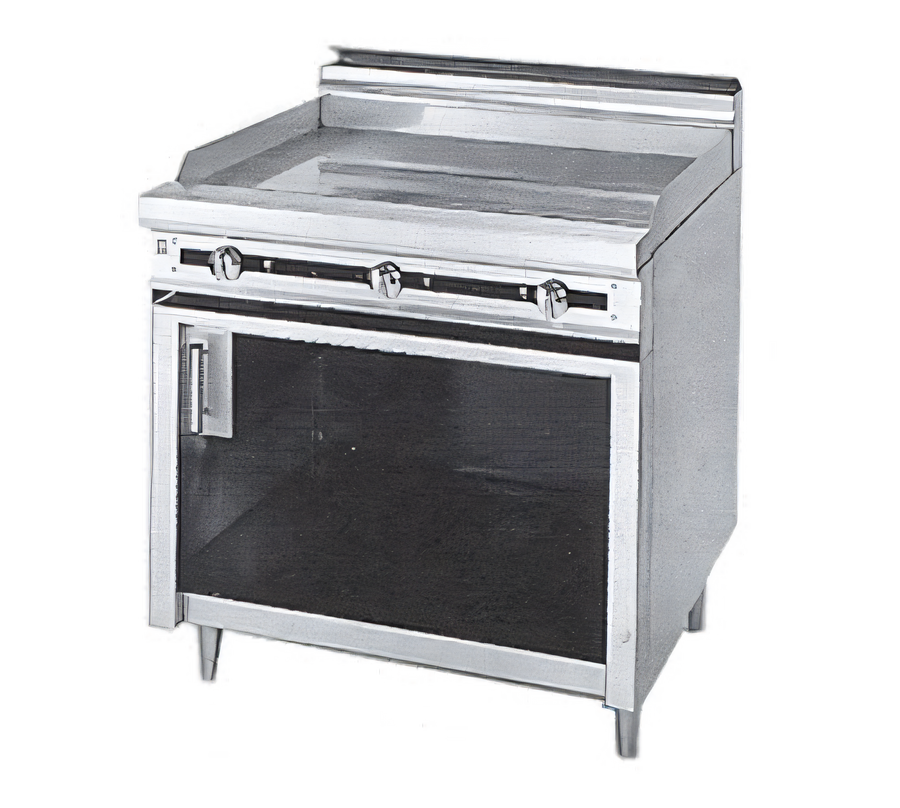

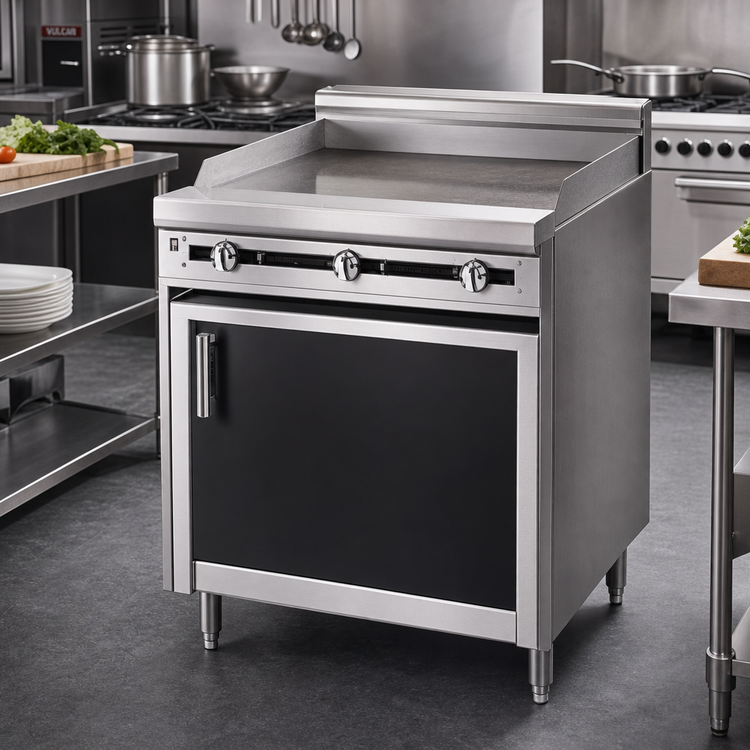

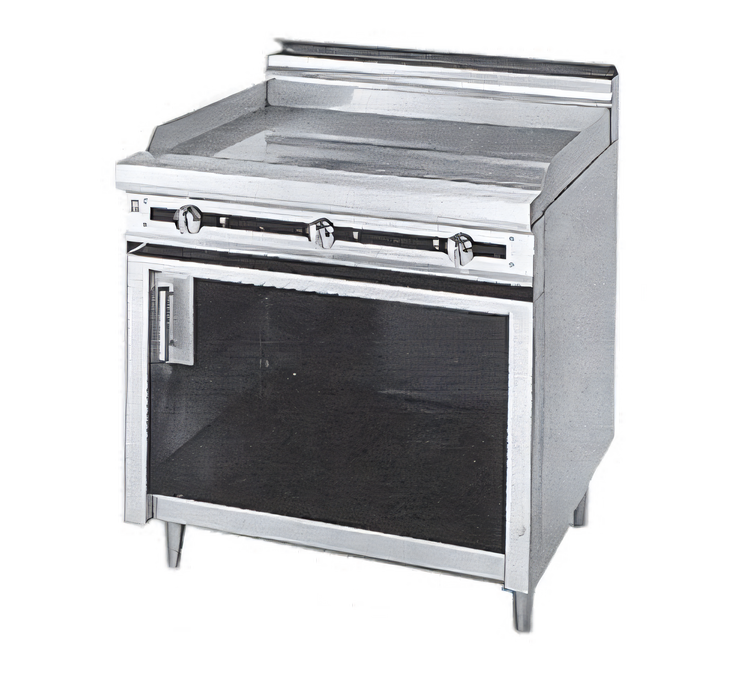

Titan JTRH-36GT Heavy Duty Gas Range with 36-Inch Thermostatic Griddle Top and Cabinet Base

SKU: JTRH-36GT
$15,789.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Titan JTRH-36GT Heavy Duty Gas Range with 36-Inch Thermostatic Griddle Top and Cabinet Base

36-Inch Width, Thermostatic Griddle, Cabinet Base

Experience superior cooking precision and durability with the Titan JTRH-36GT heavy-duty gas range, featuring a 36-inch thermostatic griddle and robust stainless steel construction.

  • Equipped with a 36-inch wide thermostatic griddle featuring a 1-inch thick polished steel plate for even heat distribution.
  • Features a durable stainless steel cabinet base, providing convenient storage and stability.
  • Constructed with a heavy-duty 14 gauge stainless steel grease trough and splash guards for easy cleaning.
  • Built for commercial demands with a full stainless steel exterior, including front, sides, stub back, and bottom.
  • Includes a practical 6-inch stainless steel plate shelf and adjustable 6-inch stainless steel legs for ergonomic operation.
  • Delivers 90,000 BTU of cooking power, making it ideal for high-volume kitchen environments.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

530.0 lb

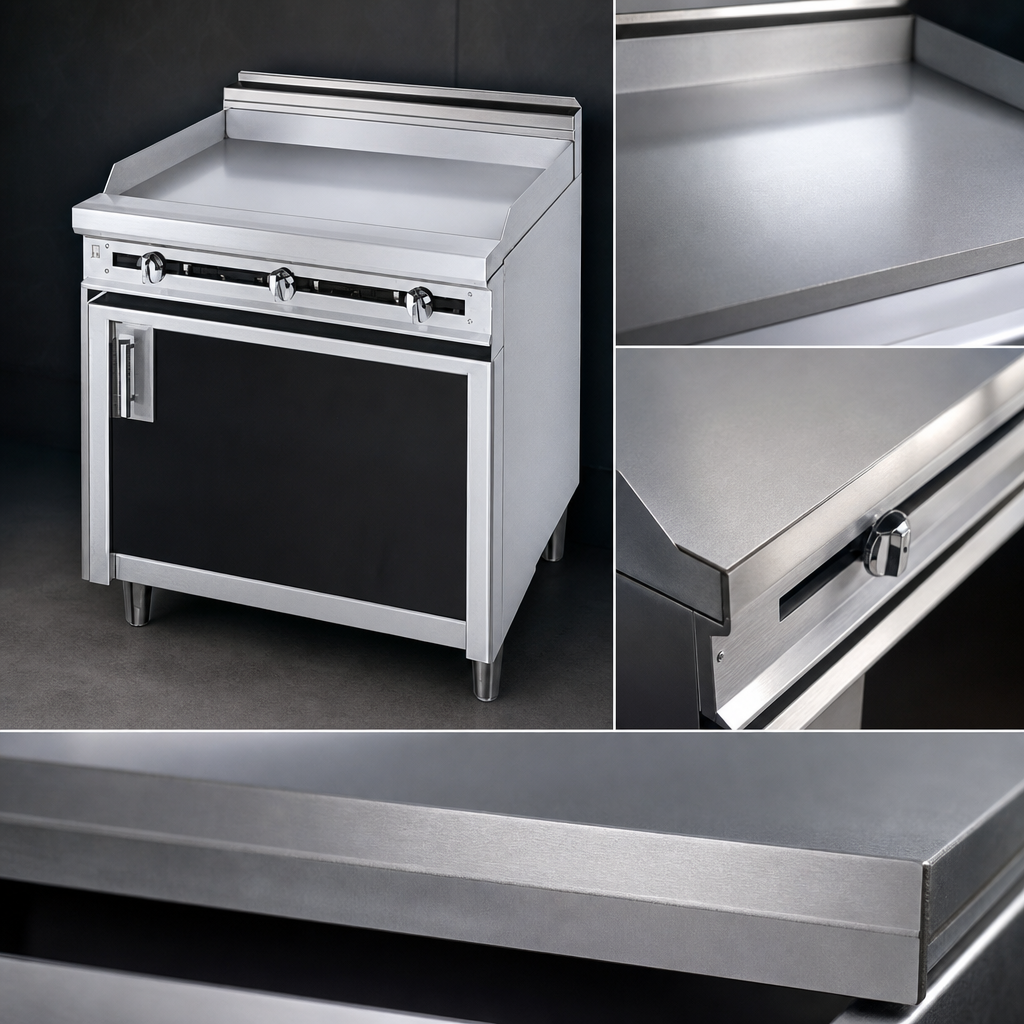

Heavy Duty Griddle Plate

Features polished 1-inch thick steel griddle plates for consistent heat and long-lasting durability.

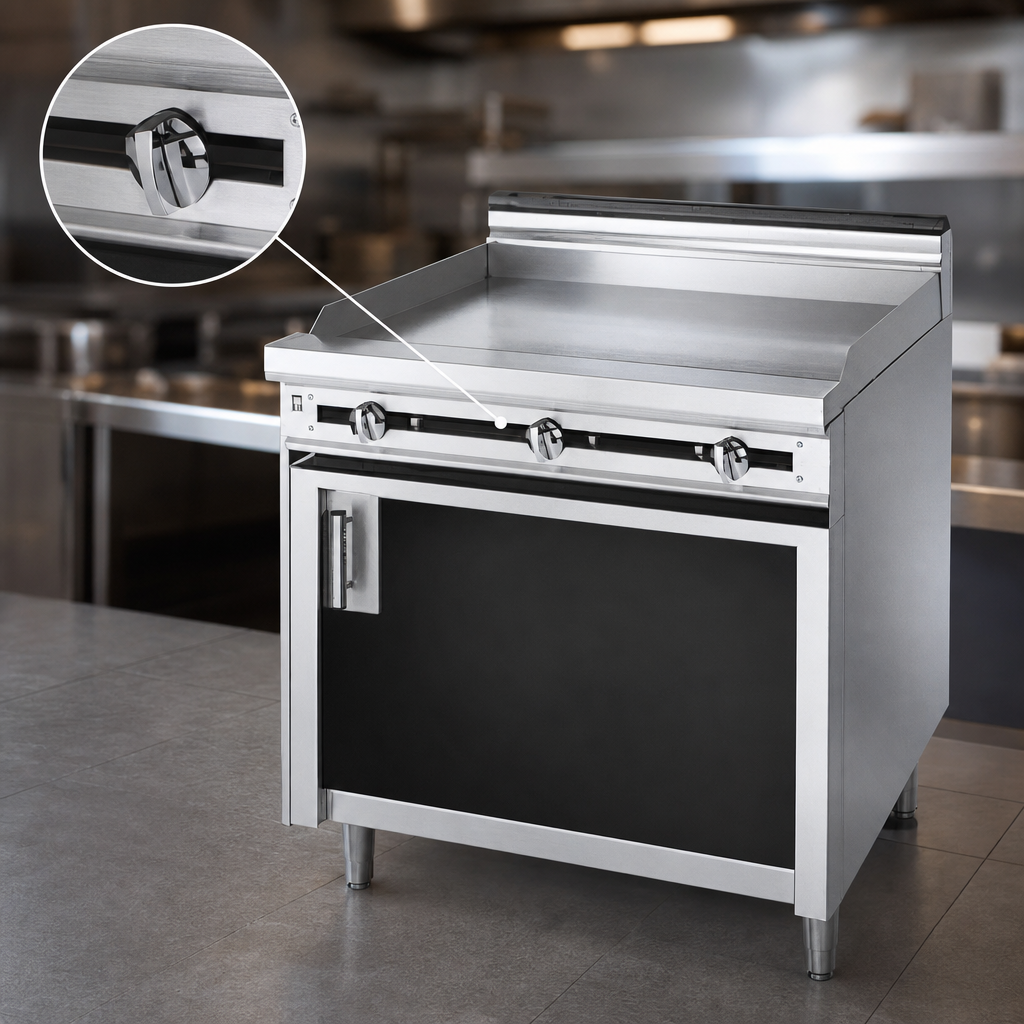

Thermostatic Griddle Controls

The 36-inch griddle top is precisely controlled by thermostatic valves, ensuring accurate temperature management.

Cabinet Base Design

Equipped with a stainless steel cabinet interior and exterior, providing enclosed storage space beneath the griddle.

Superior Construction Materials

Built with stainless steel front, sides, stub back, and bottom, offering exceptional resistance to corrosion and wear.

Integrated Grease Management

Includes a 14 gauge stainless steel grease trough along with stainless steel side and rear splash guards for a cleaner cooking area.

Adjustable Legs and Plate Shelf

Comes with stainless steel adjustable 6-inch legs for leveling and a 6-inch stainless steel plate shelf for added convenience.

Gas Regulator Included

Supplied with a 3/4-inch gas pressure regulator (shipped loose) for proper and safe operation.

Type Commercial Gas Range
Style Cabinet Base
Installation Type Floor Model (With Adjustable Legs)
Controls Thermostatic
Cooking Surface Width 36 Inches
Griddle Plate Thickness 1 Inch
BTU 90,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inch
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. minimum
Gas Inlet Pressure (Propane Gas) 10 Inches W.C. minimum
Gas Inlet Pressure (Maximum) 14 Inches W.C. maximum
Interior Finish Stainless Steel
Exterior Finish Stainless Steel
Material Stainless Steel
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 530 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Please contact manufacturer or dealer for warranty details.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRH-36GT is equipped with a polished 1-inch thick steel griddle plate, designed for excellent heat retention and even cooking.
This range requires a minimum operating pressure of 5 inches W.C. for Natural Gas and 10 inches W.C. for Propane Gas, with a maximum of 14 inches W.C. A 3/4-inch gas pressure regulator is supplied.
The JTRH-36GT features thermostatic controls for its griddle top, allowing for precise temperature adjustments and consistent cooking.
Yes, the JTRH-36GT comes standard with 6-inch stainless steel adjustable legs for easy leveling and stability on various floor surfaces.
The JTRH-36GT is predominantly constructed from stainless steel, including the front, sides, stub back, bottom, cabinet interior/exterior, grease trough, splash guards, plate shelf, and legs, ensuring durability and easy cleaning.
