Jade Range (Middleby)

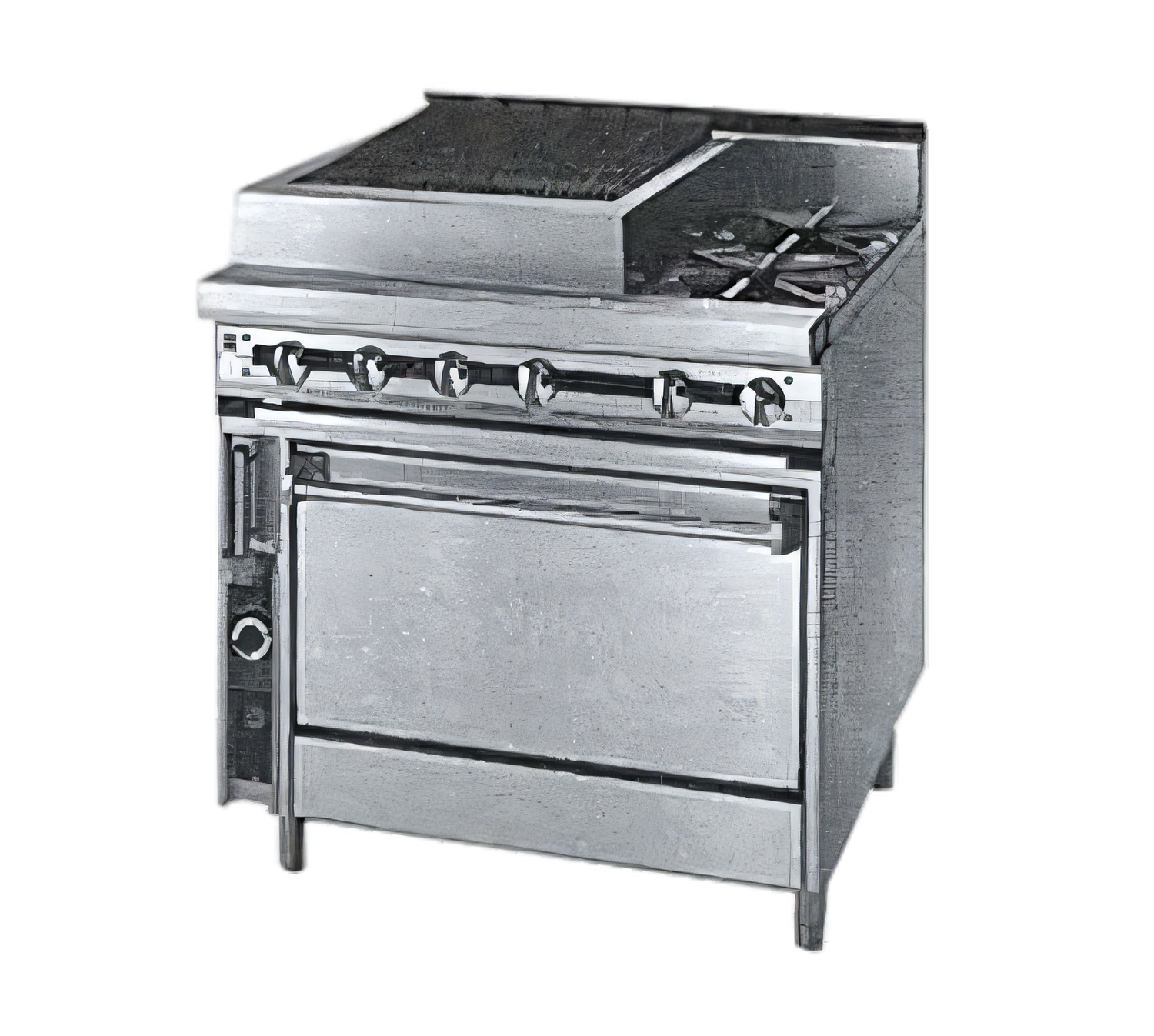

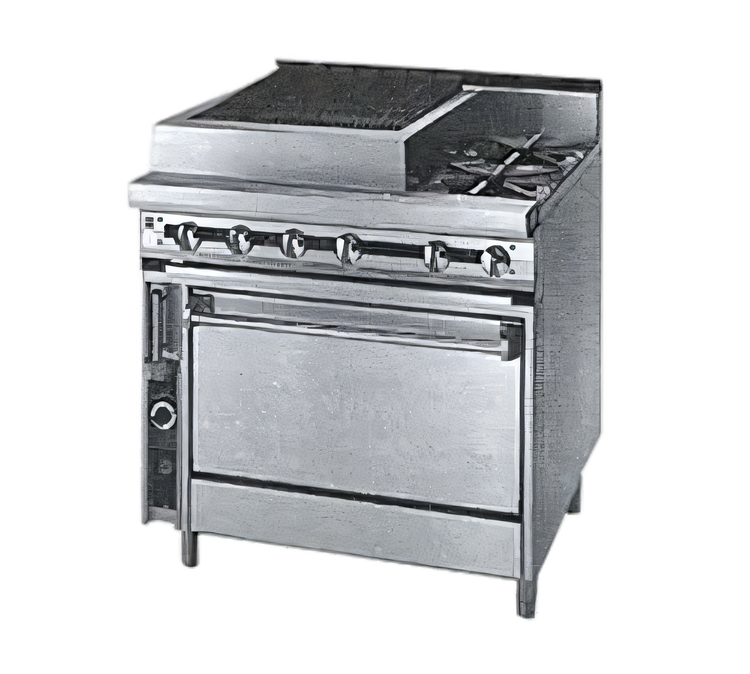

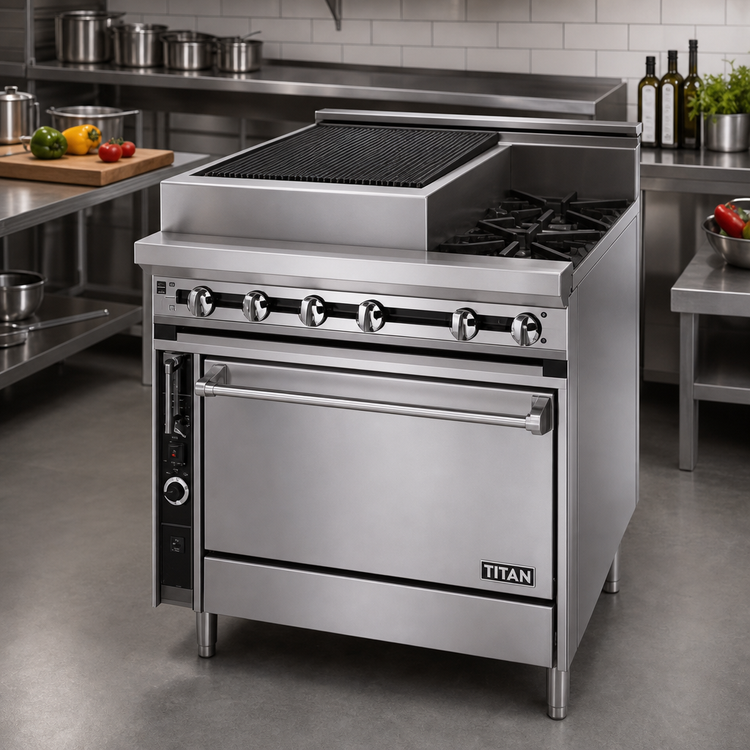

Titan 36-Inch Heavy Duty Gas Range with 24-Inch Charbroiler and Convection Oven

SKU: JTRH-24B-2-36C
$28,061.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Titan 36-Inch Heavy Duty Gas Range with 24-Inch Charbroiler and Convection Oven

Floor Model, Natural Gas (Convertible), 2 Open Burners, 24-inch Charbroiler, Convection Oven Base

Experience powerful and versatile cooking with the Titan JTRH-24B-2-36C heavy-duty gas range, combining open burners, a charbroiler, and a convection oven in one robust stainless steel unit.

  • Versatile cooking station featuring two 35,000 BTU open burners, a 24-inch charbroiler, and a convection oven.
  • Built for durability with 14 gauge all-welded stainless steel body construction, front, top, sides, and high riser.
  • Precision cooking achieved with infinite control manual gas valves at each burner and a wide oven temperature range.
  • Efficient 35,000 BTU convection oven with a 1/3 HP blower motor ensures even heat distribution for consistent results.
  • Includes essential features like heavy-duty cast iron top grates, drip pans, a 6-inch plate shelf, and adjustable legs.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

770.0 lb

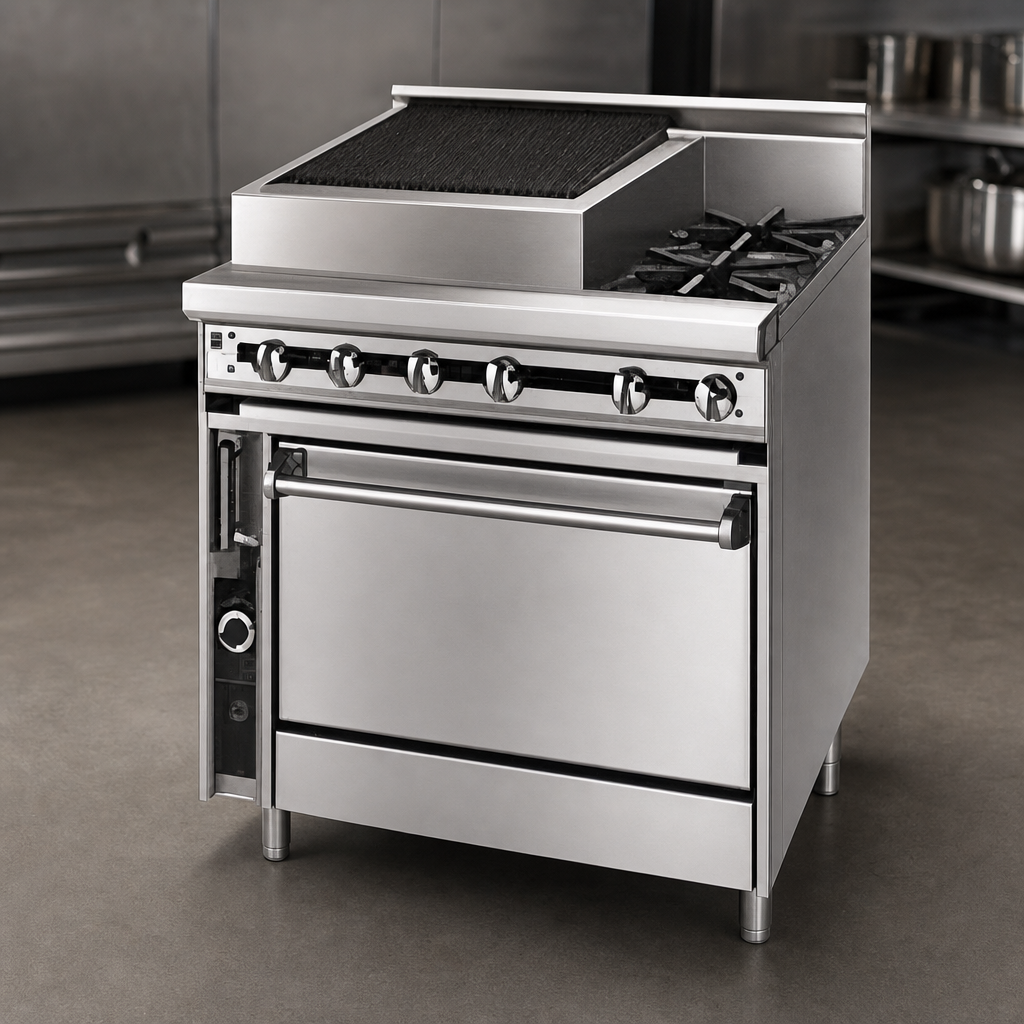

Heavy Duty Construction

Constructed with 14 gauge all-welded body, stainless steel front, top, sides, high riser, stub back, and tray bed for exceptional durability and longevity in demanding commercial kitchens.

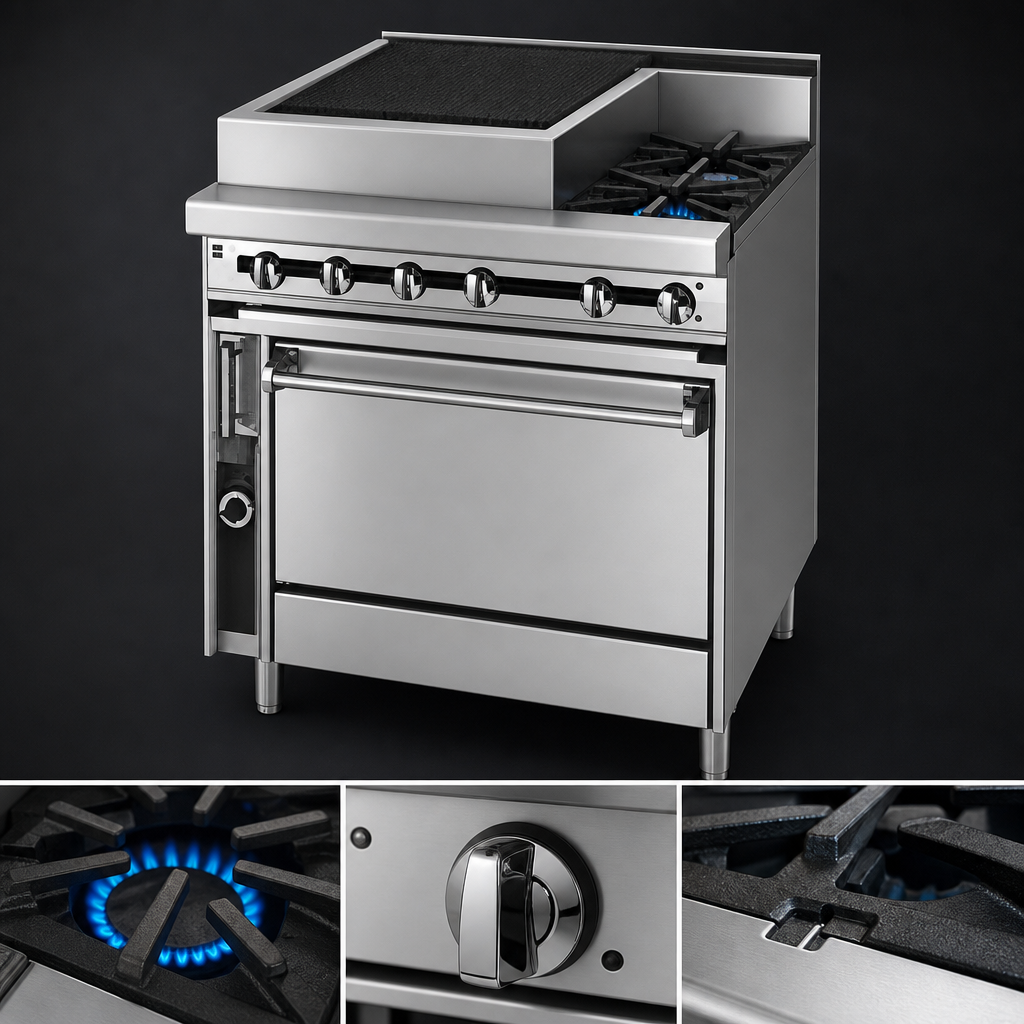

Open Burner Top Section

Equipped with two 35,000 BTU/hr heavy-duty cast iron open burners, each featuring individually controlled infinite manual gas valves for precise heat management. Top grates include built-in grease guides to channel away excess fat and reduce flaring.

Integrated Charbroiler

Features a 24-inch charbroiler section with one 15,000 BTU/hr burner for every 6 inches (totaling 60,000 BTU for the charbroiler), heavy-duty cast iron burner radiants, and two separate 14 gauge steel drip pans to control flare-ups.

Convection Oven Base

The base includes a 35,000 BTU convection oven with a 14 gauge stainless steel interior, two chrome-plated oven racks, and a powerful 1/3 HP 115V blower motor. The thermostat adjusts from 150°F to 550°F for versatile baking and roasting.

Comprehensive Controls

All burners feature infinite control manual gas valves, while the convection oven has a precise thermostat and a 3-position fan switch (on, quick cool down, off). An electronic spark ignitor activates the standing pilot.

Adjustable Legs

Comes with 6-inch stainless steel adjustable legs, allowing for easy leveling and optimal working height.

Plate Shelf

A 6-inch stainless steel plate shelf is integrated, providing convenient space for plating and holding finished dishes.

Gas Regulator Included

Supplied with a 3/4-inch gas pressure regulator, which must be installed for proper and safe operation.

Type Heavy Duty Range
Style Charbroiler Combination Range
Installation Type Floor Model (With 6" Adjustable Legs)
Gas Type Natural Gas (Convertible to Propane)
BTU 165,000 BTU
Open Burners 2
Open Burner BTU 35,000 BTU Each
Charbroiler Width 24 Inches
Charbroiler Burner BTU 15,000 BTU Each (4 Burners)
Convection Oven BTU 35,000 BTU
Convection Oven Capacity 2 Racks
Oven Interior Dimensions 28 Inches W x 13.75 Inches H x 24.5 Inches D
Temperature Range 150°F to 550°F
Controls Infinite Manual Gas Valves, Oven Thermostat
Material Stainless Steel, Cast Iron
Interior Finish 14 Gauge Stainless Steel
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 4.4 Amps
Plug Type 3-Prong
Cord Length 6 Feet
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure 5 Inches W.C. (Natural Gas), 10 Inches W.C. (Propane Gas)
Blower Motor Horsepower 1/3 HP
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 795 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This range is designed for Natural Gas operation with an operating pressure of 5 inches W.C. minimum. It can also be converted to Propane Gas, which requires a minimum operating pressure of 10 inches W.C.
The range has a total BTU output of 165,000 BTU. This includes two 35,000 BTU open top burners, a 24-inch charbroiler with 15,000 BTU per 6-inch section (totaling 60,000 BTU for the charbroiler), and a 35,000 BTU convection oven burner.
The convection oven interior measures 28 inches wide by 13-3/4 inches high by 24-1/2 inches deep.
Yes, the convection oven requires a 115V, 60Hz, 1-Phase electrical supply, drawing 4.4 Amps. It comes with a 6-foot cord and a 3-prong plug to power the blower motor and electronic spark ignitor.
The range features a heavy-duty 14 gauge all-welded body construction with stainless steel front, top, sides, high riser, stub back, and tray bed. The open burners and charbroiler utilize heavy-duty cast iron top grates and burner radiants, while the oven interior is also 14 gauge stainless steel.
