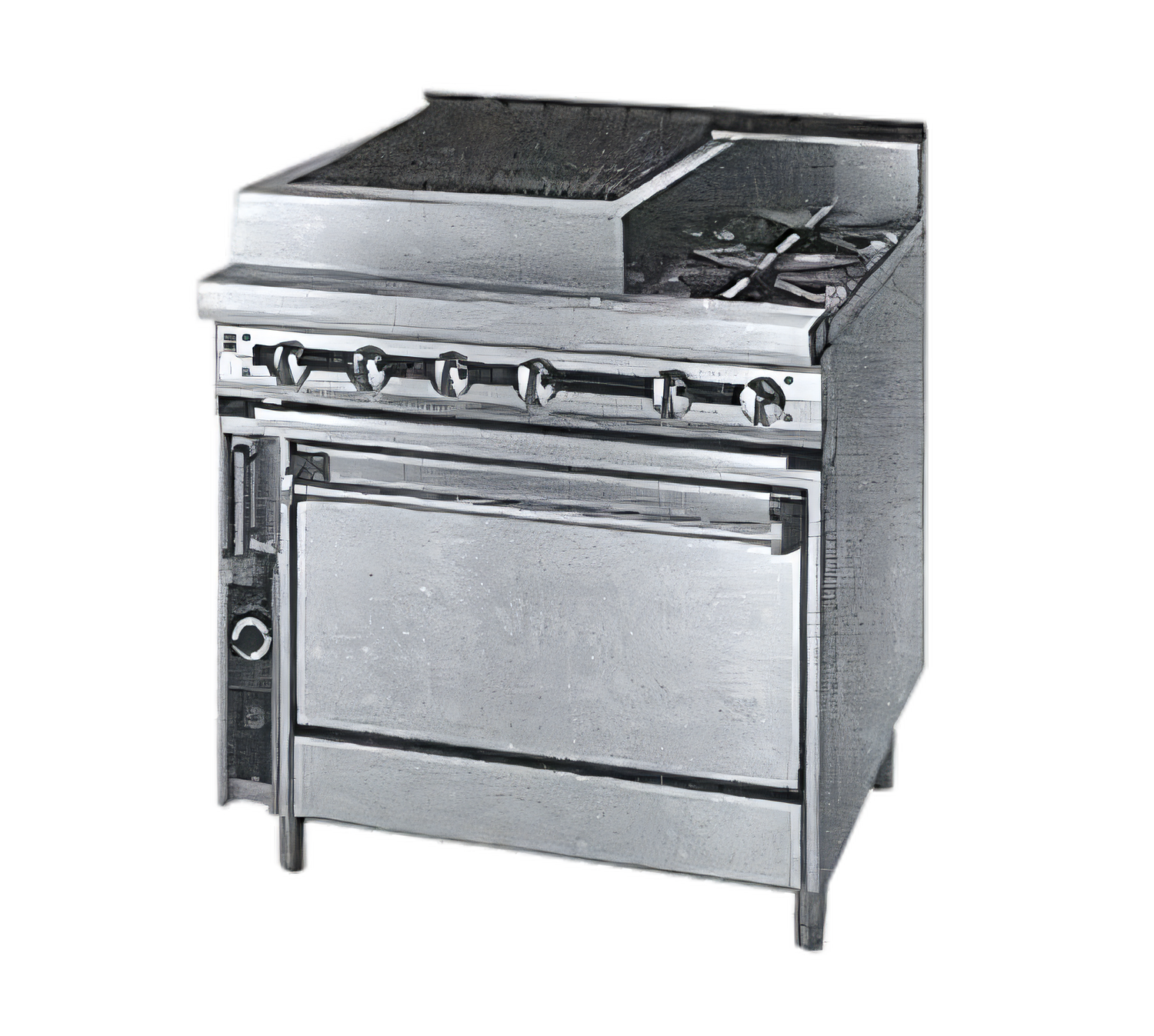

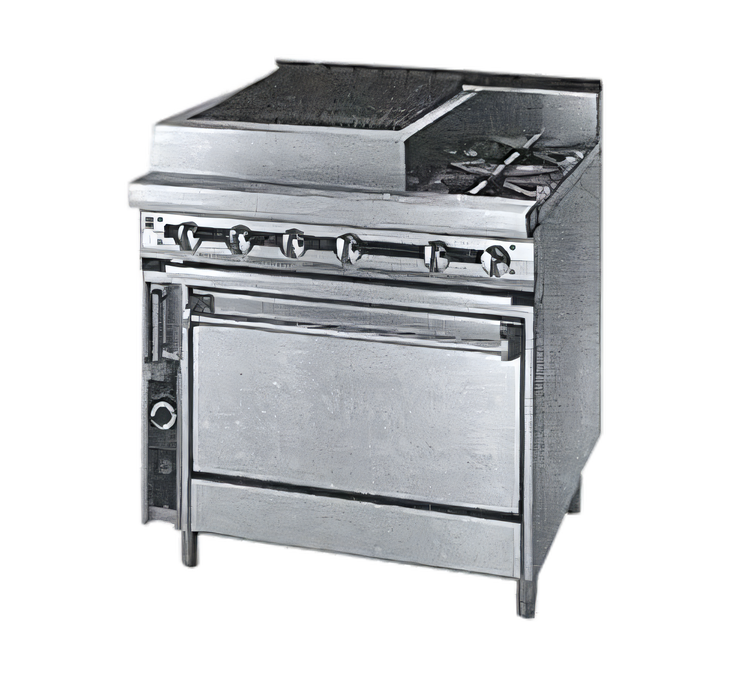

Titan JTRH-24B-12WT-36 Heavy Duty Gas Range with 24 Inch Charbroiler, 12 Inch Work Top, and Standard Oven
Titan JTRH-24B-12WT-36 Heavy Duty Gas Range with 24 Inch Charbroiler, 12 Inch Work Top, and Standard Oven
36 Inch Width, Natural Gas, Floor Model
Designed for demanding commercial kitchens, the Titan JTRH-24B-12WT-36 offers a versatile cooking solution with a powerful charbroiler, convenient work top, and a spacious standard oven.
- Heavy-duty gas range with a 24-inch charbroiler and a 12-inch work top section.
- Equipped with a robust standard oven featuring two chrome-plated racks and a stainless steel interior.
- Constructed with 14 gauge all-welded body and stainless steel front, top, and sides for durability.
- Offers precise temperature control with infinite manual gas valves for each burner.
- Includes a 6-inch stainless steel plate shelf and adjustable 6-inch legs for convenience.
- Features 95,000 BTU total output for efficient cooking.
- CSA-us and NSF certified for commercial use and safety standards.
Heavy Duty Construction
Furnished with 14 gauge all-welded body construction and stainless steel front, top, sides, stub back, and tray bed for exceptional durability and longevity in a commercial setting.
Charbroiler Section
Features a 24-inch charbroiler with heavy-duty cast iron top grates and burner radiants. Each 6-inch section is powered by an individually controlled 15,000 BTU/hr. burner.
Work Top Section
Includes a 12-inch work top for additional preparation or holding space.
Standard Oven Base
Conventional oven base with a 35,000 BTU burner, stainless steel lining, and two removable oven racks. The thermostat adjusts from 150°F to 550°F for versatile cooking.
Grease Management
Cast iron top grates include built-in grease guides that channel away excess fat, reducing flare-ups. Two separate 14 gauge steel drip pans further assist in grease control.
Precise Heat Control
Infinite control manual gas valves at each burner allow for precise heat management across all cooking surfaces.
Adjustable Legs and Plate Shelf
Comes with 6-inch stainless steel adjustable legs for leveling and a 6-inch stainless steel plate shelf for added utility.
Specifications
| Type | Heavy Duty Range |
|---|---|
| Style | Charbroiler Combination Range |
| Installation Type | Floor Model (With 6" Adjustable Legs) |
| Gas Type | Natural Gas |
| BTU | 95,000 BTU |
| Charbroiler Width | 24 Inches |
| Work Top Width | 12 Inches |
| Oven Type | Standard |
| Pan Capacity | 2 Oven Racks |
| Oven Interior Finish | Stainless Steel |
| Controls | Infinite Manual Gas Valves, Thermostatic Oven Control |
| Temperature Range | 150°F to 550°F (Oven) |
| Material | Stainless Steel, Cast Iron |
| Gas Connection Size | 1-1/4 Inches (Front Manifold), 1 Inch or 3/4 Inch (Rear Manifold) |
| Gas Inlet Pressure | 5 Inches W.C. (Natural Gas), 10 Inches W.C. (Propane Gas) Minimum |
| Shipping Width | 36 Inches |
| Shipping Depth | 38 Inches |
| Shipping Height | 37 Inches |
| Shipping Weight | 680 lb. |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | USA |
Overall Dimensions:
36.0"W x 38.0"D x 36.5"HProduct Weight:
680.0 lbCertifications & Compliance
Warranty & Protection
Manufacturer provides a standard warranty.
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
