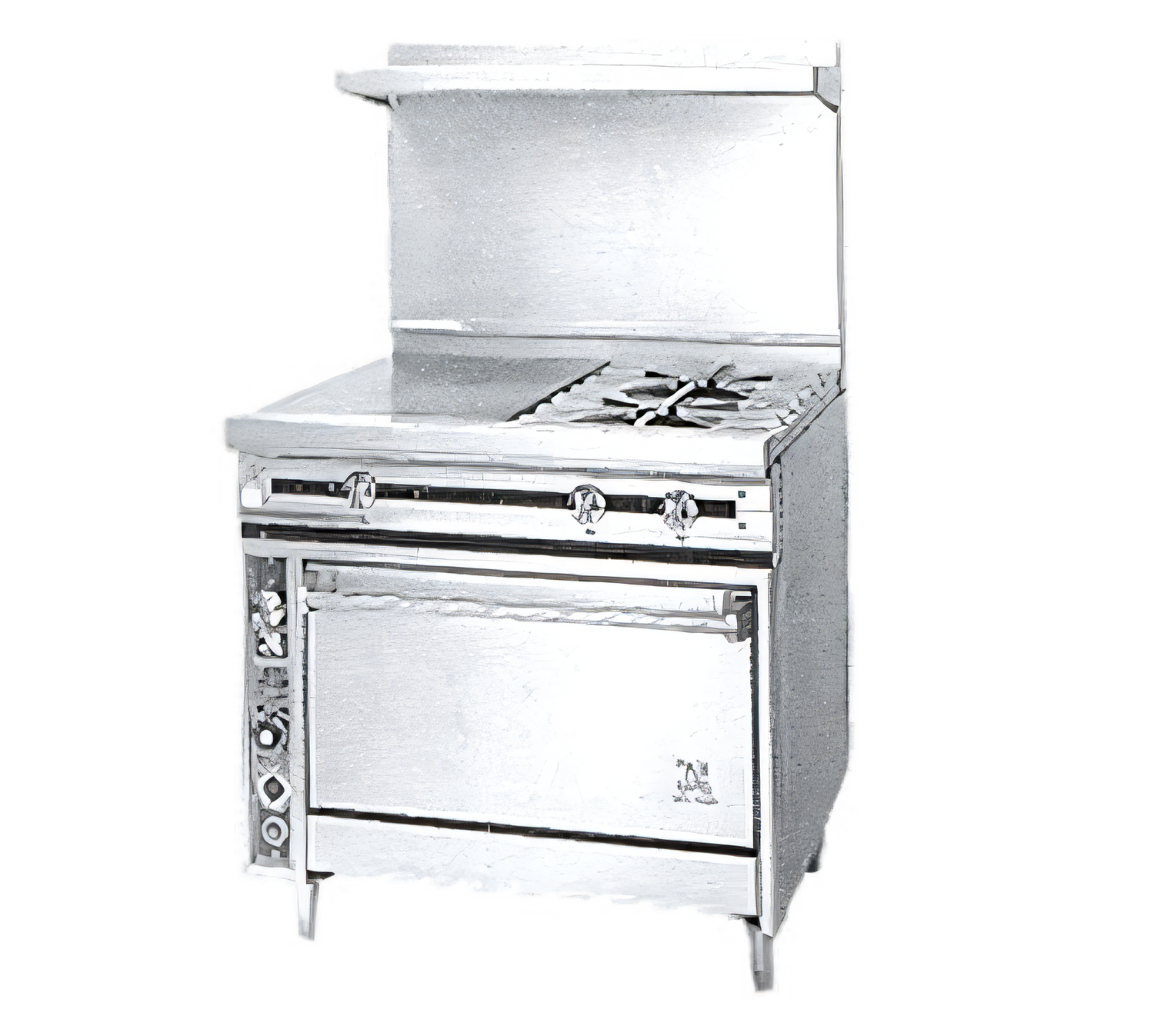

Jade Titan 36" Heavy Duty Gas Range with 18" Hot Top and 18" Manual Griddle, Cabinet Base

SKU: JTRH-18G-1HT
$14,846.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Jade Titan 36" Heavy Duty Gas Range with 18" Hot Top and 18" Manual Griddle, Cabinet Base

Full-Size, Natural Gas Ready, Manual Controls

This robust Jade Titan 36" heavy duty gas range provides versatile cooking with an 18" hot top and an 18" manual griddle, perfect for demanding commercial kitchens.

  • Combines an 18" hot top and an 18" manual griddle for diverse cooking applications.
  • Constructed with a durable stainless steel front, sides, stub back, and bottom for longevity.
  • Features a practical cabinet base for convenient storage beneath the cooking surface.
  • Equipped with a 6" stainless steel plate shelf for added workspace or plating.
  • Designed for heavy-duty commercial use with a total output of 70,000 BTU.
  • Includes 6" adjustable legs for easy leveling and cleaning access.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

775.0 lb

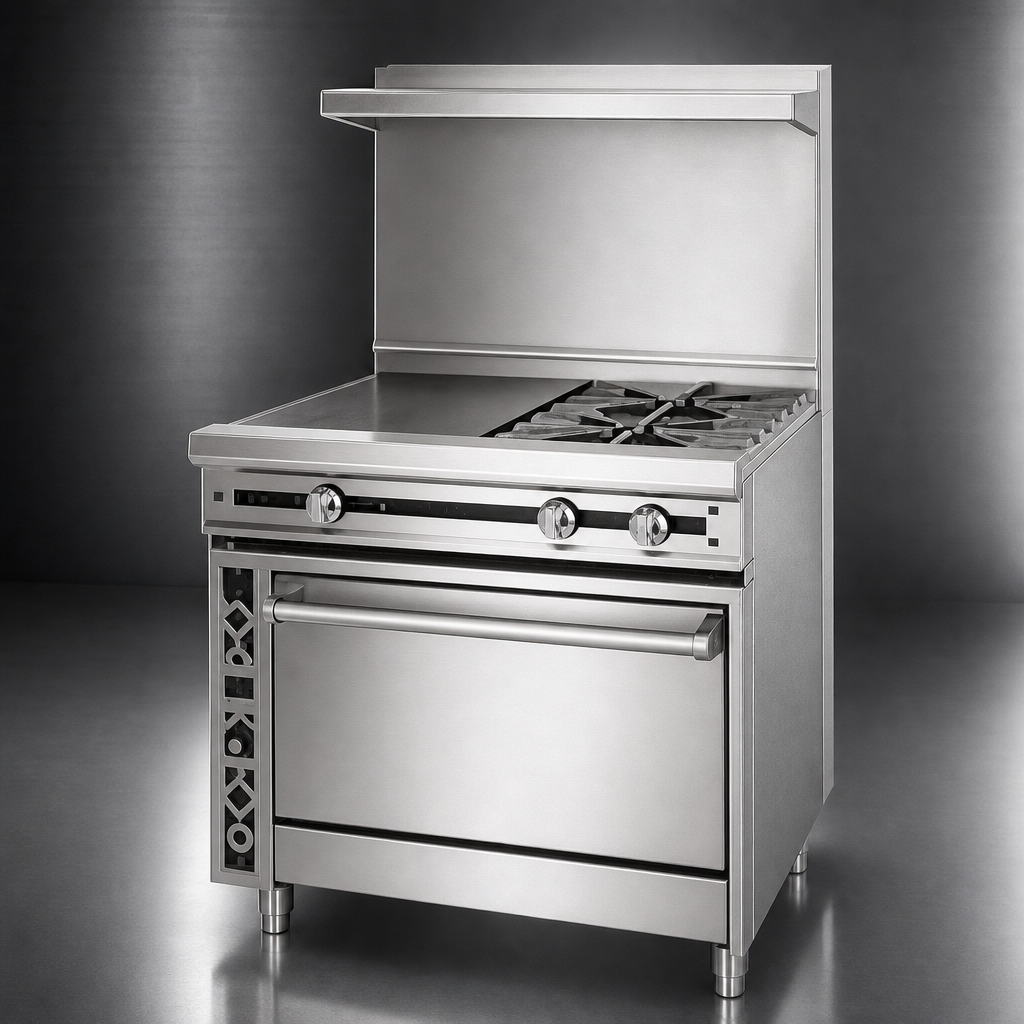

Heavy Duty Construction

Built with stainless steel front, sides, stub back, and bottom for commercial durability.

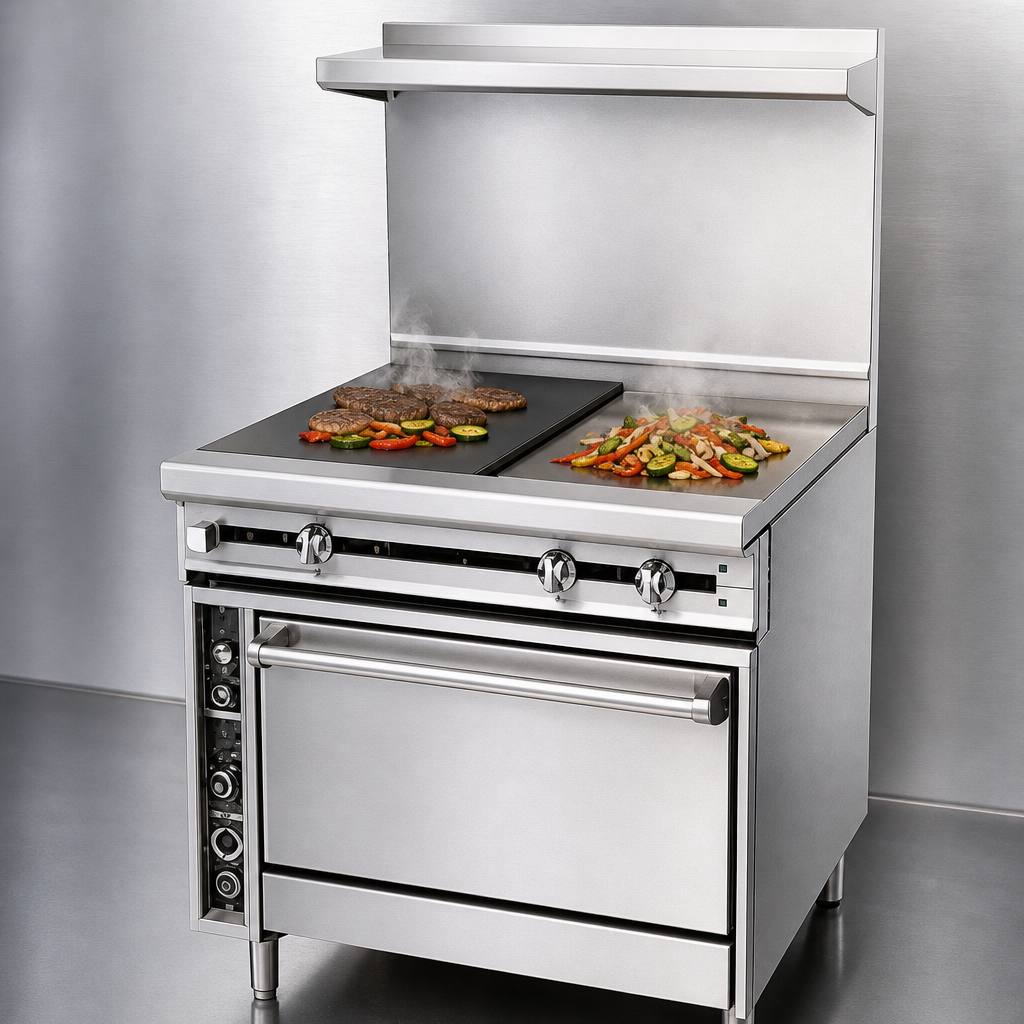

Versatile Cooking Surface

Features one 18" hot top with a cast iron even heat top and a 35,000 BTU burner, alongside one 18" griddle with a high-polished 1" steel plate and a 35,000 BTU burner with manual infinite gas valves.

Cabinet Base

Provides enclosed storage with a stainless steel interior and exterior, ideal for keeping kitchen essentials organized.

Integrated Plate Shelf

A 6" stainless steel plate shelf offers convenient space for plating or holding dishes.

Adjustable Legs

Equipped with 6" stainless steel adjustable legs for precise leveling and easy cleaning underneath.

Reliable Gas System

Includes variable size multi-point gas connection, one stainless steel pilot per burner, and stainless steel gas tubing throughout for consistent performance.

Stainless Steel Tray Bed

Durable stainless steel tray bed for easy maintenance.

Type Heavy Duty Range
Style Commercial Gas Range
Installation Type Floor Model (With 6" Adjustable Legs)
BTU 70,000 BTU
Gas Type Natural Gas (Field Convertible to Propane)
Gas Connection Size 1-1/4 Inches NPT (Front), 1 Inch or 3/4 Inch NPT (Rear)
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. minimum, 7 Inches W.C. maximum
Gas Inlet Pressure (Propane) 10 Inches W.C. minimum, 14 Inches W.C. maximum
Cooking Surface Width 36 Inches
Cooking Surface Depth 38 Inches
Plate Thickness 1 Inch
Controls Manual
Material Stainless Steel
Interior Finish Stainless Steel (Cabinet)
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 775.0 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Contact Manufacturer for Details

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This Jade Titan range features one 18-inch hot top and one 18-inch manual griddle, providing versatile cooking options for different culinary tasks.
This model is equipped with a stainless steel cabinet base, offering convenient storage space for kitchen utensils or supplies directly beneath the cooking surface.
The range comes with a 1-1/4 inch front manifold connection and can also utilize a 1 inch or 3/4 inch capped rear manifold connection. A 3/4 inch gas pressure regulator is supplied. Users must specify the required gas type (Natural Gas or Propane) and altitude if above 2,000 feet when ordering.
The range is constructed with a durable stainless steel front, sides, stub back, bottom, plate shelf, and adjustable legs. The hot top features cast iron for even heat, and the griddle has a high-polished 1-inch steel plate. The cabinet base also has stainless steel interior and exterior.
The total BTU output for this model is 70,000 BTU, derived from 35,000 BTU for the 18-inch hot top and 35,000 BTU for the 18-inch manual griddle.
